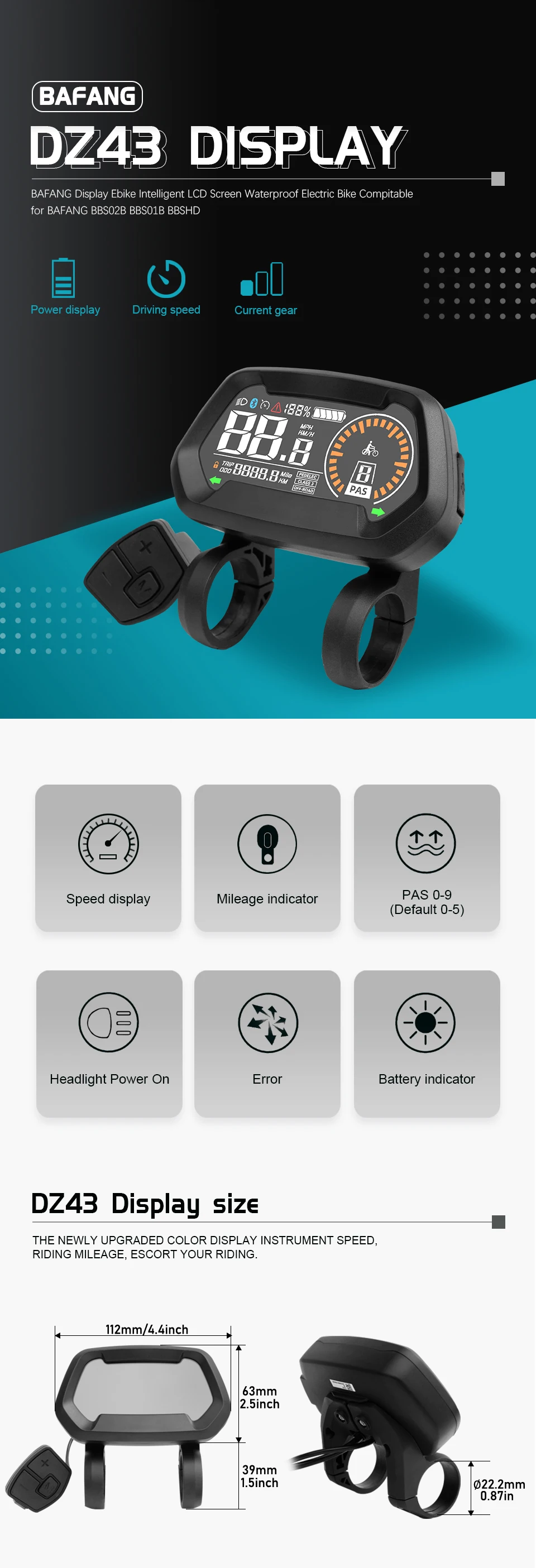

DZ43 display

Bafang DZ43 Display LCD Colour Screen with 5 Pin Female Plug Waterproof Connector Use for BBS01 BBS02 BBSHD Motor Conversion Kit

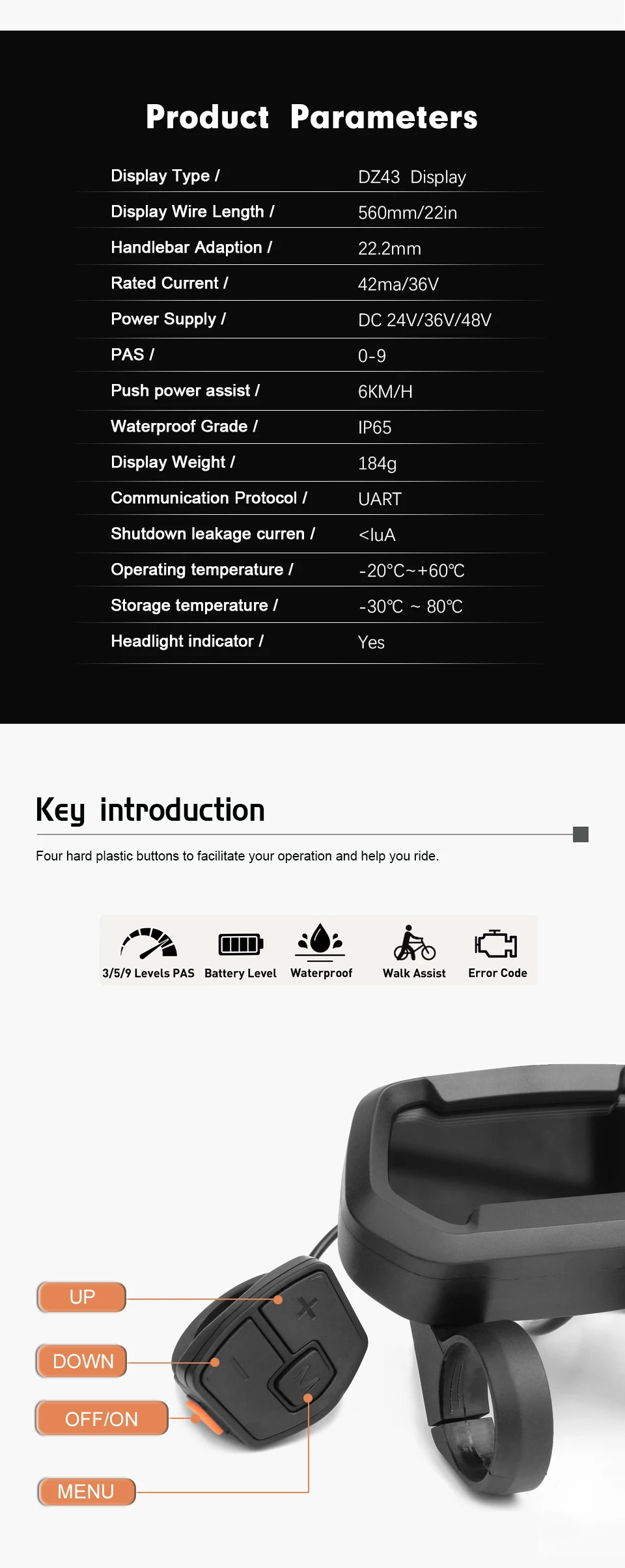

  Specification

•Power supply:24V/36V

• Weight:184 grams

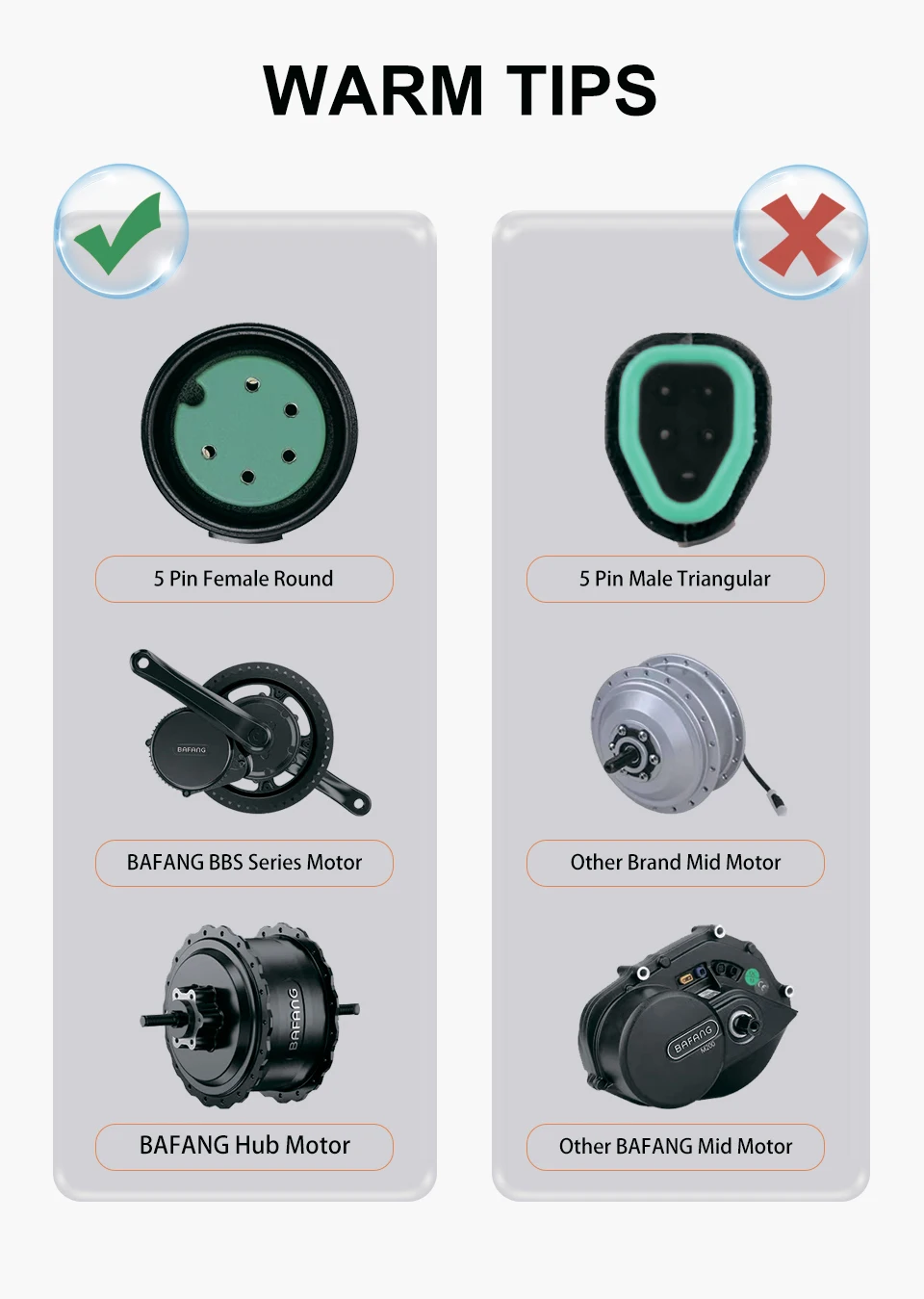

•Interface type: 5-pin waterproof interface

•Applicable handle size: 22.2mm/0.9 inches

•Support level mode: 0-9

•Storage temperature: -25-75 ℃

•Working temperature: -20-60 ℃

•Communication method: UART and CAN bus

•Turn off leakage current<1uA

•Waterproof rating: IP65

•Compatible motor: Suitable for BAFANG BBS01 BBS02 BBSHD mid mounted motor

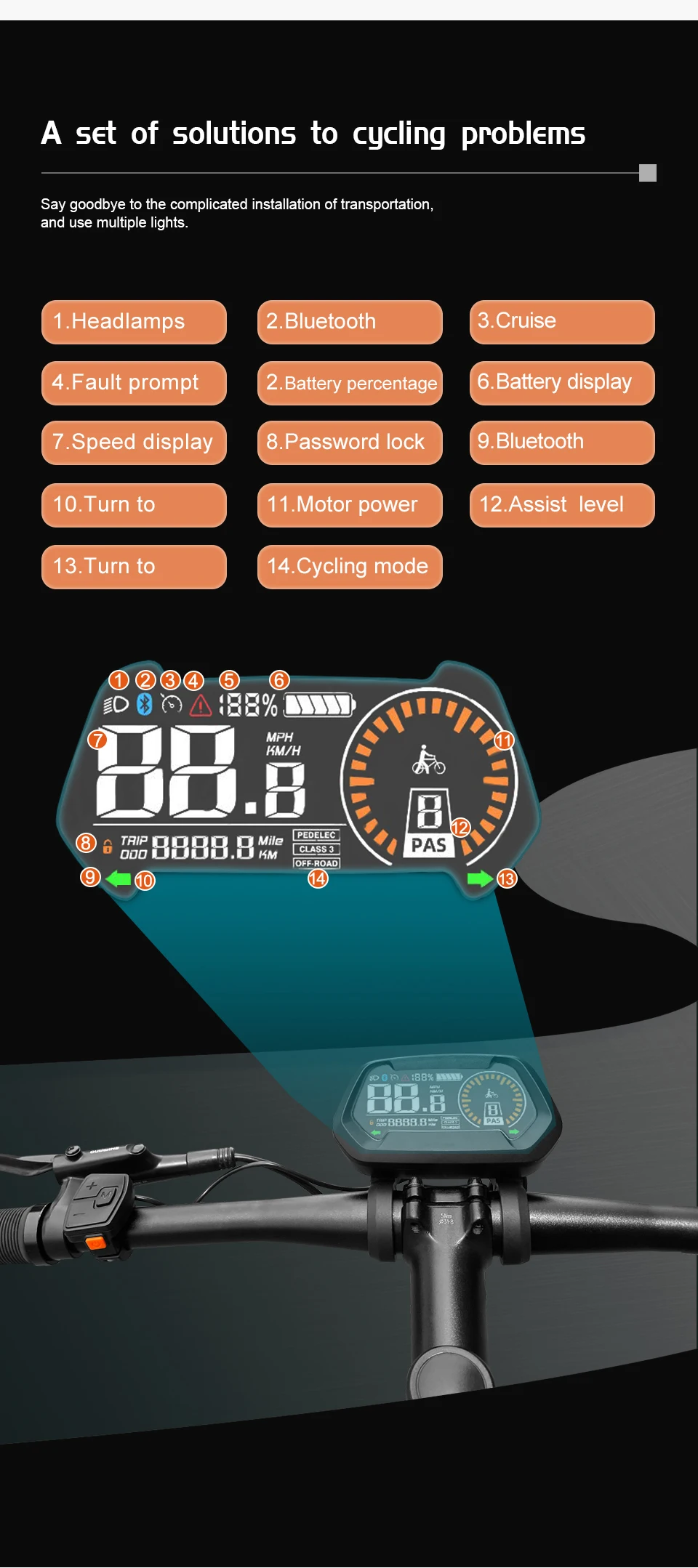

  Function Introduction

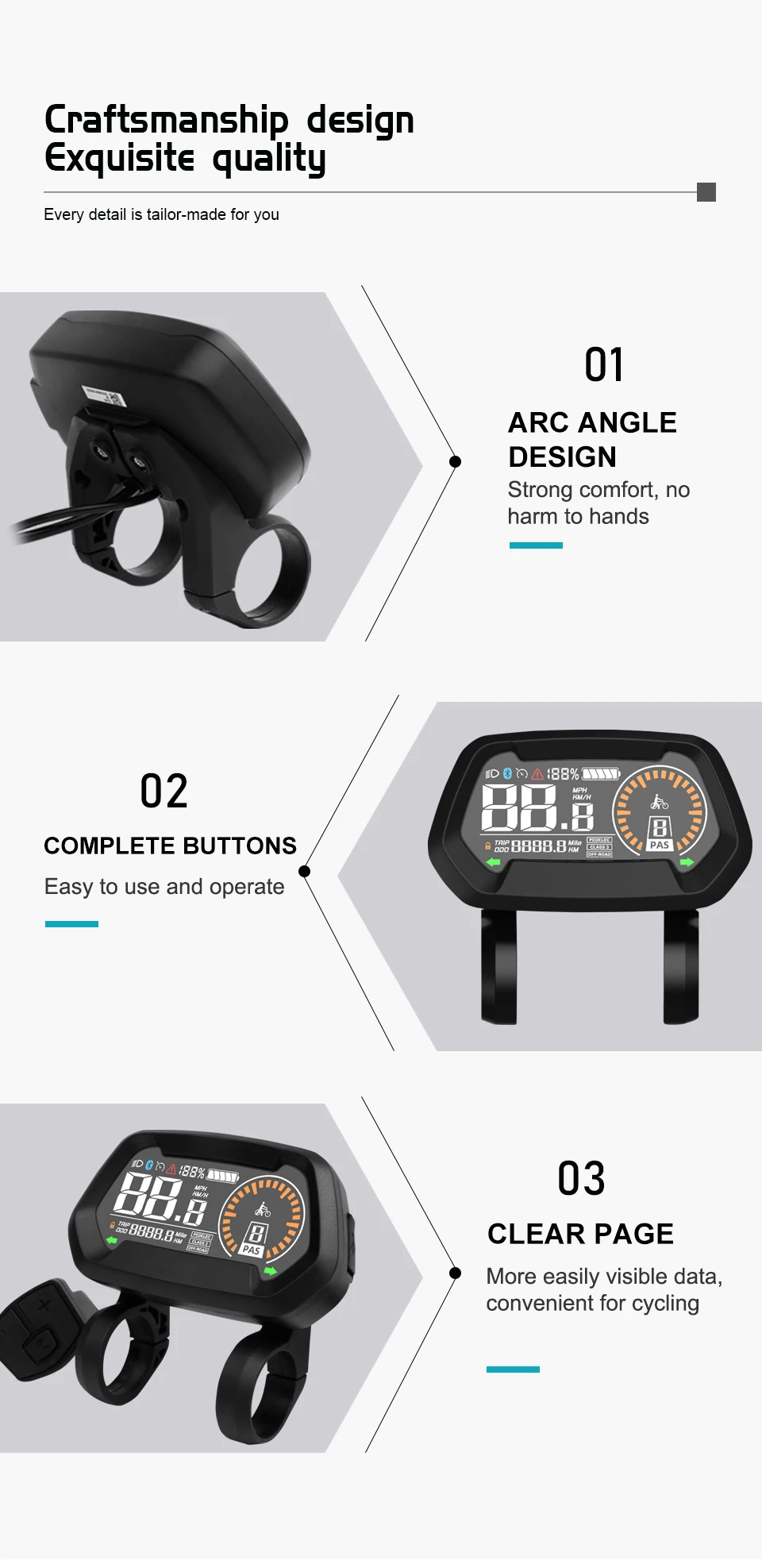

•Four buttons, easy to operate

•Support power-on password, cruise control and automatic headlights.

•6km/h boost implementation function

•Mileage display: subtotal mileage (TRIP) and total mileage (ODO)

•Gear control: the default gear is 0-5 (the maximum gear is 9, and the number of gears is optional).

•Level 6 power indicator: 1-5 power levels, and under-voltage prompt.

•Headlight indication: Headlight switch status indication (supported by controller)

•Motor power display: real-time display of motor output power (segmented display)

 Attending cycling mode switching

 Communication interface, convenient for system maintenance and parameter setting.

 Fault code indication

•Error code indication(The communication interface of the connecting line is convenient for system maintenanceand parameter setting)

  PACKING LIST

1.Bafang LCD display

2.Display holder and gaskets
