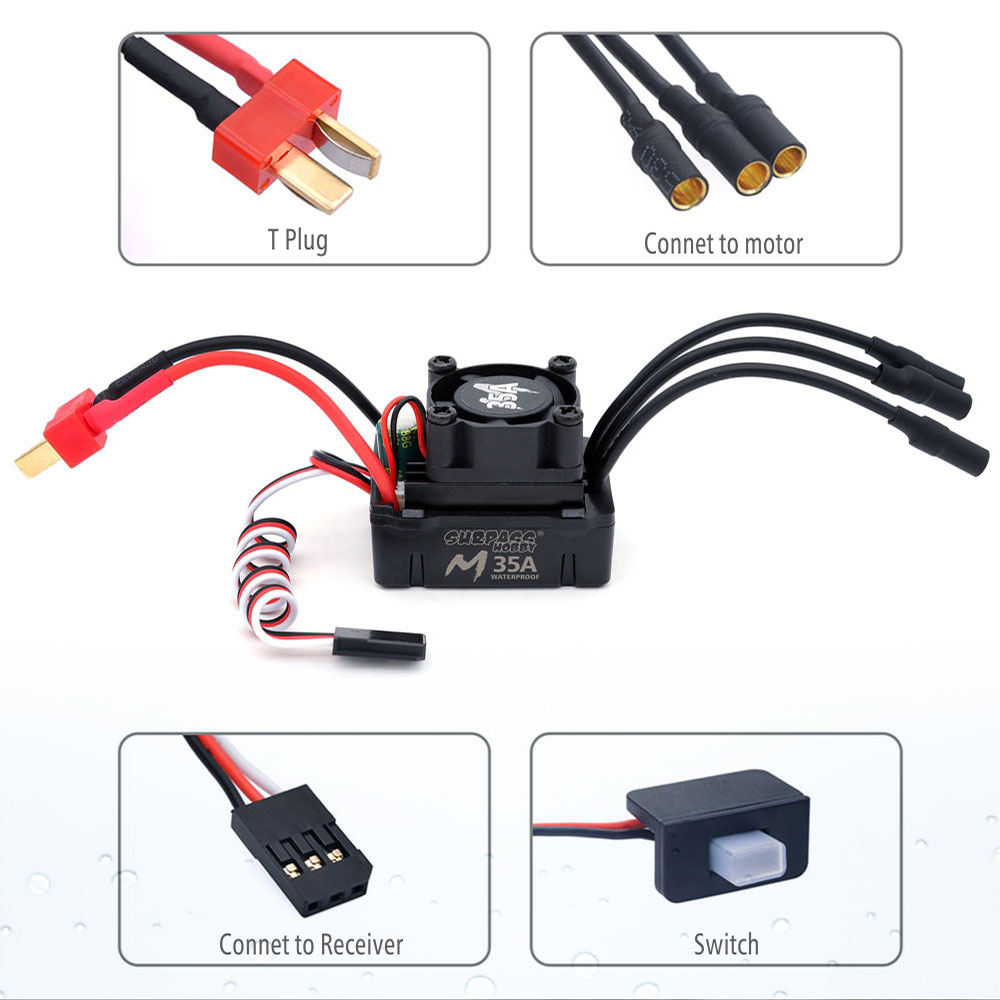

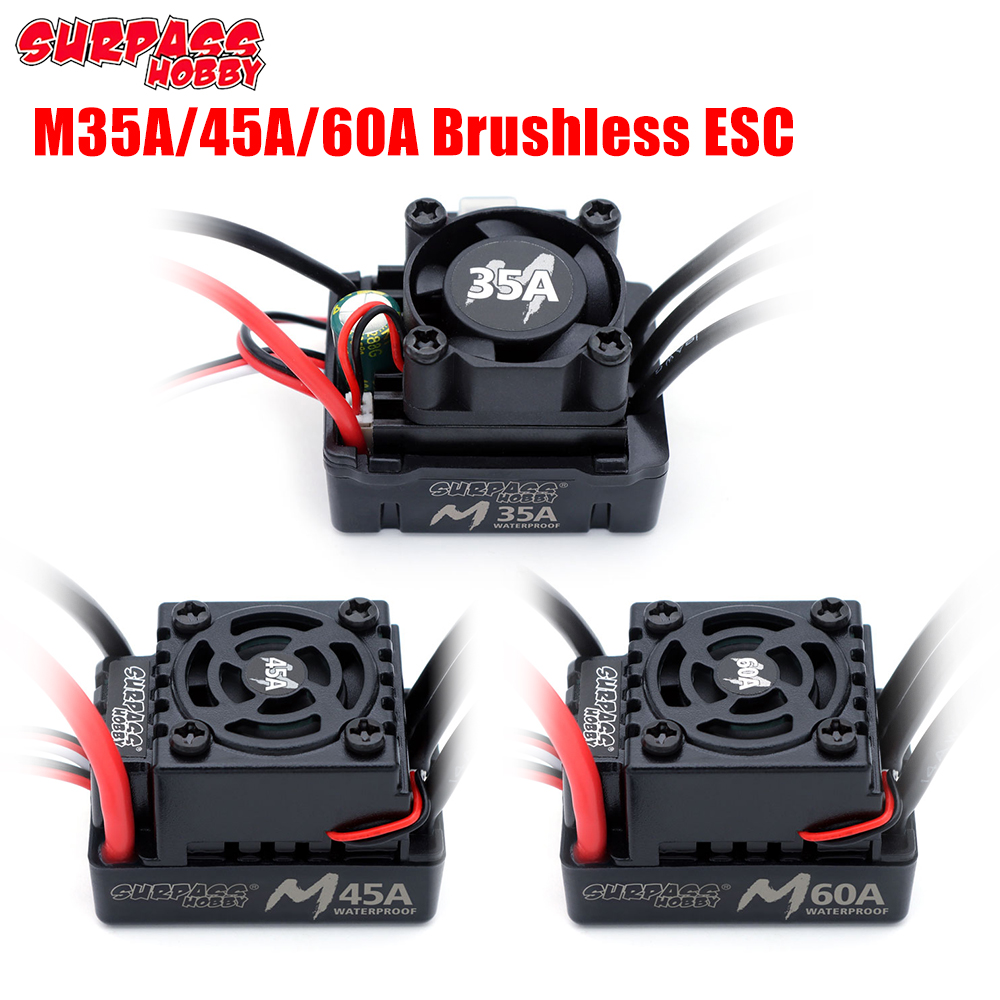

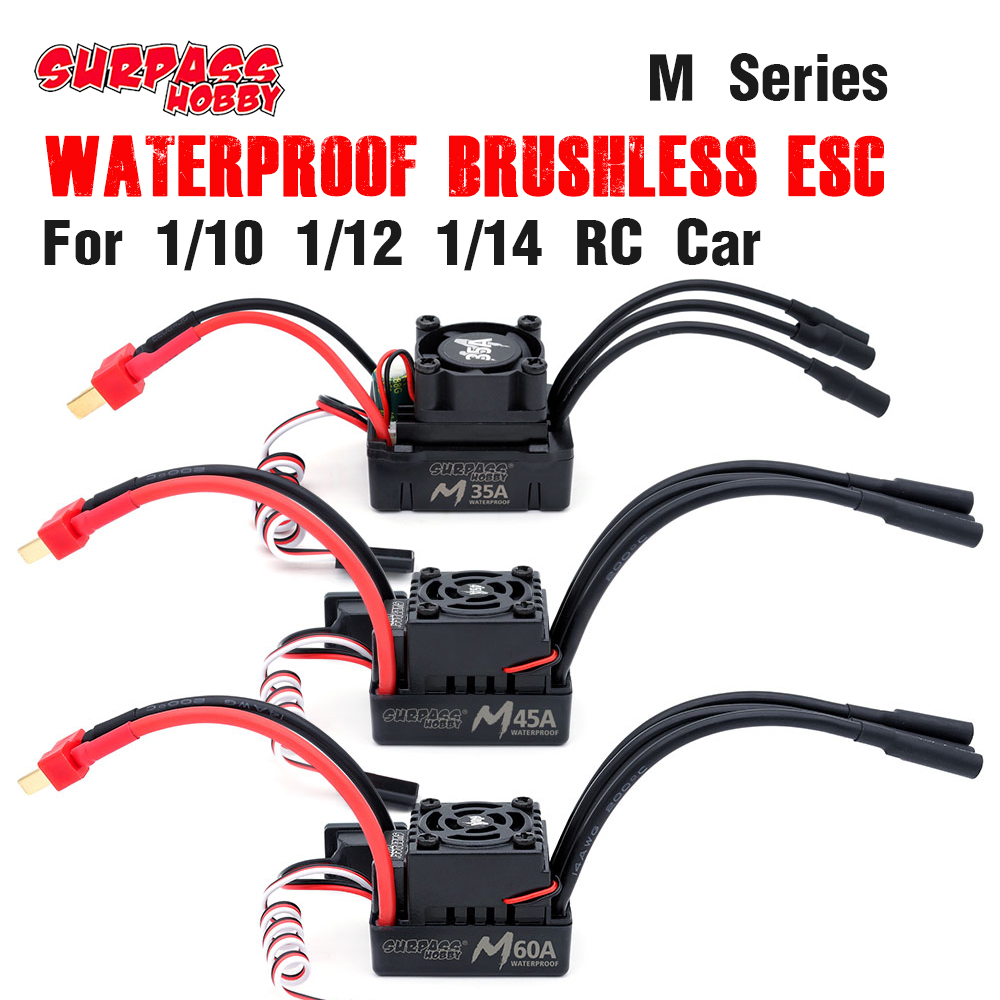

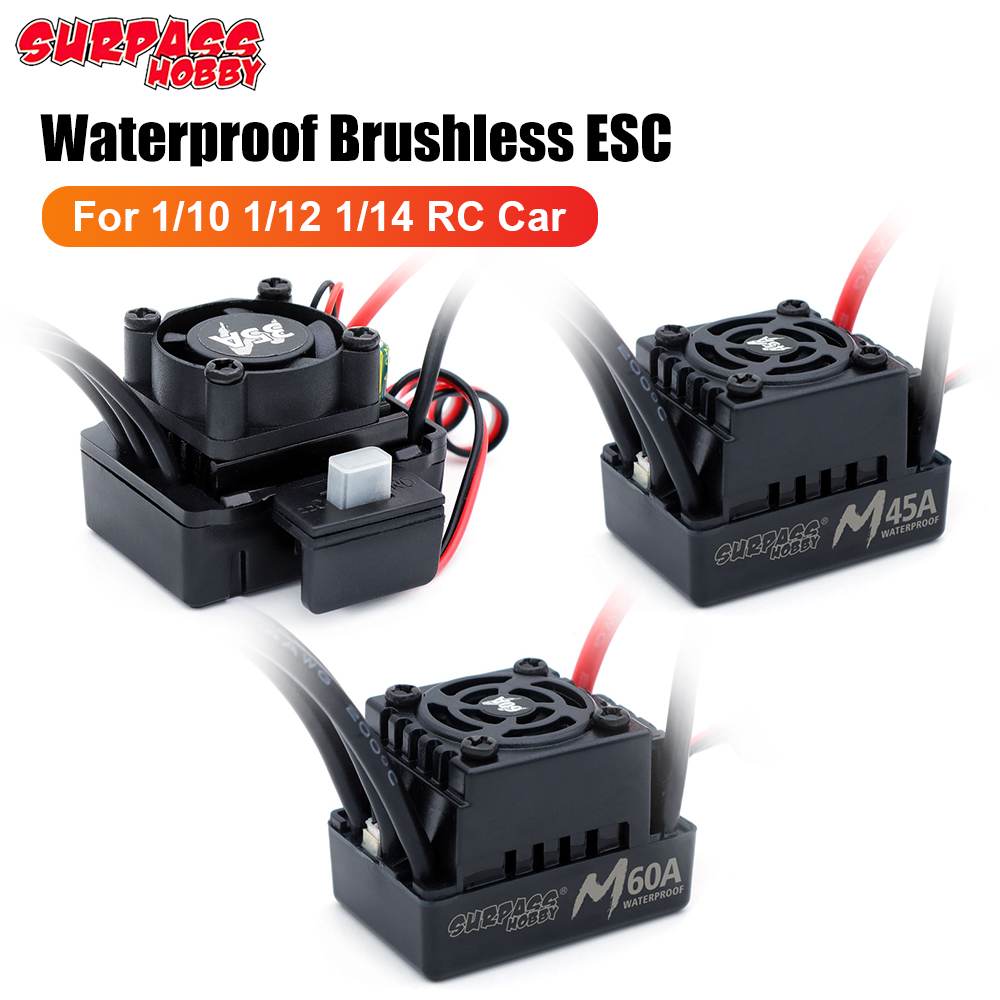

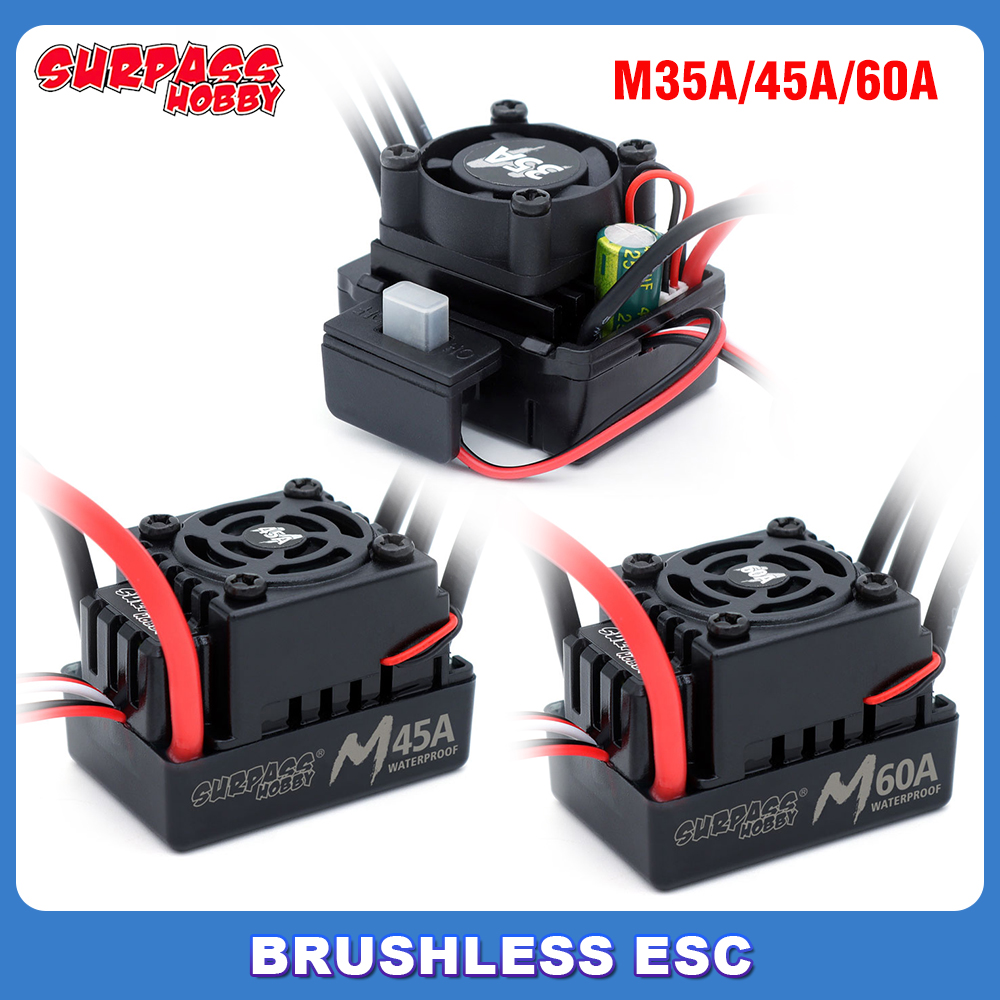

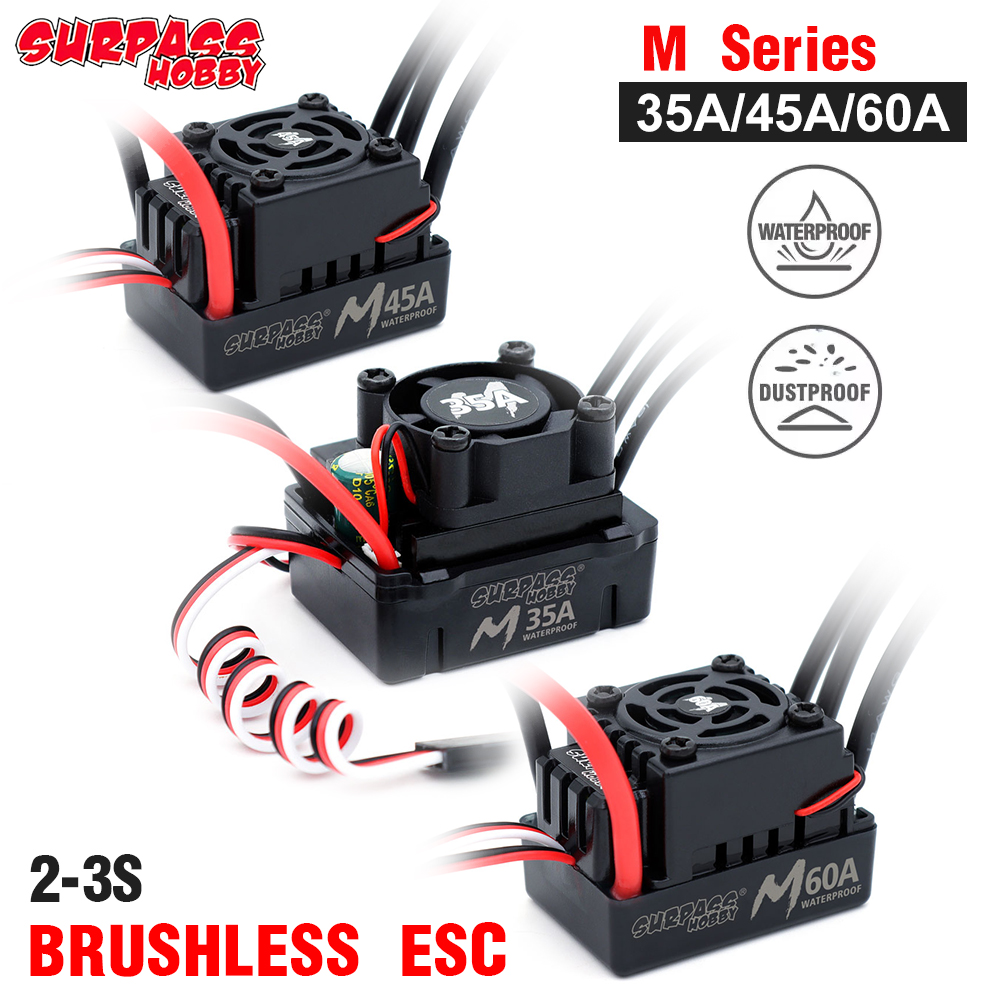

Surpass Hobby M35A M45A M60A Brushless ESC 2-3S Built-in BEC Waterproof Speed Controller For 1/10 1/12 1/14 RC On-road Buggy Monster Car

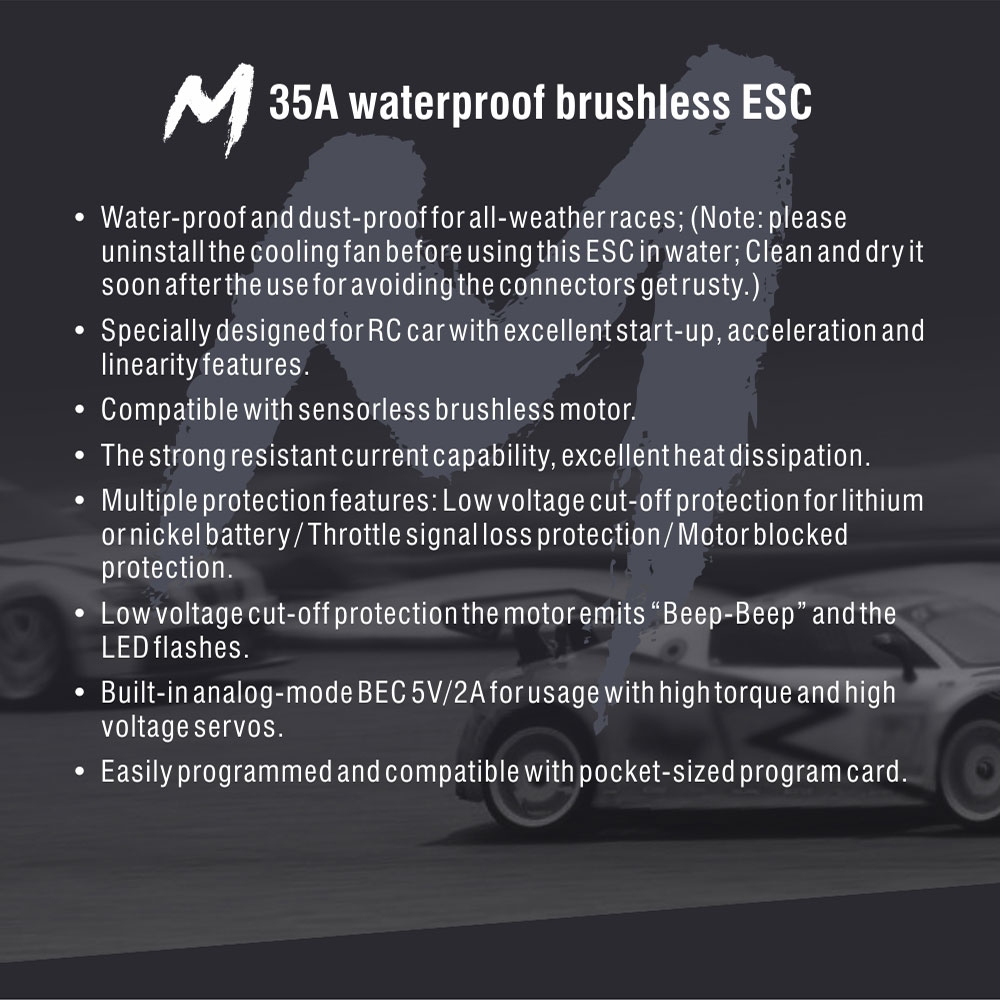

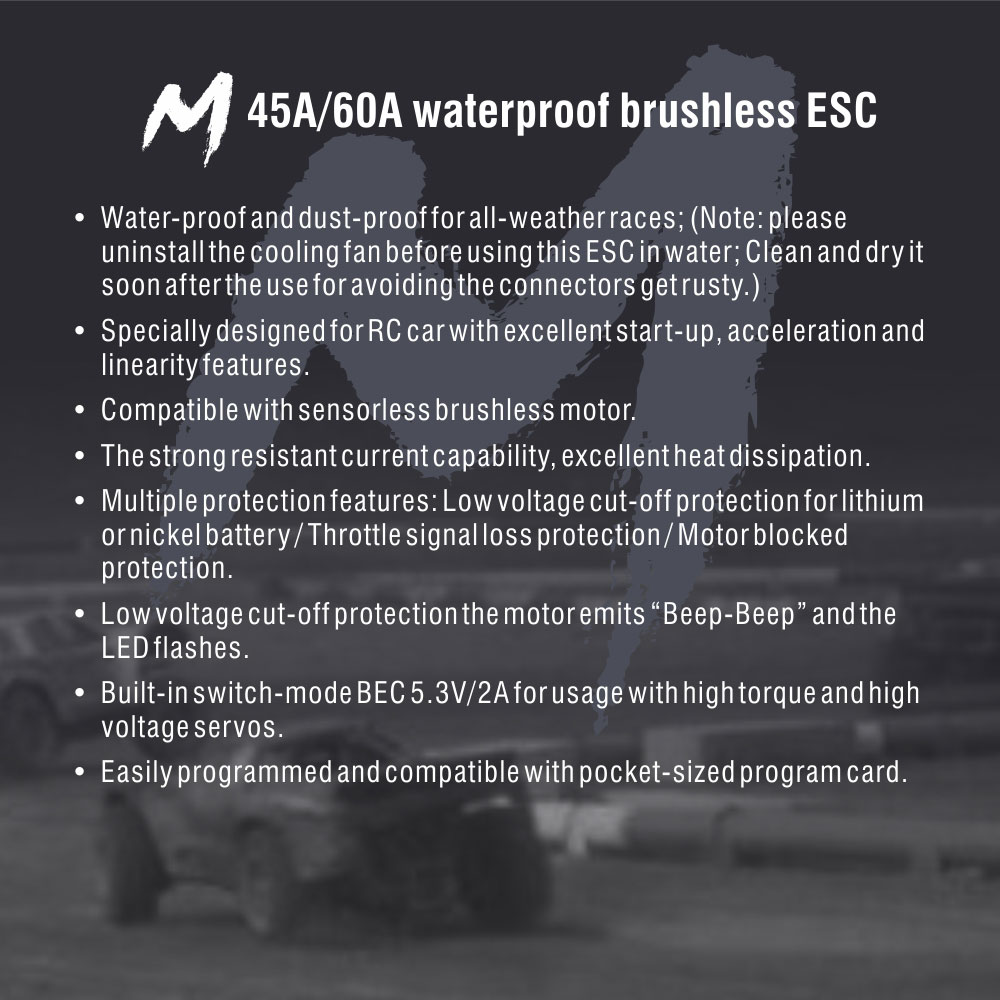

Features:

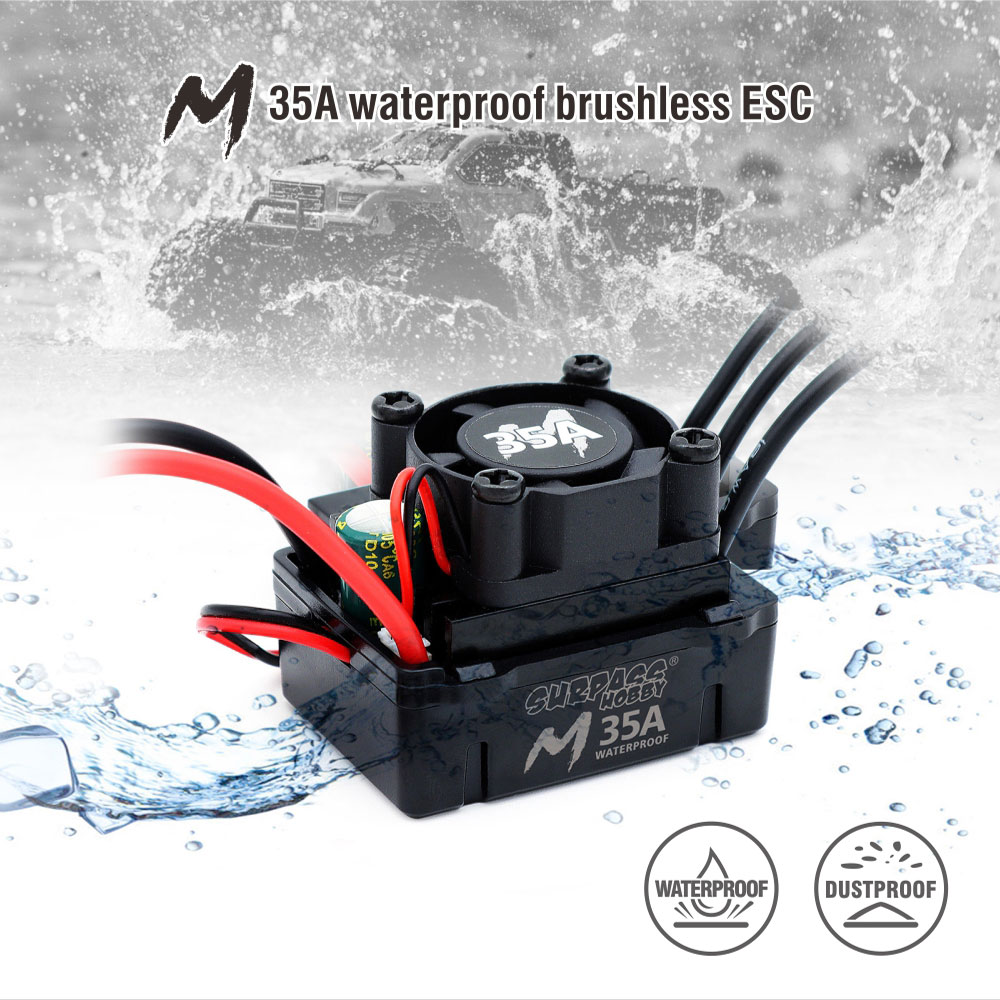

1. Water-proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity features.
3.Compatible with sensorless brushless motor.
4. The strong resistant current capability,excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for lithium or nickel battery/Throttle signal loss protection /Motor blocked protection.
6. Low voltage cut-off protection the motor emits"Beep-Beep"and the LED flashes.
7.Built-in switch-mode BEC for usage with high torque and high voltage servos.
8. Easily programmed and compatible with pocket-sized program card.
Description:

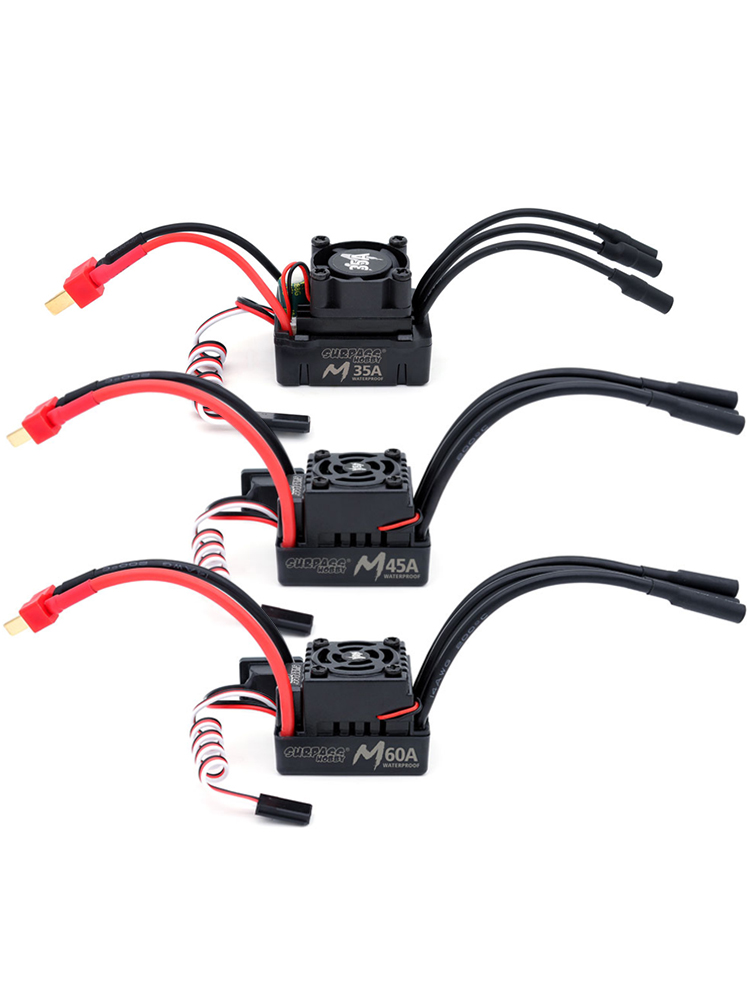

M35A M45A M60A Brushless ESC,Compatible with sensorless brushless motor,The strong resistant current capability,excellent heat dissipation,equipped with Low voltage cut-off protection for lithium or nickel battery/Throttle signal loss protection /Motor blocked protection.

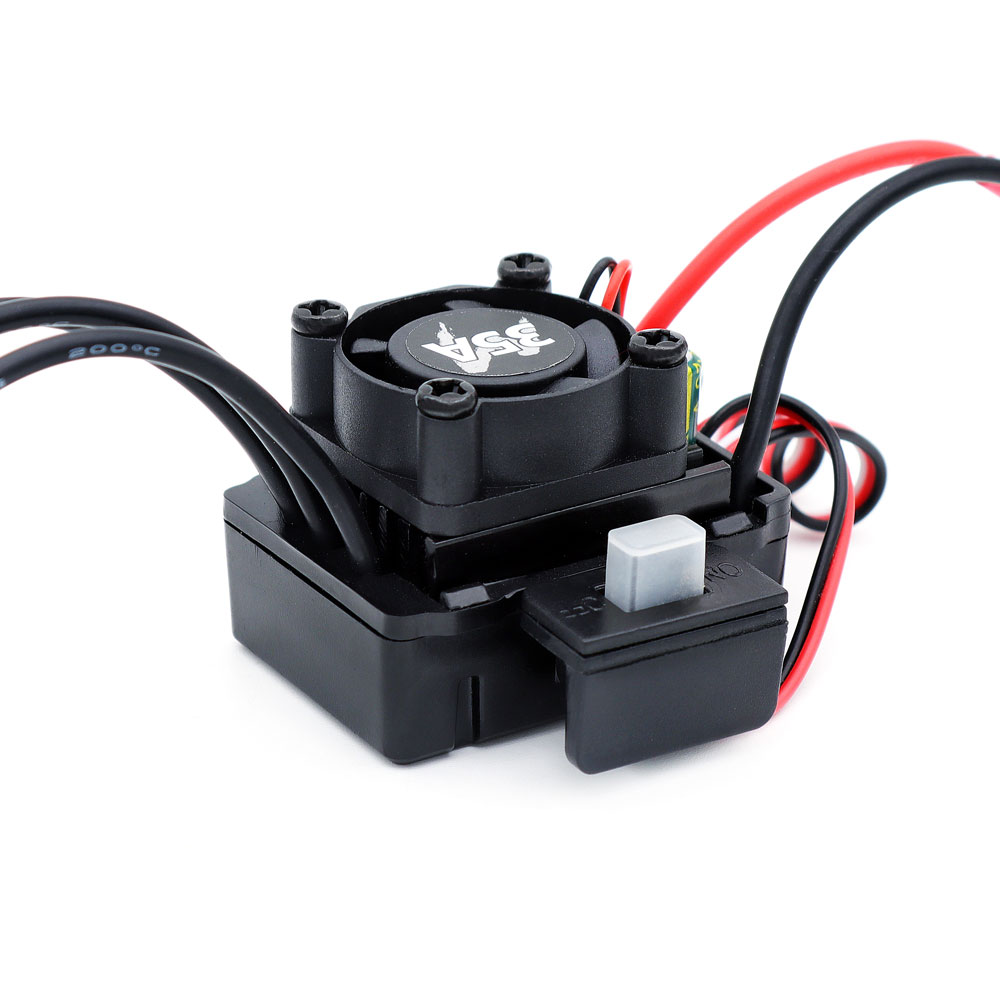

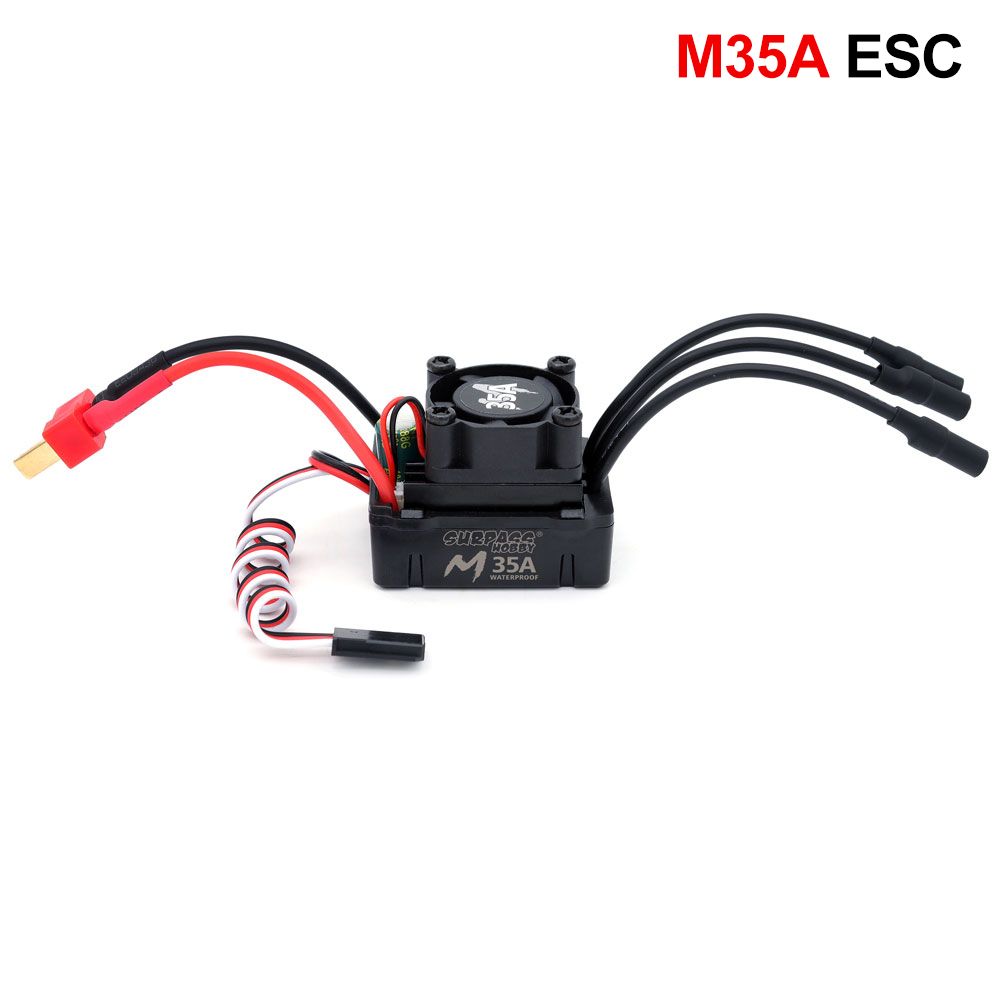

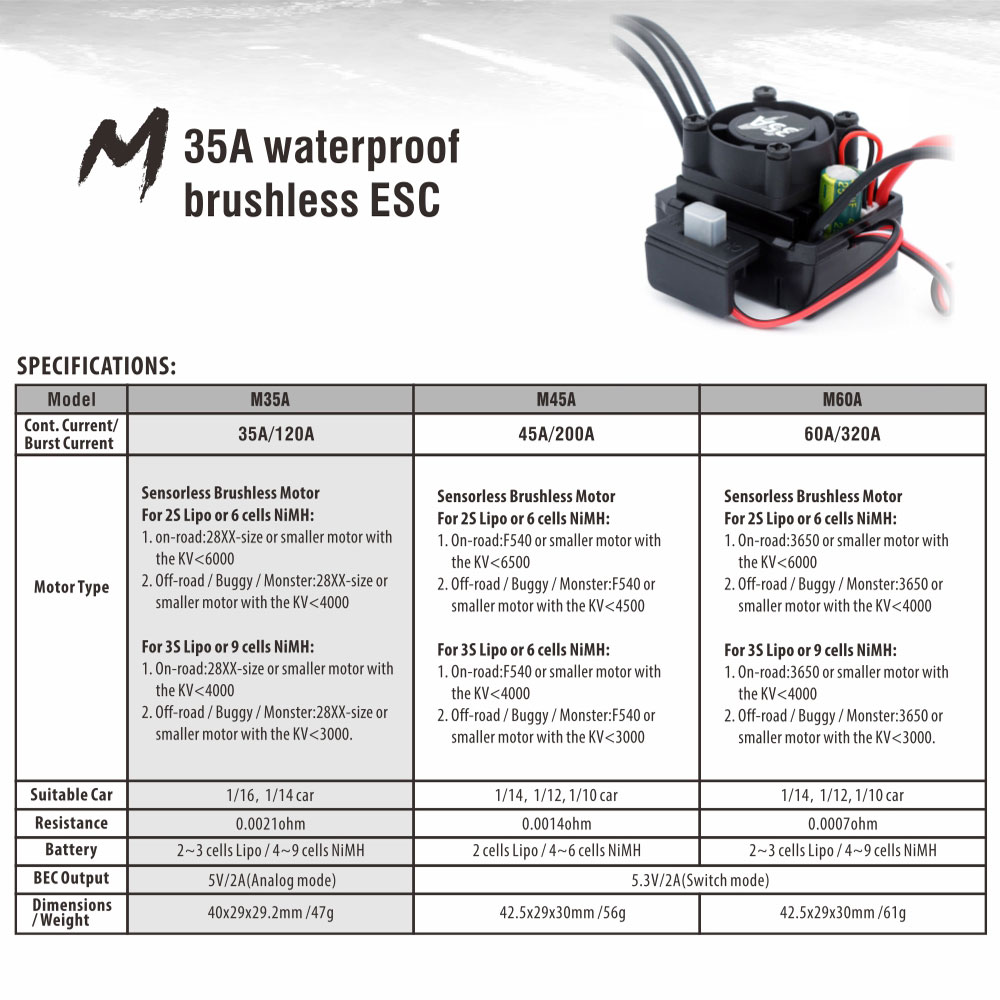

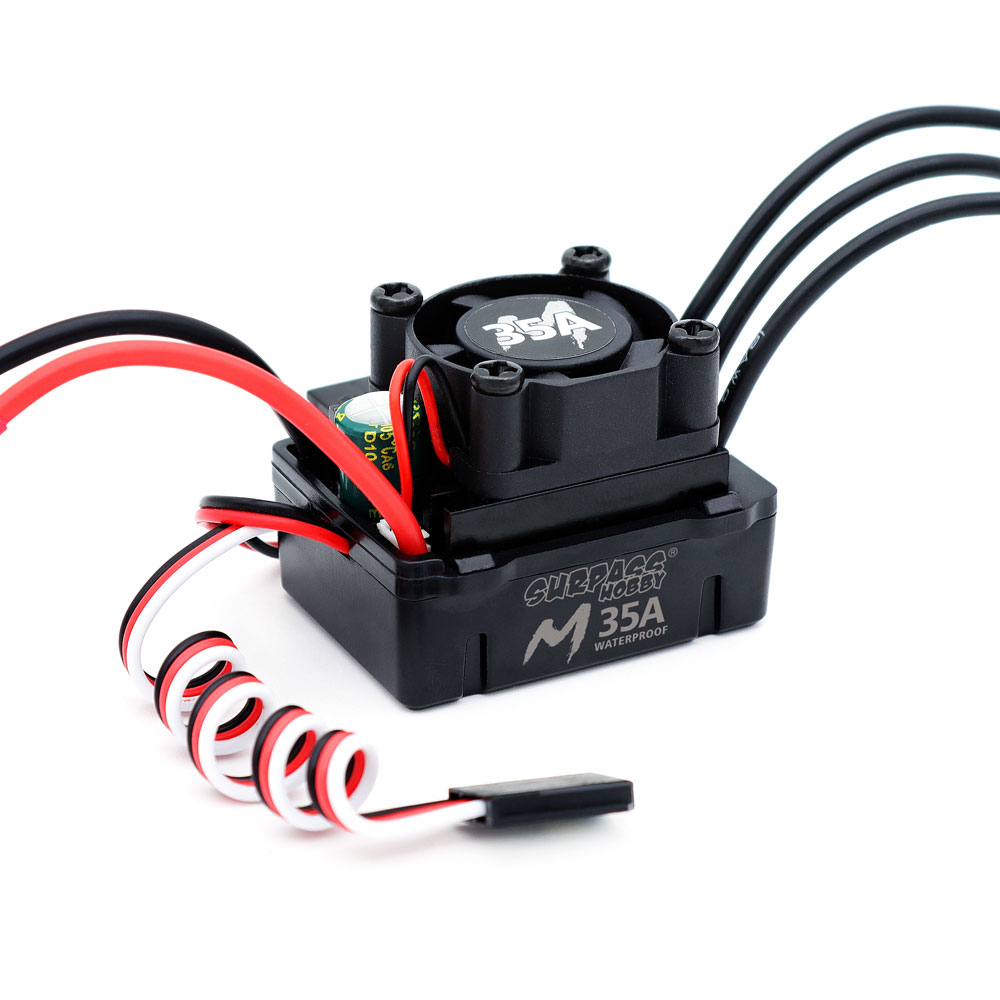

M35A Specifications:
Cont.Current/Burst Current: 35A/120A
Suitable Car: 1/16, 1/14 Car
Resistance: 0.0021ohm
Battery: 2~3 cells Lipo /4~9 cells NiMH
BEC Output: 5V/2A(Analog mode)
Dimensions: 40x29x29.2mm
Weight: 47g

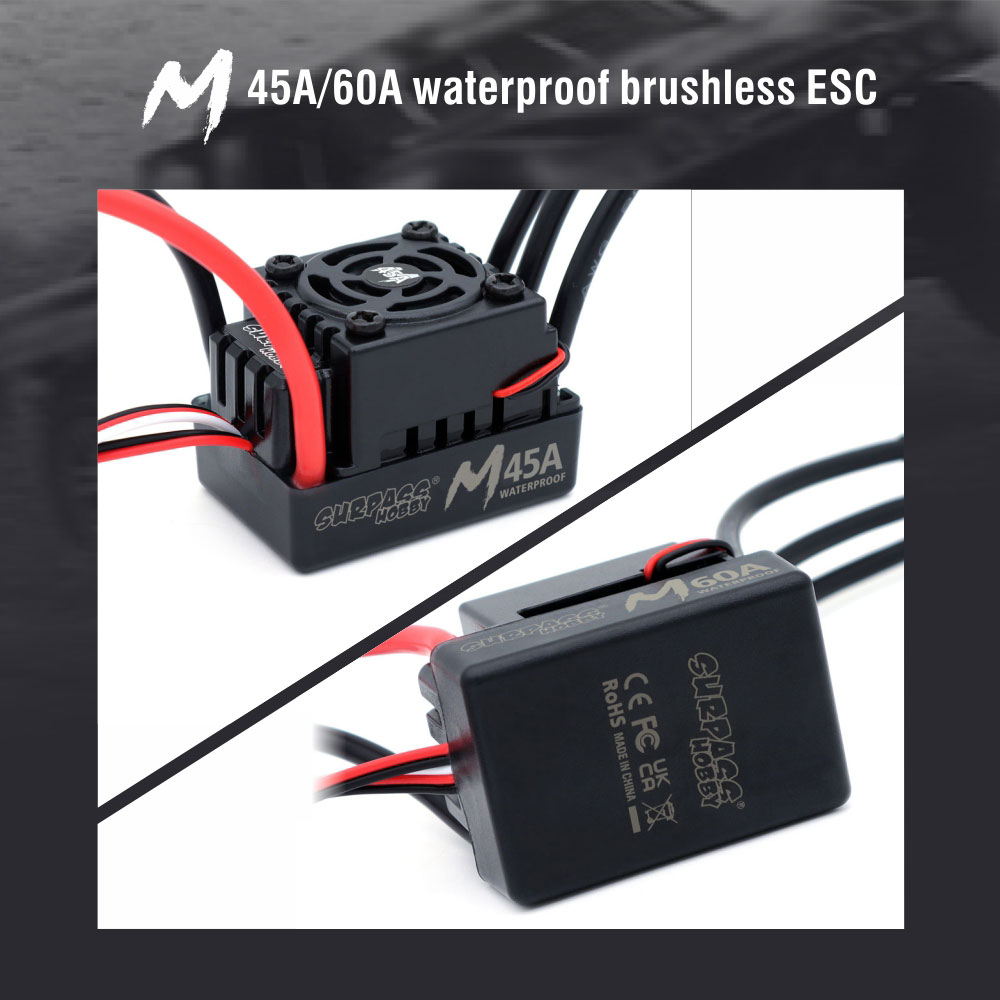

M45A Specifications:
Cont.Current/Burst Current: 45A/200A
Suitable Car: 1/14, 1/12, 1/10 car
Resistance: 0.0014ohm
Battery: 2 cells Lipo /4~6 cells NiMH
BEC Output: 5.3V/2A(Switch mode)
Dimensions: 42.5x29x30mm
Weight: 56g

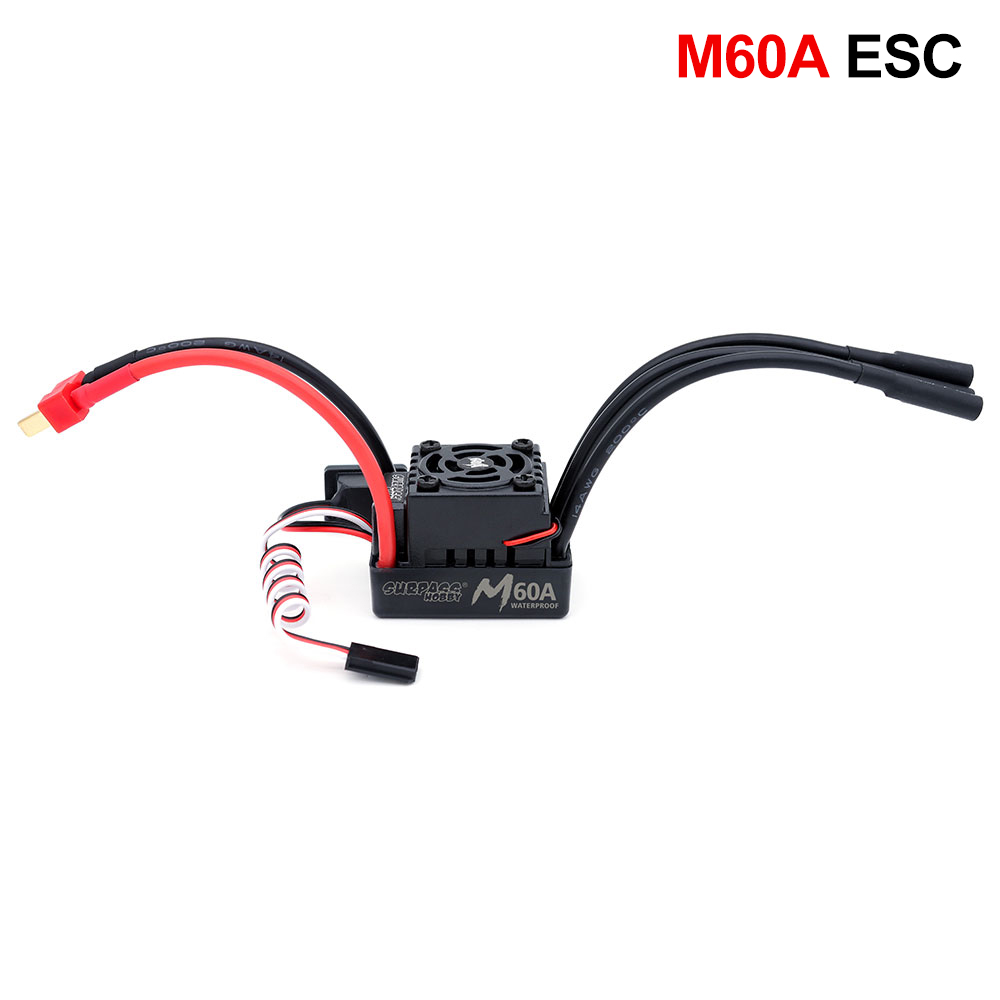

M60A Specifications:
Cont.Current/Burst Current: 60A/320A
Suitable Car: 1/14, 1/12,1/10 car
Resistance: 0.0007ohm
Battery: 2~3 cells Lipo /4~9 cells NiMH
BEC Output: 5.3V/2A(Switch mode)
Dimensions: 42.5x29x30mm
Weight: 61g
Package contents:
1*M35A/M45A/M60A ESC
(It's your choice)
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
