Specification:

Type Name: Engine Gasket Seals Rebuilding Kit

Cylinder bore Φ83.00mm

Fit M270.920 2.0L L4 (1991cc) Turbocharged engine

Pistons & Rings OE:

2700302017

2700300024

2700300417

2700301117

2700301917

2700302217

2700302617

2700302817

2700302917

2700300124

KOLBENSCHMIDT  -  40859600

Pistons & Rings Spec  :

STD 0.00 spec (no fit cylinder expand)

Cylinder bore :Φ83.00mm

Bolt Diameter: Φ20mm

Bolt Length: 51mm

Ring Thickness: 1.2mm / 1.0mm / 2.0mm

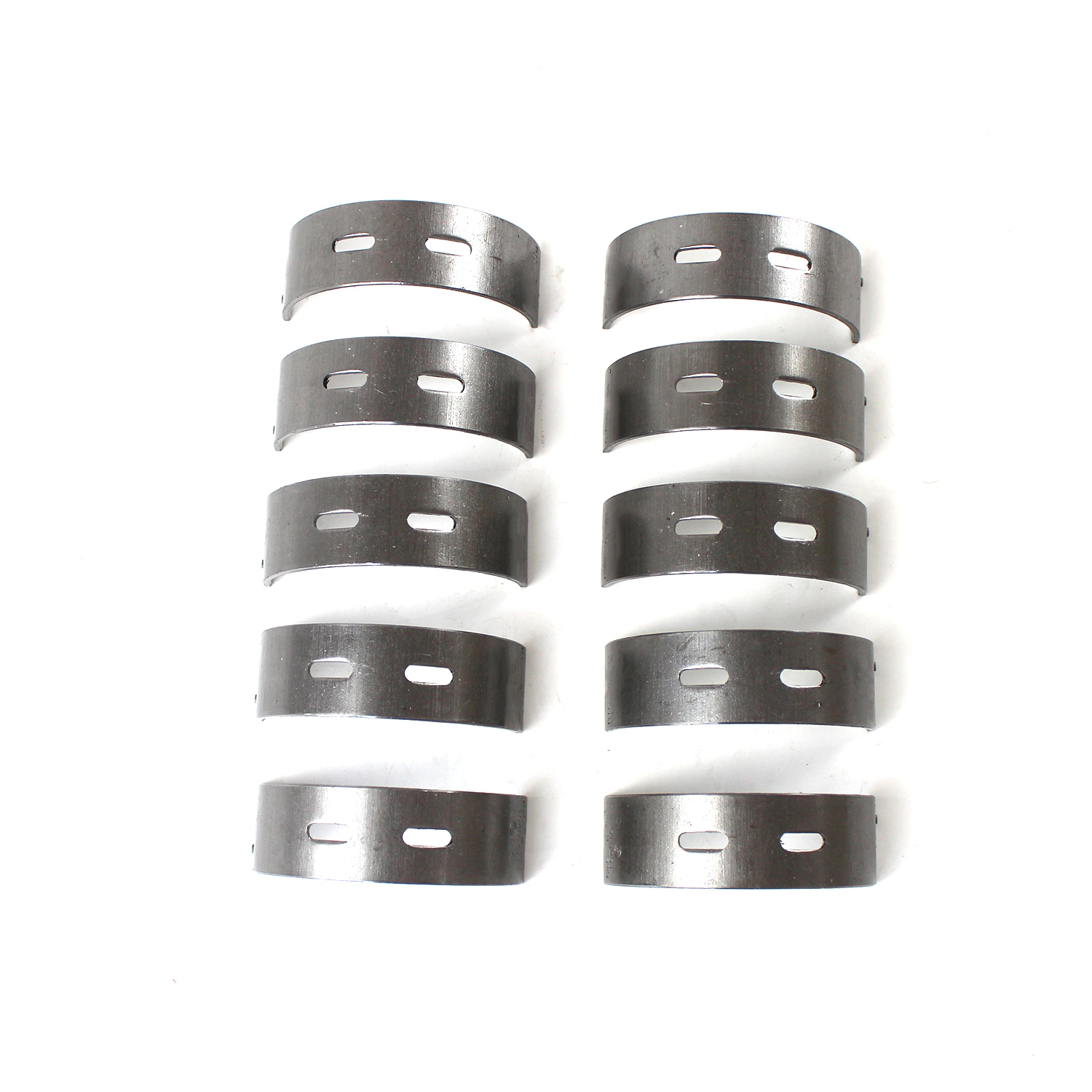

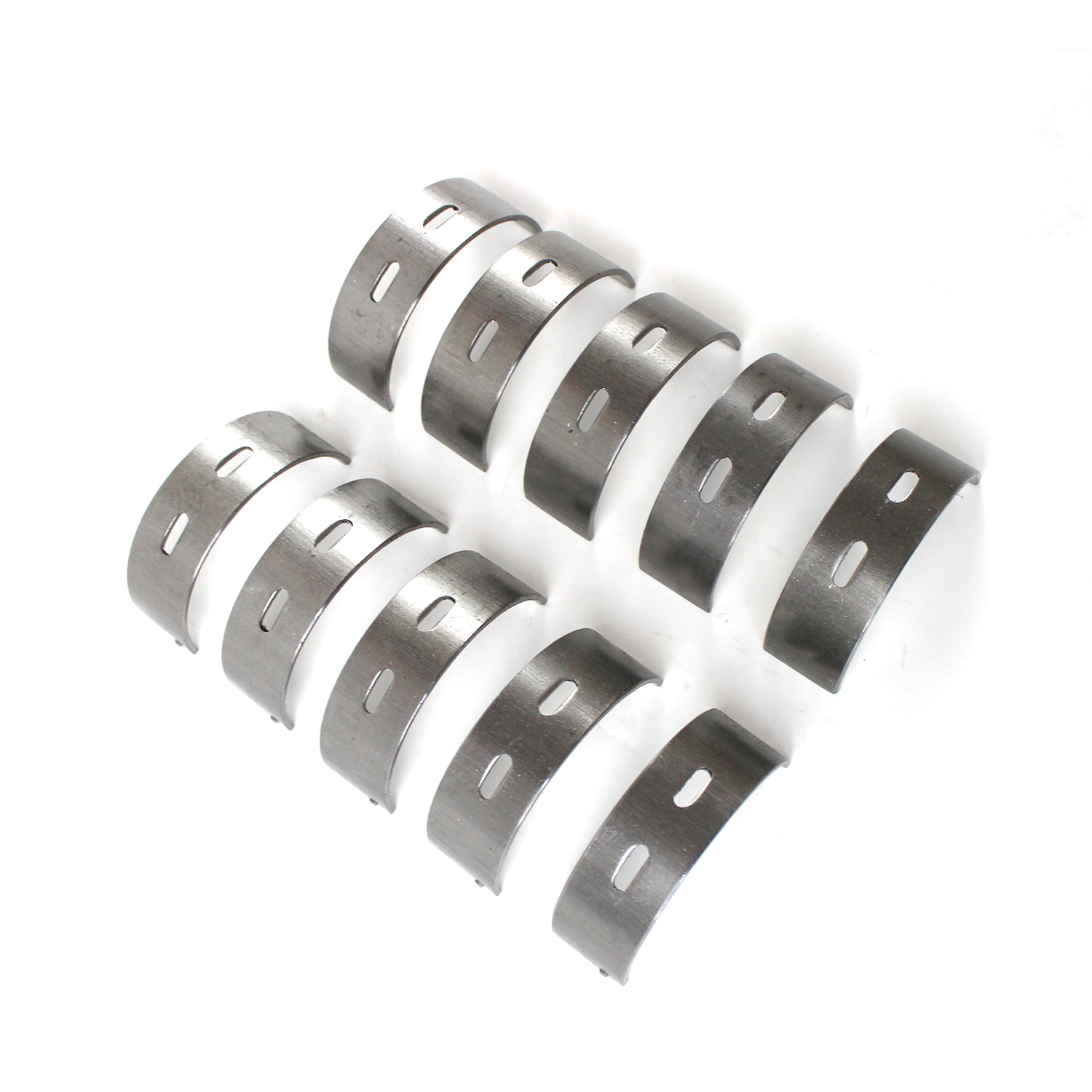

Bearing Shell OE:

2710380110

2710380511

2700330201

2700330202

Seals & Gasket Kit OE:

2740160020

2740164100

2740162000

2700100068

0139973746

2741420180

0000535658

0000530700

VICTOR REINZ: 61-38285-00

VICTOR REINZ: 81-10394-00

VICTOR REINZ: 71-40213-00

ELRING: 724.610

ELRING: 724.611

ELRING: 724.612

ELRING: 455.420

ELRING: 470.630

Application Models:

For Mercedes-Benz A220 2014-2018 W176 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz A250 2012-2019 W176 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz A260 2012-2015 W176 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz B200 2012-2016 W242 W246 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz B220 2013-2017 W242 W246 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz B250 2013-2017 W242 W246 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz B260 2013-2017 W242 W246 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz CLA220 2015-2018 C117 X117 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz CLA250 2013-2018 C117 X117 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz CLA260 2014-2017 C117 X117 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz GLA200 2014-2018 X156 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz GLA220 2015-2018 X156 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz GLA250 2013-2018 X156 M270.920 / 2.0 Turbocharged (1991cc)

For Mercedes-Benz GLA260 2014-2018 X156 M270.920 / 2.0 Turbocharged (1991cc)

Package includes:

Pistons & rings x1set

Overhaul gakset x1set

Main & Con rod bearing x1set

Note:

Please make sure that the model number, part number and photo is

the same as yours before order.
