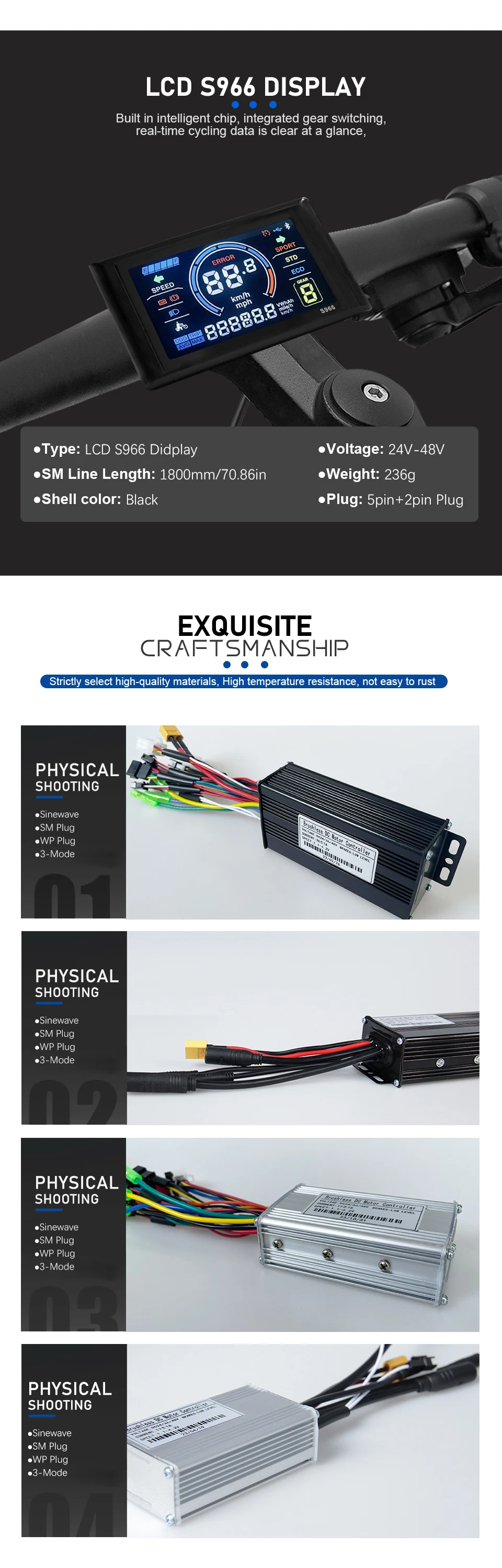

LCD S966 Display :

Voltage : 24V 36V 48V

Plug : 5Pin Female SM Plug

Holder Diameter :φ22mm

Cable Length: 170cm ( SM )

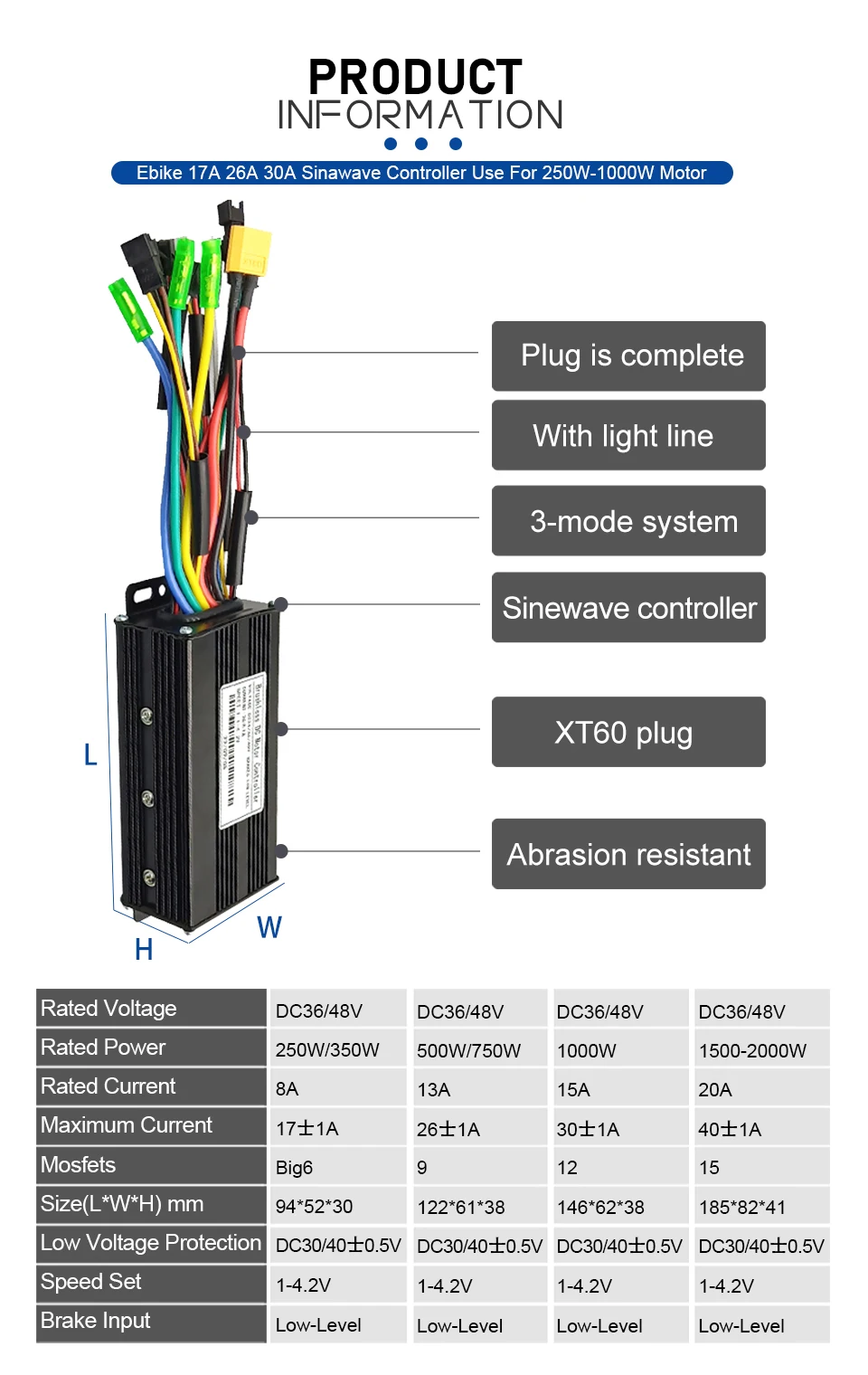

  17A Controller :

Size:95*53*30 mm

Weight:198g

Mosfets:6 mosfets

Maximum current:17±1A

Rated voltage:DC36V/48V

Rated current:8A

  26A Controller :

Size:124*62*38 mm

Weight:348g

Mosfets:9 mosfets

Maximum current:26±1A

Rated current:13A

  30A Controller :

Size:145*60*36 mm

Weight:398g

Mosfets:12 mosfets

Maximum current:30±1A

Rated current:15A

  40A Controller :

Maximum current:40±1A

Size:185*82*41 mm

Weight:546g

Mosfets:15mosfets

Rated current:20A

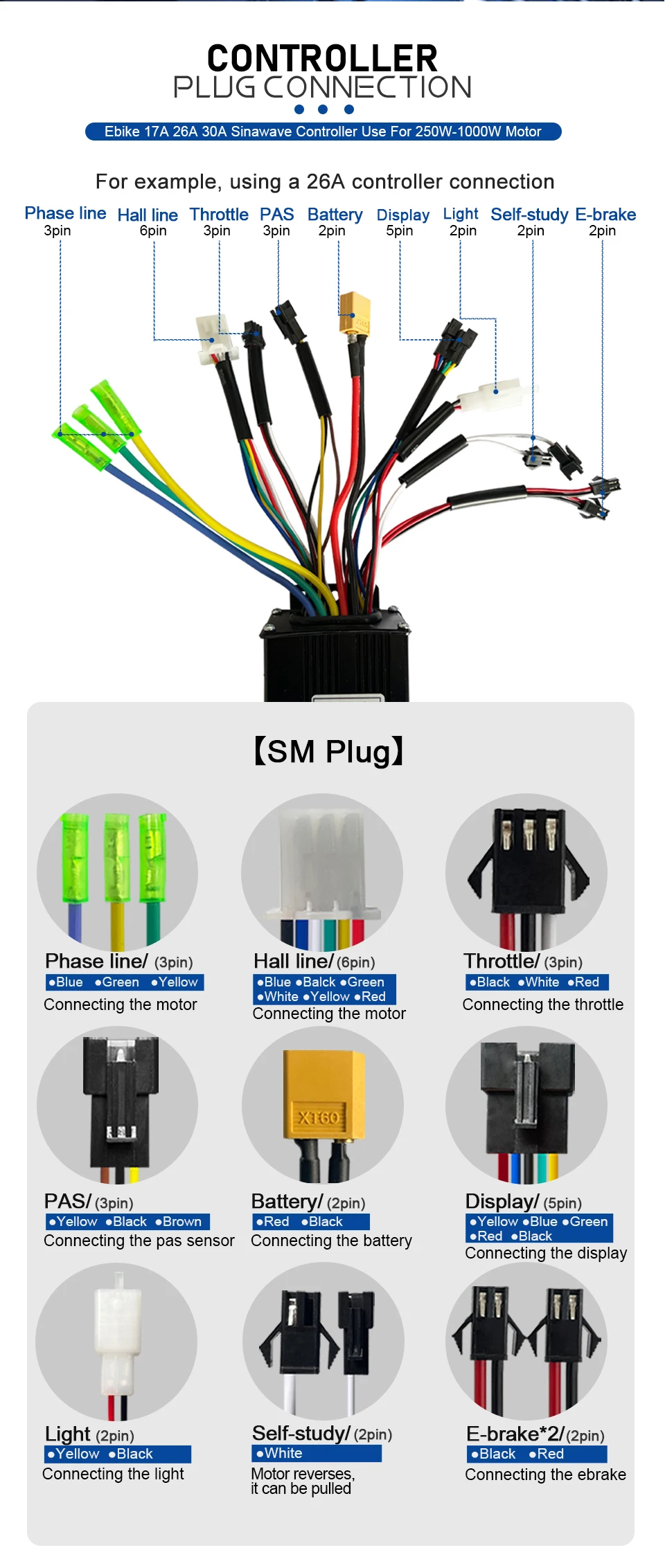

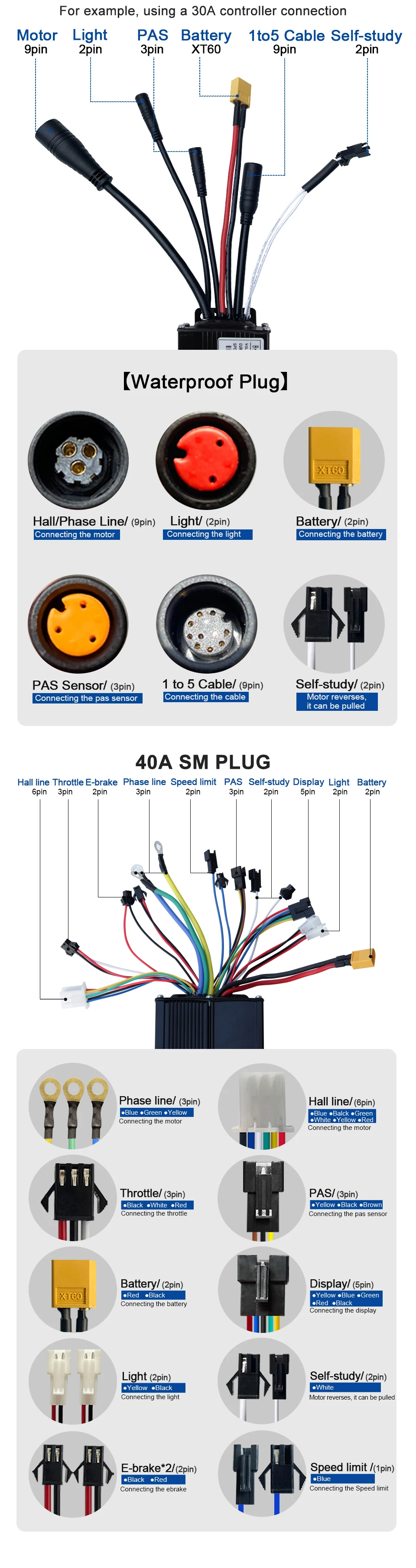

  Introduction to plugs:
1.display line

2.Phase line

3.self-learning line

4.hall line

5.PAS sensor line

6.throttle line

7.brake

8.light line

9.battery（red wires battery +，black battery -）

①connect the motor line (color to color）

②connect the battery line(2 red wires :battery + , black:battery-)

③connect the controller throttle line（color to color）

④connect the hall line(if motor without hall line, don’t need connect)

⑤docking the two self-learning lines, the wheel will forward or reverse.

   (1.if wheel forward ,Separate the self-learning line.

   (2.if wheel reverse, Separate the self-learning line. Docking the self-learning line again，if wheel forward ,Separate    the self-learning line.)

⑥other functions can be connected as needed.
