Attention
1.XT60 Battery Connector,If you need to change the connector , please contact customer service
Features:
●The Display is easy to install, with clear screen display and powerful functions
●Brushless Hub Motor for 350W-1000W, Electric Bike, Electric Bike Kit
●The controller has a headlight function, making it more convenient and safe for you to ride at night

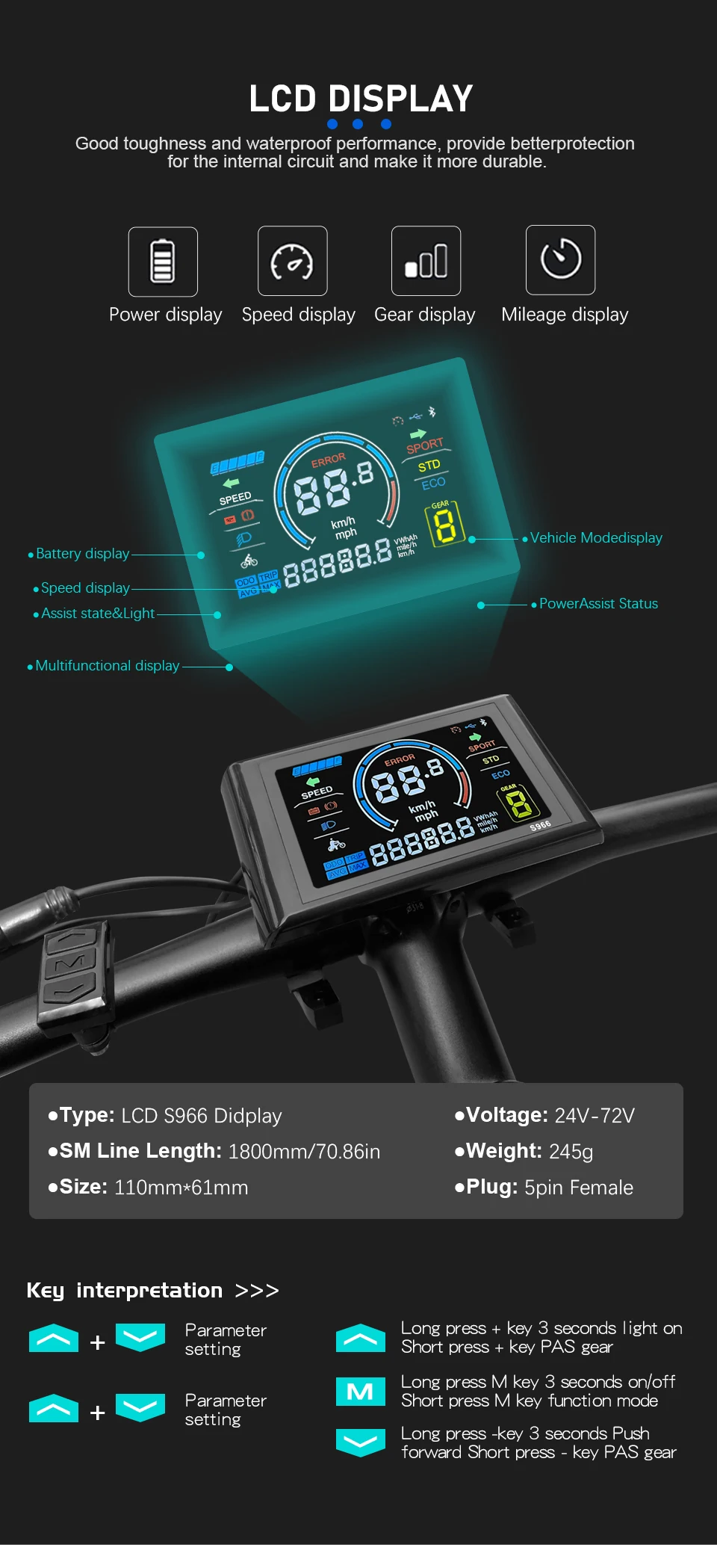

LCD Display ：
Type : S966 Color LCD Display
Voltage : 24V 36V 48V 52V
Plug : 5Pin Female SM Plug
Holder Diameter :φ22mm
Cable Length: 30cm ( SM )

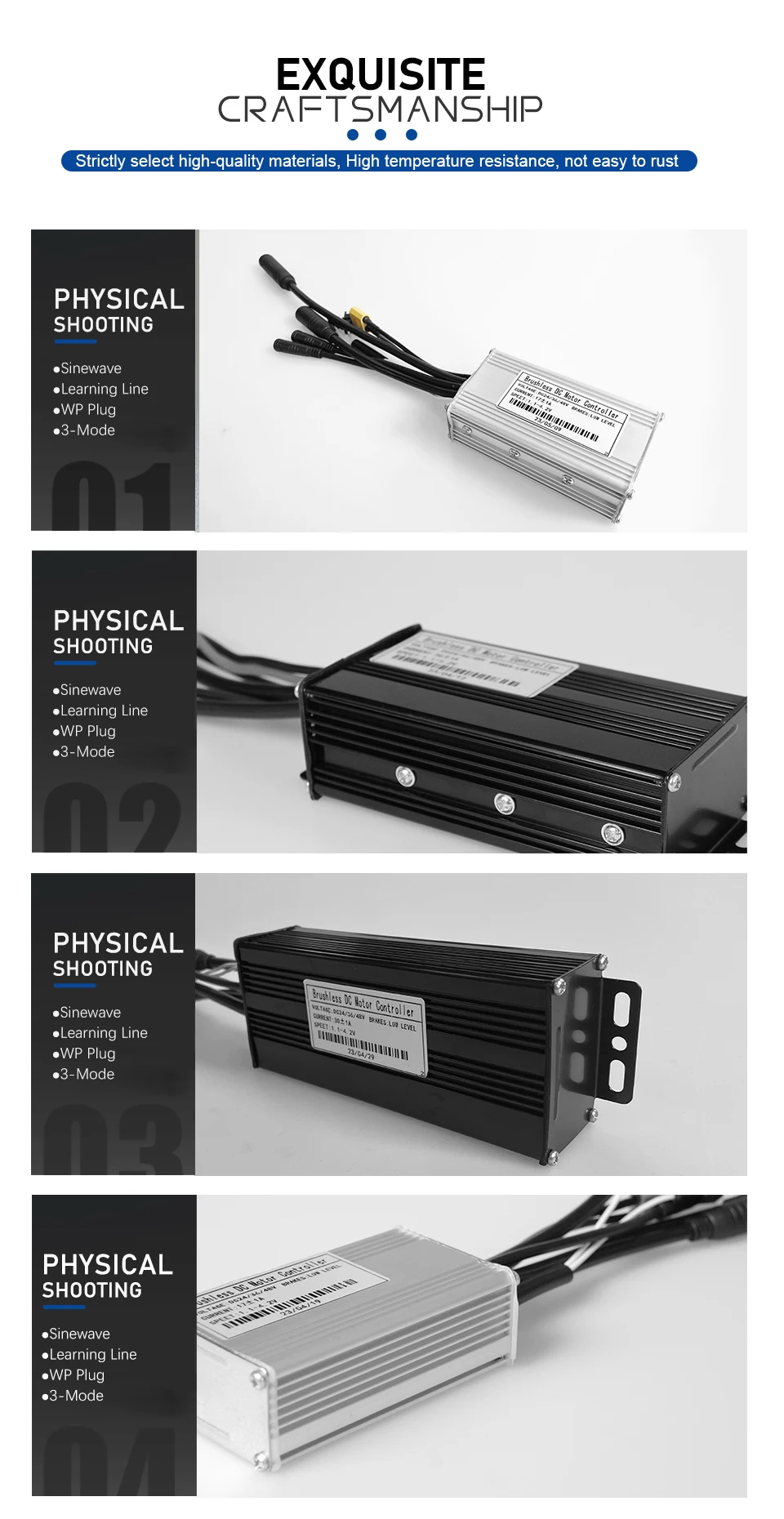

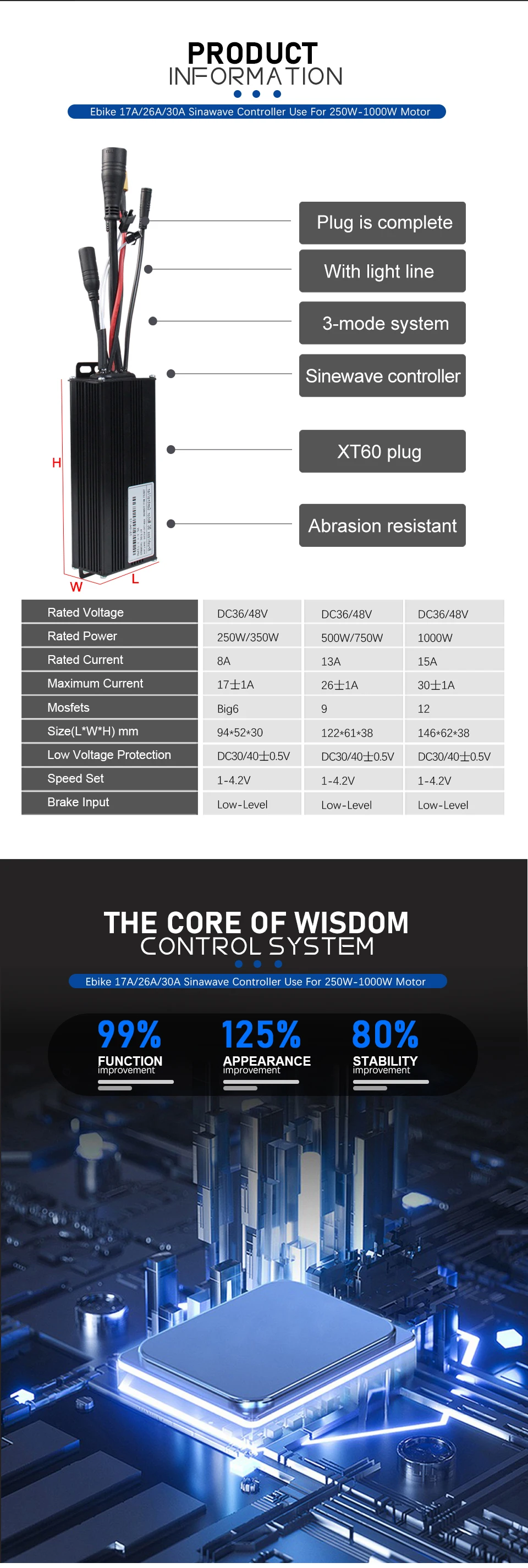

17A Sine Wave Controller :
Size(L*W*H): About 92*30*52mm
Rated Power: 250/350W
Speed Set: 1.1-4.2V
Mosfet: Big 6 Mosfets
Booster: 1:5
Brakes: Low-Level
Rated Voltage: DC36/48V
Compatible with motors with or without Hall
With motor forward and reverse learning function
26A Sine Wave Controller :
Size(L*W*H): About 124*38*62mm
Rated Power: 500/750W
Speed Set: 1.1-4.2V
Mosfet: 9 Mosfets
Booster: 1:5
Brakes: Low-Level
Rated Voltage: DC36/48V
Compatible with motors with or without Hall
With motor forward and reverse learning function
30A Sine Wave Controller :
Size(L*W*H): About 145*36*60mm
Rated Power: 1000W
Speed Set: 1.1-4.2V
Mosfet: 12 Mosfets
Booster: 1:5
Brakes: Low-Level
Rated Voltage: DC36/48V
Compatible with motors with or without Hall
With motor forward and reverse learning function
