Attention：

This Display is KT (KUNTENG) Brand. Before placing an order, please check that your controller is of KT brand, because their communication protocols are the same. Prevent the purchased monitor from not working properly.

Features:

LED900S is a smart display, 24V/36V/48V power supply voltage can be automatically identified and compatible, you can buy with confidence

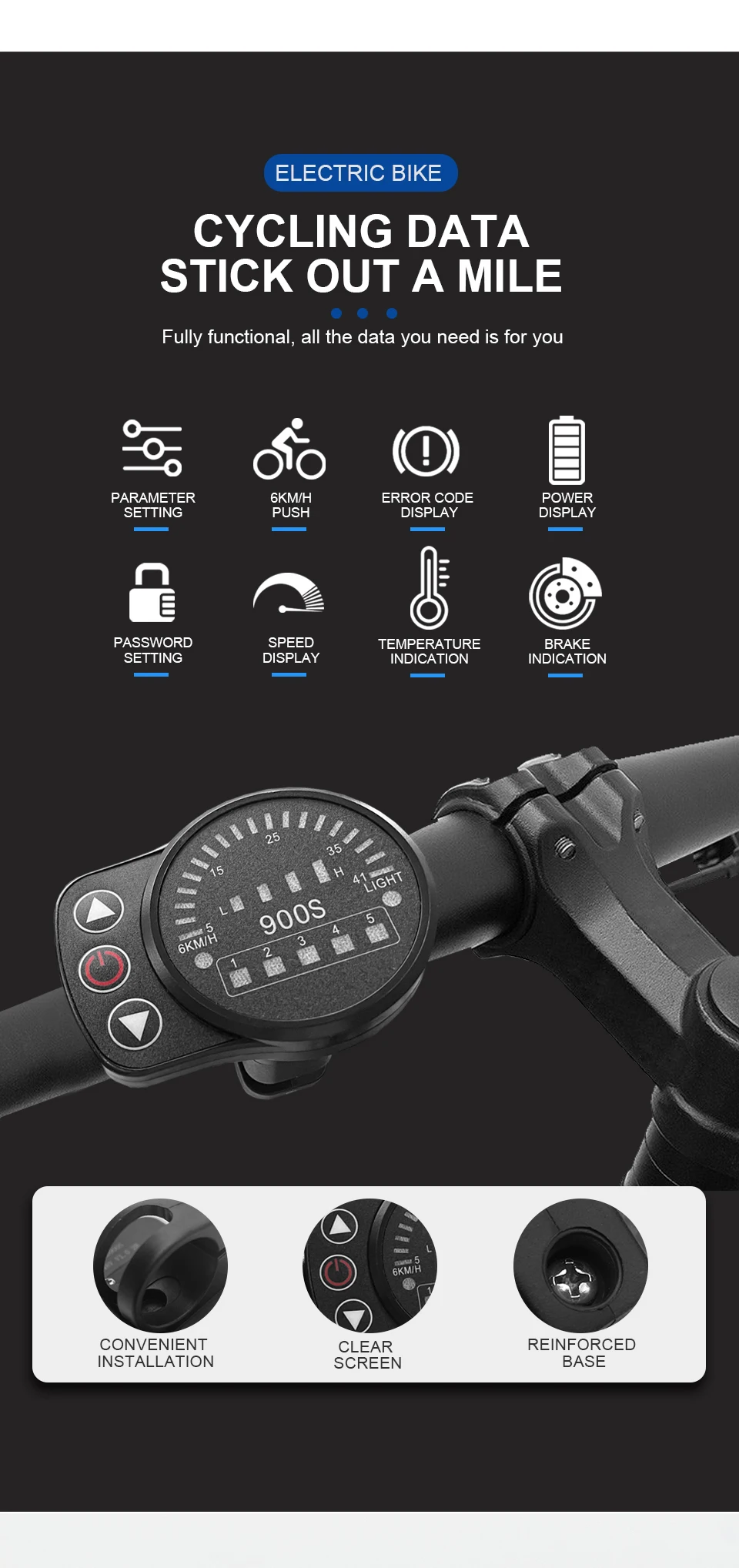

The LED900S electric bicycle display uses LED lamp beads to display information such as vehicle speed, battery power, 6KM/H assistance, and headlight switches.
When battery power capacity is greater than 80%, all 4 LED indicator are lit. When the battery capacities drop, the indicators are off in order. When the power capacity is less than 20%, the last indicator is flashing (L side). When the controller is under-voltage protection, all 4 LED indicators are power off, which means that the vehicle is currently shutdown due.

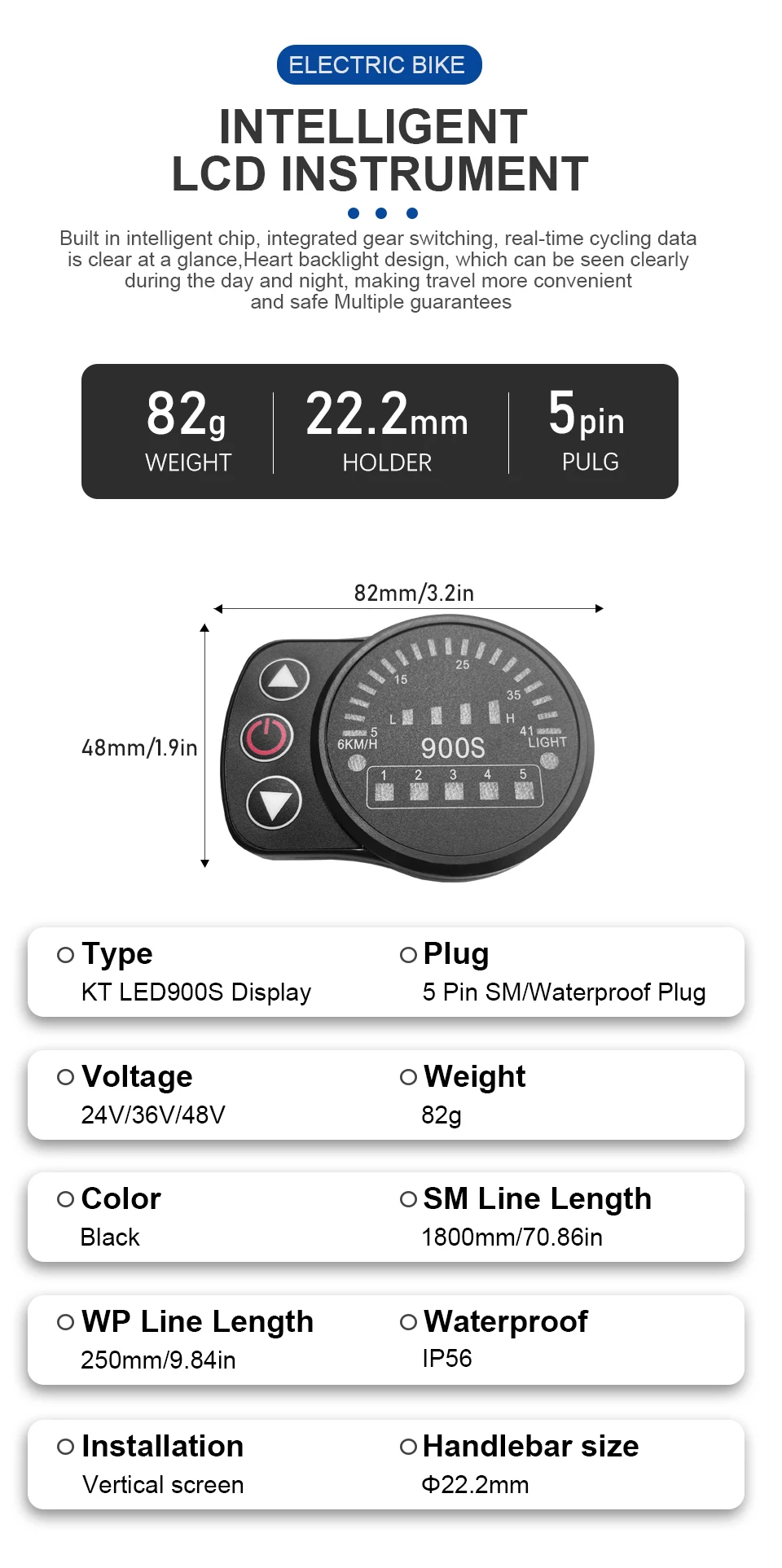

Parameter

Type: KT-LED900S Display

Voltage: 24V,36V,48V

Color: Black

Weight: 82g

Handlebar size for holding: 22.2mm

Cable length: About 25cm(WP), About 180cm (SM) including the connector

Plug: 5 Pin SM/WP Connector
