Manual Steel Rule Bender Steel Rule Bending Machine Steel Rule Die Cutting

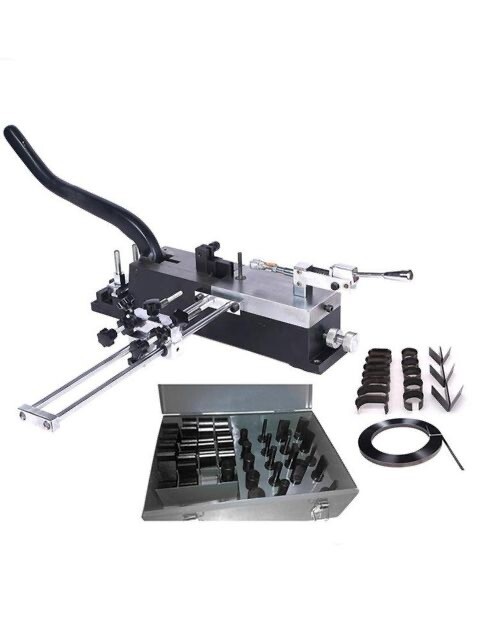

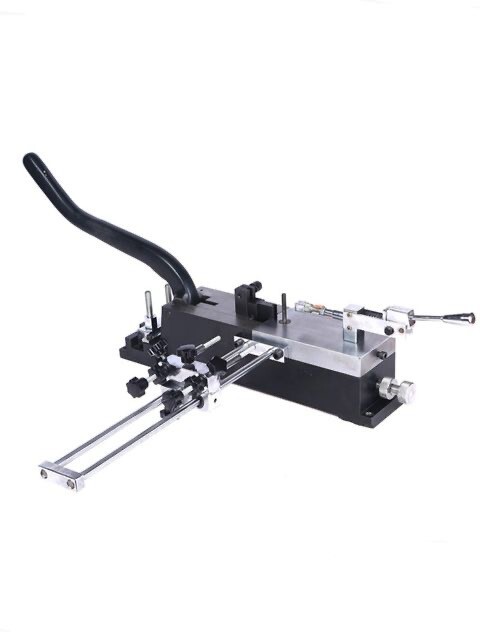

WD-25M Precision Knife Bender (Bend knife line up to 30 width)

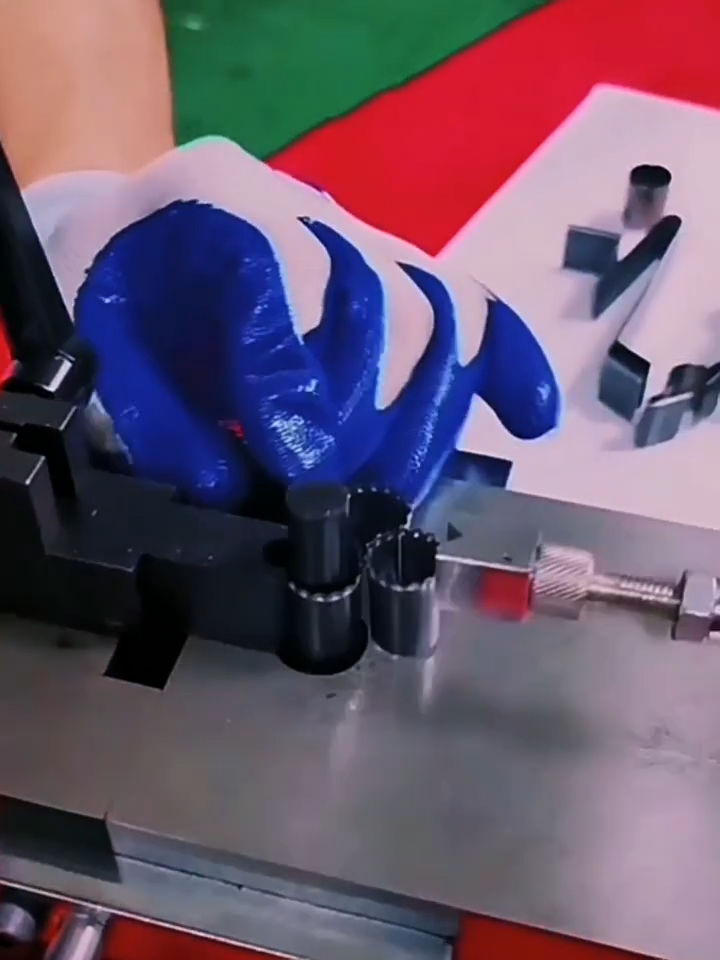

1, this machine with steel knife line bending molding.
2, novel and reasonable structure is easy to use bending knife line with high precision.
3, equipped with 40 pieces of Yin, Yang molds, can be bent into any complex shape of steel wire.
(A) use.
WD-25M precision bending machine is one of the main equipment for die-cutting plate making.
It is mainly used for die-cutting knife line, creasing knife line of various arcs and angles of the production.
It is on the basis of the original machine will be changed into a linear slide bearing double positioning.
It is more convenient and quick to use, and is the ideal knife line molding equipment at home and abroad.
(B) the main technical parameters.
1, molding knife line width: 30 mm, the maximum thickness of 1.5 mm.
2, processing knife line minimum diameter of 10 mm, minimum angle of 60 degrees.
Minimum arc radius 1 mm.
3, external dimensions: 893 * 576 * 283MM
4、Machine weight:50kg.
