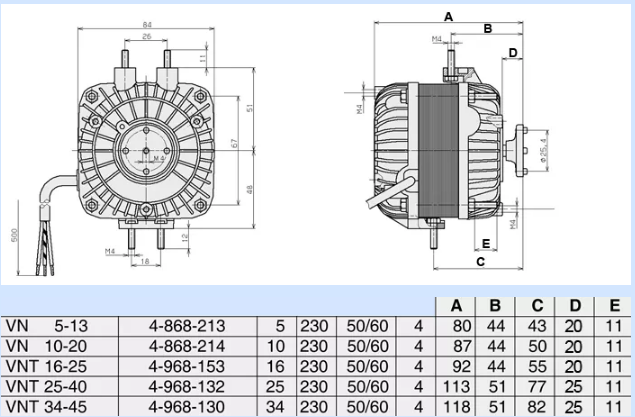

Elco motors are a high quality motor and should not be confused with the less expensive, lower end, imported light duty motors. Mains voltage is 220/240v 50/60Hz, 50cm double insulated 3 core cable attached. The motors can be mounted using the three tapped holes on the front or back, 18mm foot or 26mm foot or corner bolts for ring or cage mounting. Rotation is anti clockwise (viewed from shaft end), speed is 1300 rpm. Available in various sizes from 5 watt up to 34 watt.

NET5T18PVN001 - VNT 18-30/312

230/240V - 50/60Hz

Power output: 18 Watt

Temperature rating: 30°C to +40°C

Speed: 1300RPM

Life expectancy: 30,000+ hours
