NTN 6820 LLU / 2AS Deep Groove Ball Bearings 100x125x13mm (SKF 61820)

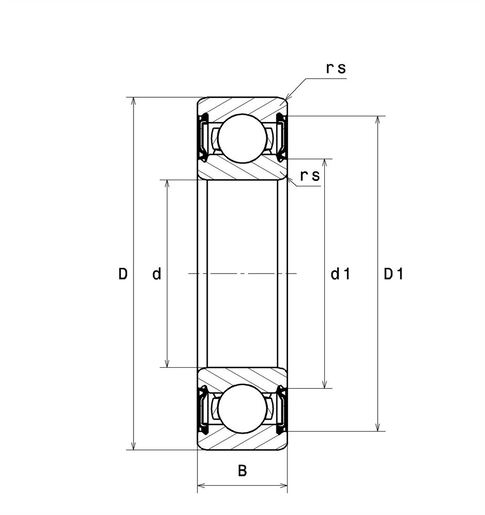

PRODUCT DEFINITION
Brand	NTN
d - Internal diameter	100 mm
D - External diameter	125 mm
B - Bearing/Inner ring width	13 mm
rs - Min fillet radius	1 mm
Radial clearance class	CN
Mass	0,313 kg

PRODUCT PERFORMANCE
C - Dynamic load	21,7 kN
C0 - Static load	21,2 kN
Cu - Fatigue limit load	1,33 kN
f0 - Coefficient	16
N lim - Grease lubrication limit speed	2700 tr/min
Tmin - Min operating temperature	-25 °C
Tmax - Max operating temperature	110 °C

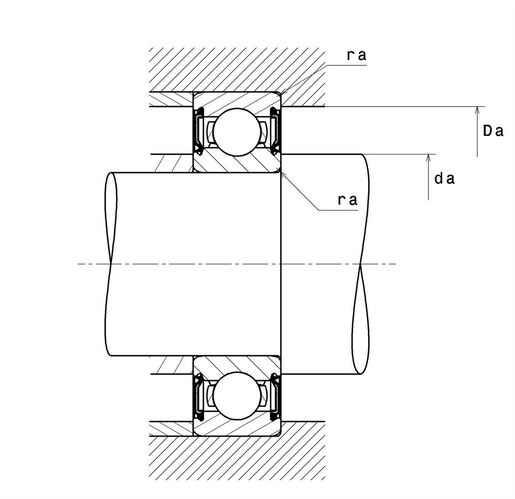

ABUTMENT
da min - Min shoulder diameter IR	105 mm
da max - Max shoulder diameter IR	106 mm
Da max - Max shoulder diameter OR	120 mm
ra max - Max shaft & housing fillet radius	1 mm
