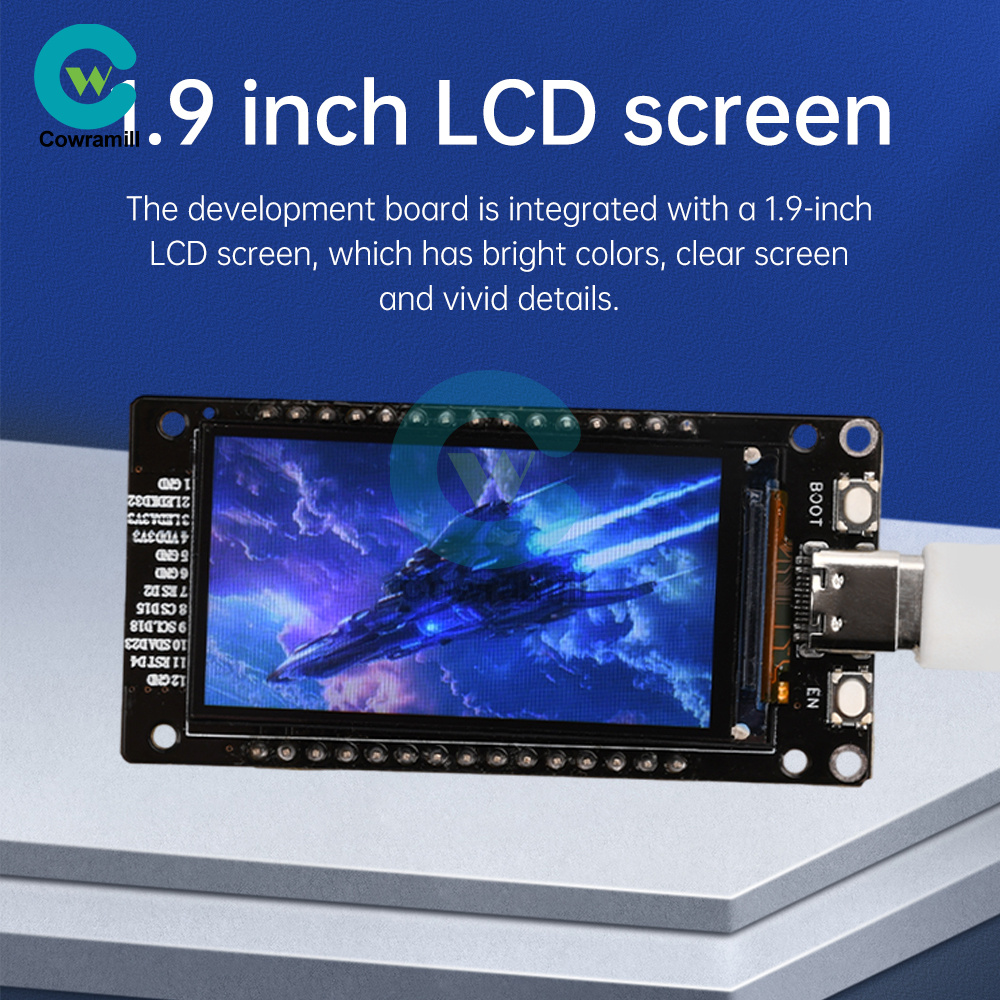

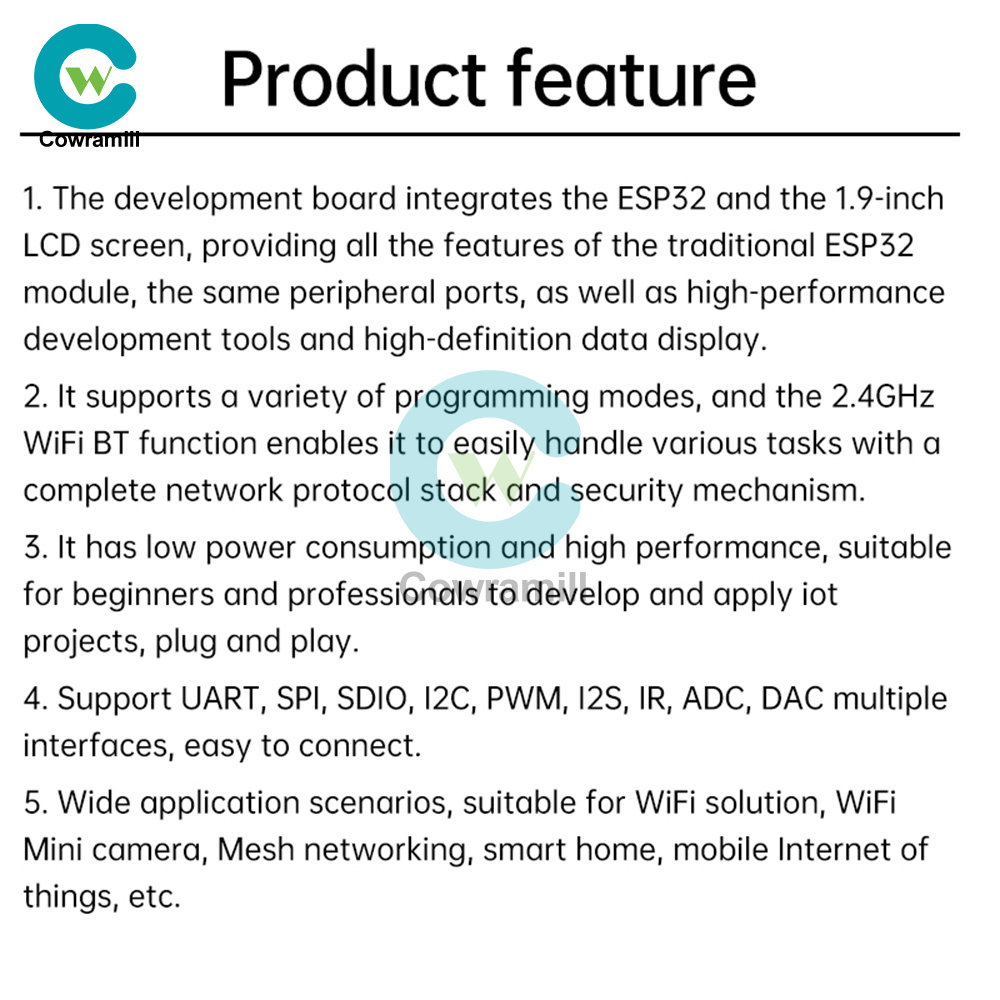

1.The development board integrates ESP32 and a 1.9-inch LCD screen, providing all the features of a traditional ESP32 module, the same peripheral ports, as well as high-performance development tools and high-definition data display.
2. It supports a variety of programming modes, and the 2.4GHz WiFi Bluetooth function enables it to easily handle a variety of tasks with a complete network protocol stack and security mechanisms.
3.It has low power consumption and high performance for beginners and professionals to develop and apply IoT projects with plug and play.
4. It supports UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC multiple interfaces, convenient for external connection.
5. Wide range of application scenarios, suitable for WiFi program, WiFi Mini camera, Mesh networking, smart home, mobile IoT, etc.
Interface: TYPE-C
Operating voltage: USB 5V
Driver chip:CH340
LCD display: 1.14/1.9 inches
SPI Flash: default 32Mbit
Serial port rate: 115200bps
Frequency range: 2412-2484MHz
Bluetooth protocol: Bluetooth 4.2 BR/EDR and BLE standards
WiFi protocol: 802.11 b/g/n
Antenna: On-board PCB antenna, gain 2dBi

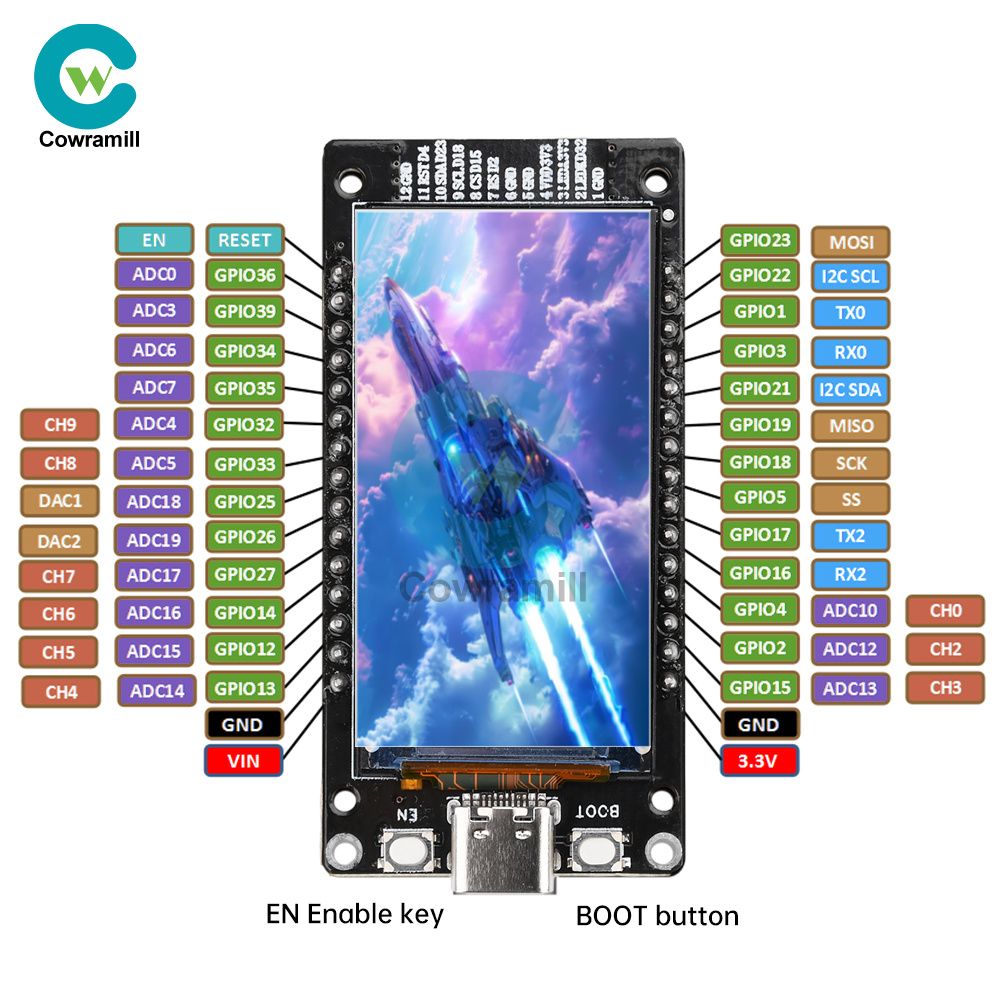

Supported interfaces: UART, SPI, SDIO, I2C, PWM, I2S, IR, ADC, DAC

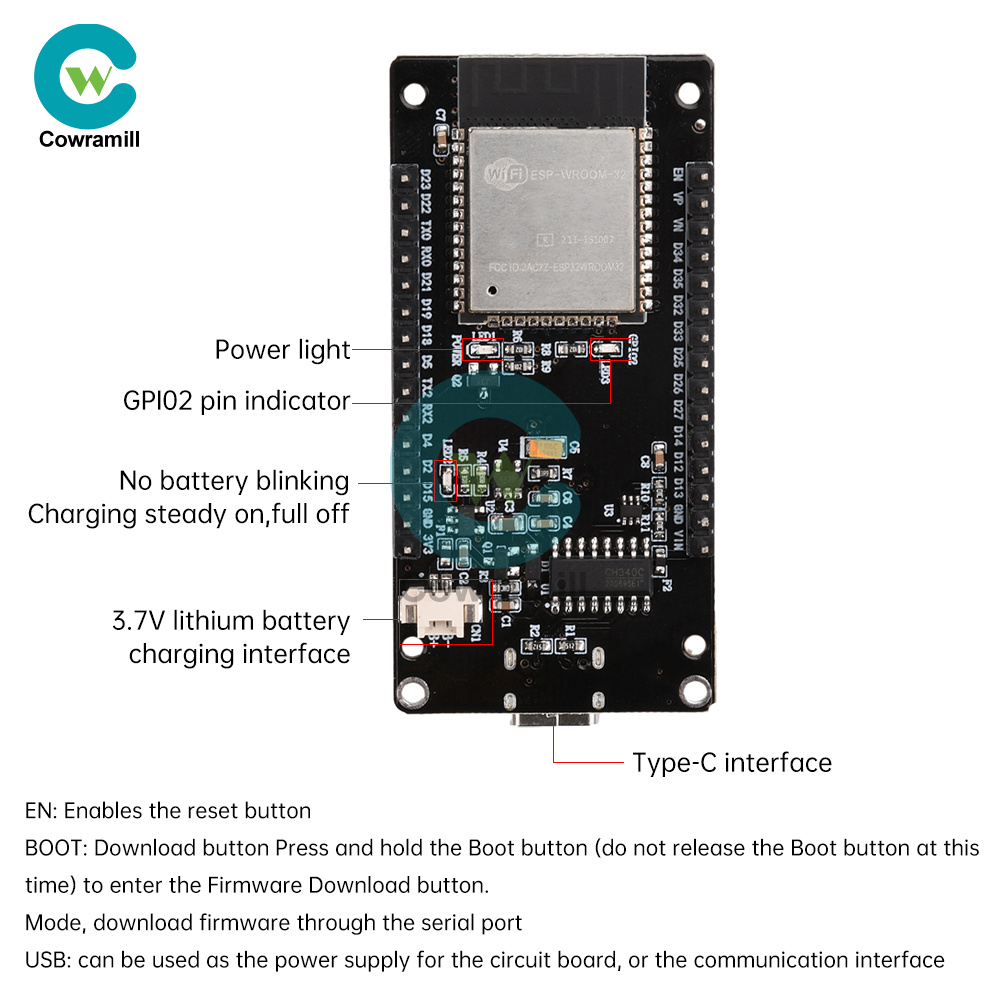

EN: Enable reset button
BOOT: Download button Press and hold the Boot button (do not release the Boot button at this time) to enter the “firmware download” mode, download the firmware through the serial port.
USB: can be used as the power supply of the board or the communication interface between PC and ESP32-WROOM-32 module.

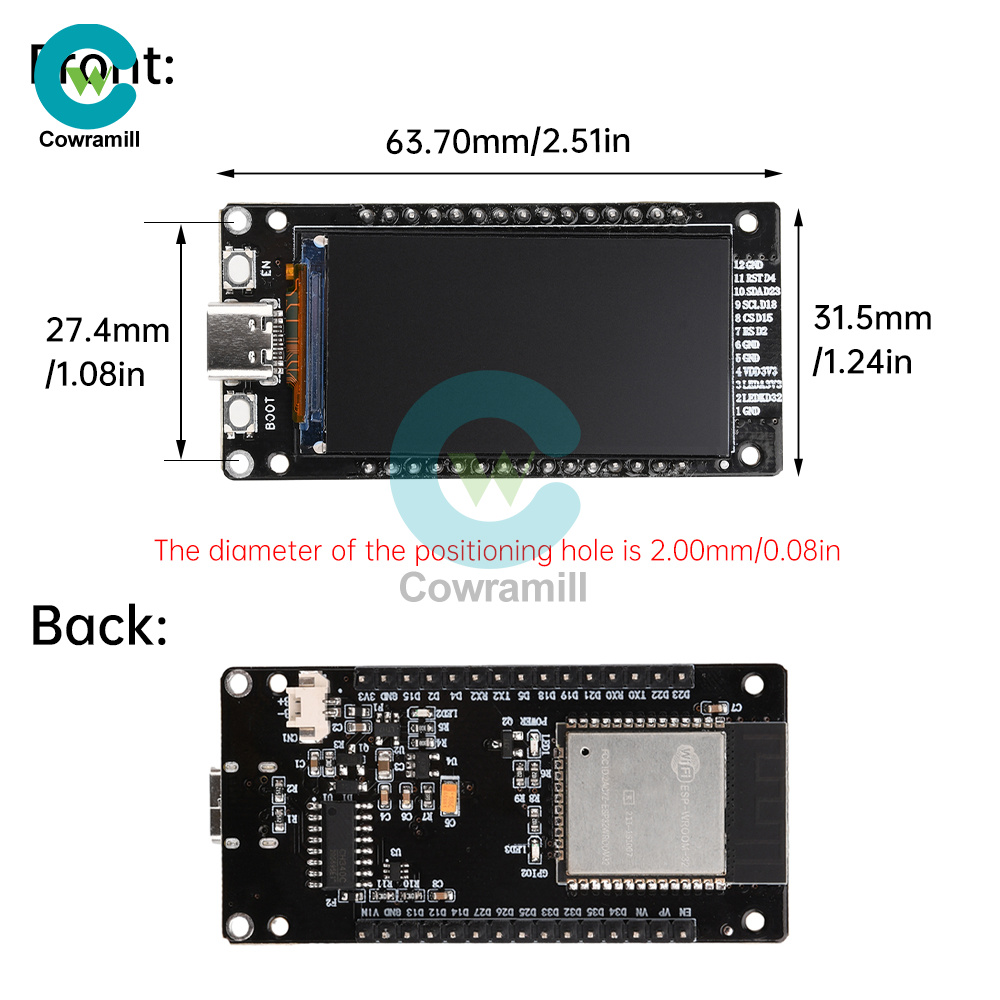

Dimension: 63.70mm*31.5mm
1X development board
