Description

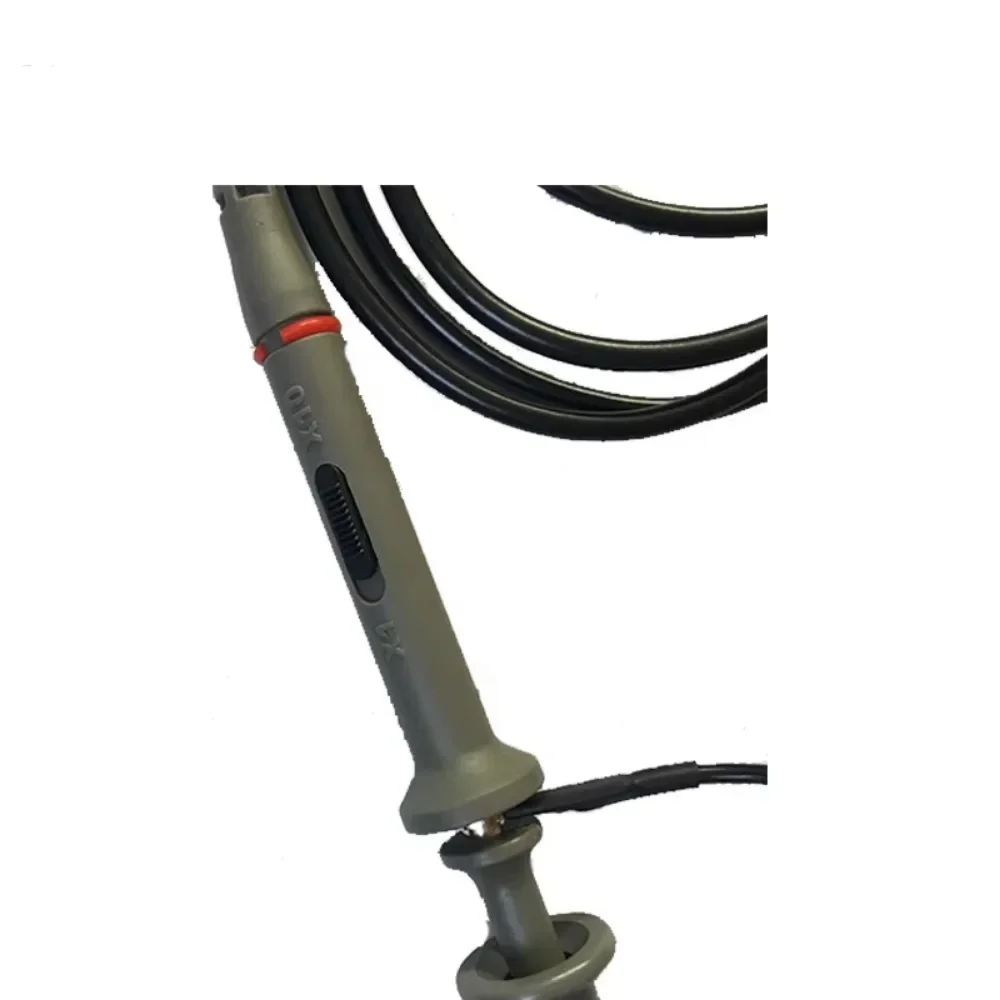

Oscilloscope Probe kit Rapier  pp-80

Performance & Characteristics
 Attenuation ratio: 1× and 10× optional.
 Portable design according with ergonomics.
 Integral injection molding makes the usage more flexible and the oscillograph able to adapt more testing situations.
 Safety standards: it has passed the CE Attestation of European Community.
Application Fields
 Compatible with domestic and international digital and analog oscilloscopes in relevant frequency.
 Measurement in intermediate and low frequency signals.
Order Information

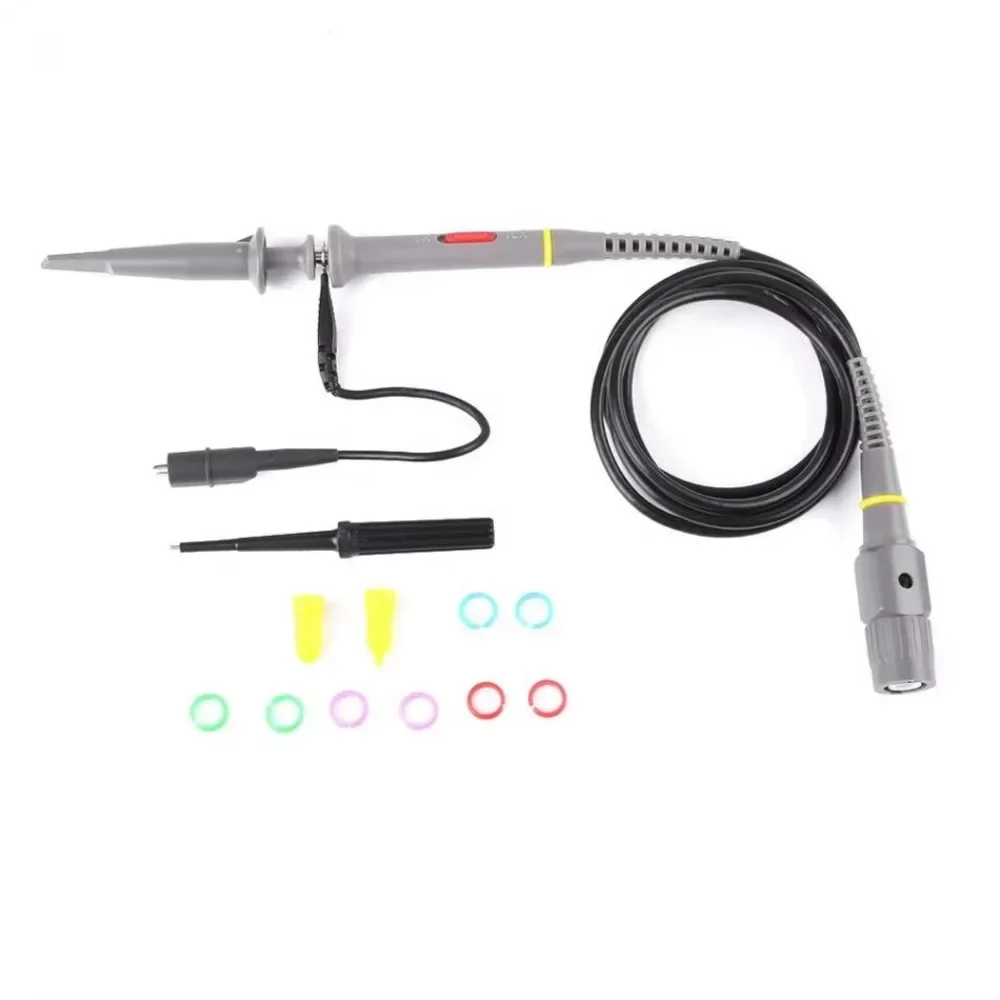

Accessories included by PP series passive voltage rapier
 Operation manual
 Adjusting tool: adjusts compensation capacitance to assure the rapier match with oscillograph.
 Contractive-type acuminate hook
 12cm earth wire with alligator clip
4 pairs of colorized cable markers
 Locating sleeve adapts to IC testing.
Double-nip wire

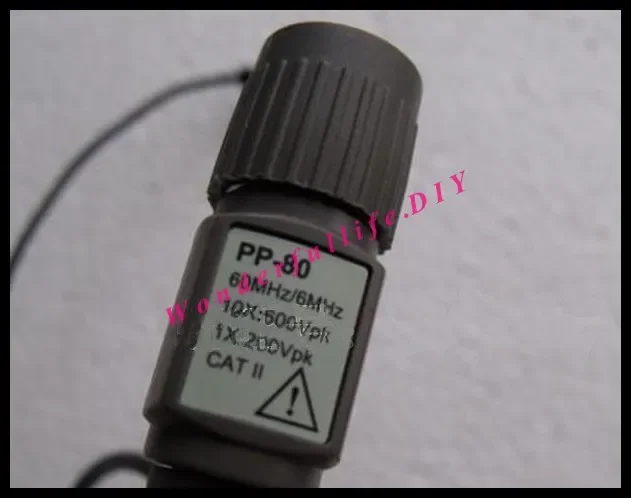

Item:PP-80

Attenuation:1×:10×

Input:1MΩ:10MΩ

Input:1×:85pF-115pF

           10×:18.5pF-22.5pF

Compensation scope:20pF-40pF

System bandwidth:DC-4MHz

                              DC-60MHz

Input voltage:1×:<200V DC +Peak AC

                    10×:<600V DC +Peak AC

weight:55g

Cable length:120cm

Temperature scope:-10C--+50C

n operation:  -20C--+75C

Not in operation

Humidity:≤85%(Relative humidity)
