Description:
● This is a multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter
and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications.
● This inverter can work with or without batteries. The whole system also need other devices to achieve complete running such as PV modules,
generator, or utility grid. Please consult with your system integrator for other possible system architectures depending on your requirements.
The WiFi / GPRS module is a plug-and-play monitoring device to be installed on the inverter. With this device, users can monitor
the status of the PV system from the mobile phone or from the website anytime anywhere.
Features：

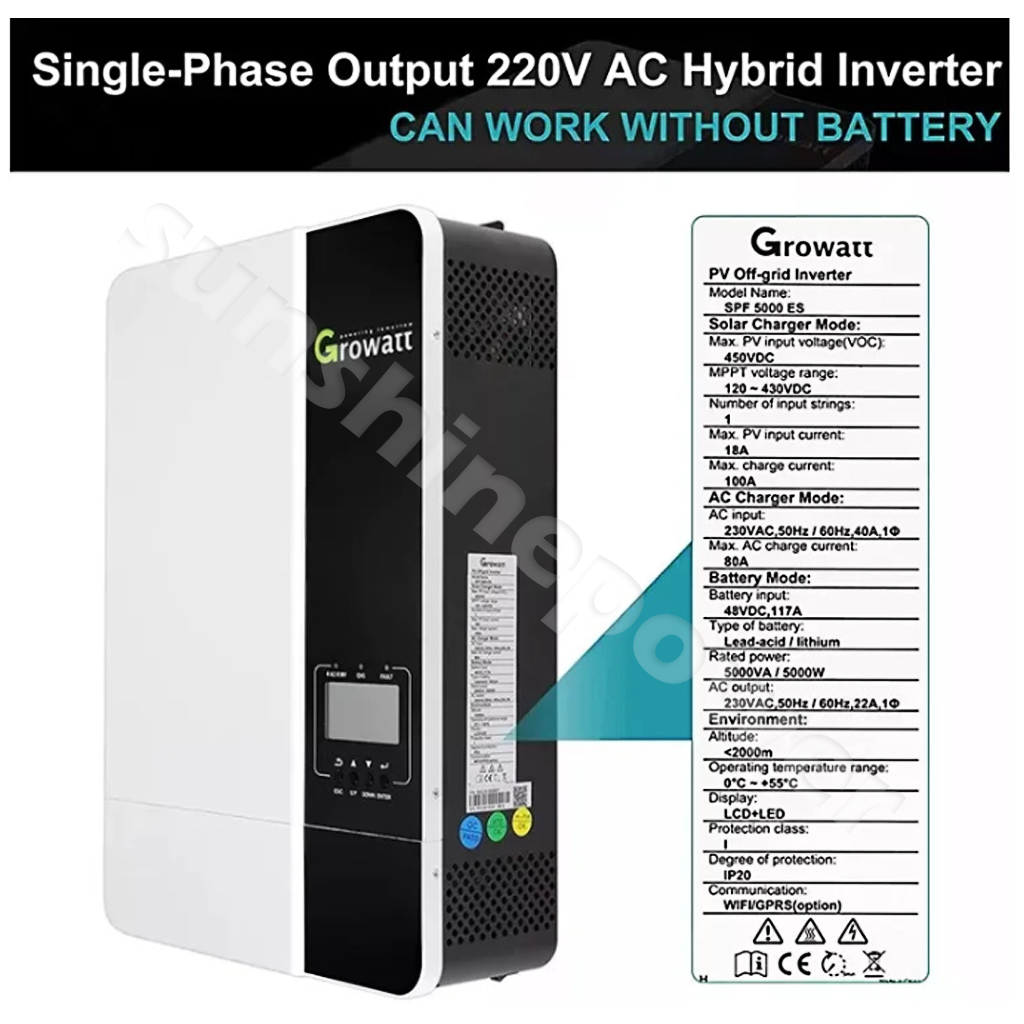

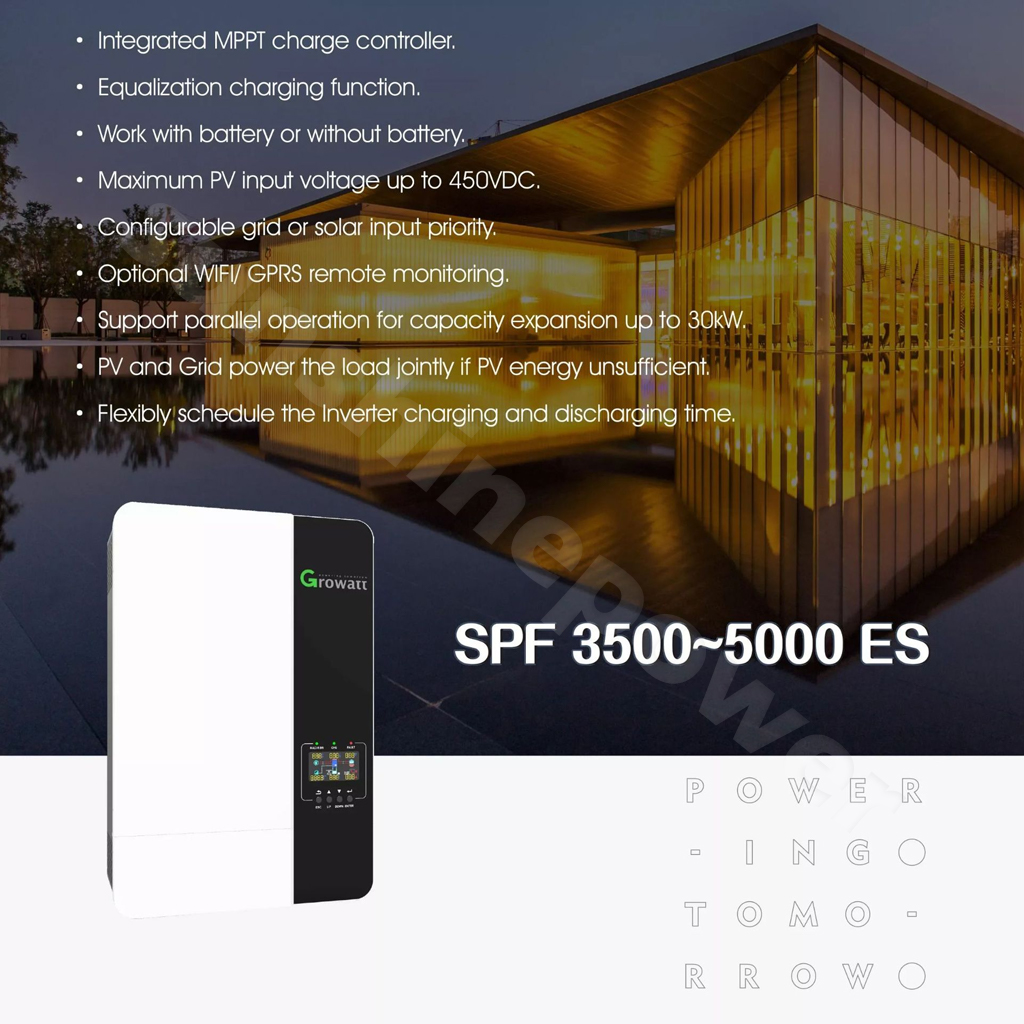

● Growatt 3.5KW/5KW 48V Solar Inverter,can work with battery or without 48Vbattery, battery system requires:48VDC, Battery charger,max charge current 80A Integrated MPPT charge controller and Equalization charging and power-saving mode function
● AC220/230V ouput inverter, Maximum PV input voltage up to 450VDC, Configurable grid or solar input priority,PV and Grid power the load jointly if PV energy unsufficient.

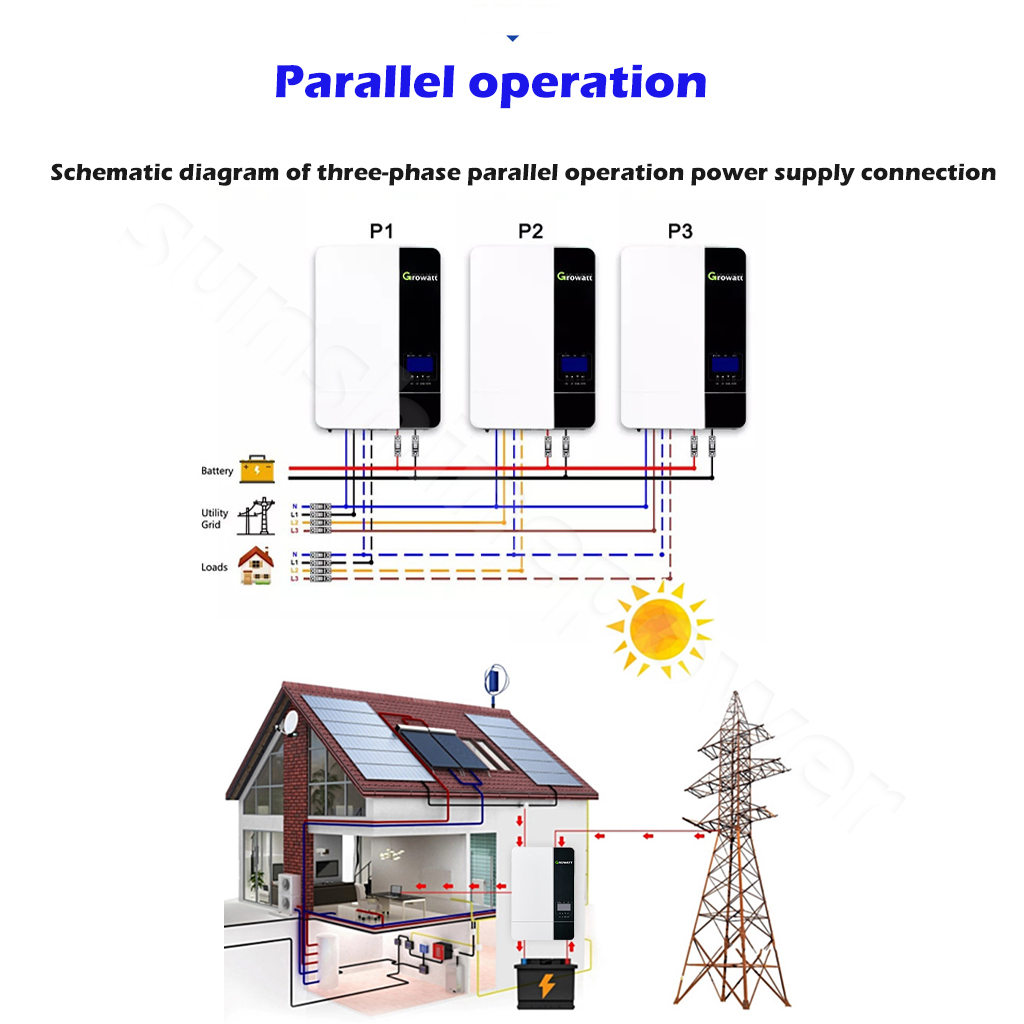

● Flexibly schedule the Inverter charging and discharging time, Support parallel operation for capacity expansion up to 30kW，max 6 units work together to support three-phase equipment.
● Rated power 3.5KW/5KW, power factor 1, WIFI/ GPRS remote monitoring (optional)，
Hybrid Inverter：Pure sine wave output 3.5KW/5KW and 80A/100A MPPT charge controller Combine.
● 8V Li Ion & Lead Acid battery support, AGM, Flooded, User-defined, Lithium able to select, 48V inverter with very detail LCD display allow you know inverter's working satuts and setting in easy way. Also can work whitout battery.
Power Source：Solar
Current Type：AC/DC
Inverter Technology:Hybrid
Color:Black White
Recommended EnvironmentIndoor
Charging Mode：MPPT (Maximum Power Point Tracking)
Current Output：100 A or Greater
System Configuration：Hybrid
Connector Type：MC4
Features：Indicator Light, LCD Display, Temperature Sensor, Temperature Control, Smart Module, Wi-Fi Port, PC Display, USB Port, LED Indicator
Protection： PropertiesOverspeed Protection, Overvoltage Protection, Safety Circuit Protection, Overload Protection,
Surge Protection, Short Circuit Protection, Reverse Polarity Protection, Overcurrent Protection,
Low Voltage Protection, Open Circuit Protection, Discharge Protection, Overcharge Protection
Current Rating:71-80 A
Type：Charger/Inverter
Weight:12.5 kg

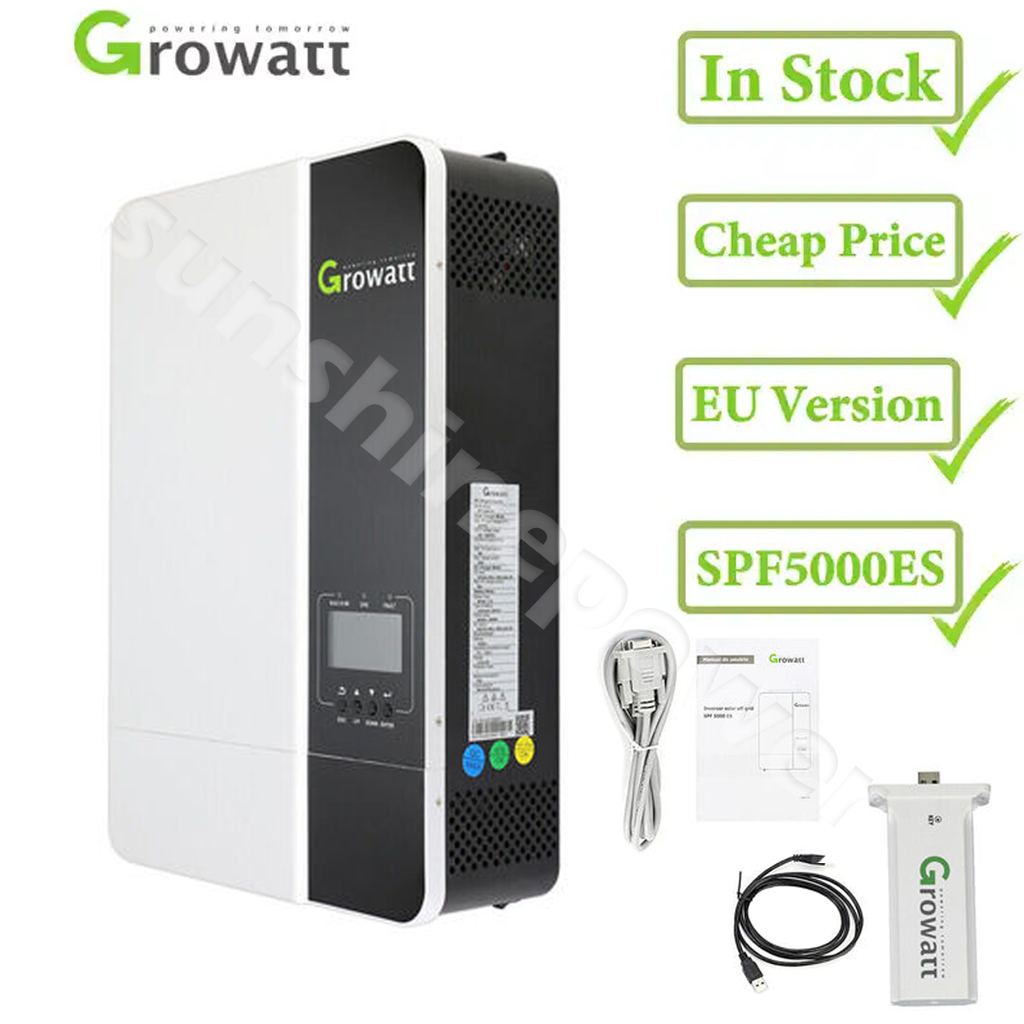

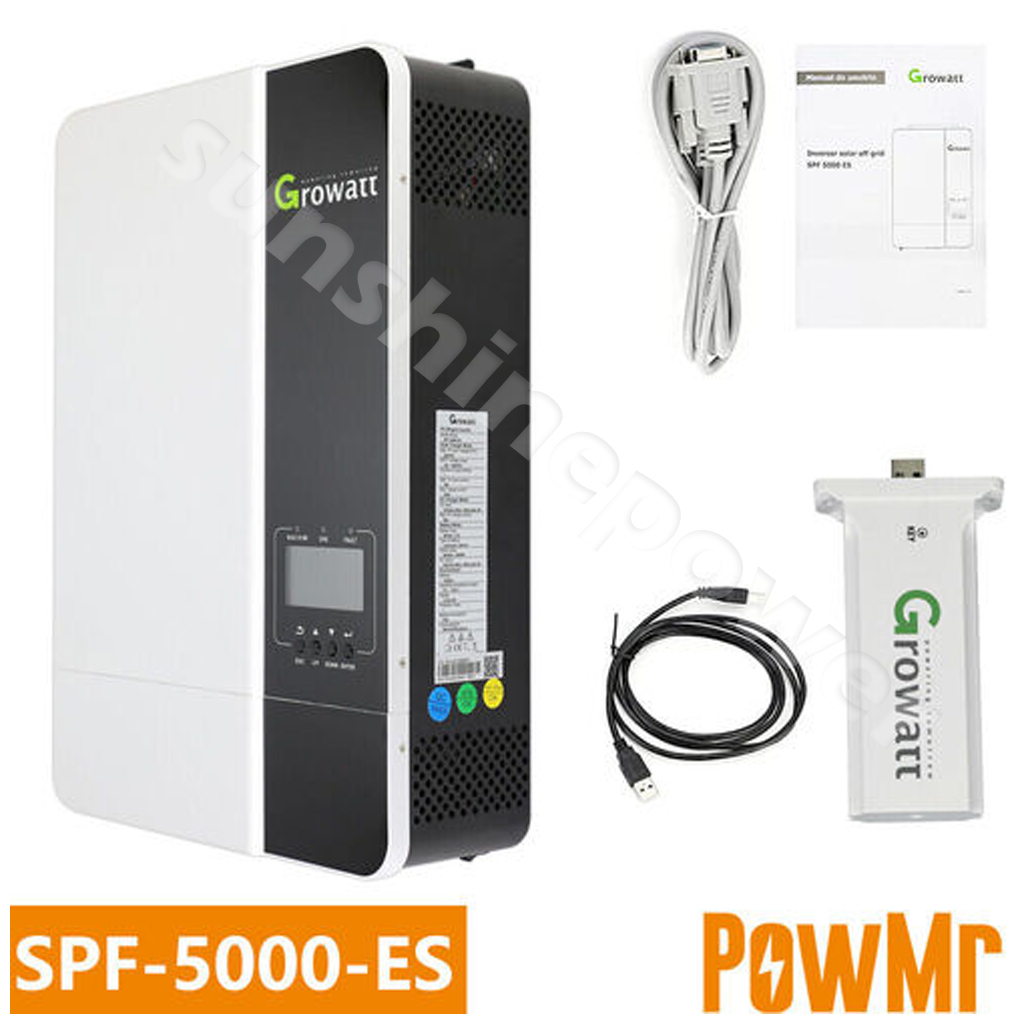

package includes：
x1 inverter
x1 WiFi module
x1Communication line
x1 instructions
