Thinkscan Plus S4 products are a new generation of mid-to-high end DIY products based on Android system launched by THINKCAR, which can realize online upgrade of diagnostic software. Its main functions include not only OBD2/EOBD standard protocol diagnosis, but more importantly, it has professional vehicle diagnostic software and maintenance software, which can perform a comprehensive diagnosis of all vehicle electronic control systems. Different series support different systems and functions.
THINKSCAN PLUS S4 Supports 5 System Diagnosis (Engine Diagnose/Airbag Diagnose/ABS/Transmission Test/Body Control Module)
1.ABS Diagnosis:
By accessing to ABS system to view its Live Data Stream, and retrieving the fault codes, this scanner can troubleshoot the ABS issue with a visual inspection of all brake components that caused the warning light, and turn the light off.
2.SRS Diagnosis:
By detecting every electronic parameters in SRS system to check their health status, this diagnostic tool can address the SRS potential issues timely to ensure your driving safety, and turn off the warning light of Airbag.
3.E-CM Diagnosis:
You can diagnose the engine system via ecu obd2 port, support all 10 OBDII test modes, such as live data, O2 sensor test, component test and more;read and clear the engine error codes, find out the exactly problem, repair it, and turn off the MIL engine light.
4.T-CM Diagnosis:
AT is a set of transmission used to coordinate the engine speed and the actual speed of the wheel, which is used to give full play to the best performance of the engine.MUCAR CS4 obd2 scanner can read/clear codes and view live data retrieve the error information from AT.
5.B-CM Diagnosis:
Carry out fault diagnosis on body/frame/transmission system/steering system/brake system/driving system.
THINKSCAN PLUS S4 Supports 3 Opition Maintenance Service Free to Use
You Can Choose 3 Resets Service as Free from 28 Maintenance Service
✅*Provide THREE Advanced Maintenance Service Mode Reset Function lifetime free.
✅*And the company provides 28 Maintenance Service Reset Reserved functions for users to buy when need.
✅*Though each Reset functions worths hundreds of pounds, you can access to one reset by subscribing at USD $29.95, and can use for 12 months.
1.Oil Lamp Reset Service
2.EPB Electronic Park Brake Reset
3.BAT battery service
4.Windows Calibration
5.SAS Steering Angel Sensor Reset
6.TPMS Tire Pressure Monitoring System Reset
7.IMMO Reset
8.ABS Bleeding
9.Sunroof Reset
10.Suspension Reset
11.Gearbox (Transmission )Reset
12.AFS Headlamp Reset
13.Injector Coding
14.Throttle Adaptation
15.Gear Learning
16.EGR Reset
17.A/F Reset
18.Adblue Reset(Diesel Engine Exhaust Gas Filter)
19.Airbag Reset
20.Coolant Bleeding
21.AT Learning
22.Language Change
23.Nox Sensor Reset
24.O-DO Reset
25.Stop/Start Reset
26.Seat Calibration
27.Transport Mode
More..
THINKSCAN PLUS S4 Supports 10 Full OBDII Functions
1️⃣Reading Codes
Show the detailed description of the Diagnostic Trouble Code (DTCs)
2️⃣Erasing Codes & Reset
Turns off Check Engine Light (MIL), clears codes and resets monitors.
3️⃣Data Stream
Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4️⃣I/M Readiness Status
Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5️⃣Read Live Data Stream
Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6️⃣View Freeze Frame Data
Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7️⃣O2 Sensor Test
Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8️⃣On-Board Monitor Test
Retrieves and displays test results for emission-related powertrain components and systems.
9️⃣Read Vehicle Information
Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
🔟Component Test
Certain vehicle components can be actuated by commands sent from the scanner to test their operability
Thinkscan Plus S4 Characteristic Function

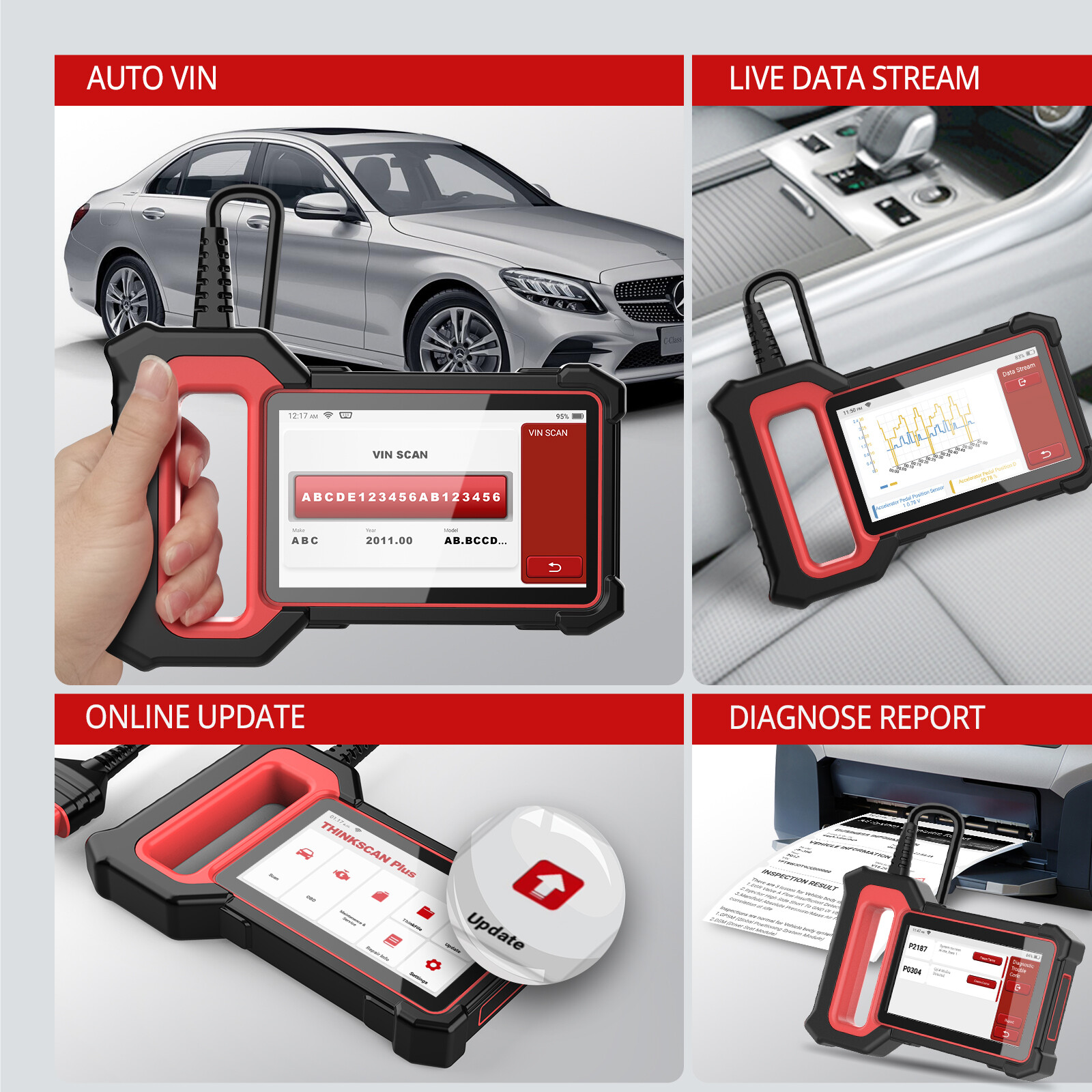

1.【Scan QR Code to Share&Print + AUTO-VIN】
Unlike most OBDII products on the market, ThinkScan Plus S4 can scan the QR code and share it where you want to share and print it after obtaining the diagnostic report. You can also take out the SD card and export diagnostic report; Convenient and fast, keeping up with the trend of the times. And you can also Auto-VIN your vehicles at anytime, manual diagnosis is also available.
2.【ScreenShot + Screen Recorder + WIFI Update】
We also have two excellent advantages, that is, when you enable the screenshot and screen recording functions in the settings, you can start to take screenshots and screen recordings, they will finally be saved in "Photo album" and "Screen recorder" Under the " Settings". Besides, you can update software free lifetime.
3.【Dashboard Display + Auto-Test Battery Voltage】
After the car is ignited, once connected to the car DLC, the main interface of ThinkScan Plus S4 will have a small dashboard indicator to indicate that the connection is successful; and once connected, the OBDII Scanner will automatically diagnose the battery voltage
4.【Live Data On Graph】
It is faster when refreshing live data and can graph multiple PIDs effortlessly. You can collect information on the horsepower, fluid temperature, and fuel status using the display as well. The scanner allows you to see the load value, time advances, airflow rate, pressure intake, and oxygen sensor voltages among other things
HEALTH REPORT GENERATE & SHARE
Ask for Help by sending the report to your mechanic or friendGive to your clients as part of their repair documentationA Reference for vehicle inspection and maintenance
Thinkscan Plus S4 Diagnostic Scanner Support 10 Languages
English, Russian, Spanish, Portuguese, French, Japanese, German,Italian,polish
Support more than 93+ Car Brands
For ASTONMARTIN ；For AUDI ；For BENZ ；For BMW ；For CHRYSLER ；For CITROEN ；For DAEWOO ；For FERRARI ；For FIAT ；For GM ；For HONDA ；For HYUNDAI ；For JPISUZU ；For KIA ；For LANDROVER ；For MASERATI ；For MAZDA ；For MITSUBISHI ；For NISSAN ；For OPEL ；For PEUGEOT ；For PORSCHE ；For RENAULT ；For ROVER ；For SAAB ；For SEAT ；For SGM ；For SKODA ；For SMART ；For SPRINTER ；For SSANGYONG For SUBARU ；For SUZUKI ；For TOYOTA ；For USA FORD ；For VOLVO ；For VW ；More...
Product Package List
1*Type-C Cable
1*Multilingual User Manual:
1* Thinkscan plus s4
