Material: Toray T800 full carbon fiber
Rim:
Depth: 88mm
Width: 25mm
Drills: 20 holes for front and 24 holes for rear rim
Braking Surface: Basalt (width 14mm)
Surface: 3K matte/ 3K glossy/ UD matte -----(please confirm the surface when you place the order)
Profile: Clincher/ tubular
Hub:
Novatec AS511SB AS522SB
Front: 2 sealed bearing, O.L.D.: 9x100mm
Rear: 4 sealed bearing, O.L.D.: 10X130mm
Available color: black
Cassette body: Shiman0 9/10/11s, campy 10/11s -----(please confirm when you place the order)
Spoke:
Pillar 1432 Spokes (black)
Hole: Front 20H, Rear 24H, External hole
Lacing: Front: Radial, Rear: 2X cross drive side, Radial Non-drive side
Nipples:
aluminum nipples external
Available color: black/red/silver-----(please confirm when you place the order)
(If the internal nipples required, pls message to us)
Fit frame: s
uitable for road bike frame
Gifts:
2pairs brake pads, rim tapes,skewers, extra spokes and nipples!
( No rim tape for tubular version)
Note:
Max rider weight: 125kg
Max tyre pressure: 120PSI for Clincher, 200PSI for Tubular
Weight
88x25mm tubular: 1670g ±30g/pair
excluding skewers
88x25mm clincher: 1990g ±30g/pair
excluding skewers
Rim
24x20.5mm tubular: 280
g±30g/pair
24x23mm clincher: 390
g±30g/pair
Buyer guidence
1. ) Once you purchase an order, please leave a note that what rim finish, what cassette body and what colour you want below:
Finish: 3k matte/3k glossy/UD matte/ ( 3K twill，12K twill only 38mm and 50mm clincher )
Cassette body: shiman0 9/10/11s or campy10/11s
Colour of hub: black
Colour of spokes: black
Colour of nipples: black/ red / silver
If you did not leave any information about your order, we will ship 3k matte finish with all black colours and shiman0 9/10/11s
2. )We ship by EMS, hongkong post air parcel or China post air parcel. If you need it ship by DHL, FEDEX or UPS,please contact us to pay extra cost.
3. ) Import duties, taxes and charges are not included in the item price.These charges are the buyer’s responsibility.
4. ) 1 year Warranty: We offer you our high quality and customers-tested products ,We have a quality assurance date which is 1 years. Under normal riding, if there is any damage not caused by human factors, products can be replaced from us.

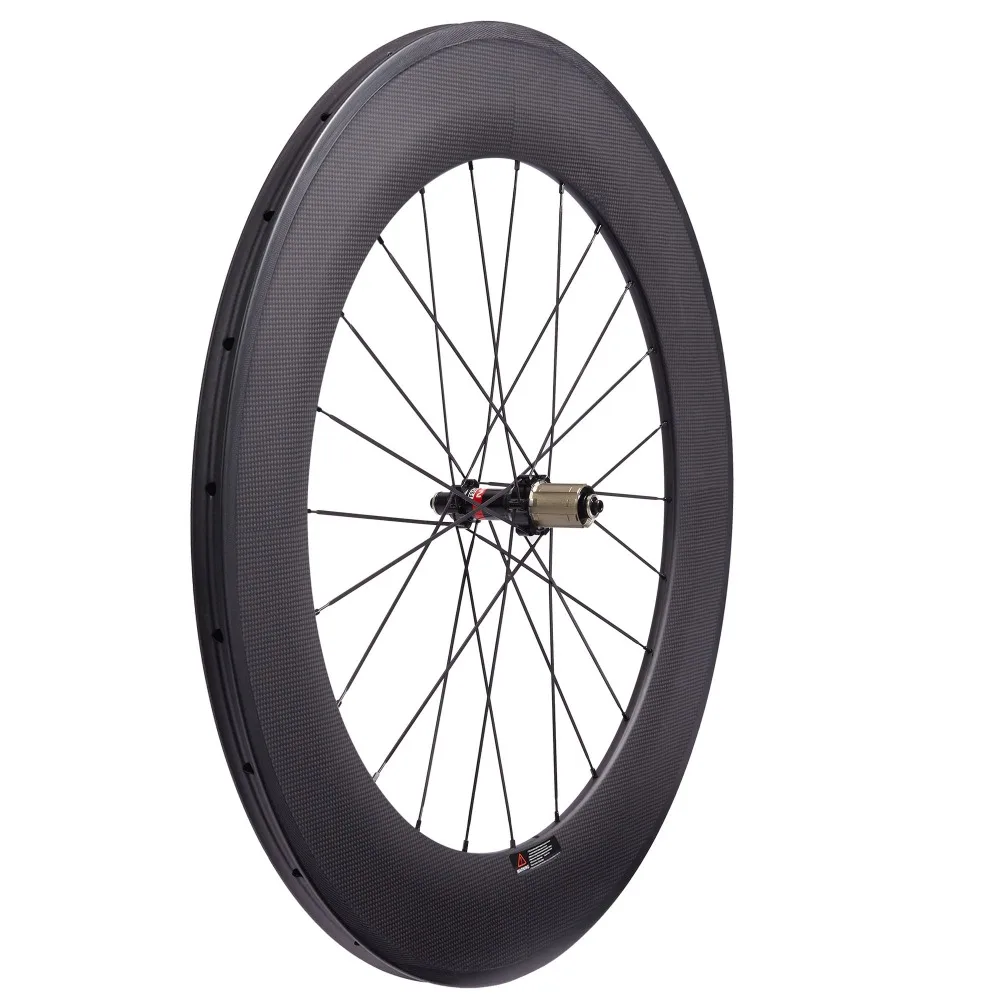

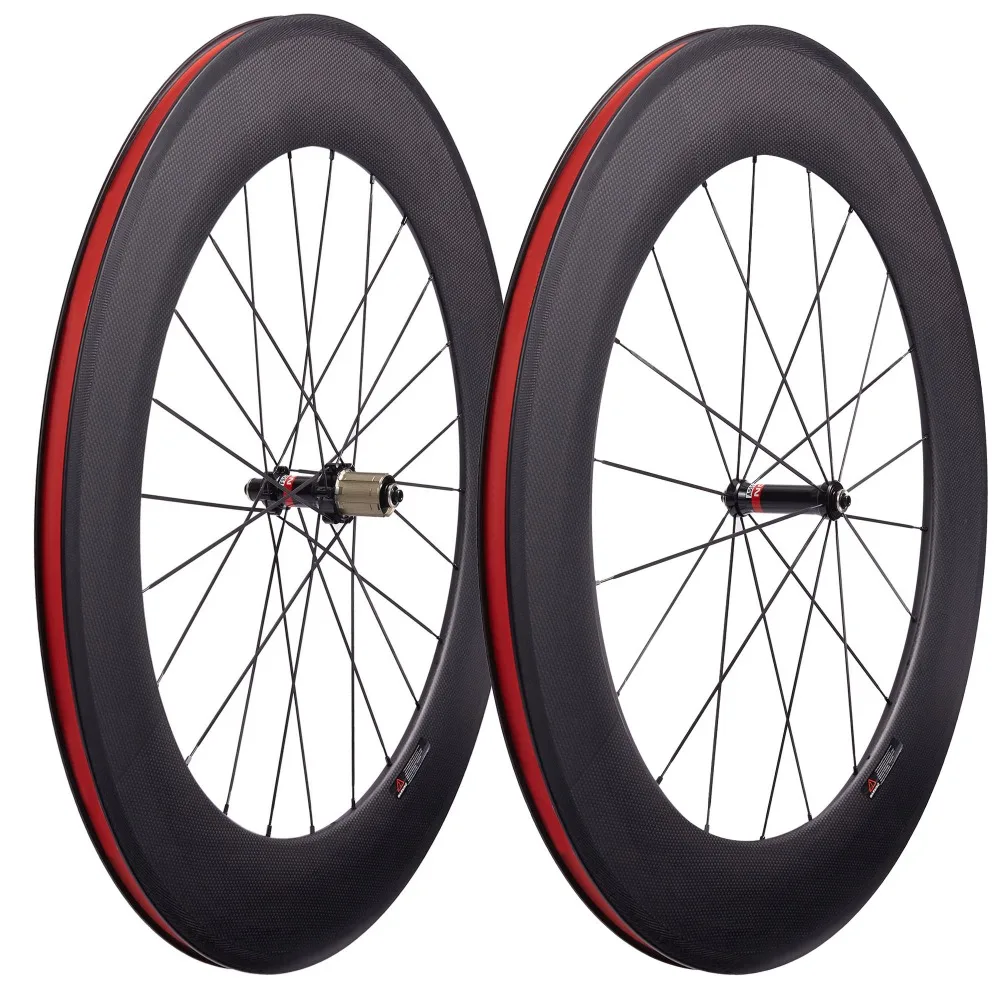

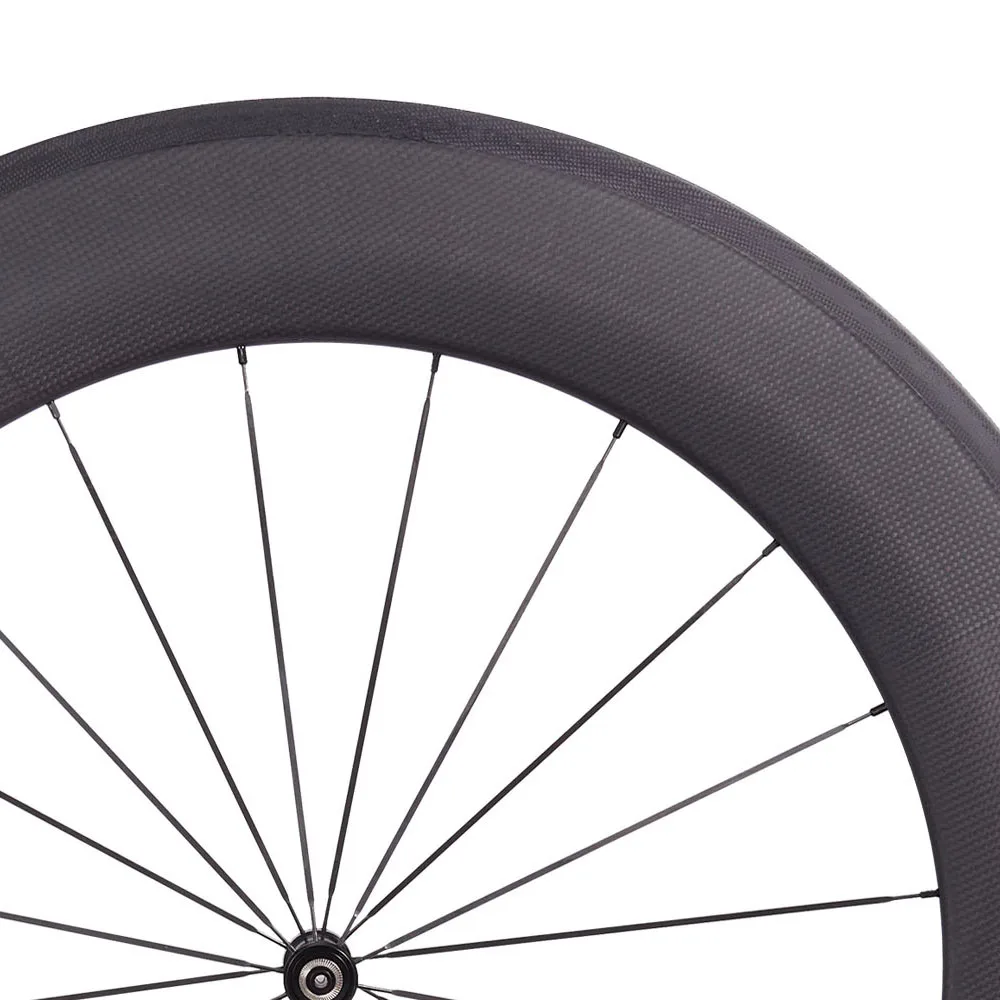

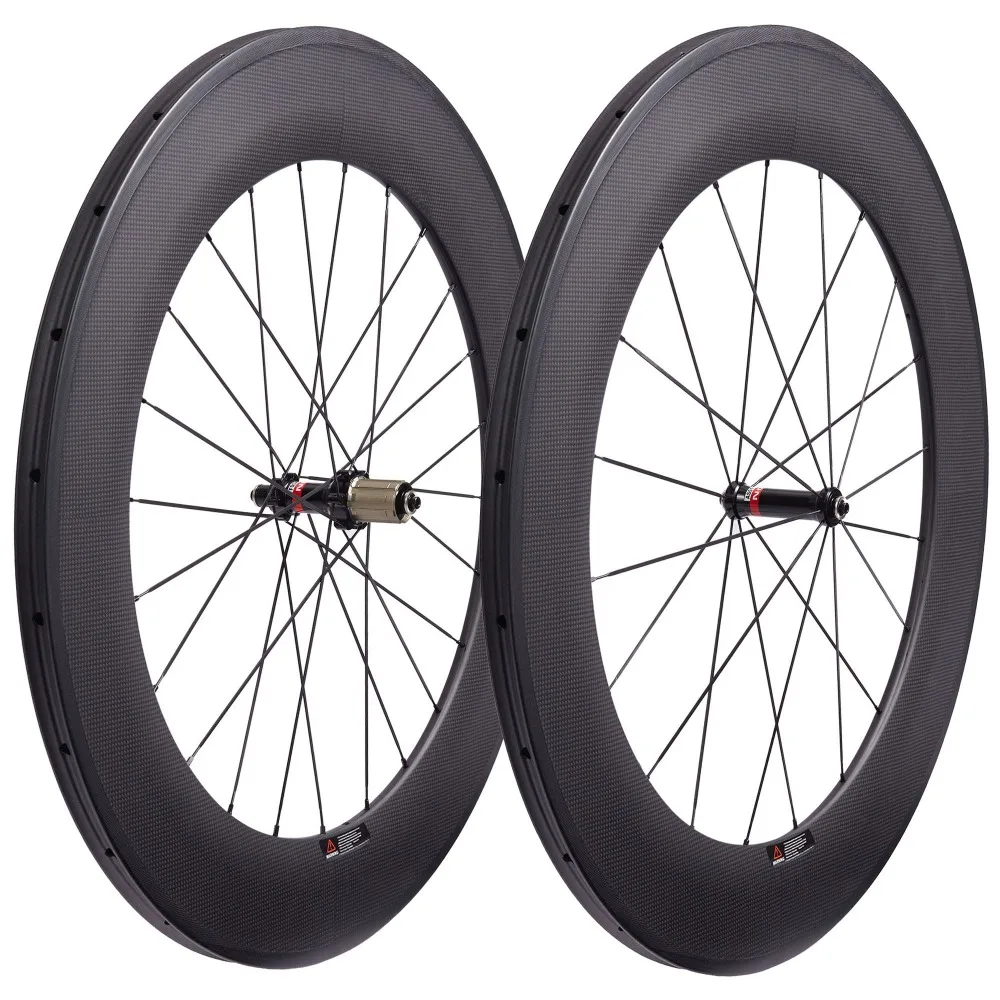

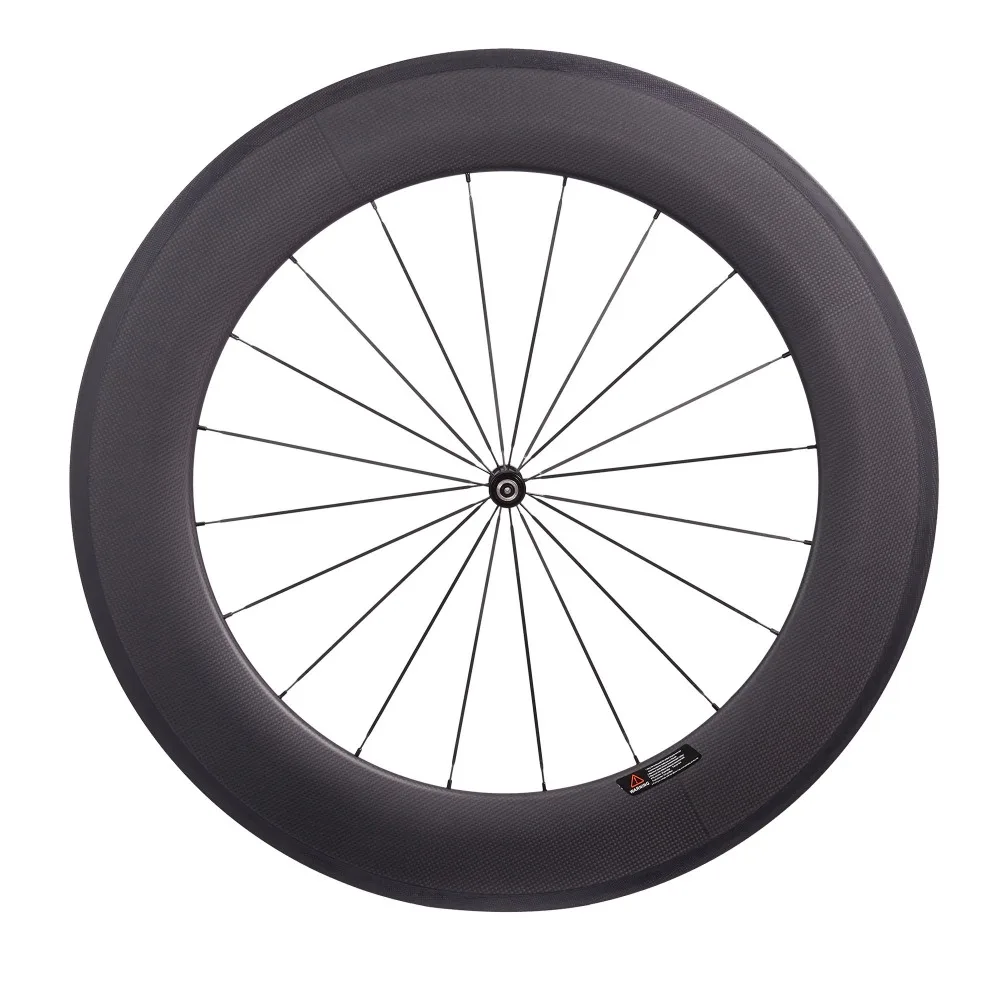

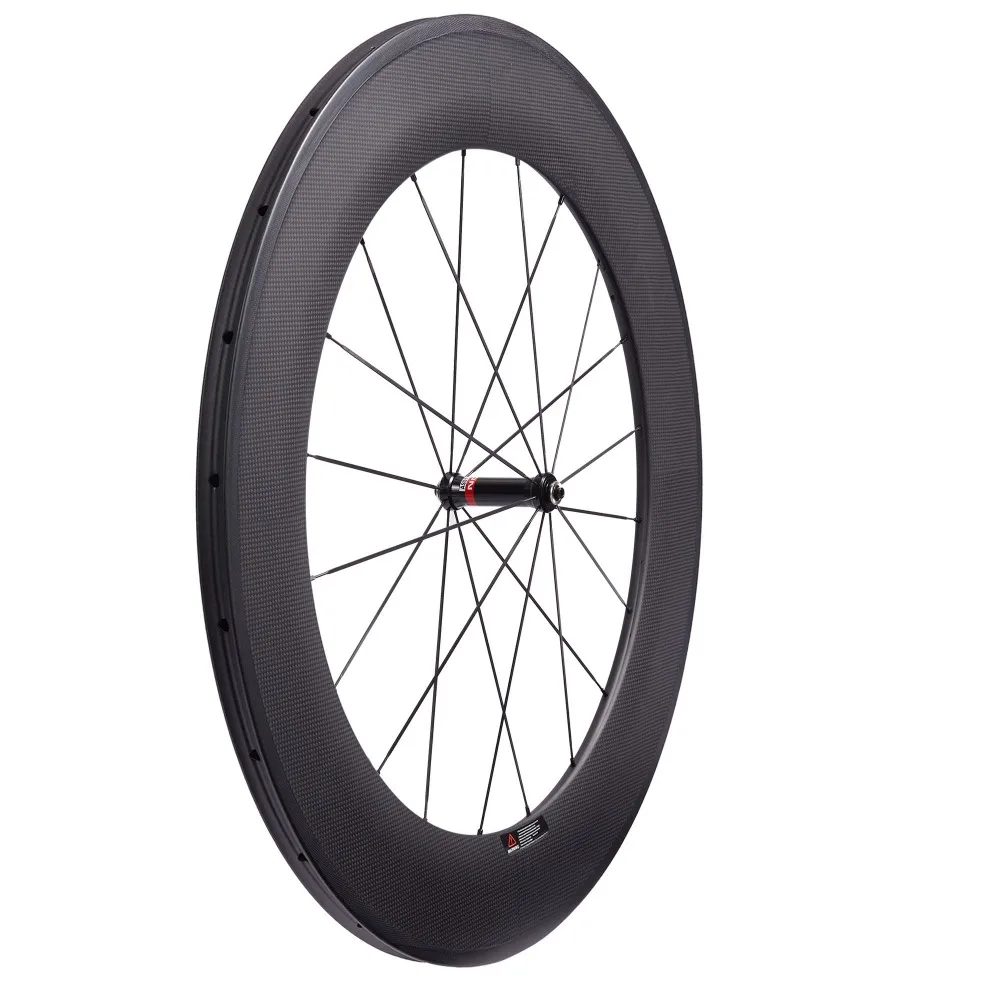

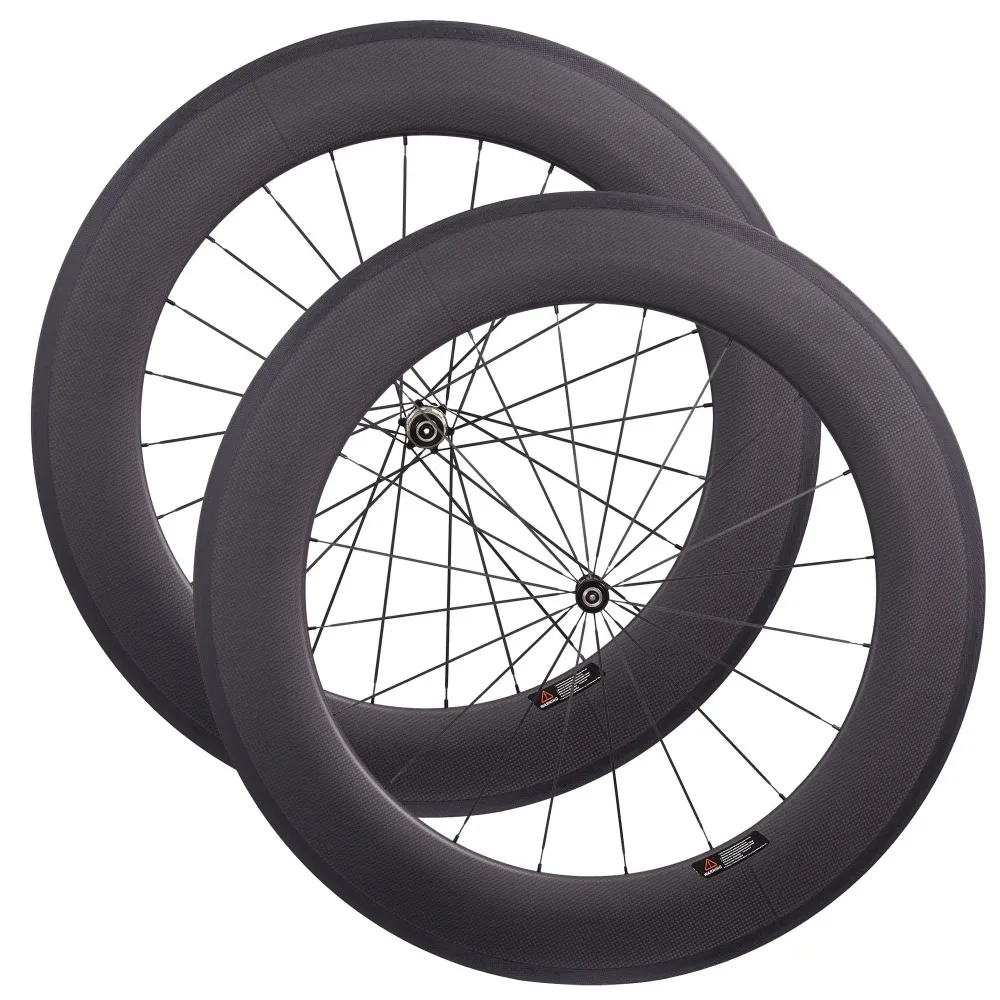

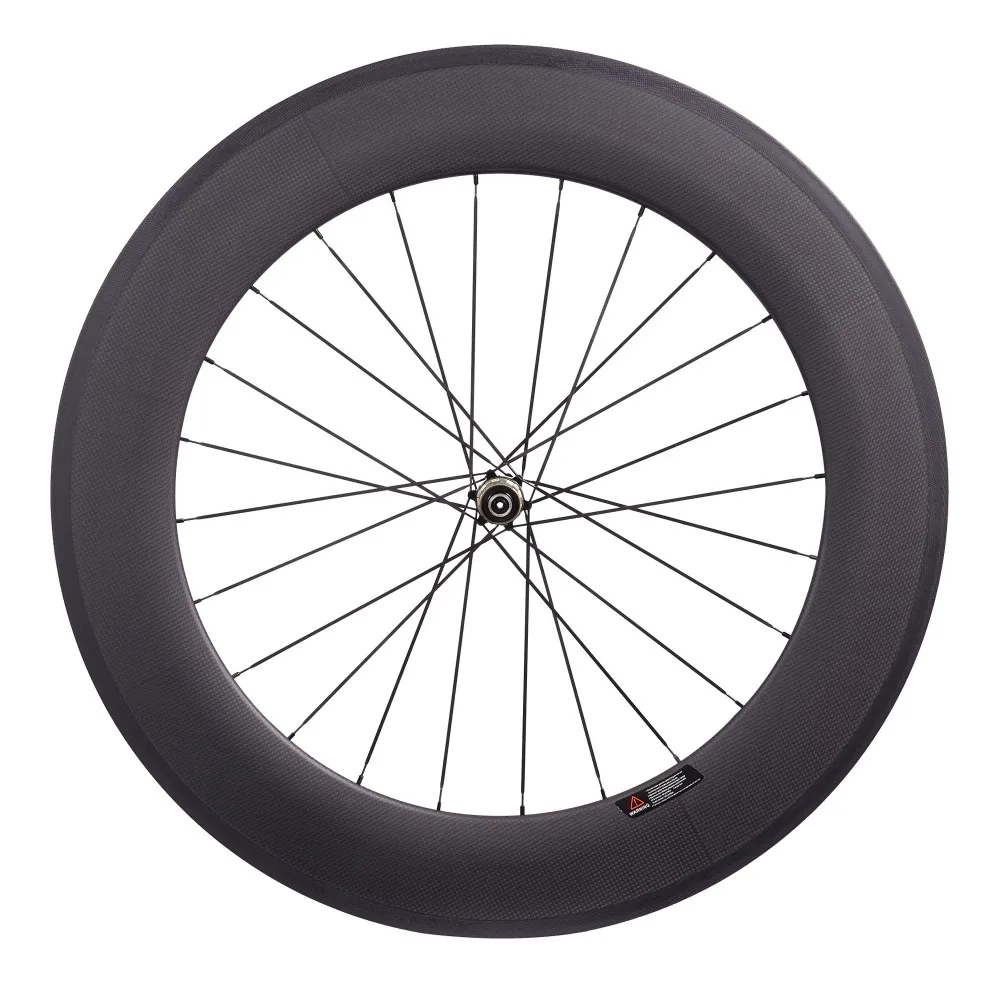

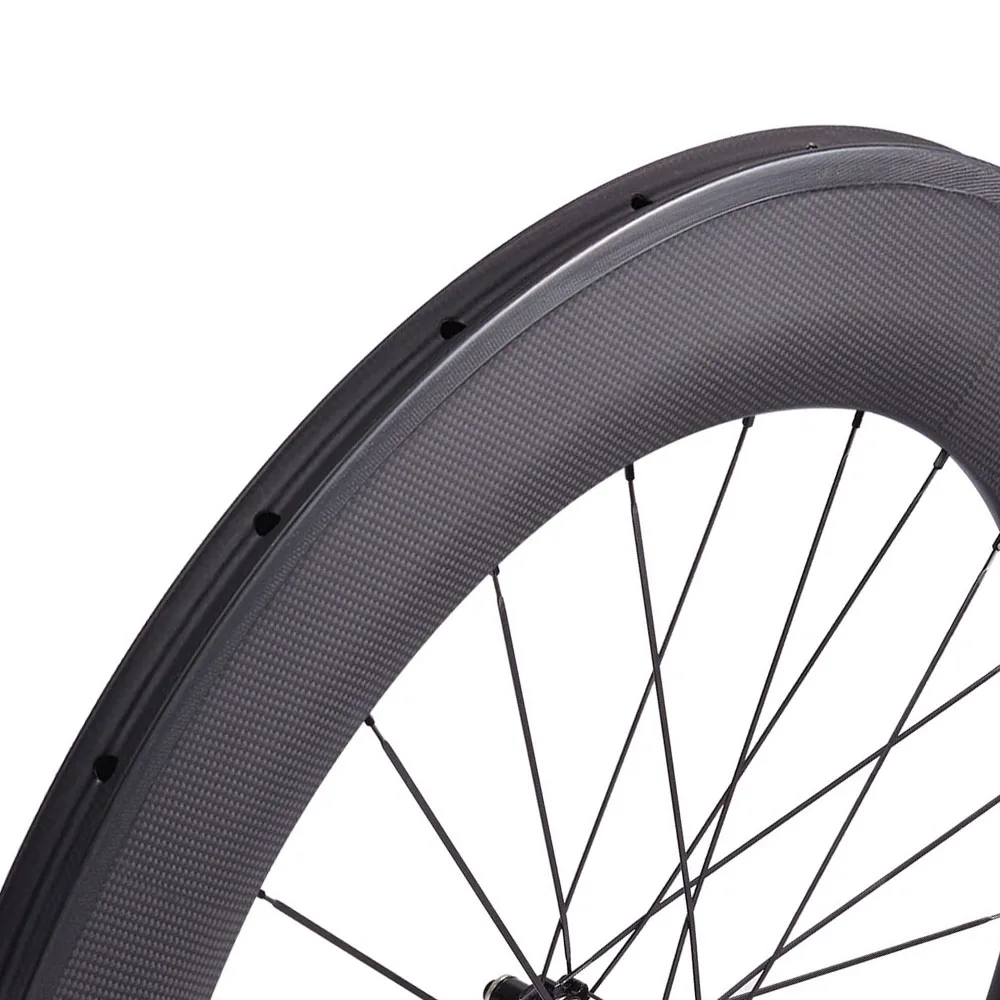

Detailed image
Different rim finish
24MM RIM ONLY with Basalt braking edge
BUYER SHOW
