Specifications:

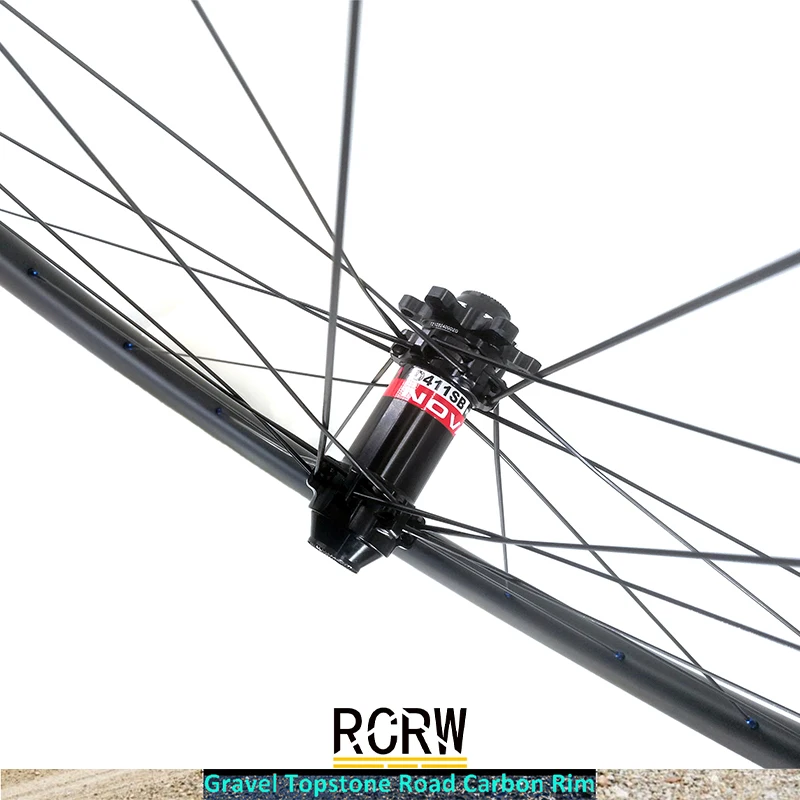

Front Wheel:
| Type |
Tubeless+Clincher |
Size |
700C |
| Spoke Holes |
24 |
Outer Width |
28mm |
| Depth |
30/35/40/45mm |
Weight |
Refer to the wheelset weight table |
| Weave |
UD/3K/12K |
Finish |
Glossy orMatte |
| Braking System |
6 Bolts Disc |
Nipple Position |
External |
| Hub |
Novatec D411SB |
Spoke |
Pillar Wing20 |
| Nipple |
MV Aluminum Alloy |
Sealed Bearings |
2 sealed bearings |
| Max Weight Limit |
120Kg |
O.L.D. |
12x100mm |
| Max Spoke Tension |
180KGf |
Warranty |
12 Months |

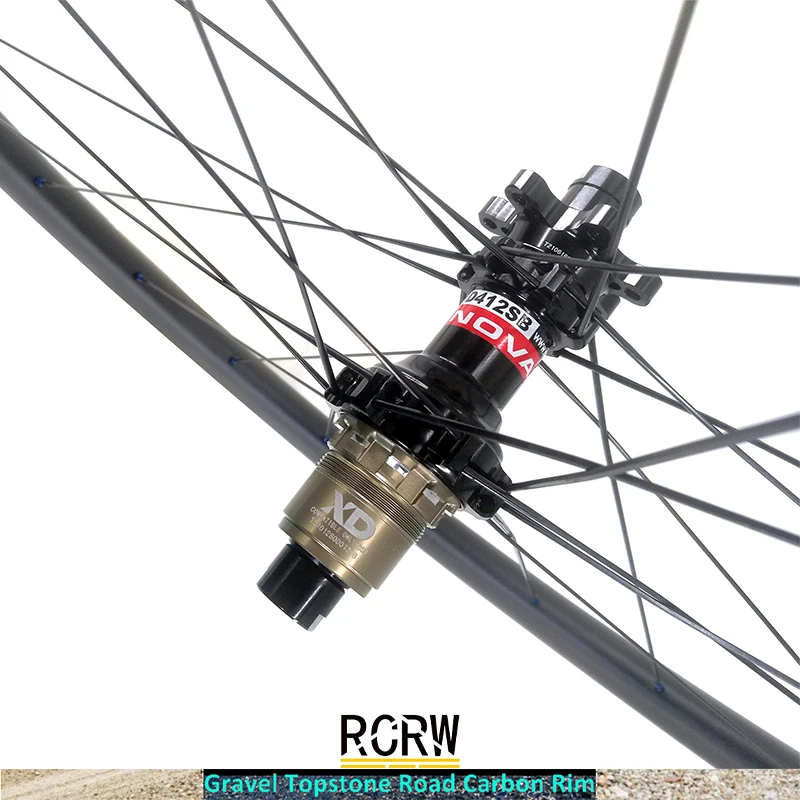

Rear Wheel:
| Type |
Tubeless+Clincher |
Size |
700C |
| Spoke Holes |
24 |
Outer Width |
28mm |
| Depth |
30/35/40/45mm |
Weight |
Refer to the wheelset weight table |
| Weave |
UD/3K/12K |
Finish |
Glossy or Matte |
| Braking System |
6 Bolts Disc |
Nipple Position |
External |
| Hub |
Novatec D412SB |
Spoke |
Pillar Wing20 |
| Nipple |
MV Aluminum Alloy |
Sealed Bearings |
4 sealed bearings |
| Max Weight Limit |
120Kg |
O.L.D. |
12X142mm |
| Cassette Body |
Shiman/XD/XDR |
Pawls |
4 |
| Max Spoke Tension |
180KGf |
Warranty |
12 Months |
Wheelset Weight:
| Size |
Type |
ERD |
Rim Depth |
Rim Width |
Front Weight |
Rear Weight |
| 700C |
Tubeless |
579 |
30mm |
28mm |
580±30g |
725±30g |
| 700C |
Tubeless |
569 |
35mm |
28mm |
590±30g |
735±30g |
| 700C |
Tubeless |
559 |
40mm |
28mm |
610±30g |
755±30g |
| 700C |
Tubeless |
549 |
45mm |
28mm |
625±30g |
770±30g |
Others:
Outer packing:
Detailed Pictures:
