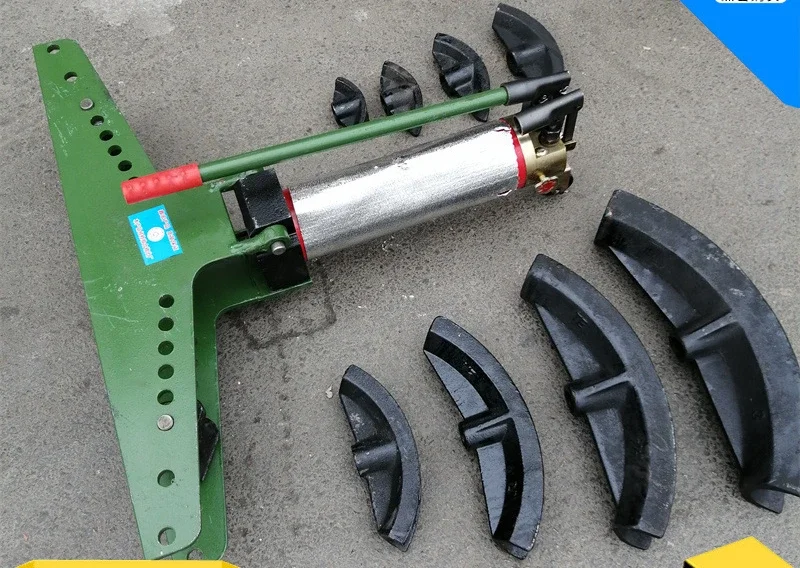

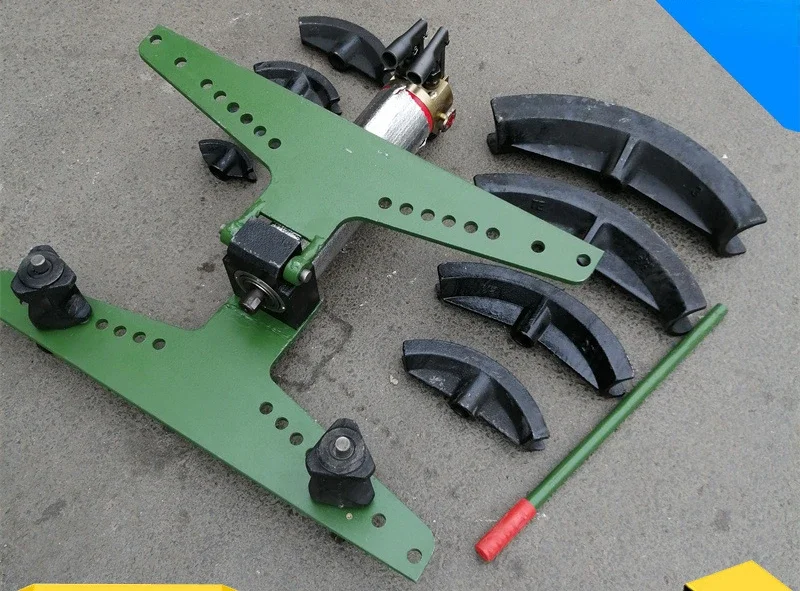

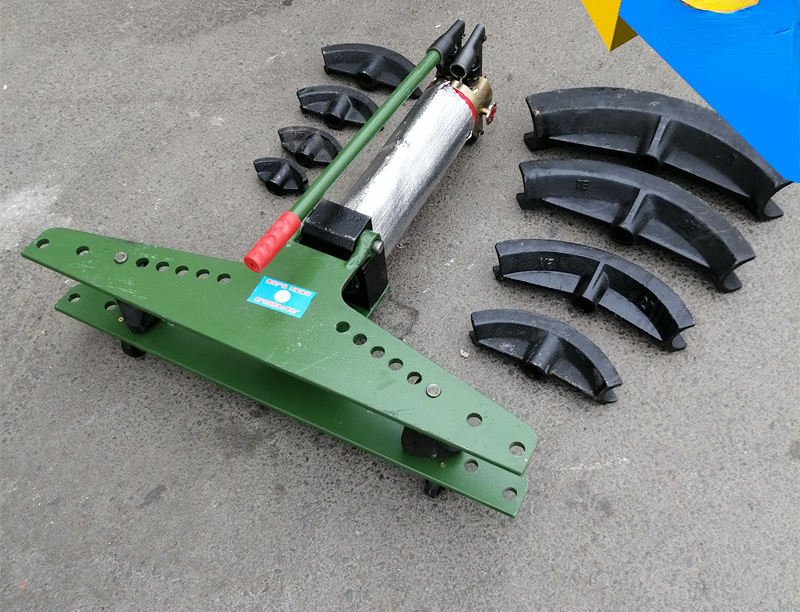

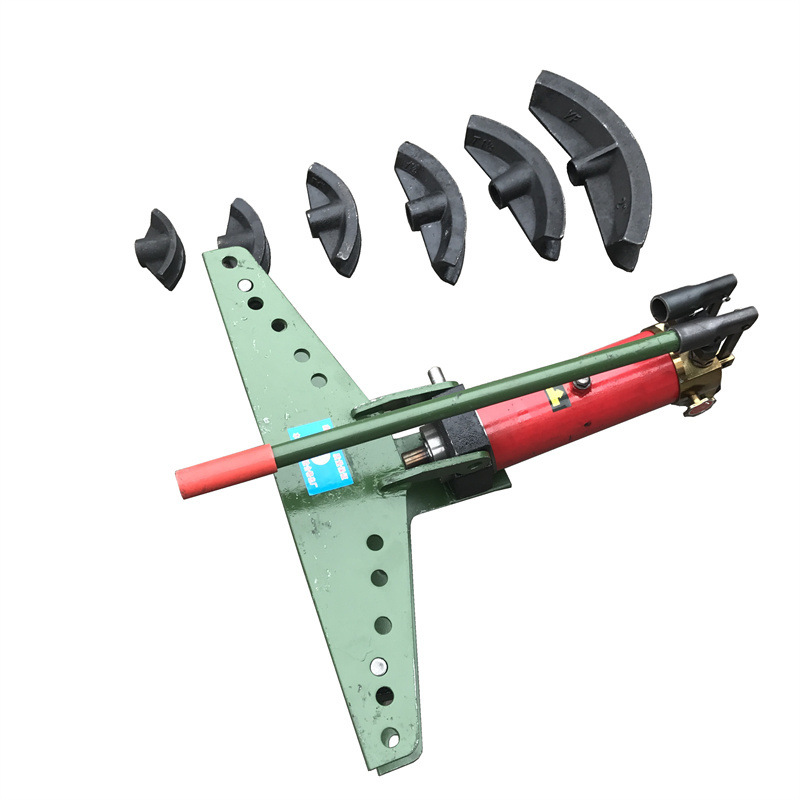

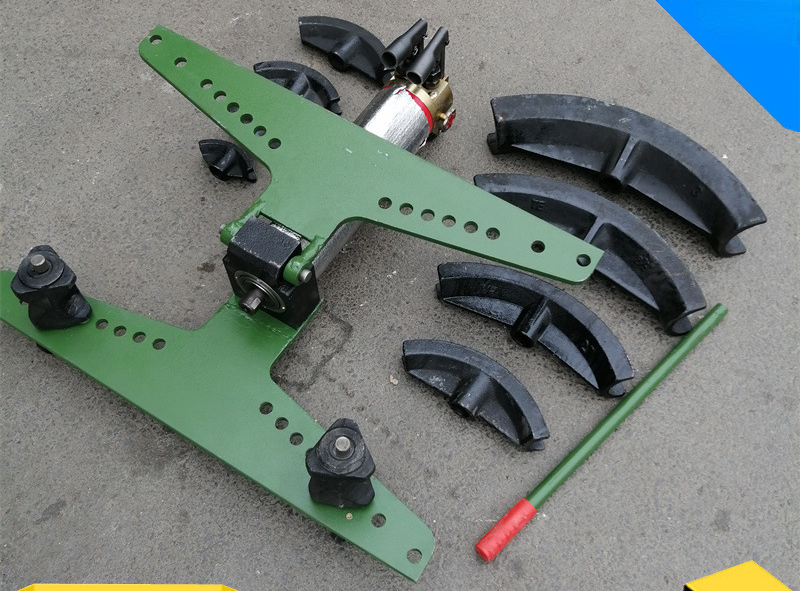

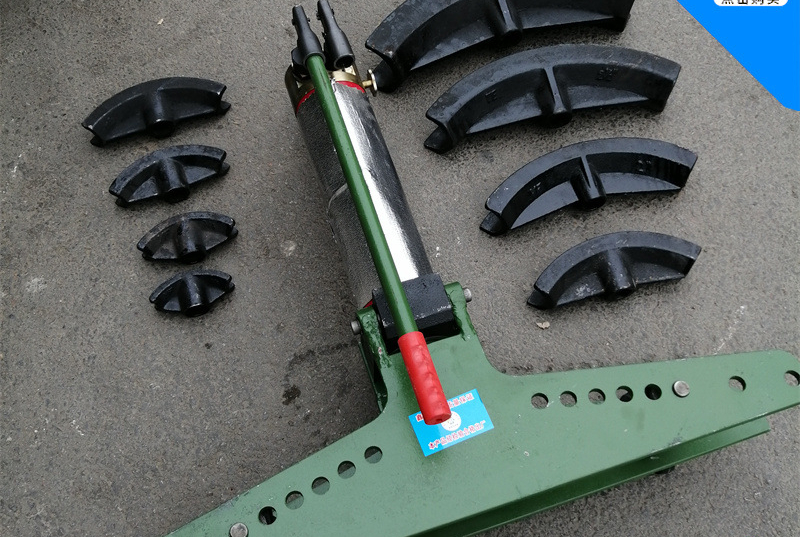

SWG-2A hydraulic pipe bender manual hydraulic pipe bender bender Integral bender 2 inch 3 inch 4 inch



Model: SWG-2A
Working pressure 44Mpa
Large working stroke 250 mm
Bend angle ∏/2≤a<∏
Radius of curvature 4D
Hydraulic oil grade N15
Pipe OD series 21.3×2.75 26.7×2.75 33.5×3.25 42×3.25 48×3.5 60×3.5
Weight of the whole machine 60kg
Overall dimension 76×38×23cm

Model: SWG-3B
Working pressure 55Mpa
Large working stroke 320 mm
Bend angle ∏/2≤a<∏
Radius of curvature 4D
Hydraulic oil grade N15
Pipe OD series 21.3×2.75 26.7×2.75 33.5×3.25 42×3.25 48×3.5 60×3.5
75.5×3.75 88.5×4.0
Weight 130kg
Overall Dimension 96*42*28cm

Model: SWG-4D
Working pressure 62Mpa
Large working stroke 420 mm
Bend angle ∏/2≤a<∏
Radius of curvature 4D
Hydraulic oil grade N15
Pipe OD series 21.3×2.75 26.7×2.75 33.5×3.25 42×3.25 48×3.5 60×3.5
75.5×3.75 88.5×4.0 108*4.5
Weight 190kg
Overall Dimension 122×48×29cm
