Worm gear reducer small gearbox 90 degree right angle reversing gearbox 1 to 10 1 to 20 Turning angle device

product manual:
1. Manual measurement, there will be slight errors;
2. The punching and cutting process of aluminum alloy processing may produce scratches;

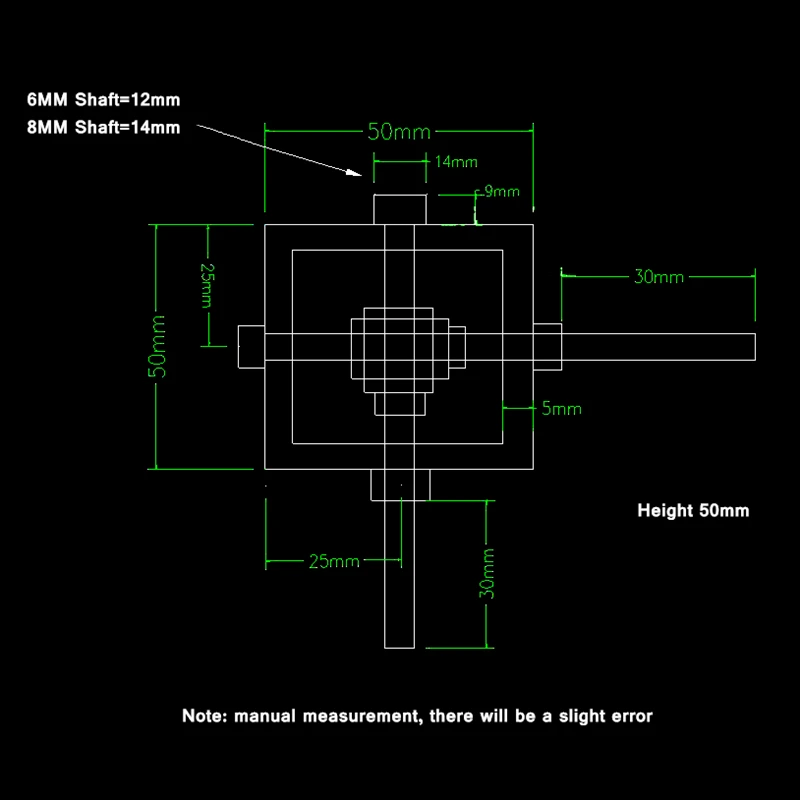

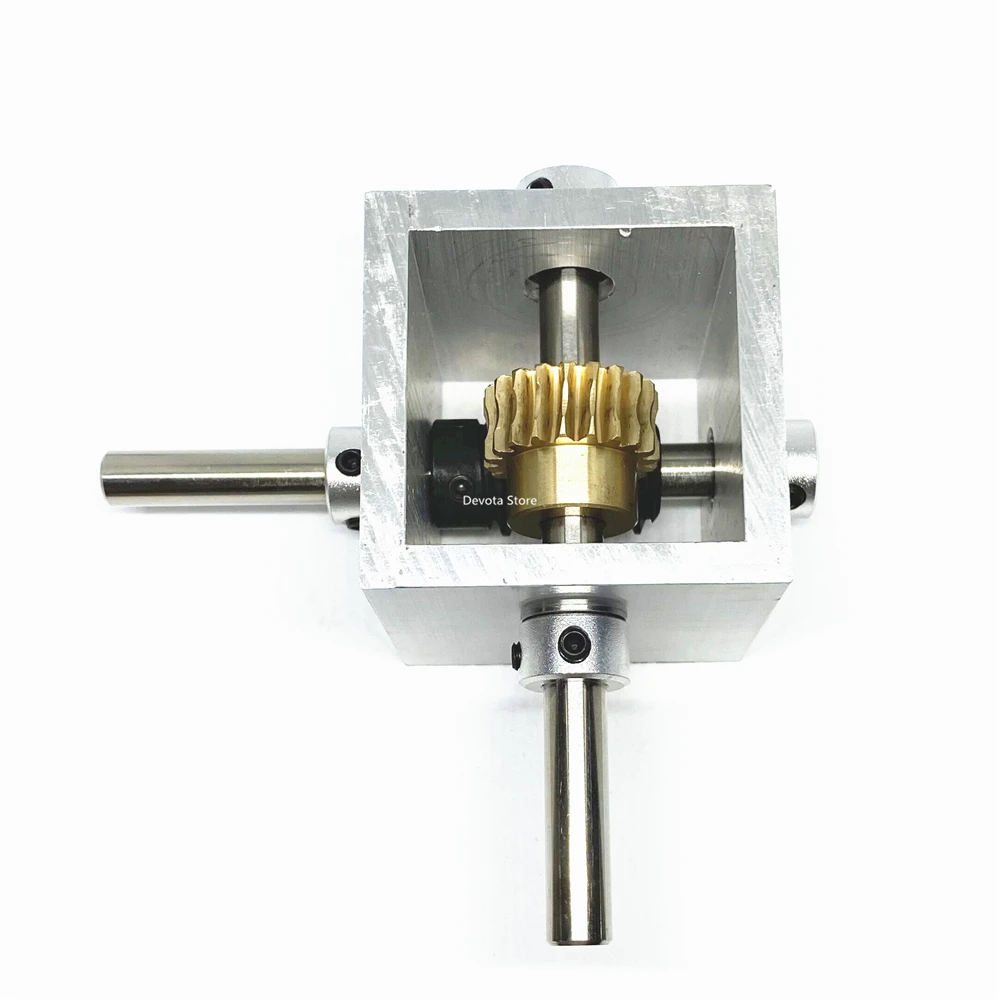

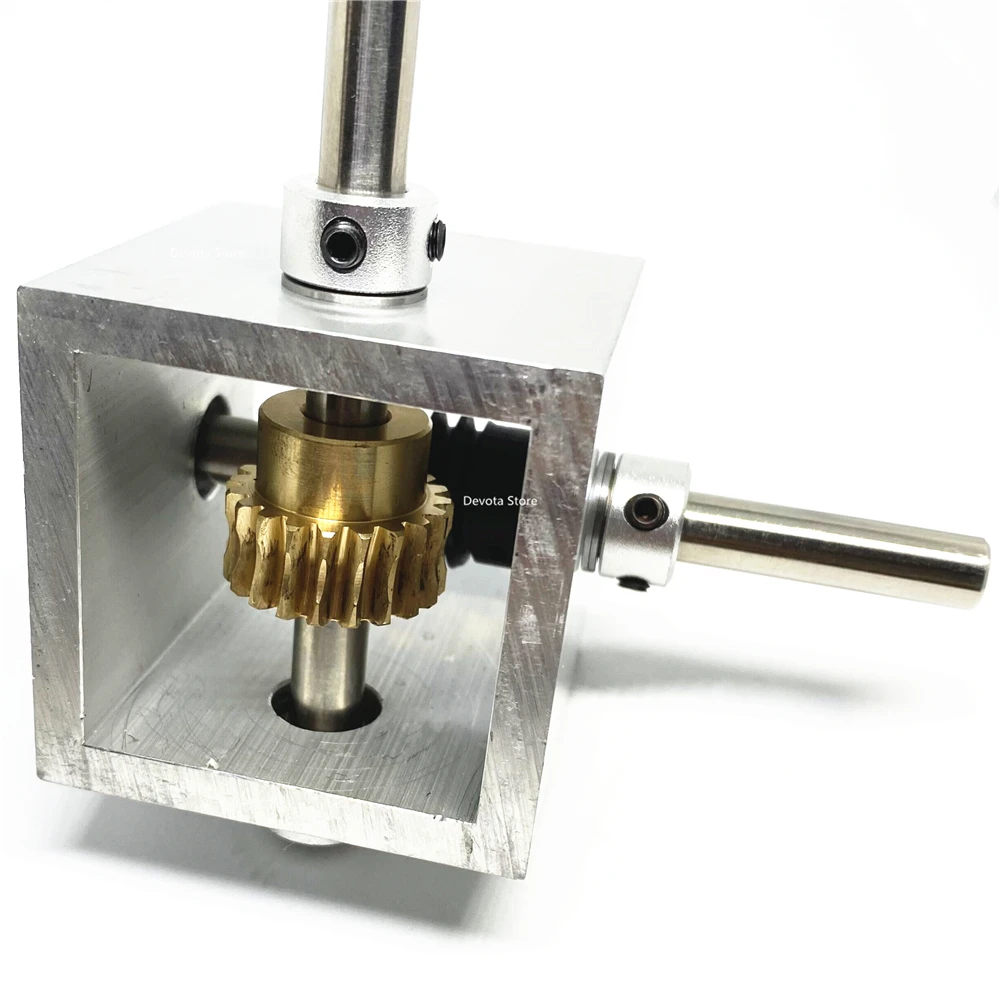

3. As shown in the figure, the product has no fixed mounting holes and no cover on the top and bottom;
4. It is a simple reducer and cannot be used for high-speed operation; (used in places where accuracy is not high)

Frame material: aluminum alloy
Worm material: 45#steel;
Turbine material: copper

Worm diameter: 18mm
Worm length: 32mm
Number of worm gear teeth: 20T
Worm gear outer diameter: 22mm
Tooth width: 10mm
Step outer diameter: 17mm
Step thickness: 8mm

Inner hole of worm gear: 6mm/8mm
Installation center distance: 18mm
Overall weight of the gearbox: about 0.25kg
