Model: AO 38rc
Version: wire control | manual control
Length: 165mm, 190mm, 200mm, 210mm
Stroke: (35,50,53,53) ± 2mm
Functions: adjustable damping | compression adjustment | air pressure soft and hard adjustment | shock absorber locking
Features: DNM pneumatic shock absorber, light weight, good quality, superior function, suitable for all kinds of roads, with the highest air pressure of 270psi
Bicycle Air shock absorber size

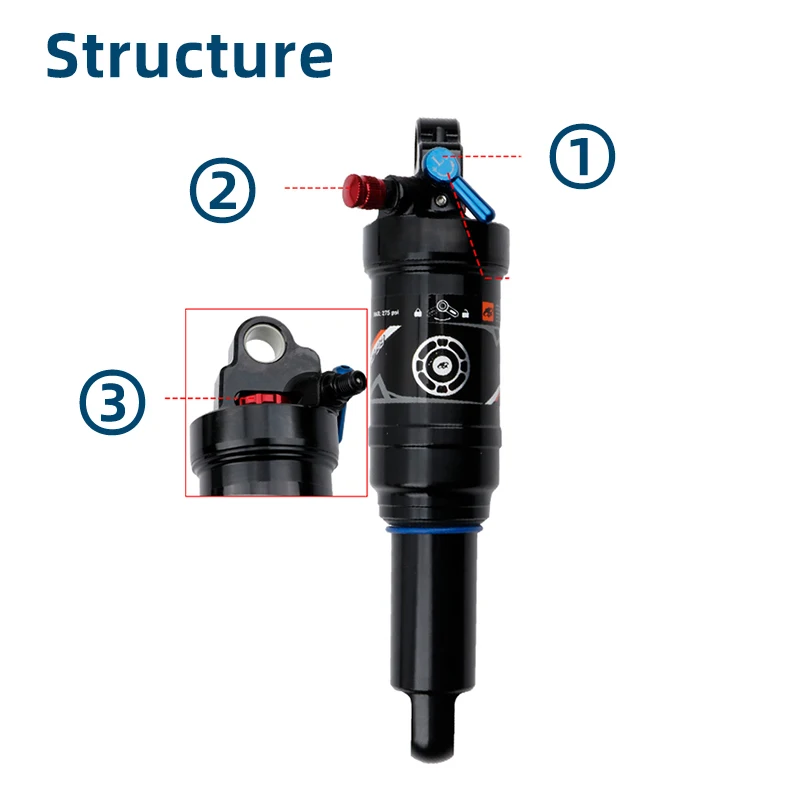

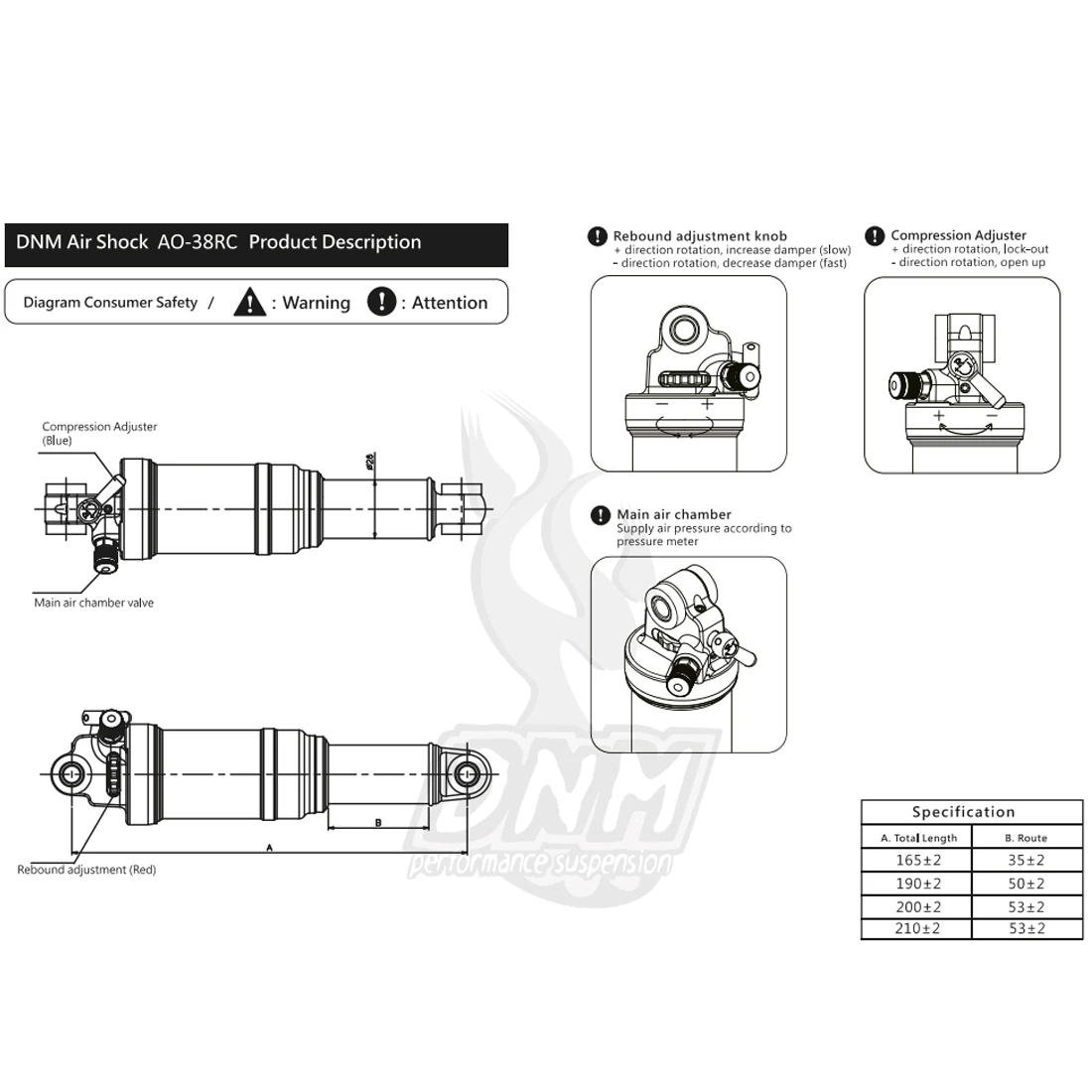

Shock absorber structure
①Lock switch
''+'': Locked
''-'': open
②Main air pressure adjustment
It is recommended to use a high-pressure pump with a pressure value for pumping
③Damp adjustment button
Adjust the speed of suspension damping
Each shock absorber is equipped with two 24mm bushings by default. If you need bushings of other lengths, The store has a link to the original DNM dedicated bushings to choose from

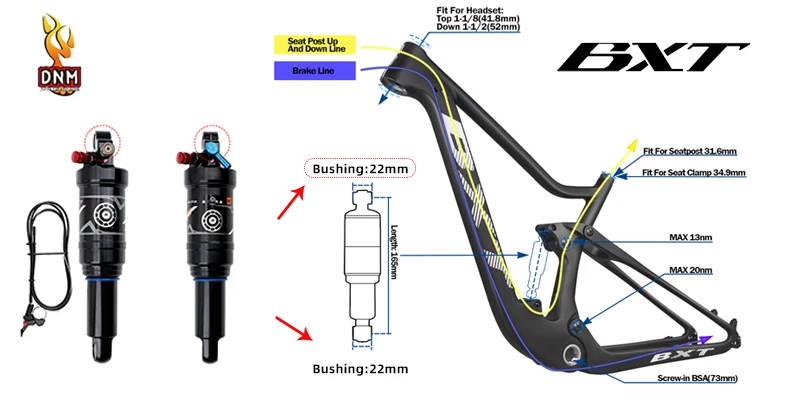

The length of the shock absorber is selected. Generally, the frame trader will indicate the installation length and width of the shock absorber of the frame, such as the BXT brand carbon fiber frame.

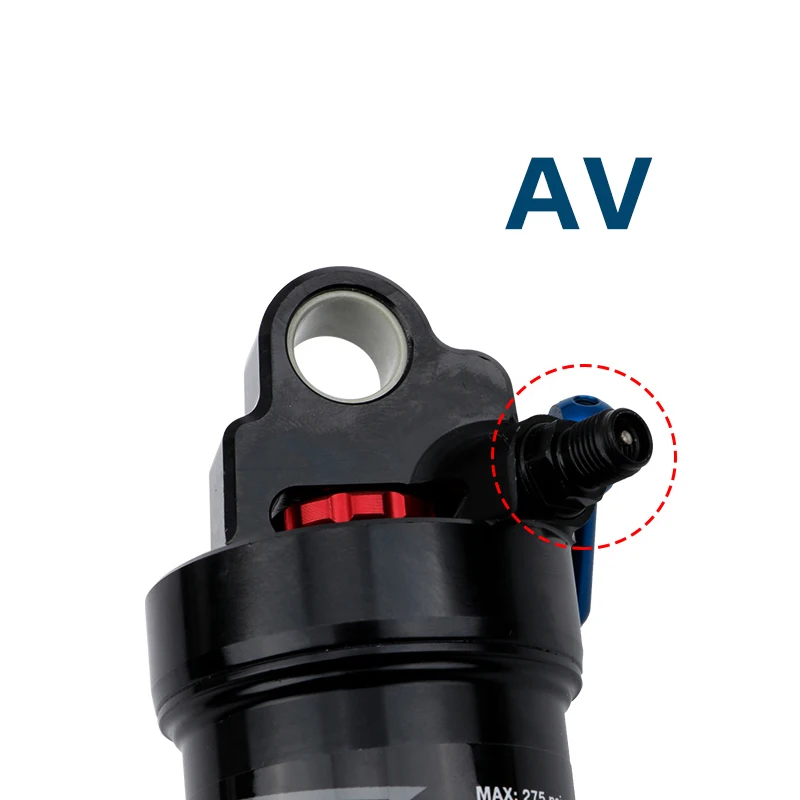

American gas nozzle

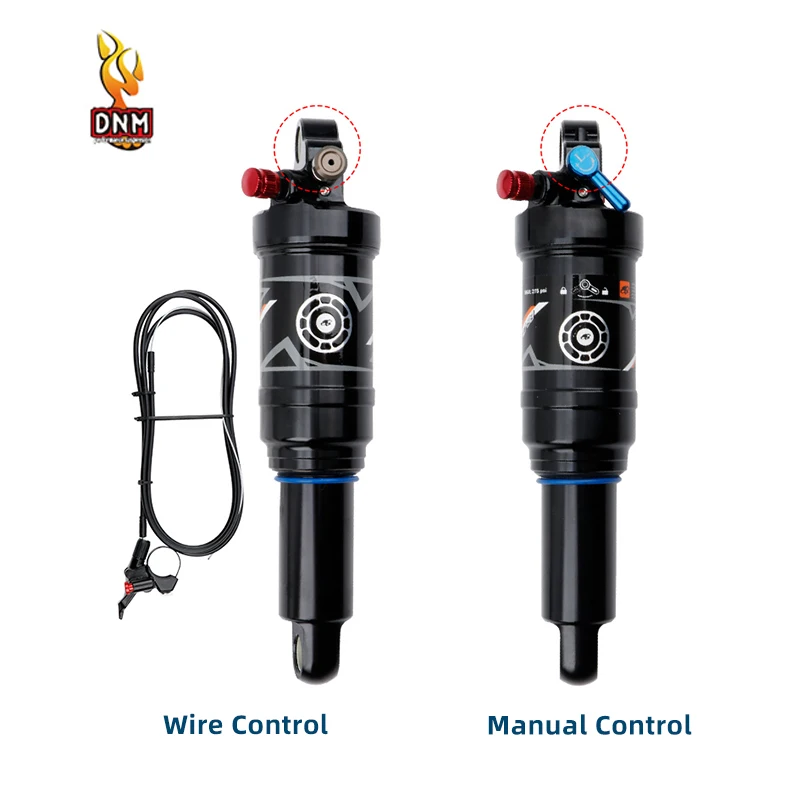

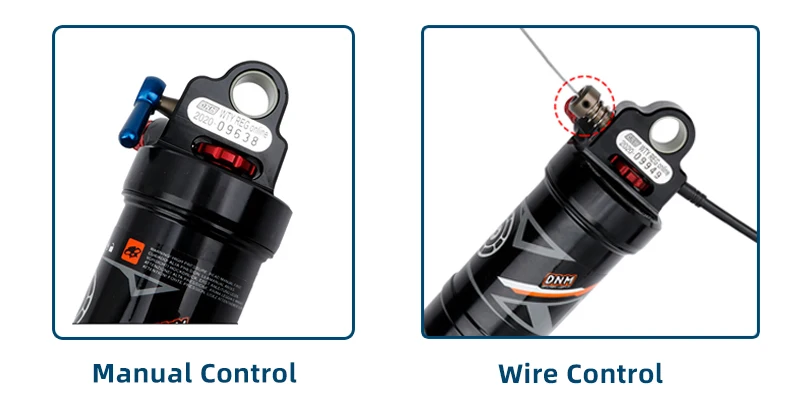

Manual control wire control distinction
Manual control :The shock absorber needs to be adjusted by hand to lock the switch button
Wire Control:The shock absorber can use the wire controller to remotely control the lock switch

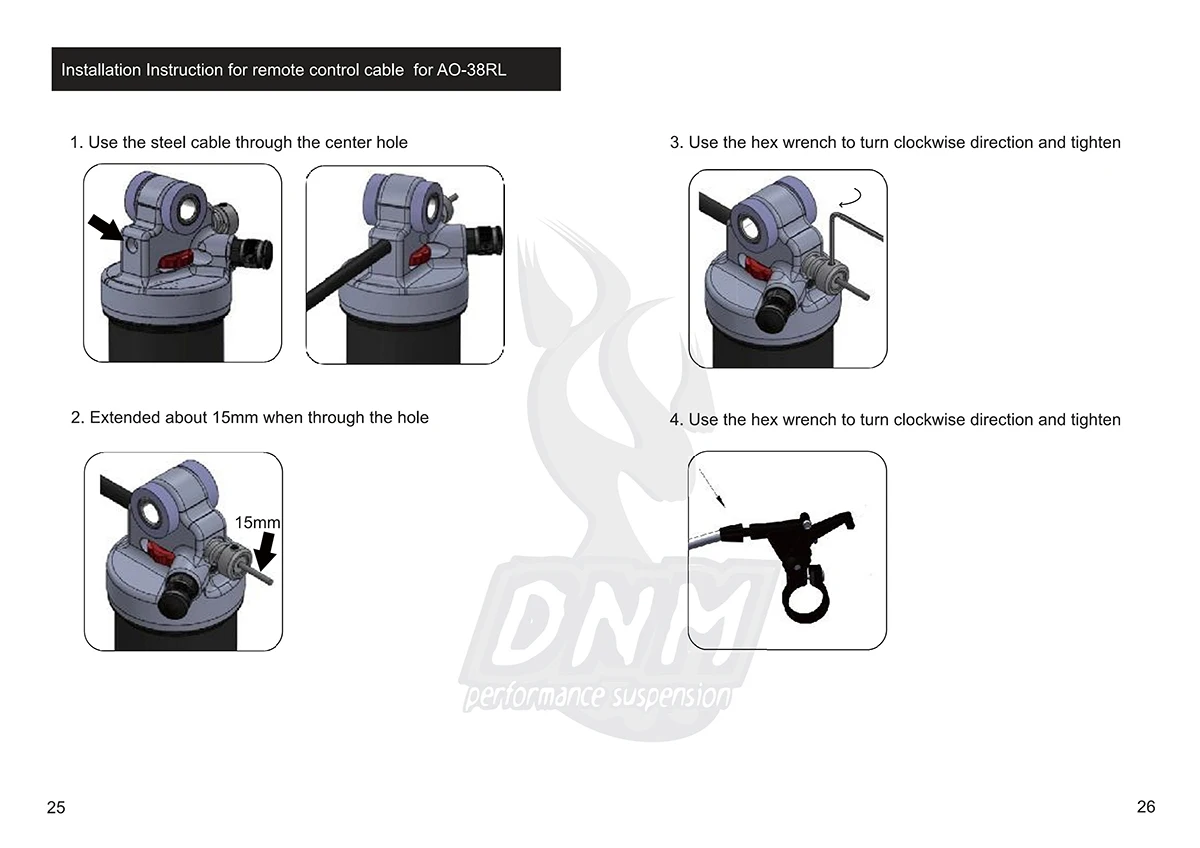

Wire-controlled shock absorber installation method

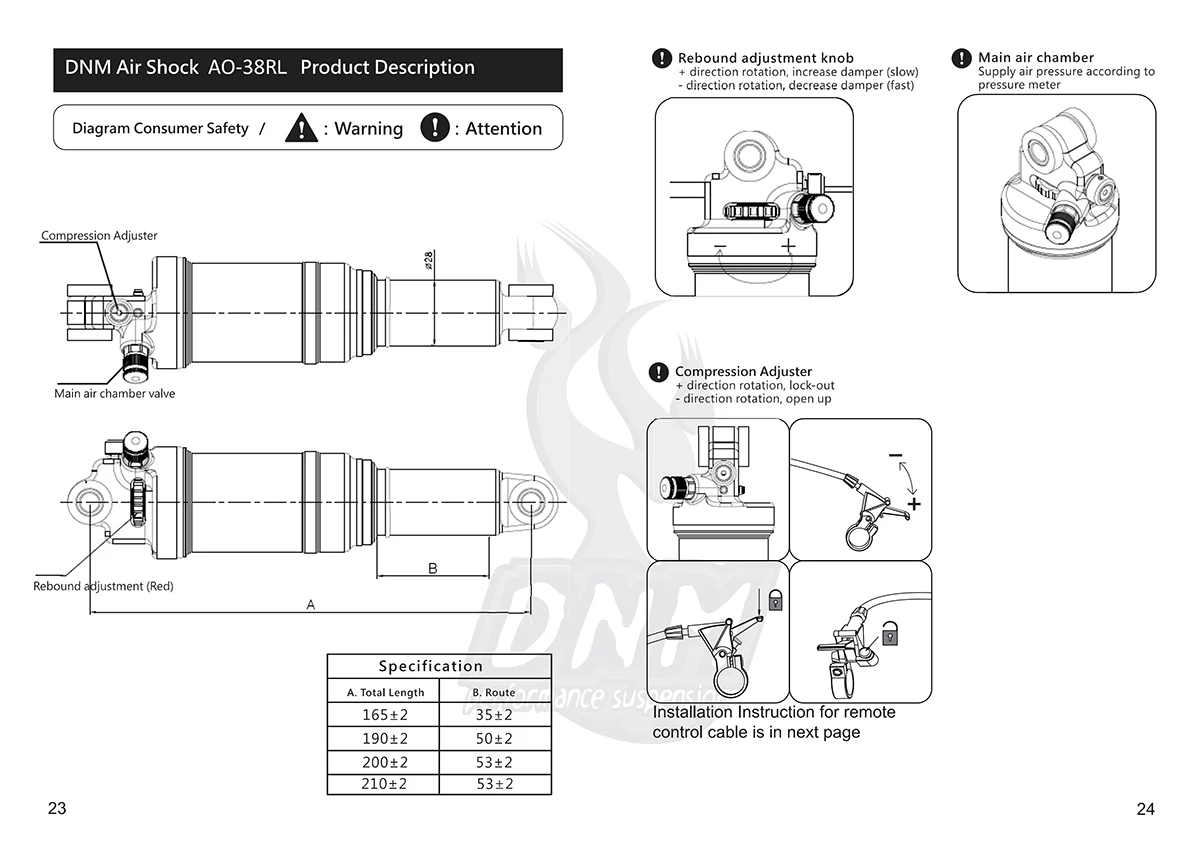

Manual shock absorber function diagram

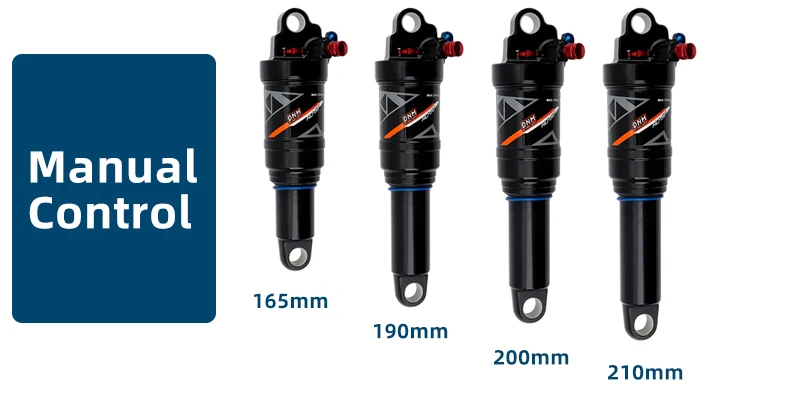

Manual control shock absorber
165mm shock absorber
190mm shock absorber
200mm shock absorber
210mm shock absorber

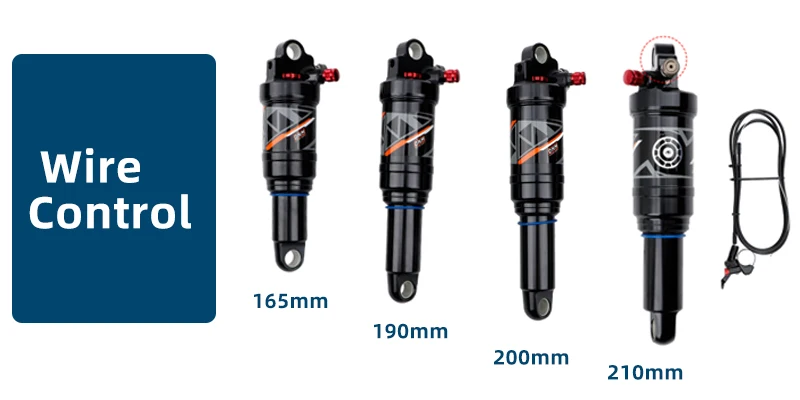

Wire control shock absorber
shock absorber 165mm
shock absorber 190mm
shock absorber 200mm
shock absorber 210mm
