| Size |
700C |
| Type |
clincher |
| Depth |
45/50mm |
| Outer width |
28mm |
| Inner width |
21mm |
| Spoke holes |
24 |
| Weave |
UD, 3k, 12k, twill , marble |
| Finish |
matte/glossy |
| Braking system |
rim brake/disc brake |
| Nipple position |
external/internal |
| Tubeless |
compatible |
| Rim Material |
Toray T800+T700 |

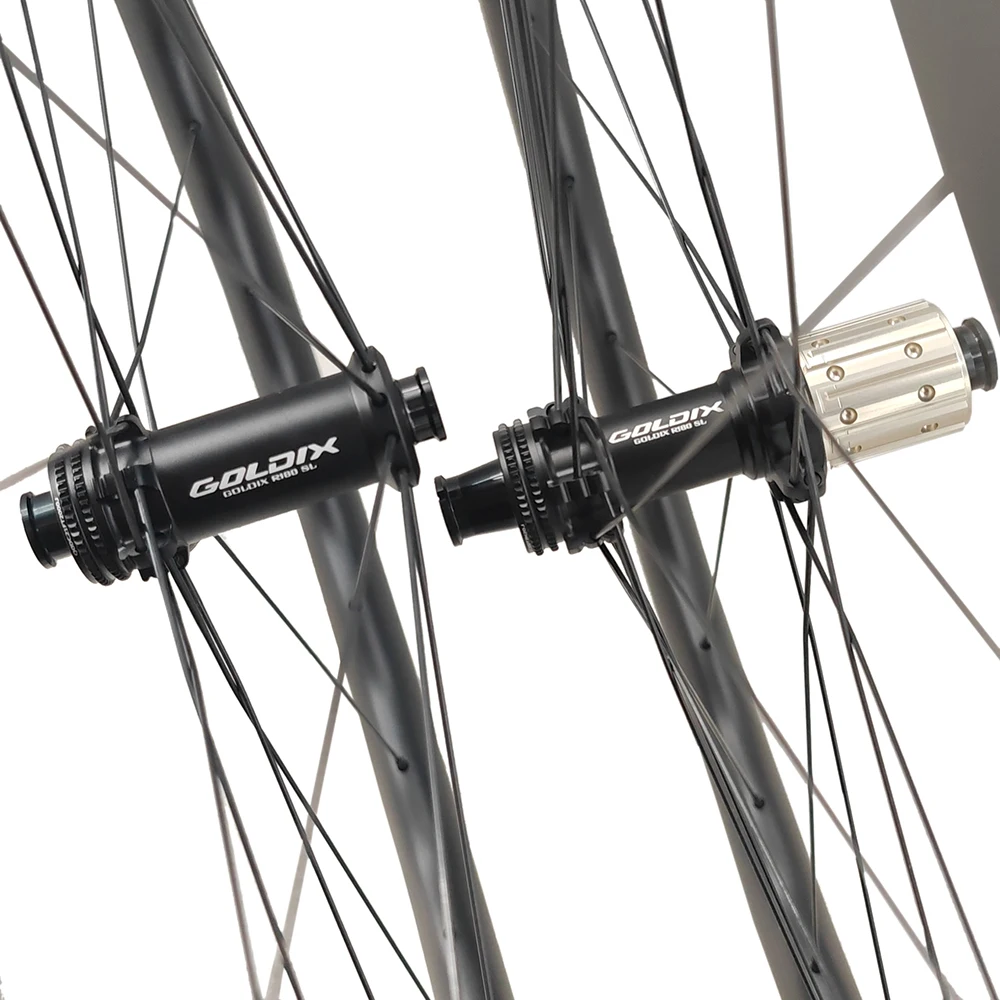

| Hub Front |
Goldix R180SL, center lock, 12x100 |
| Hub Rear |
Goldix R180SL, center lock, 12x142 |
| Freehub |
HG/XDR |
| Spokes |
Pillar TB2015 - black |
| Nipples |
Aluminum alloy - black |
| Weight Front |
630+/-20g |
| Weight Rear |
720+/-20g |
| Application |
Gravel Bike Road Disc |
| Max weight limit |
120kg |
| Cycling tyre pressure |
120psi max |
| Max spoke tension |
180KGf |
| Decal |
customize |
| Standard |
EN |
| Warranty |
24 months |
Below options: (Just leave us message when you make order )
1.weave: UD/3K /12K / 3K Twill / 12K Twill / Marble
finish: matte /glossy
2. nipple position: external / internal / special drilling - no outer holes except valve hole
3. nipple material: aluminum alloy/Brass
nipple color: black / red / silver ...
4. Hub options: rim brake hub / disc hub / track hub
other hubs and spokes available
5. width: 26/28mm ... - please contact us
Customized logo decal available. Welcome to contact us and tell us your need.
