Details
Features
1.Adopting high quality electronic parts, using precision technology to ensure fine durability and long service life.
2.Constant temperature 10MHz, ultra-low phase noise, low noise, portable and reliable.
3.This product adopts 10MHz frequency standard, provided by OCXO crystal oscillator.
4.10M OCXO board, high stability, sine wave output.
5.Equipped with SMA external screw hole interface, it can be widely used in communication base station, short-wave radio, frequency meter, signal source test and measurement equipment.
2.Constant temperature 10MHz, ultra-low phase noise, low noise, portable and reliable.
3.This product adopts 10MHz frequency standard, provided by OCXO crystal oscillator.
4.10M OCXO board, high stability, sine wave output.
5.Equipped with SMA external screw hole interface, it can be widely used in communication base station, short-wave radio, frequency meter, signal source test and measurement equipment.
Specification
Name: 10M Reference Board
Model：OCXO-10M-2525-N
Output: 10MHz/13DBM
Default Frequency Accuracy: 10M±0.05Hz
Interface: SMA
DC DC Interface: 5.5/2.1
Power supply: 5V; start-up <4W, stable <1.5W

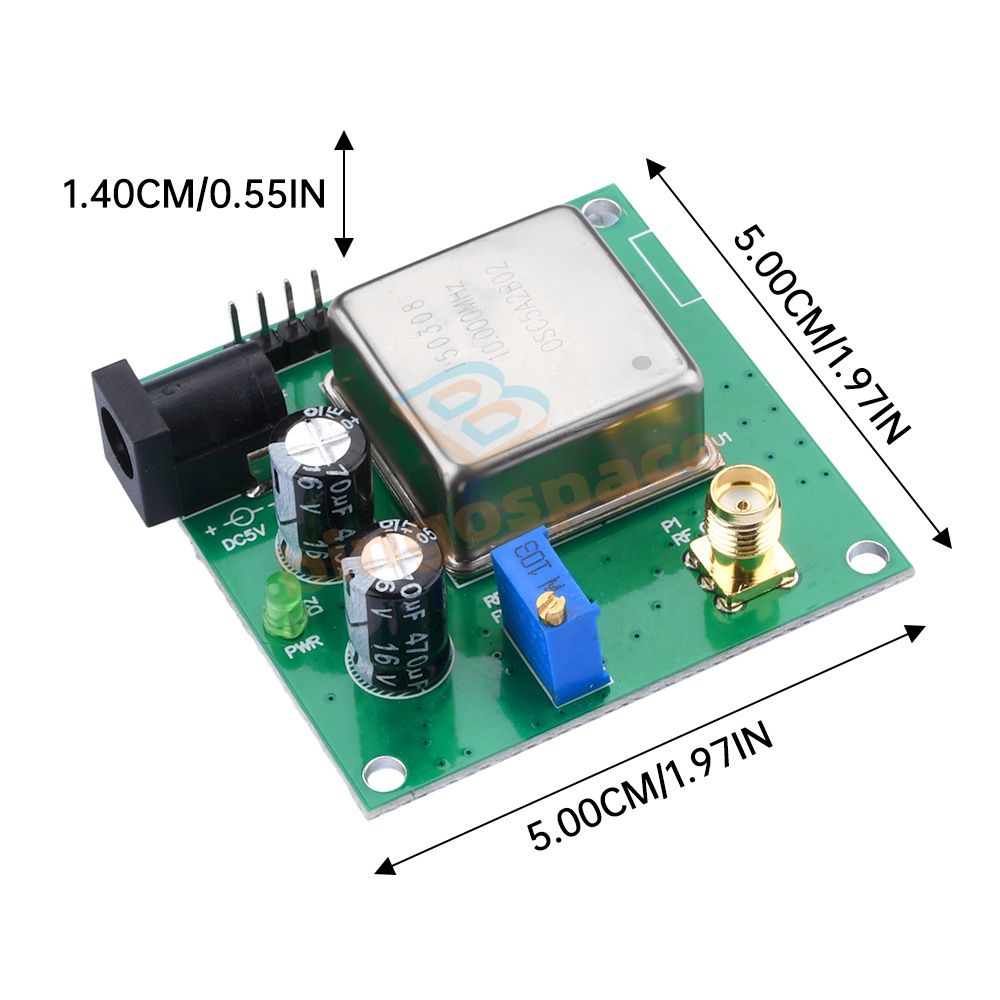

Size: 53x50x14mm (LxWxH)
Name: 10M Reference Board
Model：OCXO-10M-2525-N
Output: 10MHz/13DBM
Default Frequency Accuracy: 10M±0.05Hz
Interface: SMA
DC DC Interface: 5.5/2.1
Power supply: 5V; start-up <4W, stable <1.5W
Size: 53x50x14mm (LxWxH)
List
1 x Module
1 x Module
