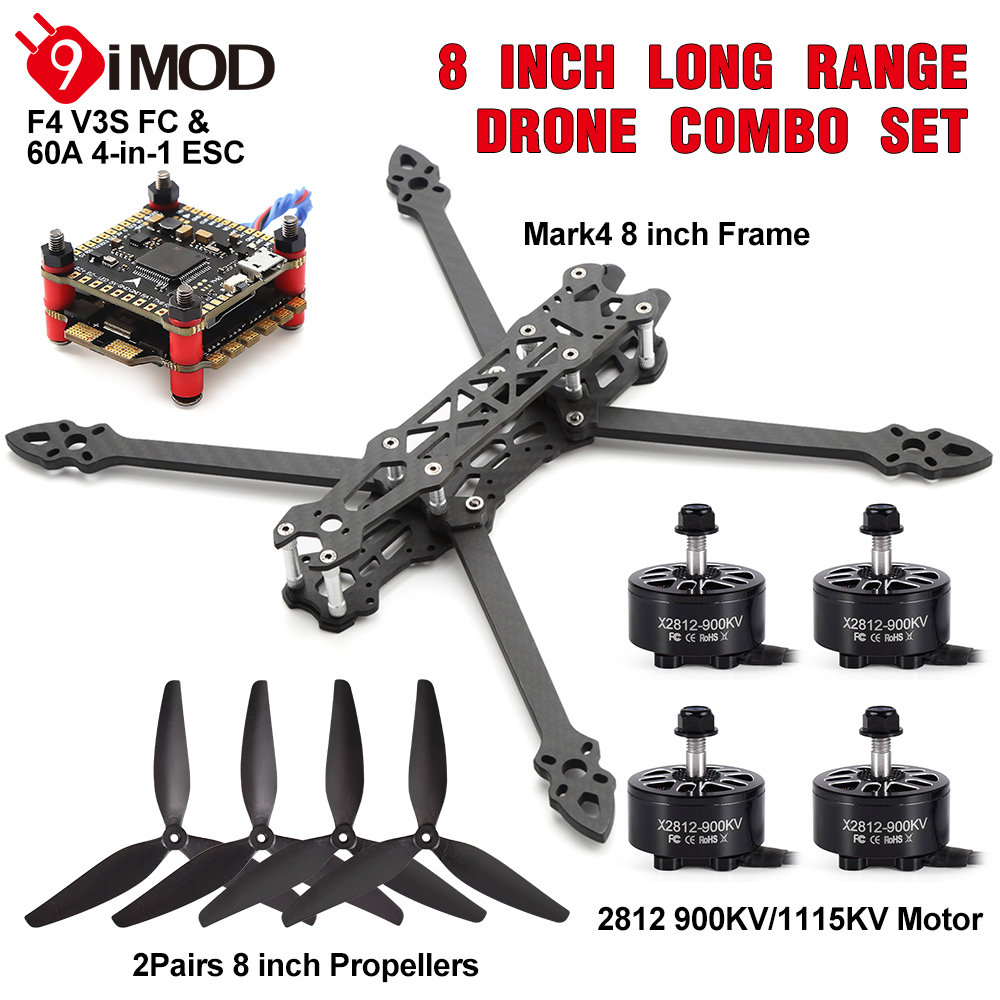

9IMOD Mark4 8inch 375mm Wheelbase Carbon Fiber Frame 5mm Arm X2812 900/1115KV Brushless Motor 8inch Propeller for FPV 8" Long Range Drone
Features:

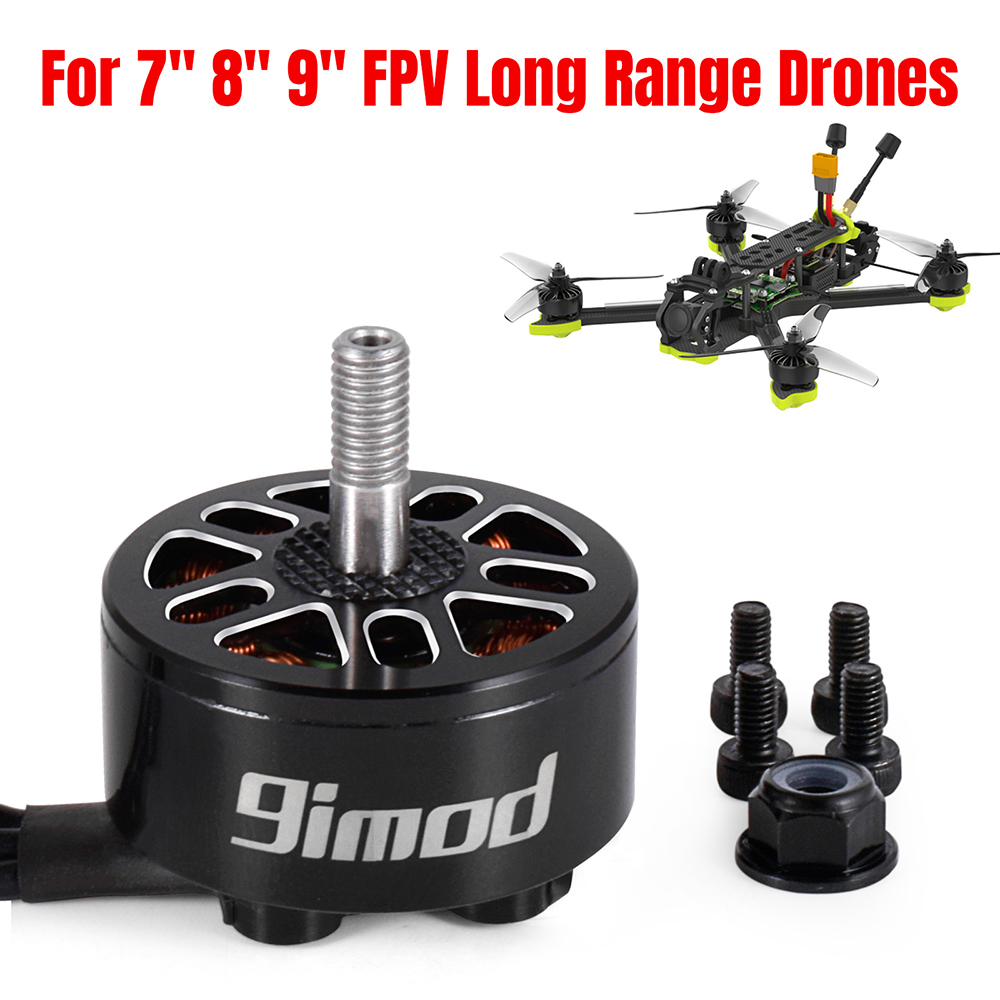

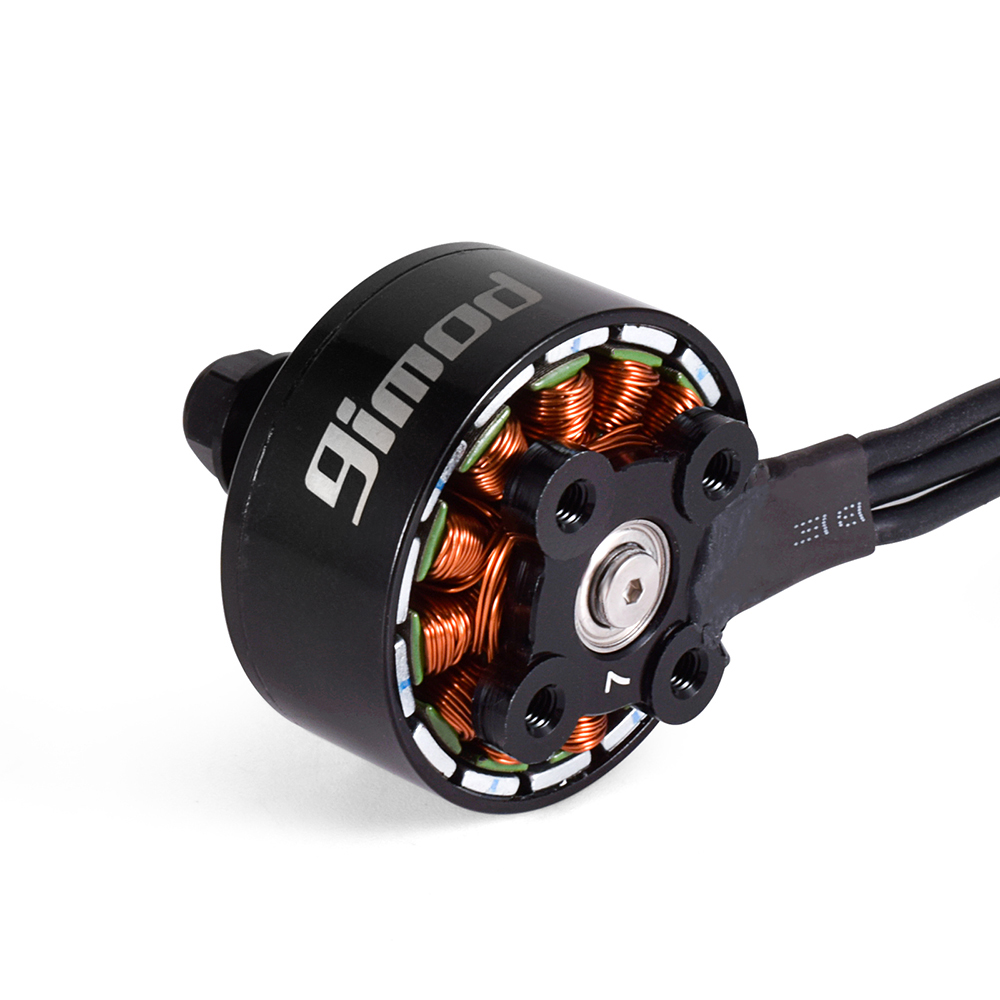

1. X2812 brushless motor is the upgraded motor, 12N 14P high torque motor design, which is smooth, reliable and powerful.
2. The motor is characterized by support 2~6S lipo. Suitable for multicopter, RC aircraft, drone.
3. Motor KV 900/1115KV, shaft size 4 x 14.5mm, motor mount M3*19, which is compatible with CF9*4.7 propeller.
4. FPV brushless motor provides the most incredible power and thrust in the lightest weight. Give you a more satisfied experience with your model.
5. Each rotor was dynamically balanced with high speed. High purity copper windings maximize efficiency, good insulation and heat resistance.
Specifications:

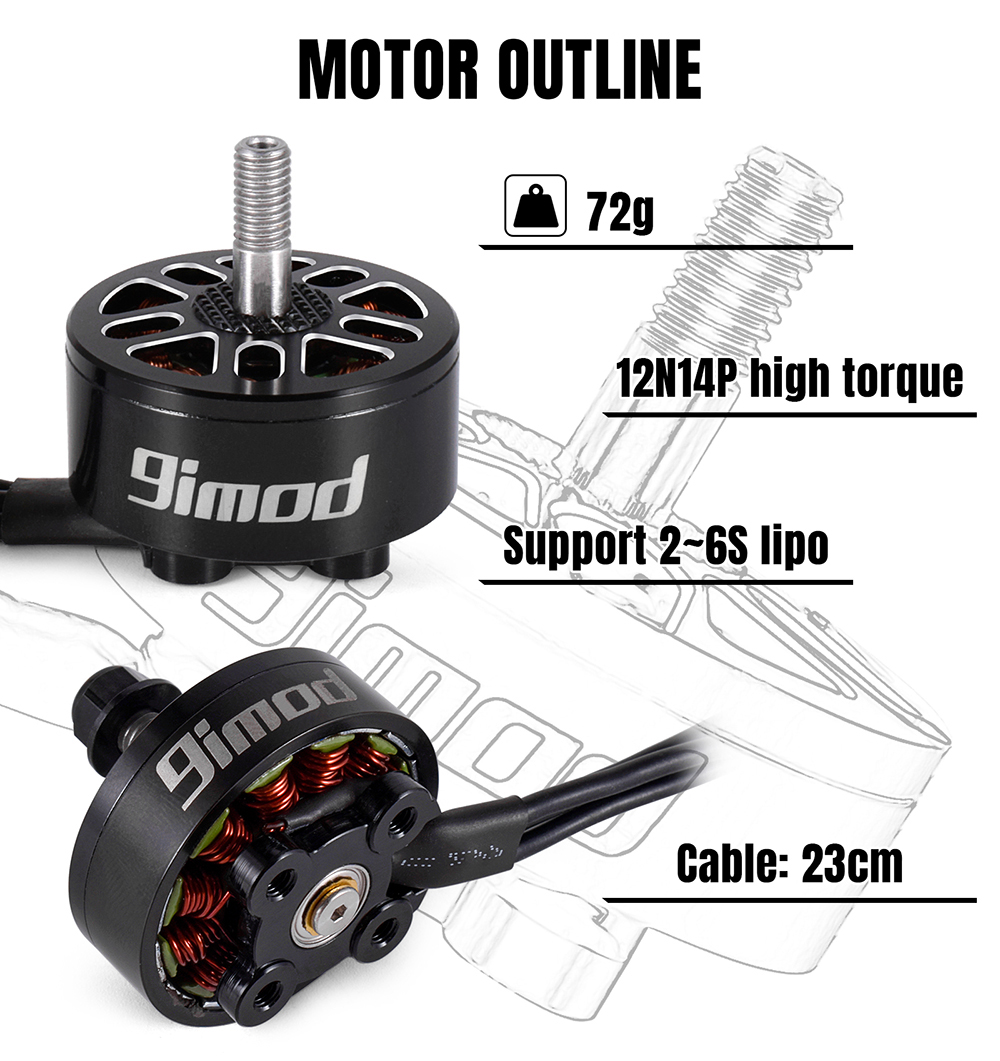

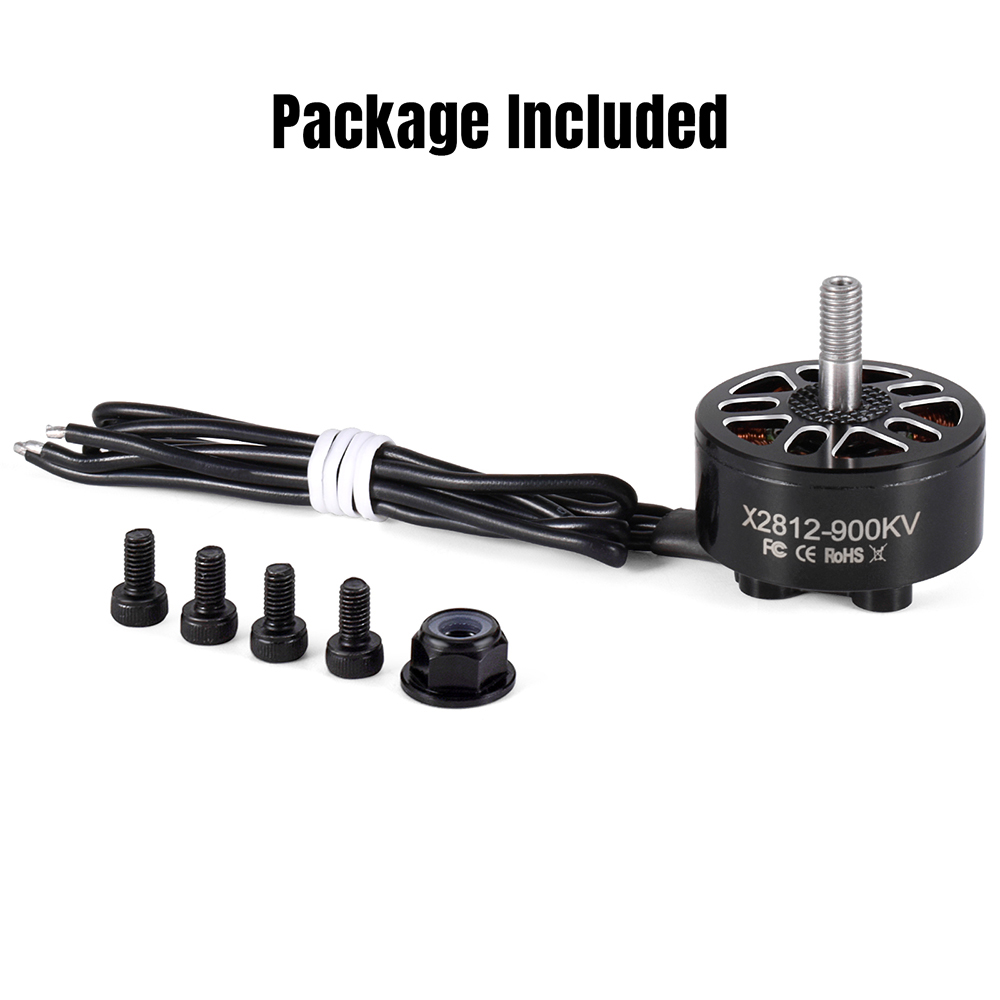

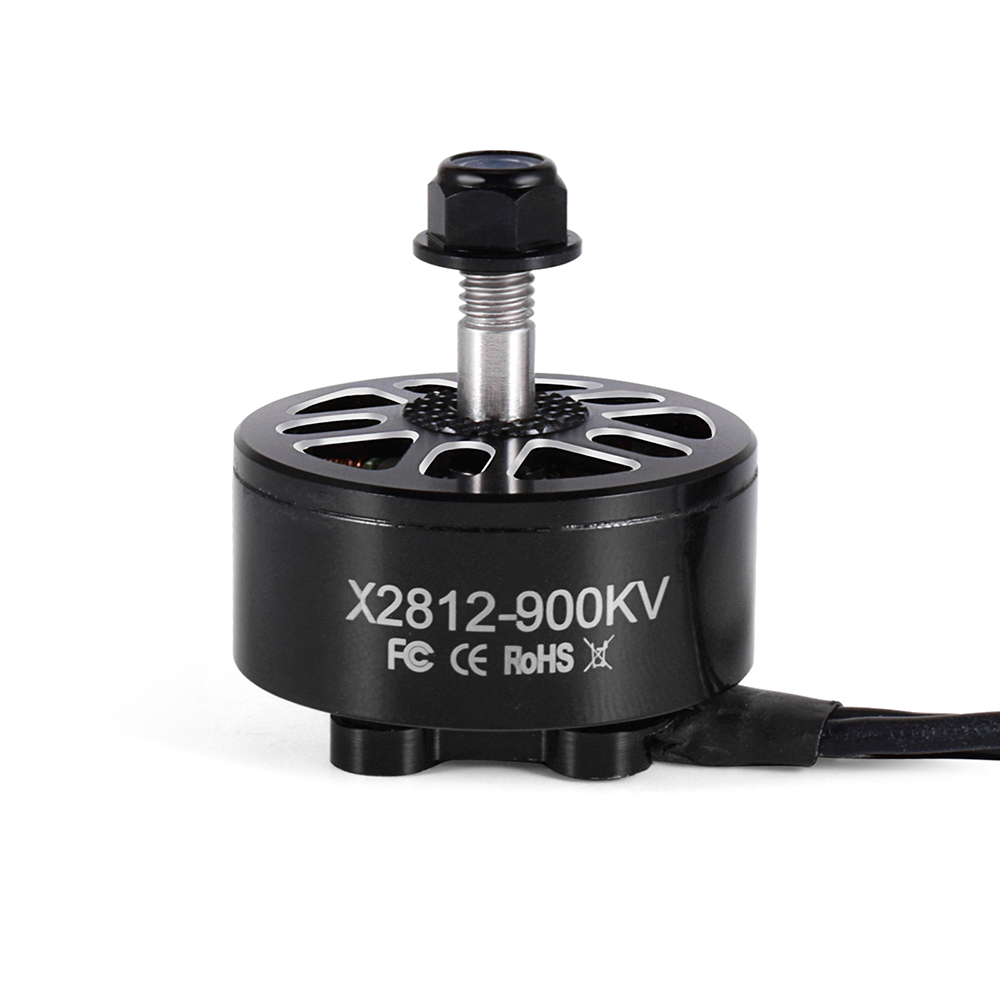

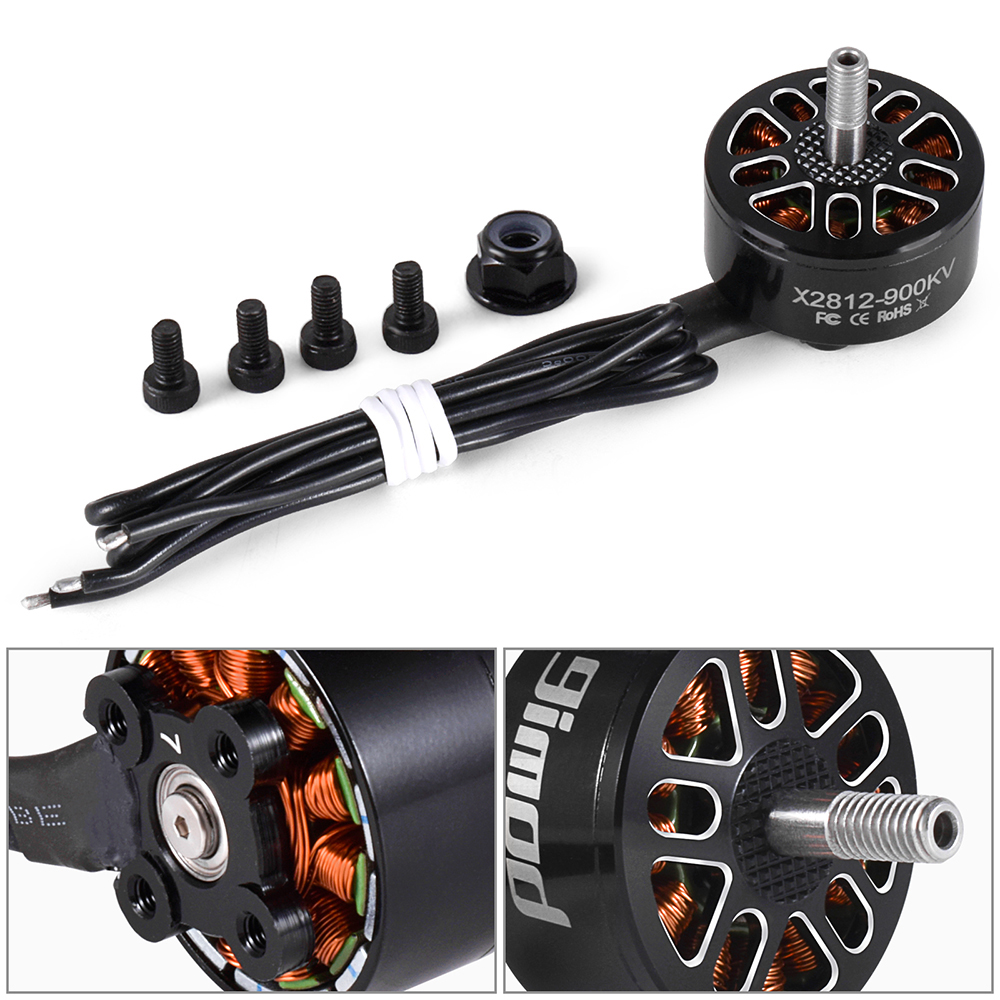

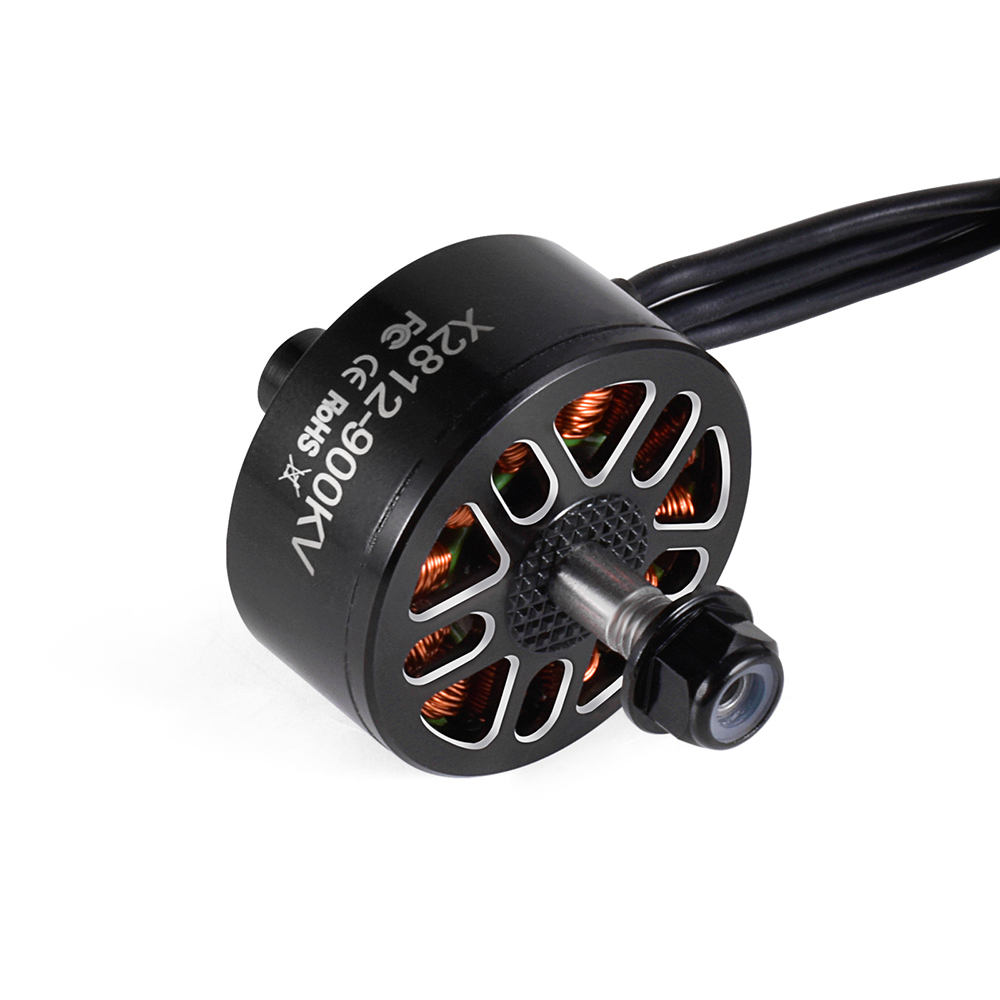

Model: X2812
Framework: 12N14P
No. of Cells: 2 - 6S
Length: 37mm
Shaft: M5
KV: 900/1115KV (optional)
Diameter: 33.5mm
Propeller Suggested: CF9*4.7
Net Weight: 72g

Features:

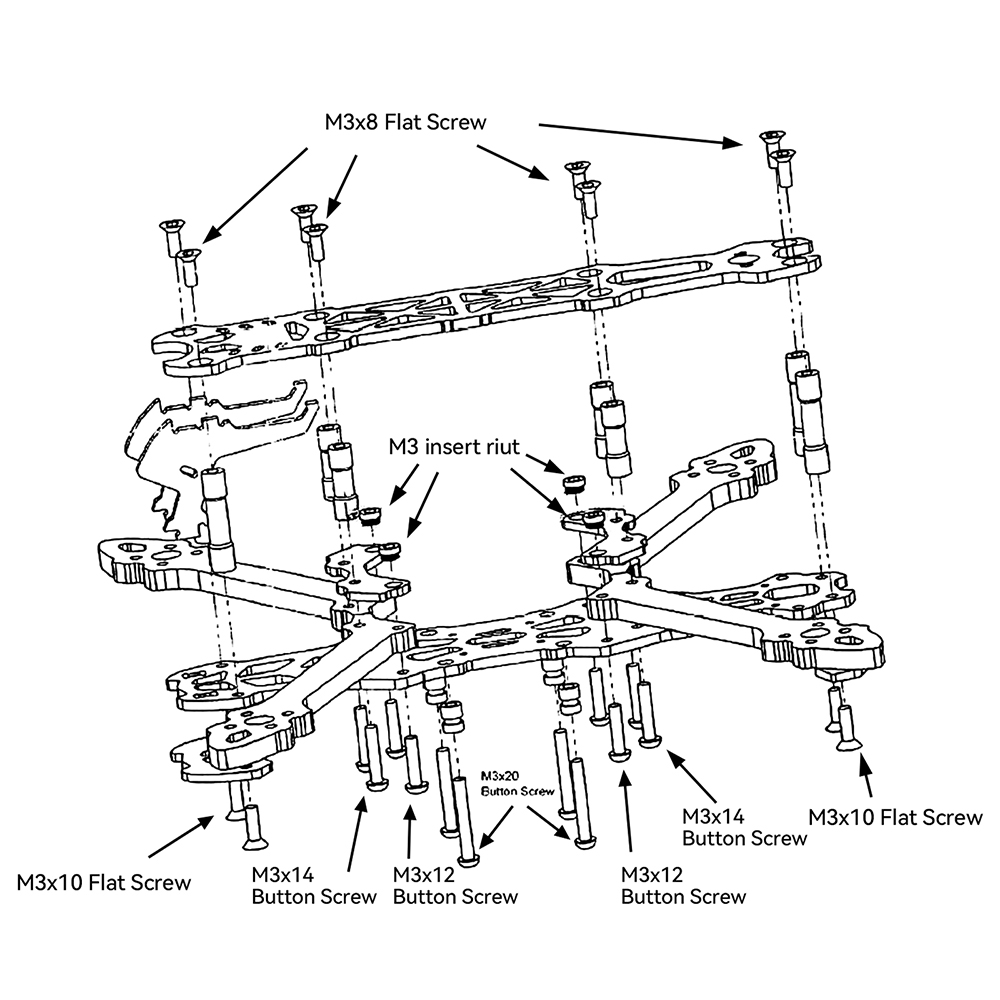

1. 8 inch FPV Frame-The frame is really solid and well balanced, perfect balance between performance and durability.
2. New FPV Racing Drone-Made of high-quality 3K Carbon Fiber, lightweight, small and exquisite, can fly outdoors or indoors in a large space.
3. Easy to assemble, suitable for both beginners and experienced players. The frame is optimized for 7-inch/8-inch propellers for a smoother free-flying experience.
4. 5mm thickness frame arm, compact design greatly reduce the total weight, small wind resistance coefficient.
5. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.
Specifications:

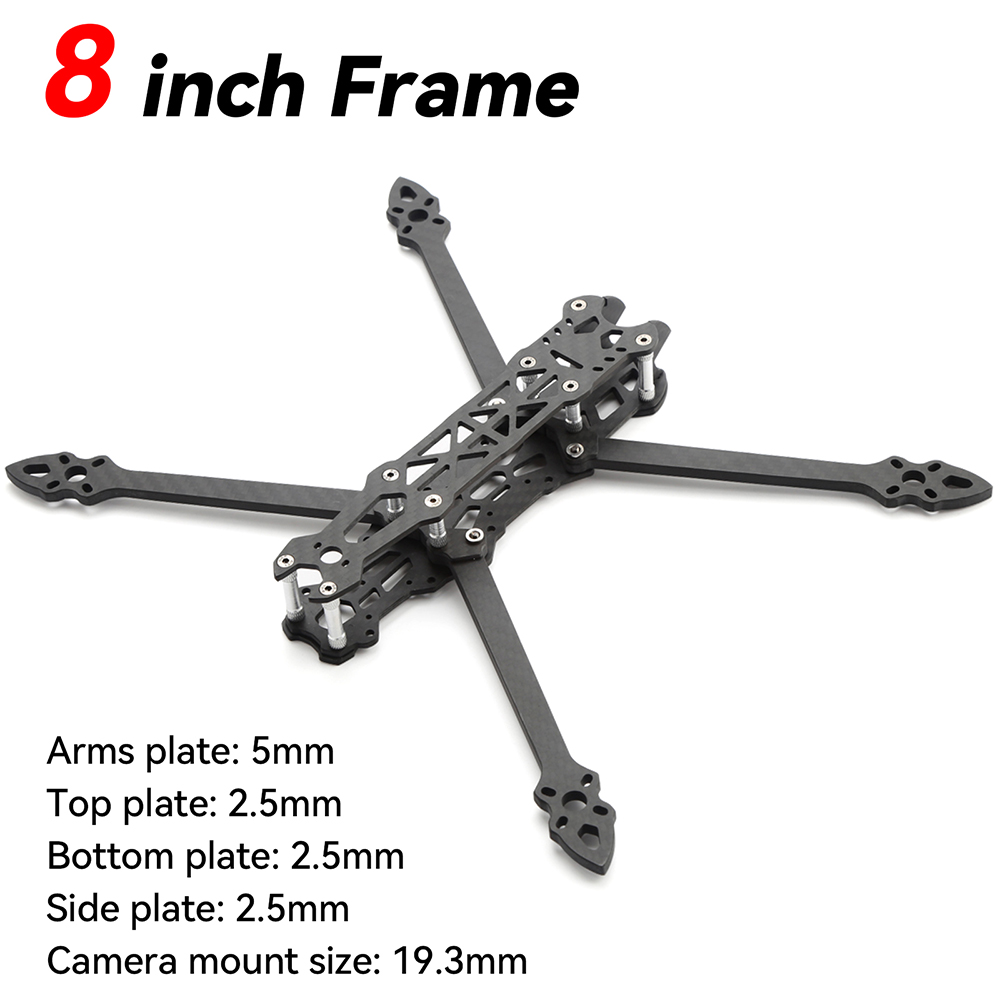

Mark4-8inch 375mm FPV Racing Drone Frame
Propeller: 8 inch
Motor to motor: 375mm
Arms plate: 5mm
Top plate: 2.5mm
Bottom plate: 2.5mm
Side plate: 2.5mm
Camera mount size: 19.3mm
Recommended configuration: (not included)
Flight Controller: RF/Kiss/F3/F4/F7/F405/F722
Motors: 2305/2306/2407/2408/2507/2810/2812
ESC: 40A-50A-60A-70A
Propeller: 8 inch
Battery: 4S-2200mAh-6S 3300mAh-6000mAh

Features:

1. Unique frame shock absorption design, less vibration, safe and stable electronic system operating environment.

2. Wide top and bottom plate design, suitable for carrying larger capacity batteries and loads.

3. True X frame design, stable and flexible flight attitude. Perfect balance between performance and durability.

4. Compact design,Made of high-quality 3K Carbon Fiber,lightweight.

5. Easy to assemble, suitable for both beginners and experienced players.

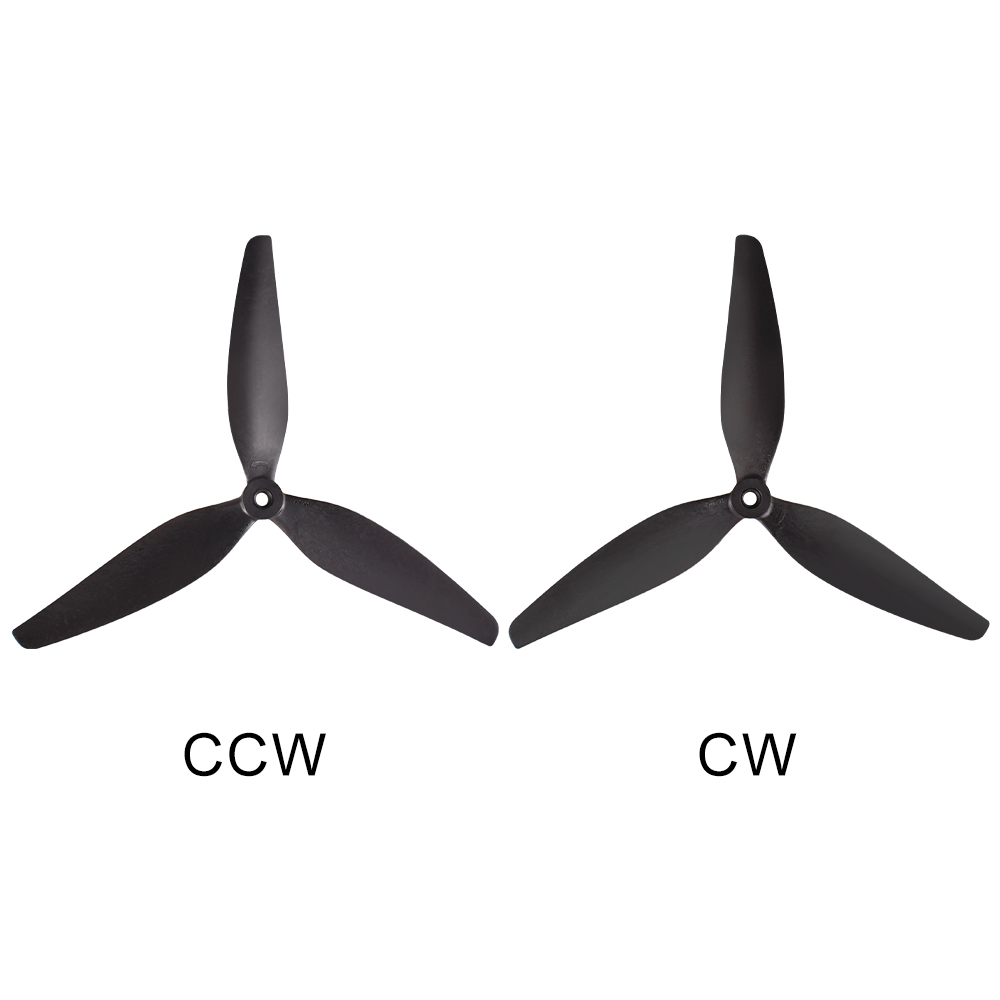

Specifications:

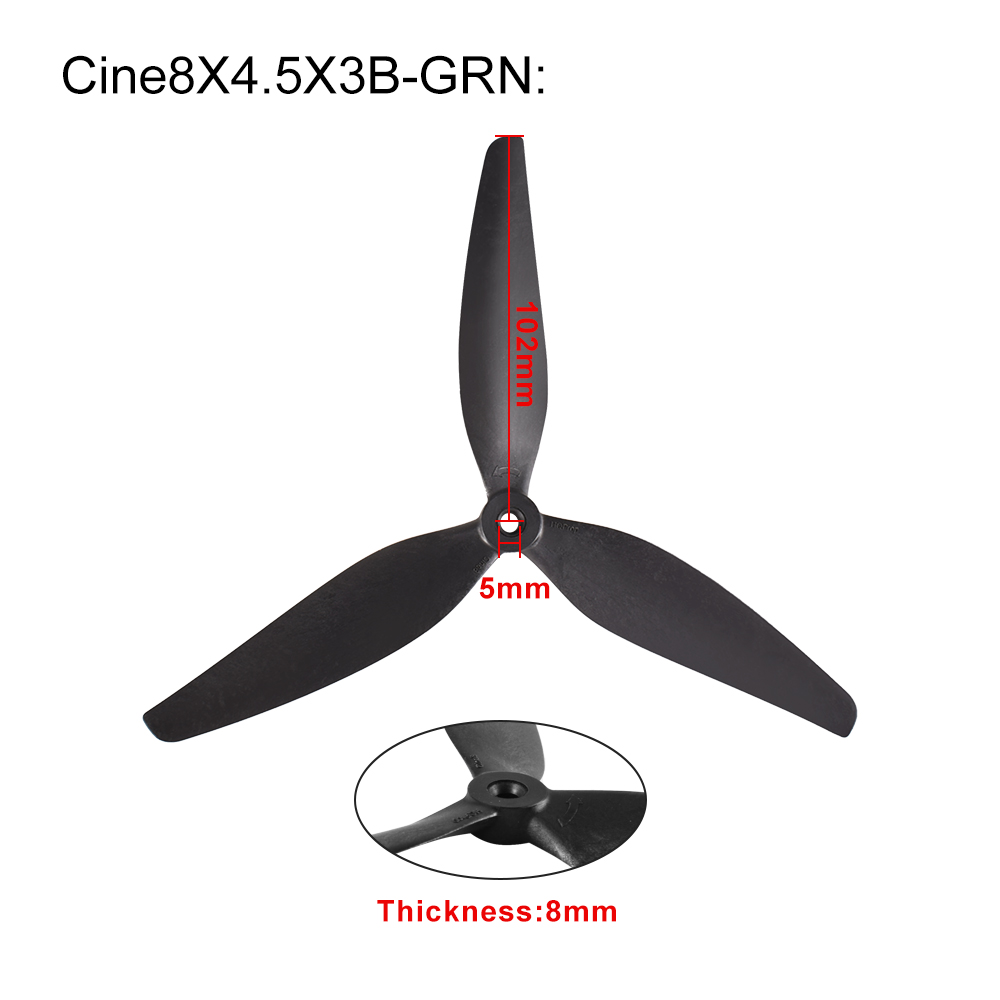

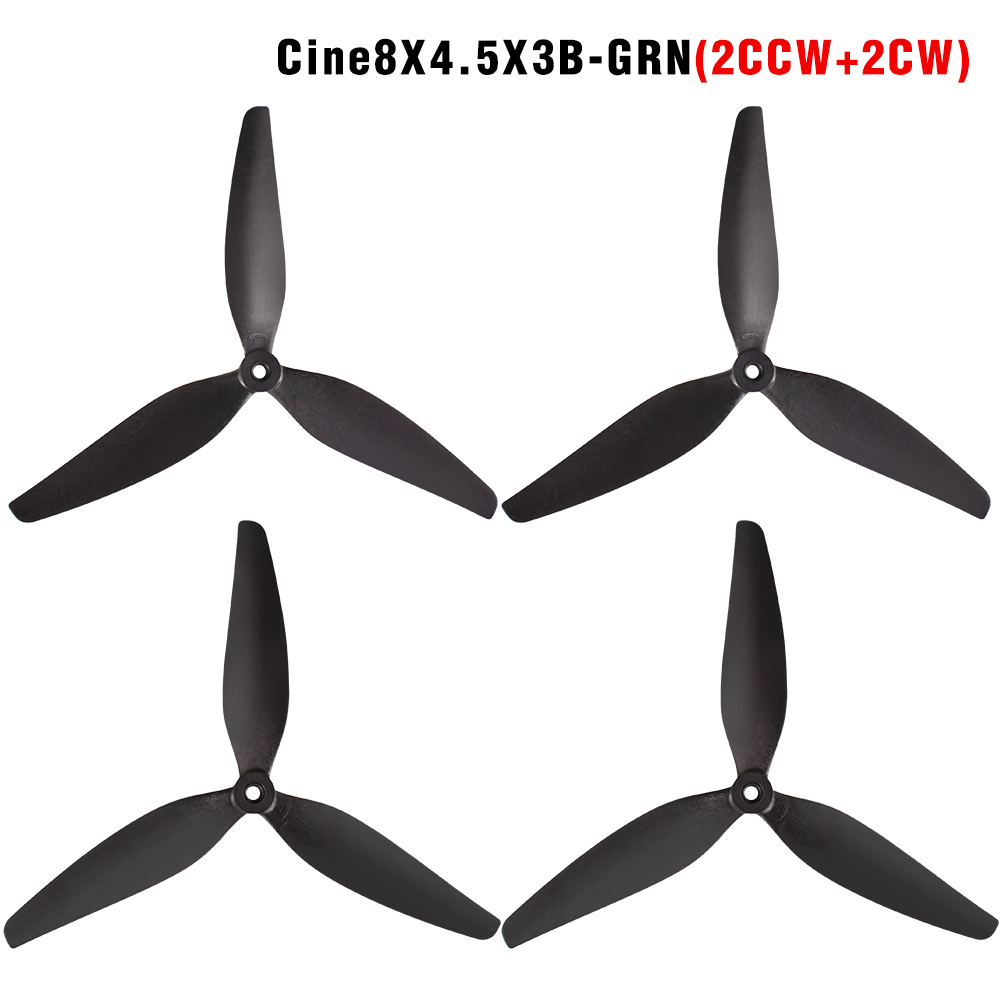

MQ8x4.5x3

Propeller Diameter: 8inch

Pitch: 4.5

Blades: 3

Hub Diameter :18mm

Hub Thickness: 9mm

Shaft :5mm

Weight: 15.5g

Features:

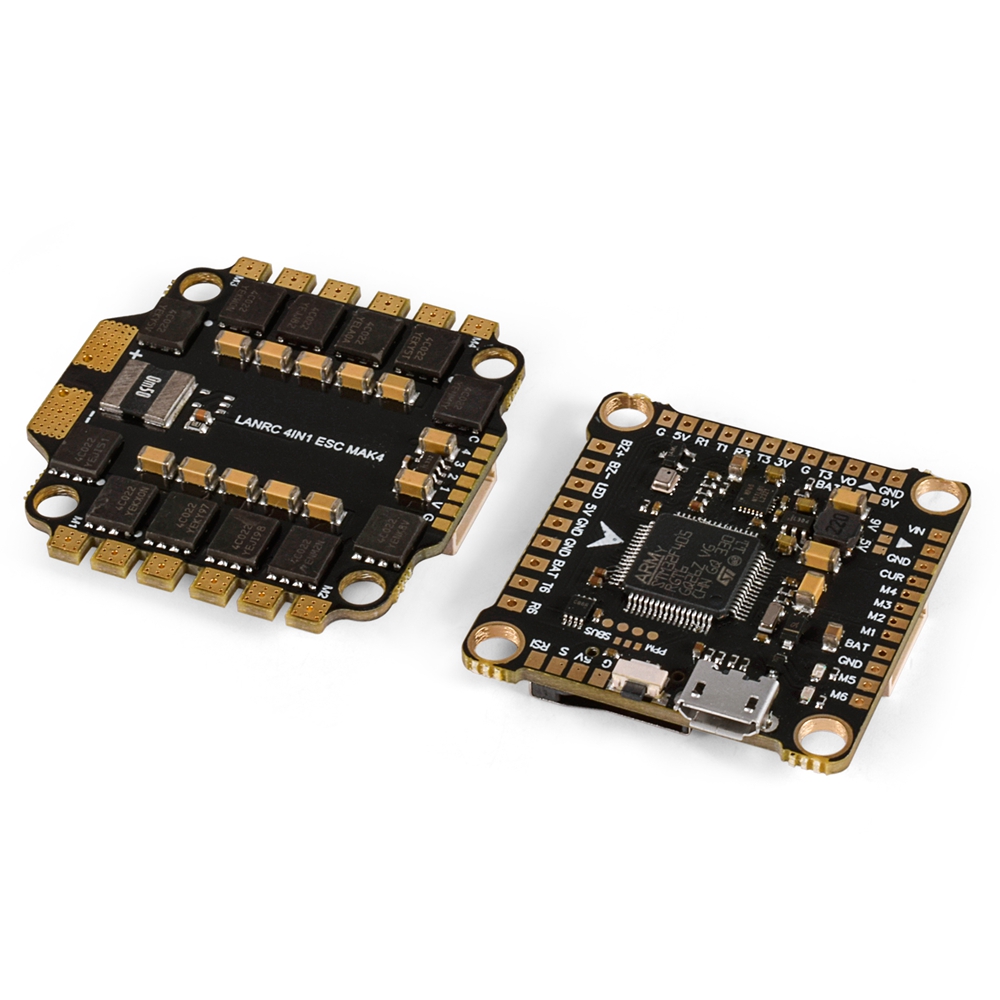

1. Betaflight F4 V3S PLUS FC flight controller board for RC FPV drone.
2. Size: 36x36mm, Mounting Holes: 30.5x30.5mm.
3. We updated the FC with high-quality BMI270 gyro. Built-in barometer for accurate height calculation.
4. F4 V3S PLUS also has onboard 5V and 9V BEC output, which supports DJI sky end power supply and provides stable power supply voltage for external devices such as receivers, faxes and cameras.
5. The function of the flight control is to control the drone through the gyroscope on the flight control board.
Specification:

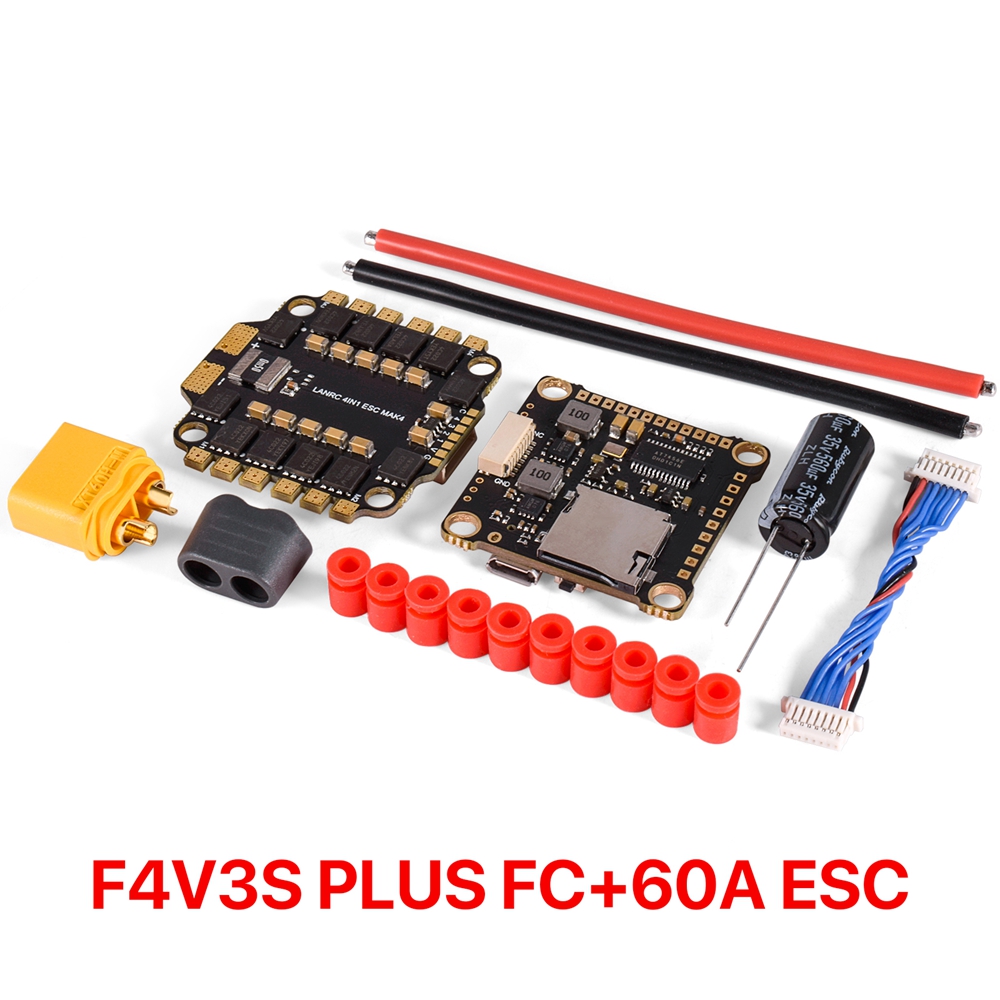

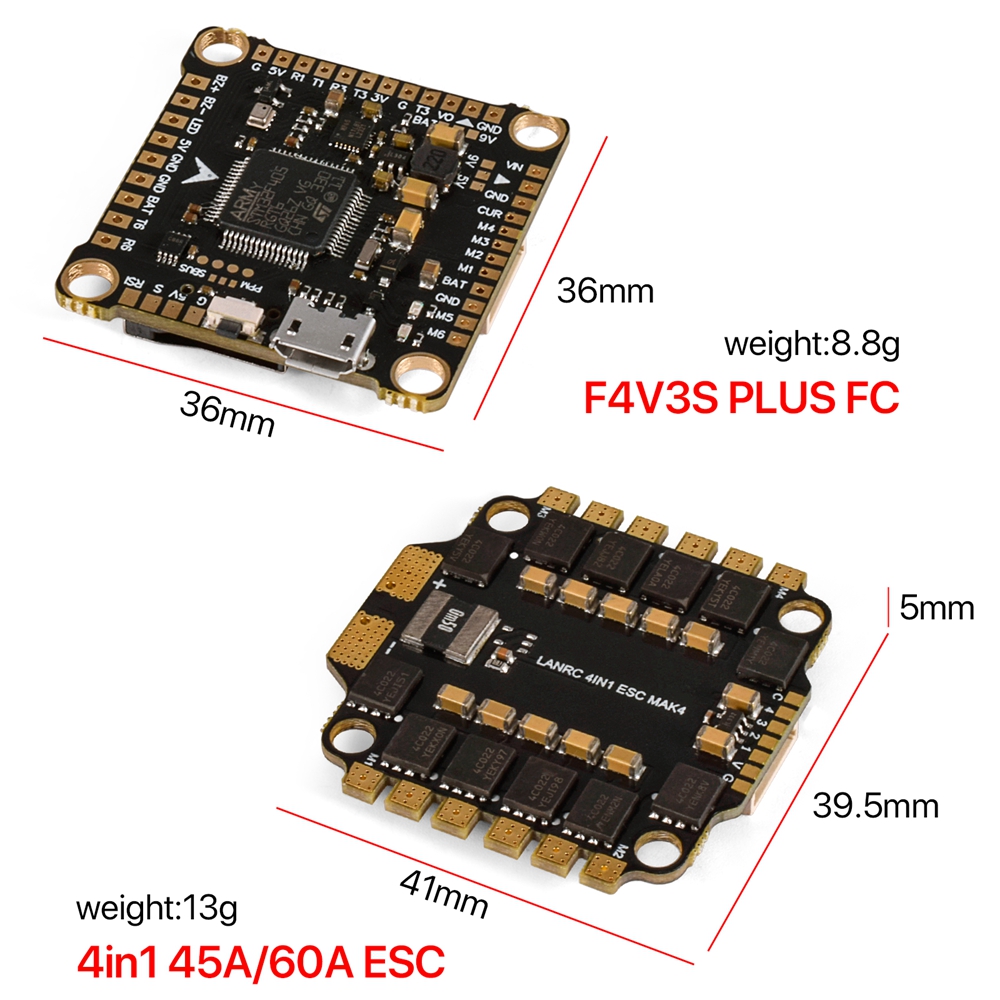

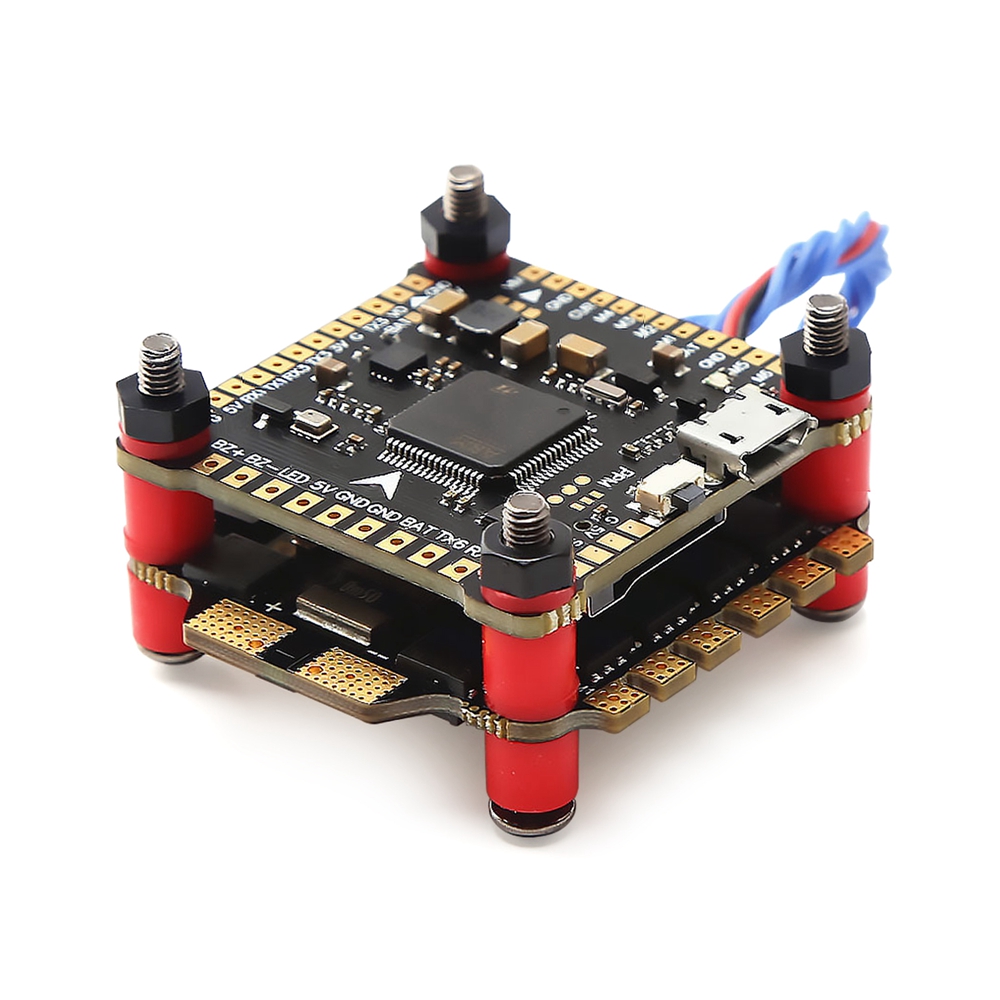

F4 V3S PLUS FC
Item name: F4 V3 PLUS Flight Controller
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
Gyro:BMI270
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
BEC: 5V3A/9V3A
On-board video filters (only 5V to VTX and camera)
Please note: The F4 V3S Plus Flight Controller only support Betaflight software, INAV firmware is not supported!
60A 4-in-1 ESC
The installation size is 30.5mm*30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation
ESC onboard current sensor.
Weight: 13g
Input voltage: LIPO 2-6S
Continuous current: 60A
Instantaneous current [5 seconds]: 70A
Firmware: BLS J_H_30_REV16_7
Processor: EFM8BB21F16G
The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize the battery voltage, and protect the precision components of the flight control ESC
