Details
Features

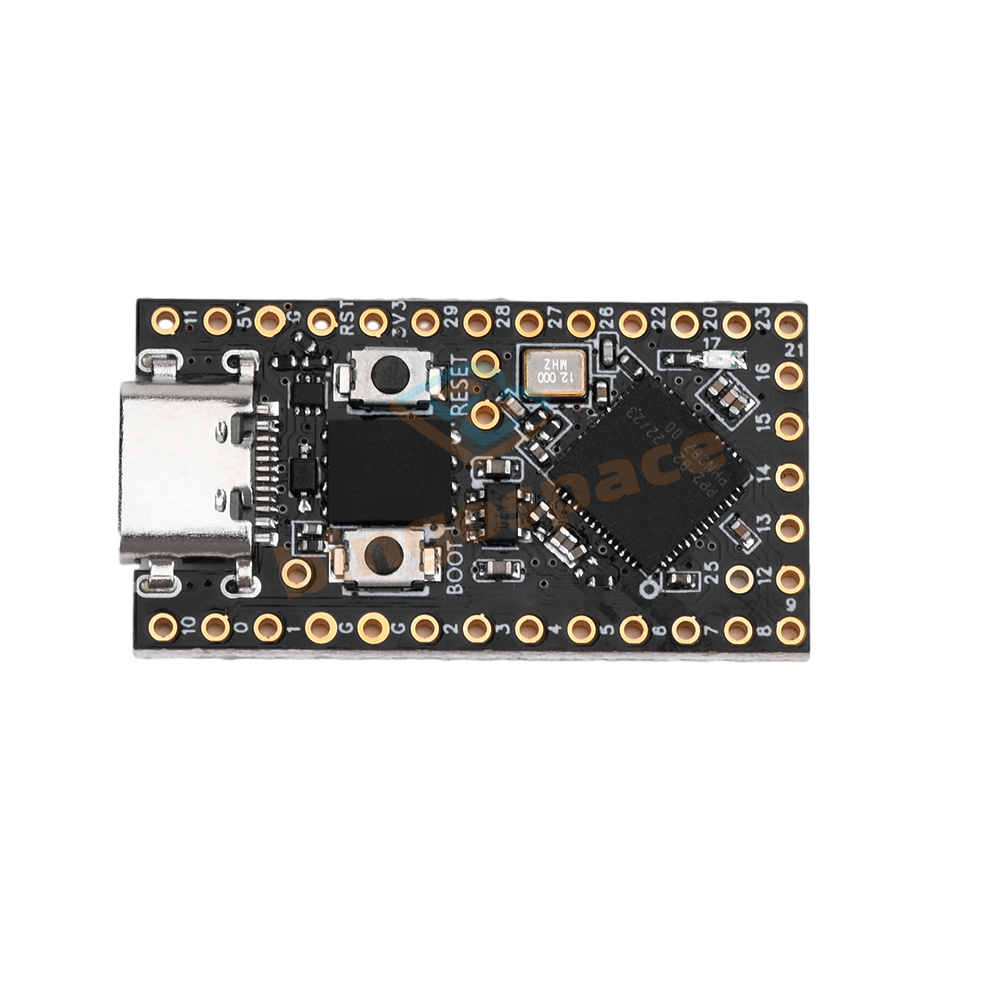

1.This module is a RP2040 mini-development board, based on Raspberry Pi's RP2040 as the core microcontroller.
2. On-board buttons with reset and BOOT functions, easy to use.

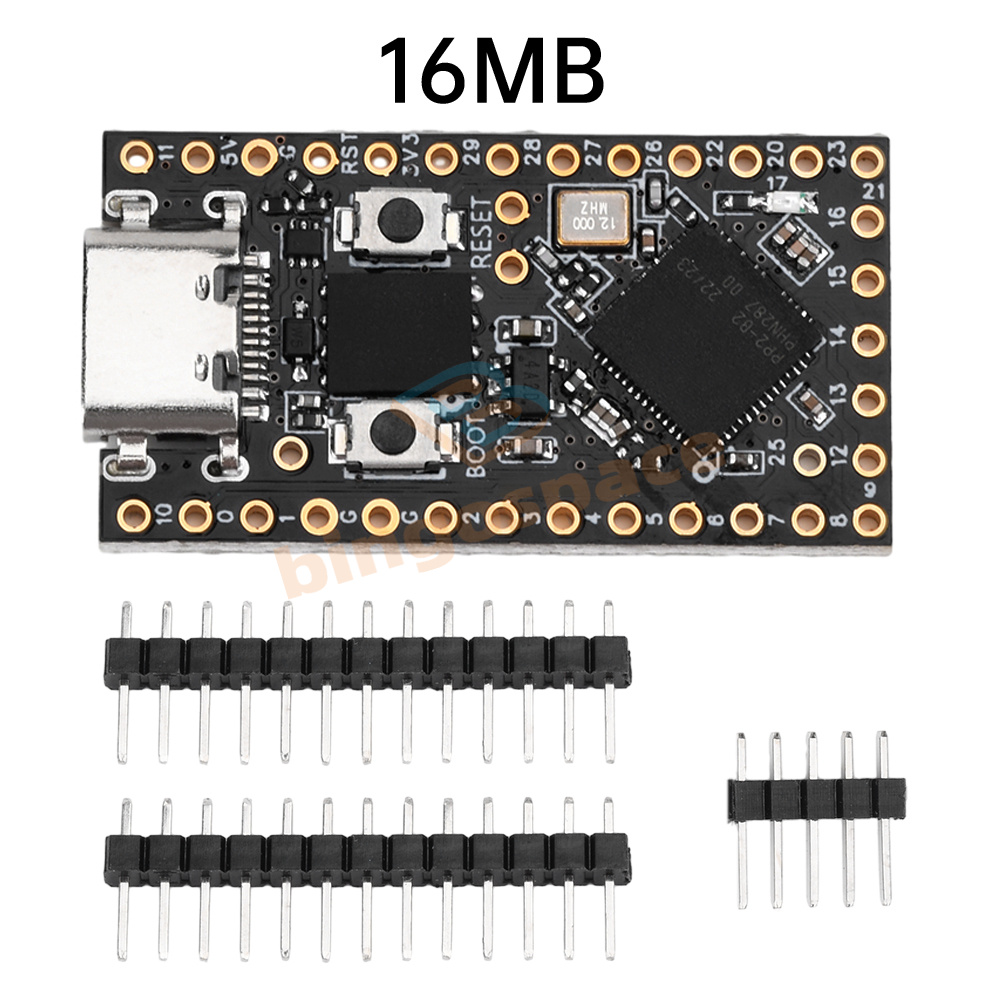

3. On-board LED (GPIO17), 4M and 16M two specifications can be selected.
4. Development board supports Raspberry Pi Pico, MicroPython and other applications for programming.
5. Support for peripherals, can be peripheral I2C, UART, SPI, etc., easy to develop and apply.
2. On-board buttons with reset and BOOT functions, easy to use.
3. On-board LED (GPIO17), 4M and 16M two specifications can be selected.
4. Development board supports Raspberry Pi Pico, MicroPython and other applications for programming.
5. Support for peripherals, can be peripheral I2C, UART, SPI, etc., easy to develop and apply.
Specification
USB type: Type-C interface
Power supply voltage: USB 5V
GPIO level: 3.3V
SRAM: 264k bytes
USB type: Type-C interface
Power supply voltage: USB 5V
GPIO level: 3.3V
SRAM: 264k bytes
Flash: 2MByte + external 4M (32Mbit)

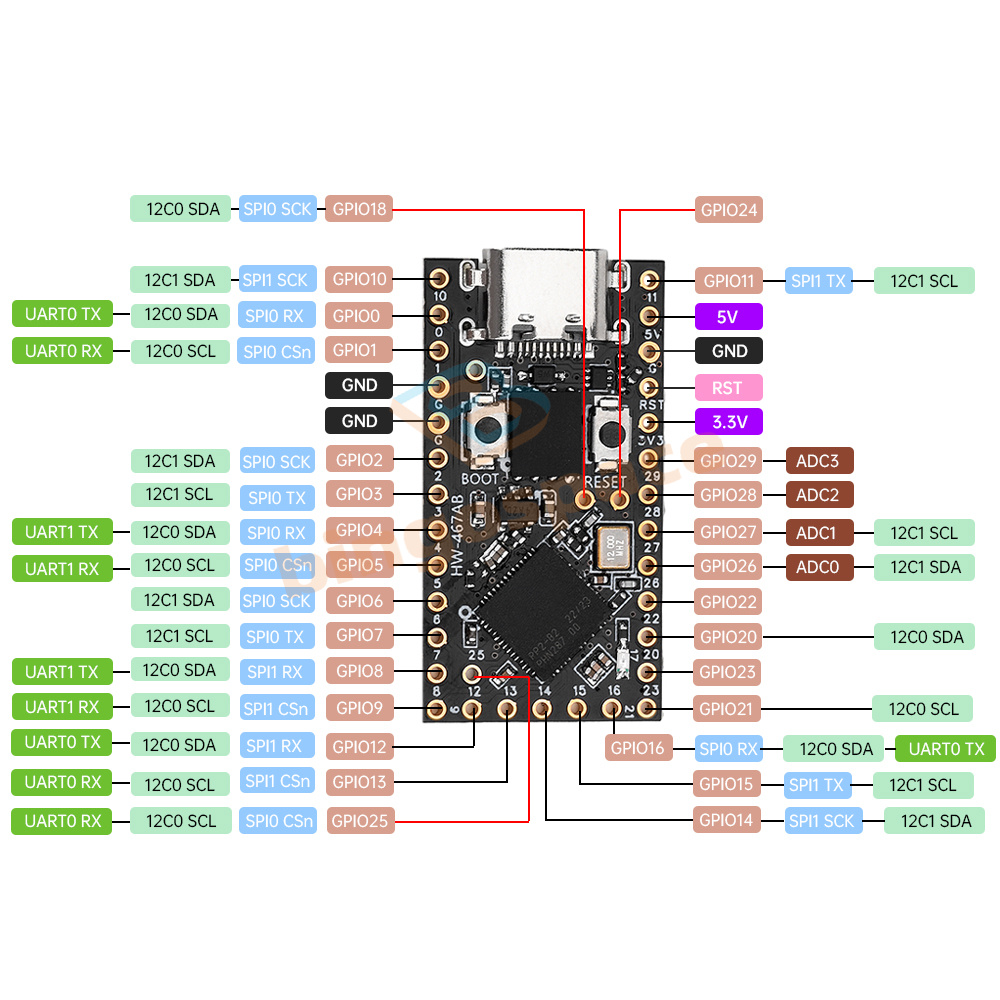

This module leads to 28 GPIO pins, of which 4 can be used as analog inputs

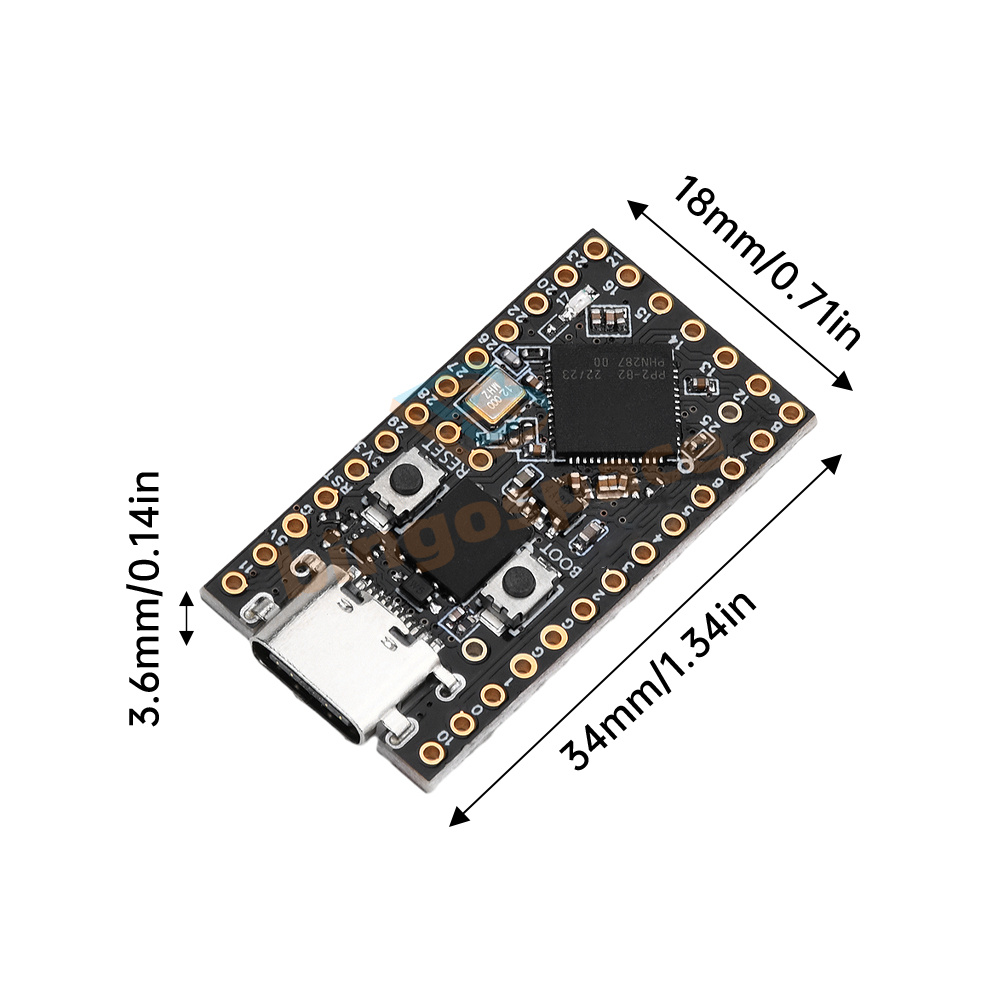

Size: 33mm*18mm
This module leads to 28 GPIO pins, of which 4 can be used as analog inputs
Size: 33mm*18mm

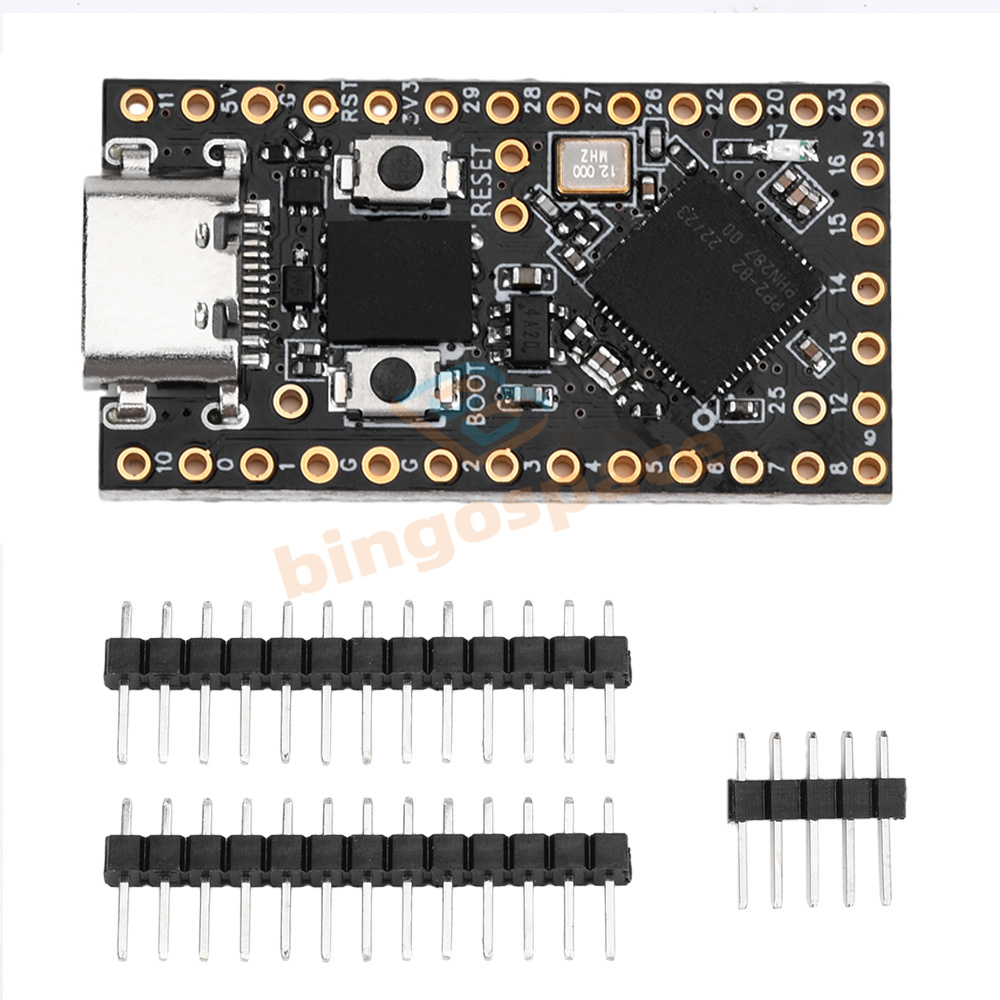

List

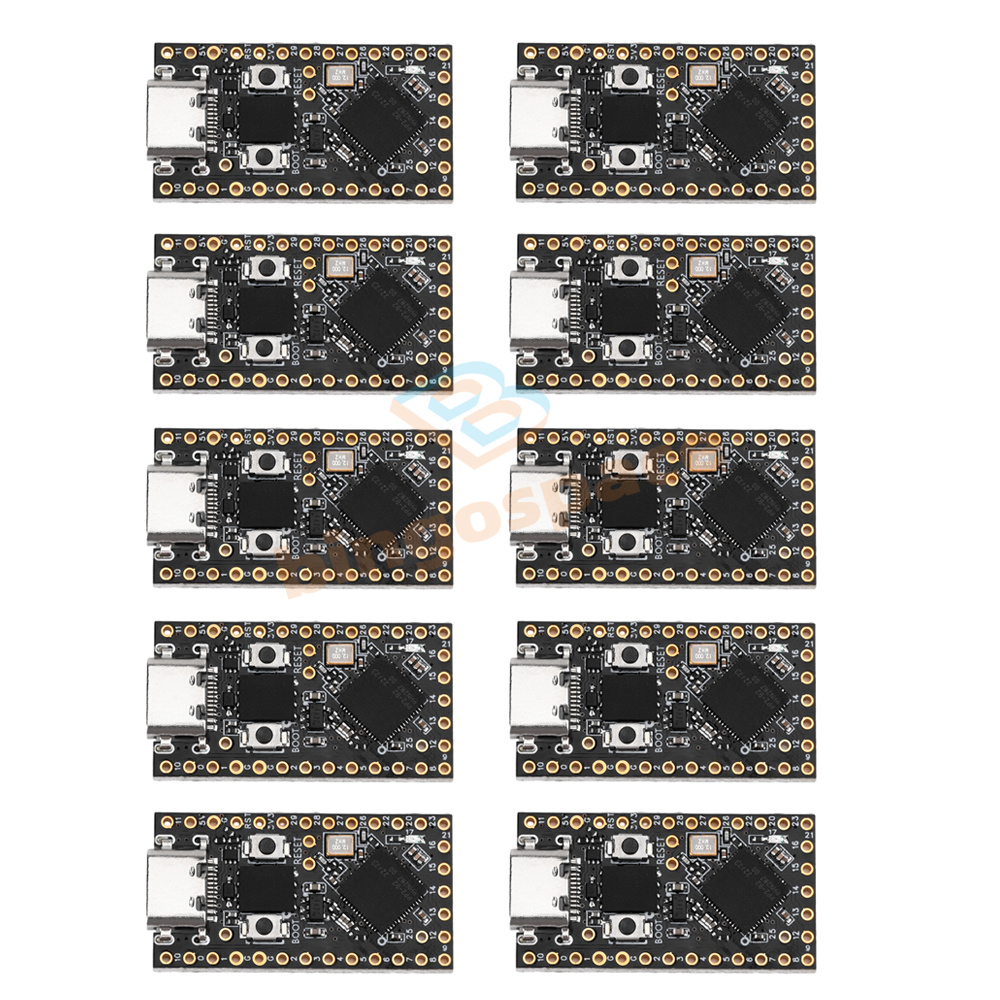

1/5/10 x Development Board
3/15/30 x Pin
1/5/10 x Development Board
3/15/30 x Pin
Copyright©2018 datacaciques
Top & Fast Shipping！
Get The Right At The Right Price！
1-10Piece 4/16MB RP2040 Pro Micro Raspberry PI Development Board Type-C DIY
DESCRIPTION
Features
1.This module is a RP2040 mini-development board, based on Raspberry Pi's RP2040 as the core microcontroller.
2. On-board buttons with reset and BOOT functions, easy to use.
3. On-board LED (GPIO17), 4M and 16M two specifications can be selected.
4. Development board supports Raspberry Pi Pico, MicroPython and other applications for programming.
5. Support for peripherals, can be peripheral I2C, UART, SPI, etc., easy to develop and apply.
2. On-board buttons with reset and BOOT functions, easy to use.
3. On-board LED (GPIO17), 4M and 16M two specifications can be selected.
4. Development board supports Raspberry Pi Pico, MicroPython and other applications for programming.
5. Support for peripherals, can be peripheral I2C, UART, SPI, etc., easy to develop and apply.
Specification
USB type: Type-C interface
Power supply voltage: USB 5V
GPIO level: 3.3V
SRAM: 264k bytes
USB type: Type-C interface
Power supply voltage: USB 5V
GPIO level: 3.3V
SRAM: 264k bytes
Flash: 2MByte + external 4M (32Mbit)
This module leads to 28 GPIO pins, of which 4 can be used as analog inputs
Size: 33mm*18mm
This module leads to 28 GPIO pins, of which 4 can be used as analog inputs
Size: 33mm*18mm
List
1/5/10 x Development Board
3/15/30 x Pin
1/5/10 x Development Board
3/15/30 x Pin
