Overview

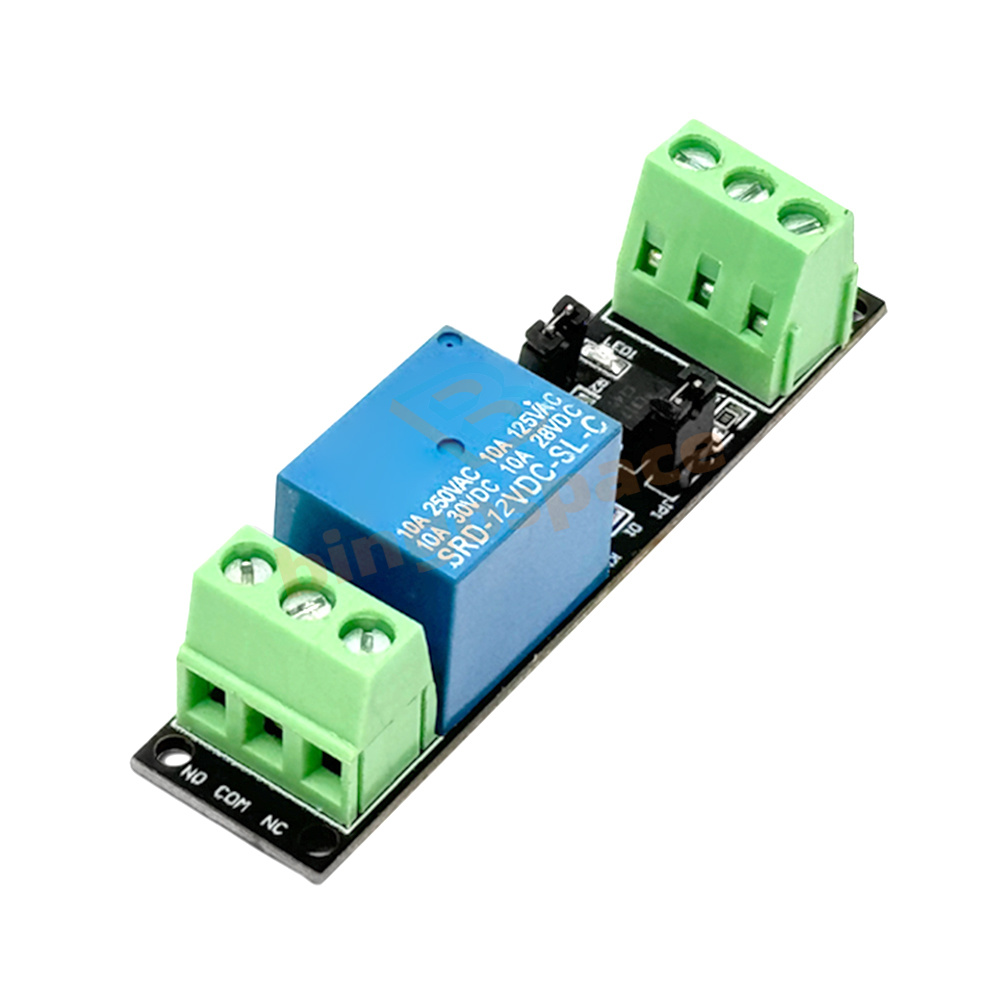

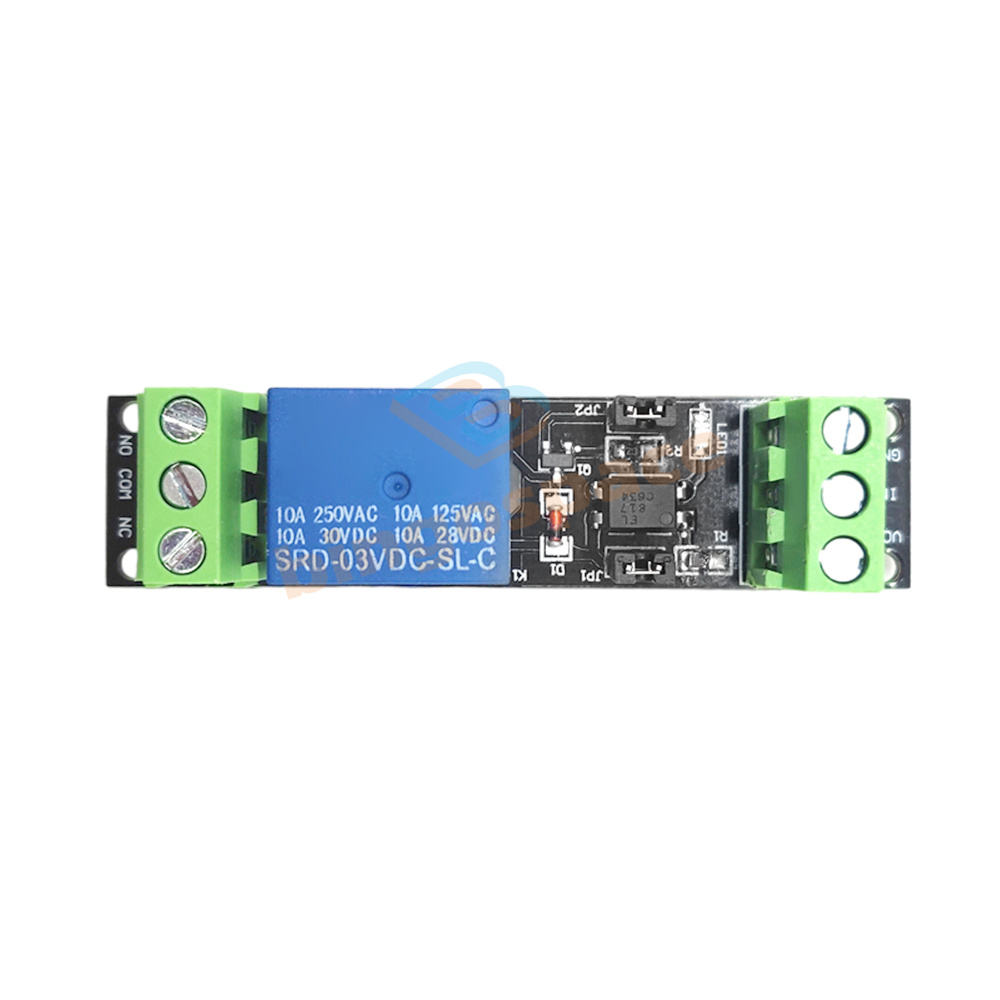

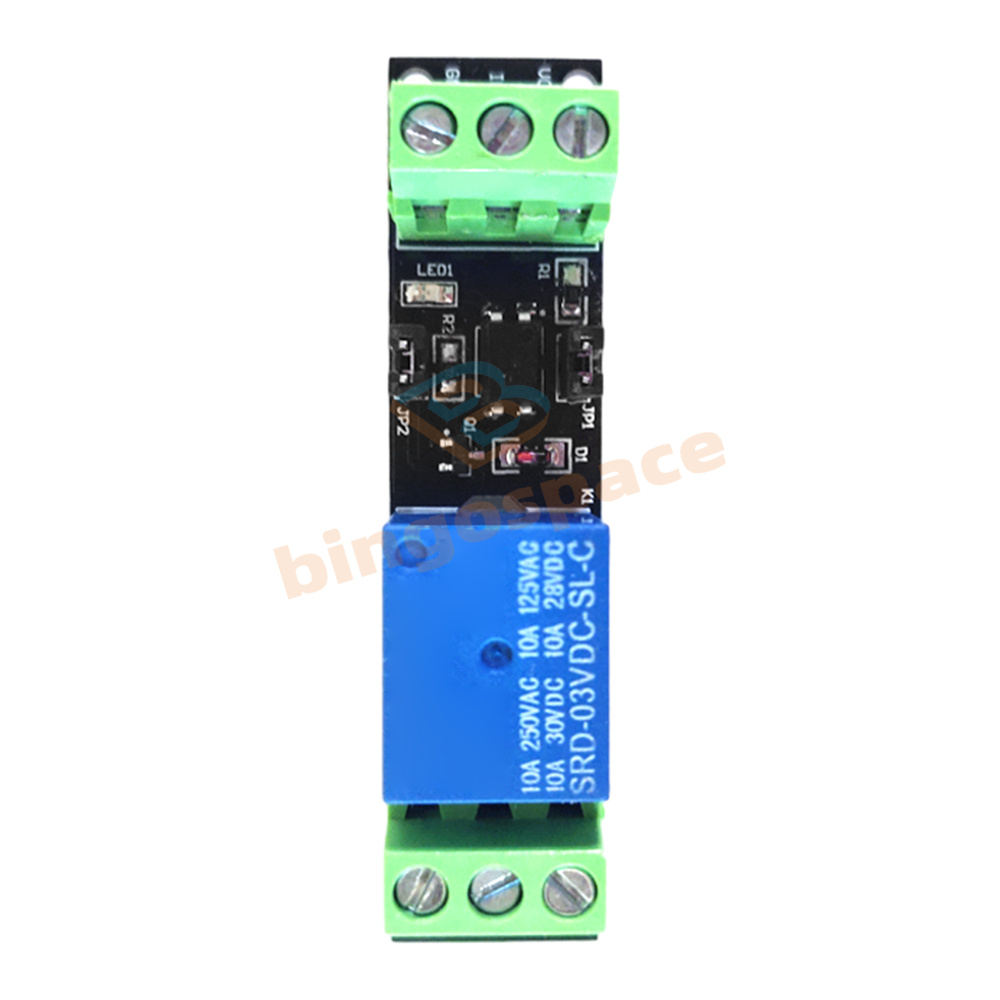

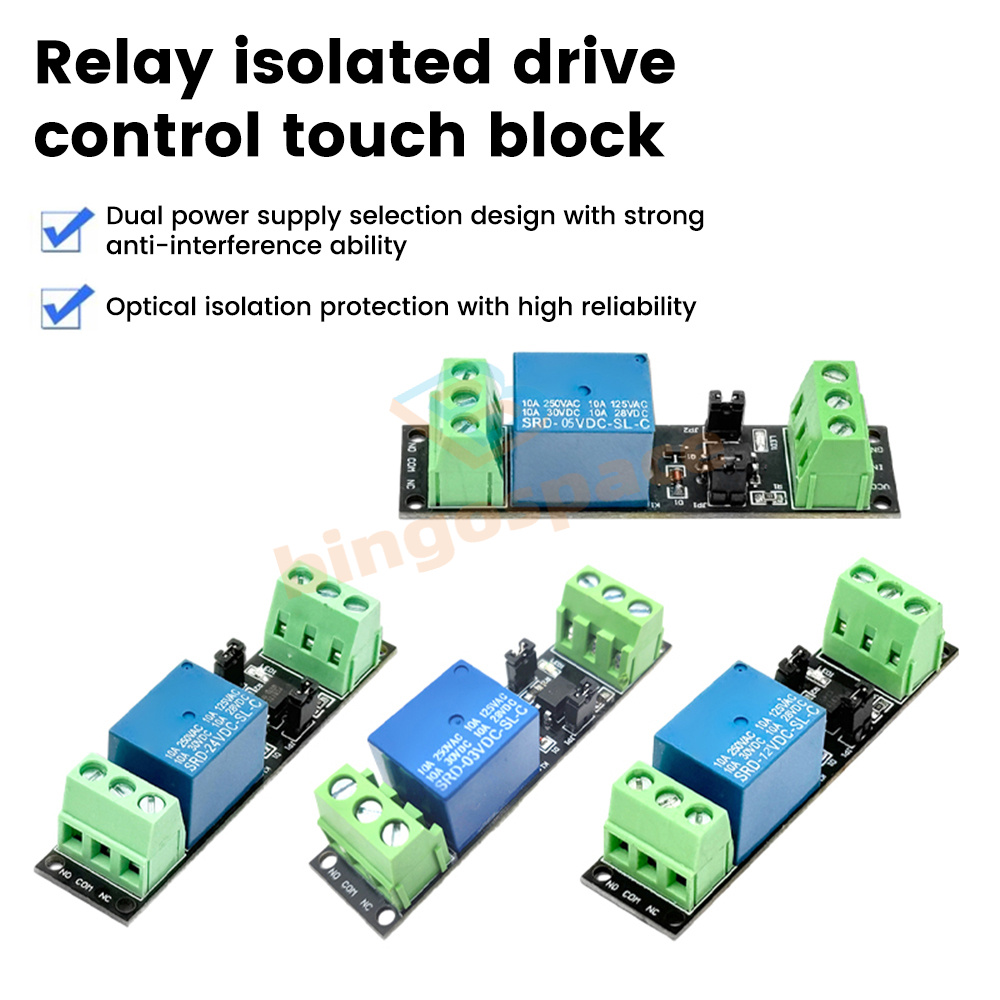

Relay isolation drive control module, the core is an electronic control device relay, with a control system (also known as the input circuit) and the control system (also known as the output circuit), the essence is a smaller current to control the larger current "automatic switch". It is used to control 10A 250VAC and 10A 30VDC loads, and has an output signal indicator. Adopts dual power supply selection design to enhance anti-interference capability. Therefore, it plays the role of automatic adjustment, safety protection and conversion circuit in the circuit.

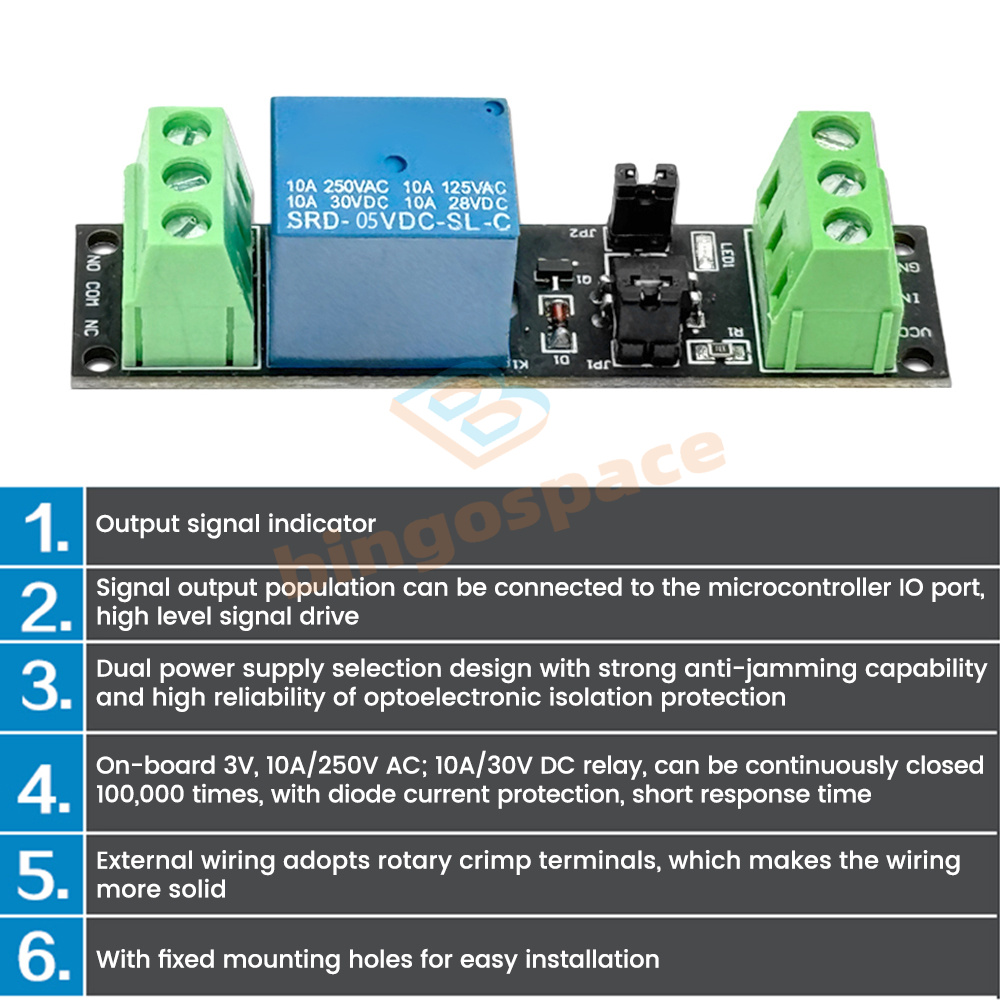

Features
1. With output signal indicator light indication;
2. Signal output population can be connected to the microcontroller IO port, high level signal drive;
3. Dual power supply selection design with strong anti-interference capability and high reliability of optoelectronic isolation protection;
4. 10A/250V AC; 10A/30V DC relay on board, can be continuously absorbed 100,000 times, with diode lagging protection, short response time;
5. External wiring using rotary crimp terminals to make the wiring more secure, with fixed mounting holes, easy to install.

Specification
Voltage: DC3V/5V/12V/24V selectable
Current: 10A

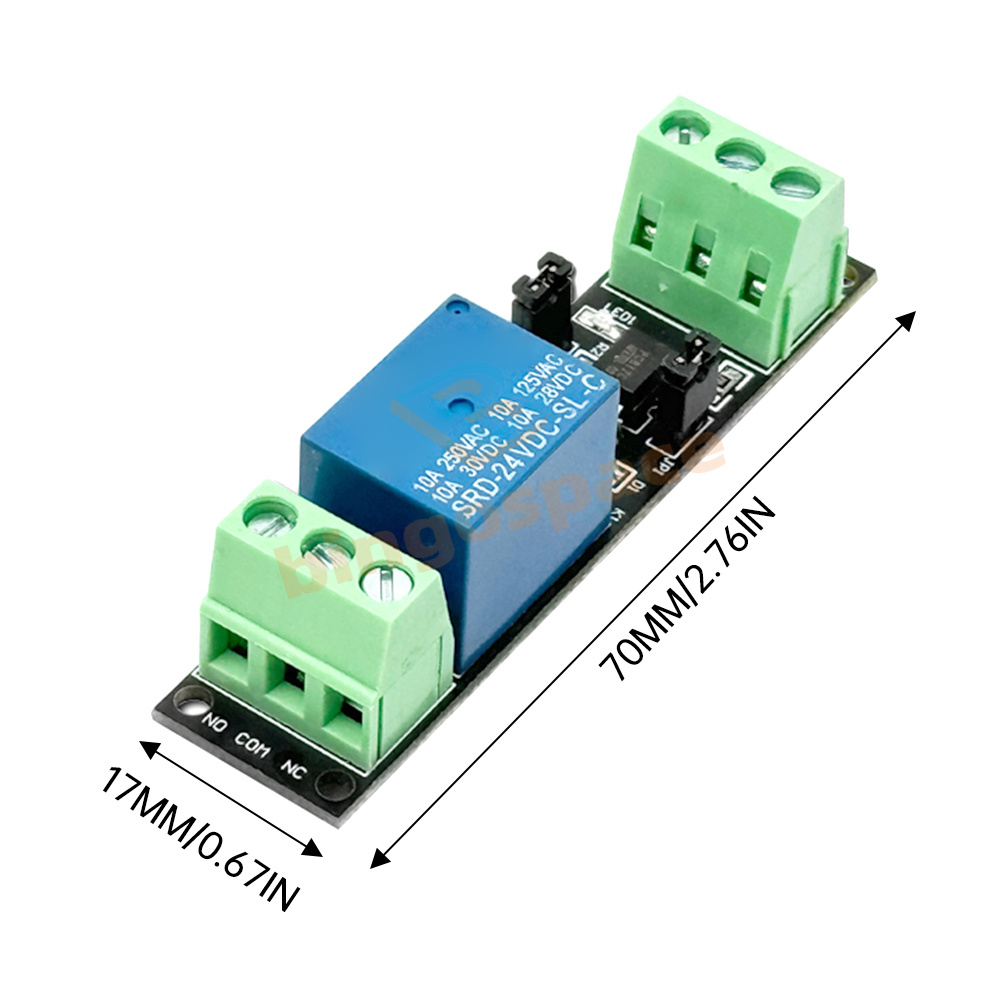

Board size: L70mmXW17mmXH20mm

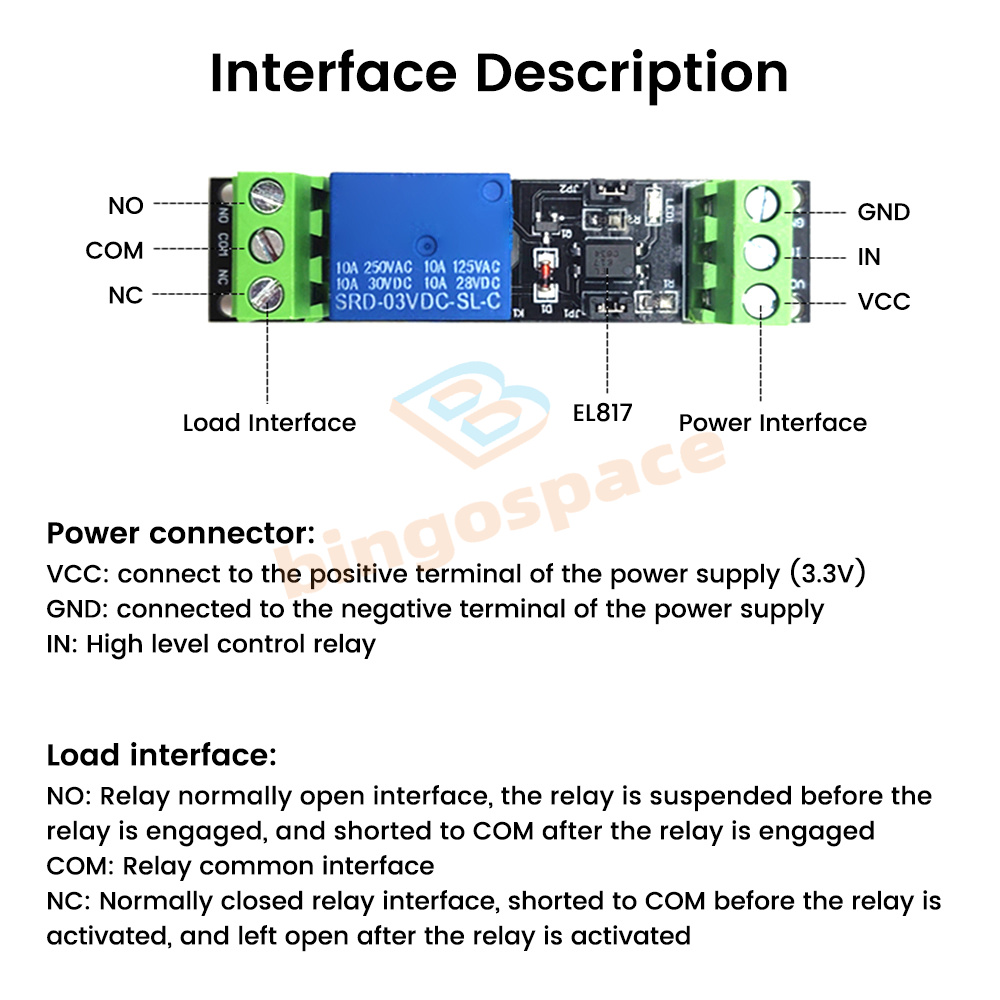

Power connector:
VCC:Connect to positive terminal of power supply (3.3V)
GND:Connect to negative terminal of power supply.
IN:High level control relay
Load Interface.
NO:Relay normally open interface, before the relay is engaged, empty, after the relay is engaged, shorted to COM.
COM:Relay common interface
NC: Normally closed relay interface, shorted to COM before the relay is engaged, shorted to COM after the relay is engaged.

List
1 x Relay module
