Details
Features
1. Use high quality materials, quality is guaranteed

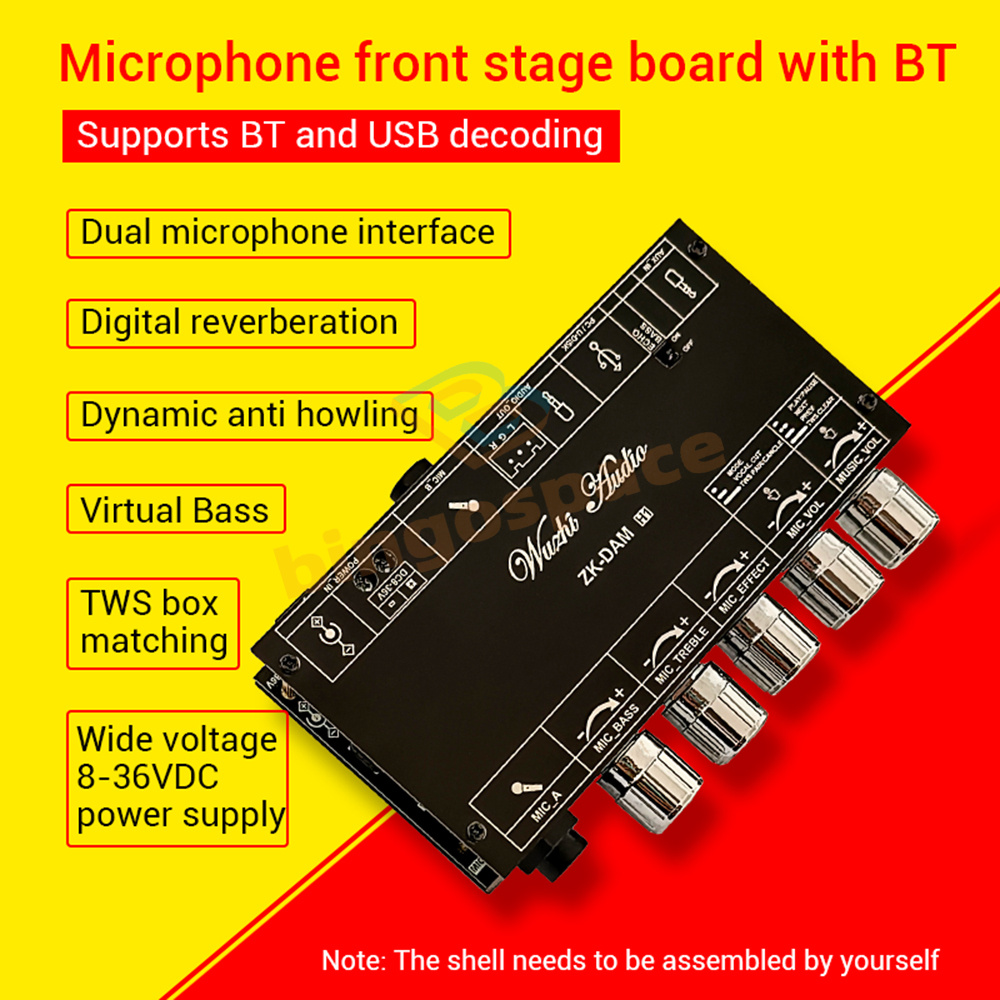

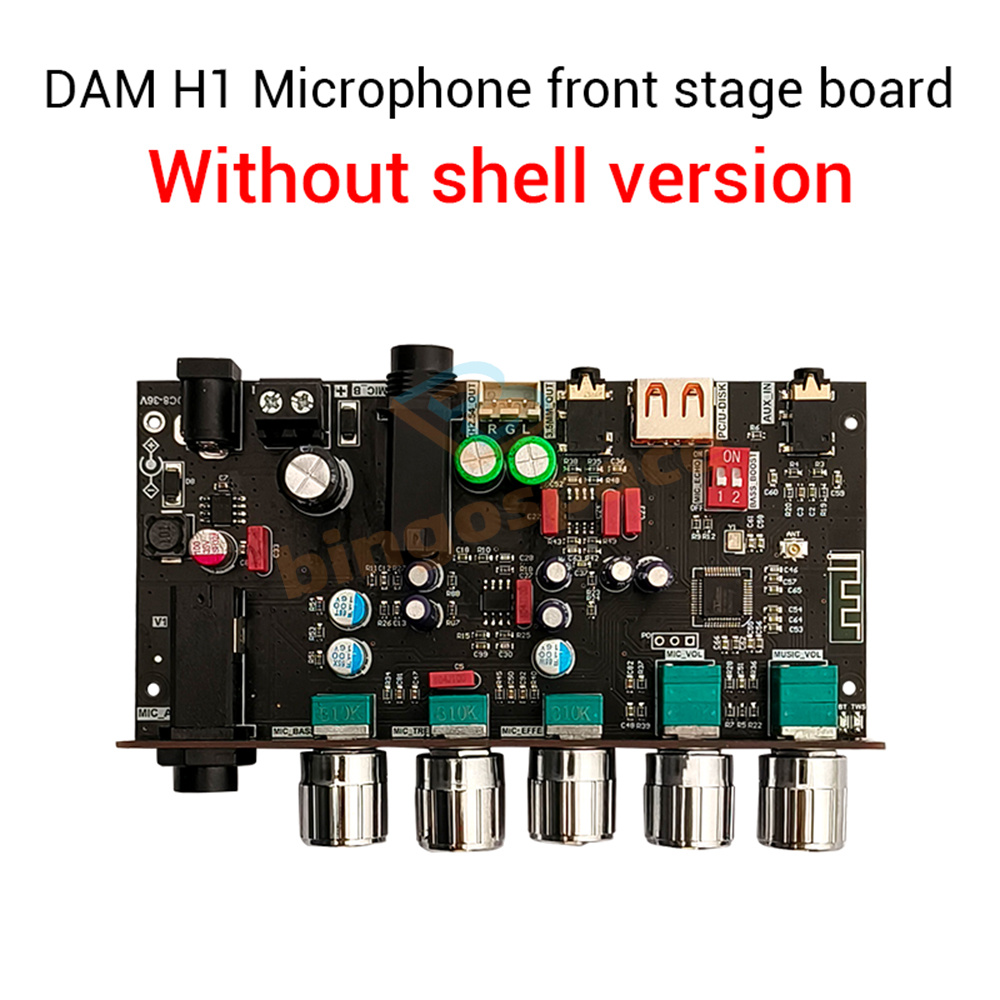

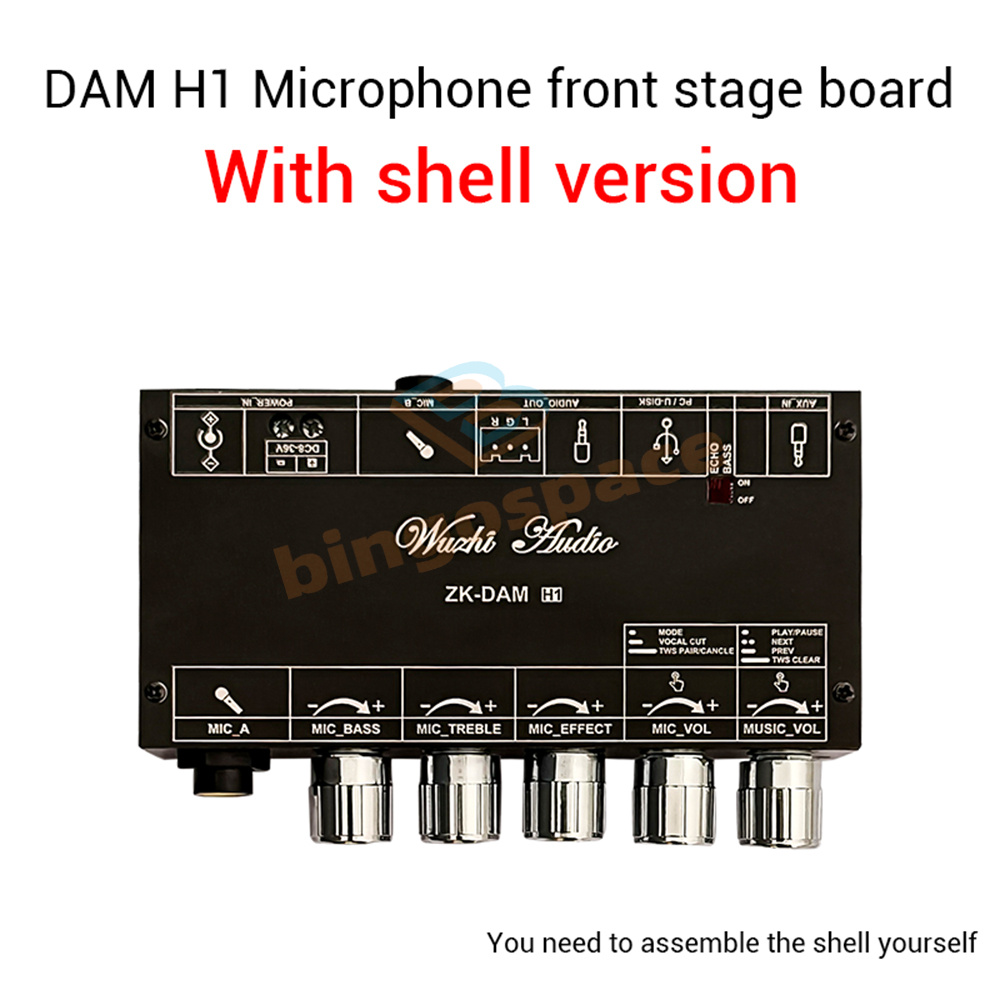

2.Exquisite appearance, microphone preamp board with Bluetooth
3. Dual microphone interface, digital reverb, dynamic anti-whistling

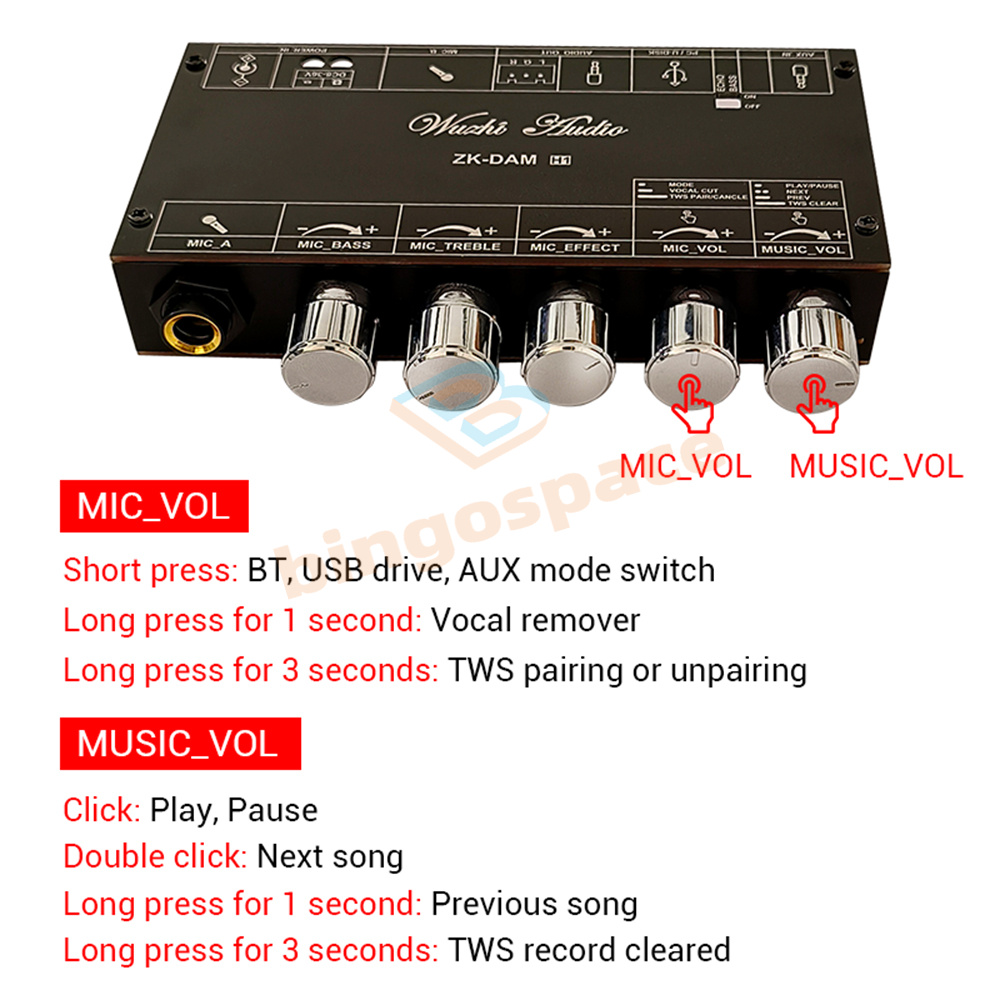

4. New multi-function buttons, more convenient to use
5. Wide range of applications, suitable for a variety of occasions
2.Exquisite appearance, microphone preamp board with Bluetooth
3. Dual microphone interface, digital reverb, dynamic anti-whistling
4. New multi-function buttons, more convenient to use
5. Wide range of applications, suitable for a variety of occasions
Specification
Product Model: H1
Input Voltage: Wide voltage 8-36VDC, can not input AC
Bluetooth chip: Mountain View BP1048B2, Bluetooth 5.0
Bluetooth decoding format: SBC, AAC
Bluetooth distance: 15 meters
U disk decoding format: MP3, WAV, FLAC, APE bit rate should be less than 1500kbps

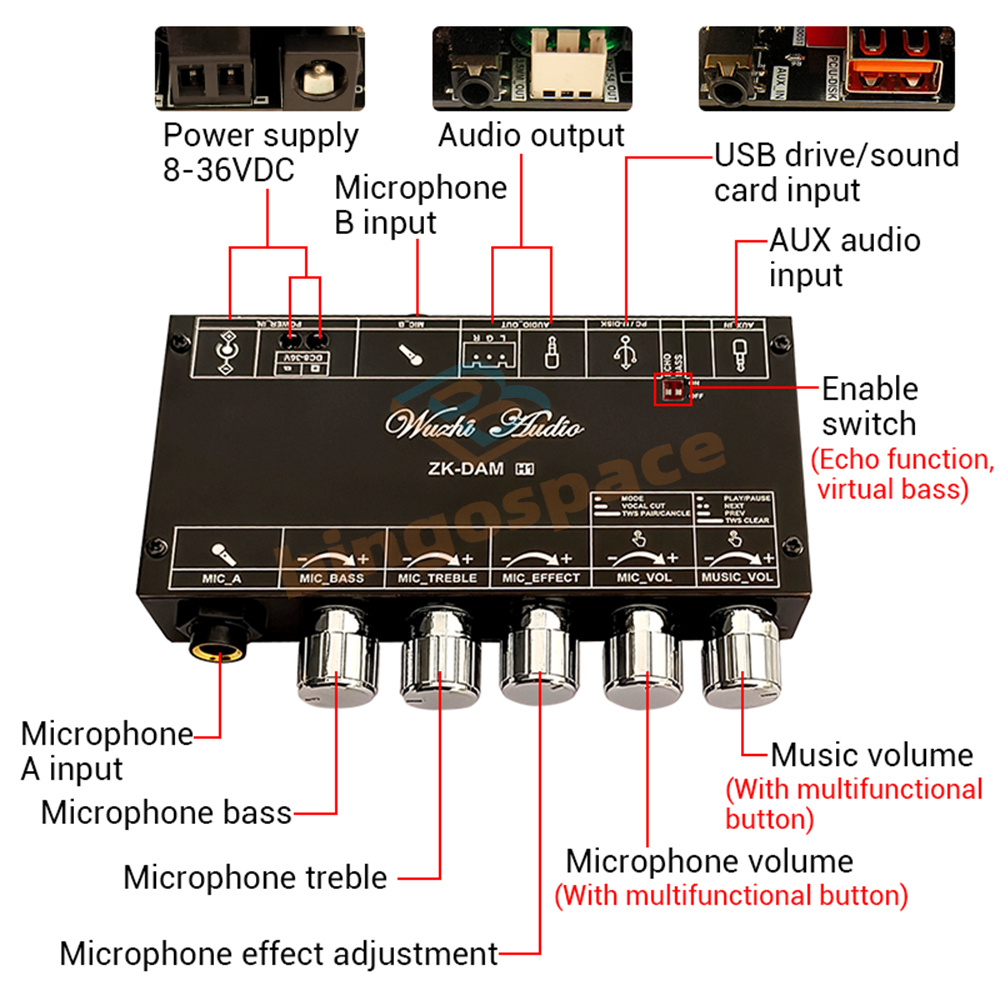

Microphone interface: dual 6.35mm microphone interface
Power supply interface: DC5.5-2.1 female socket, or terminal block, either one or the other
Audio output connector: 3.5MM headphone socket, or XH2.54-3P socket, either one or the other

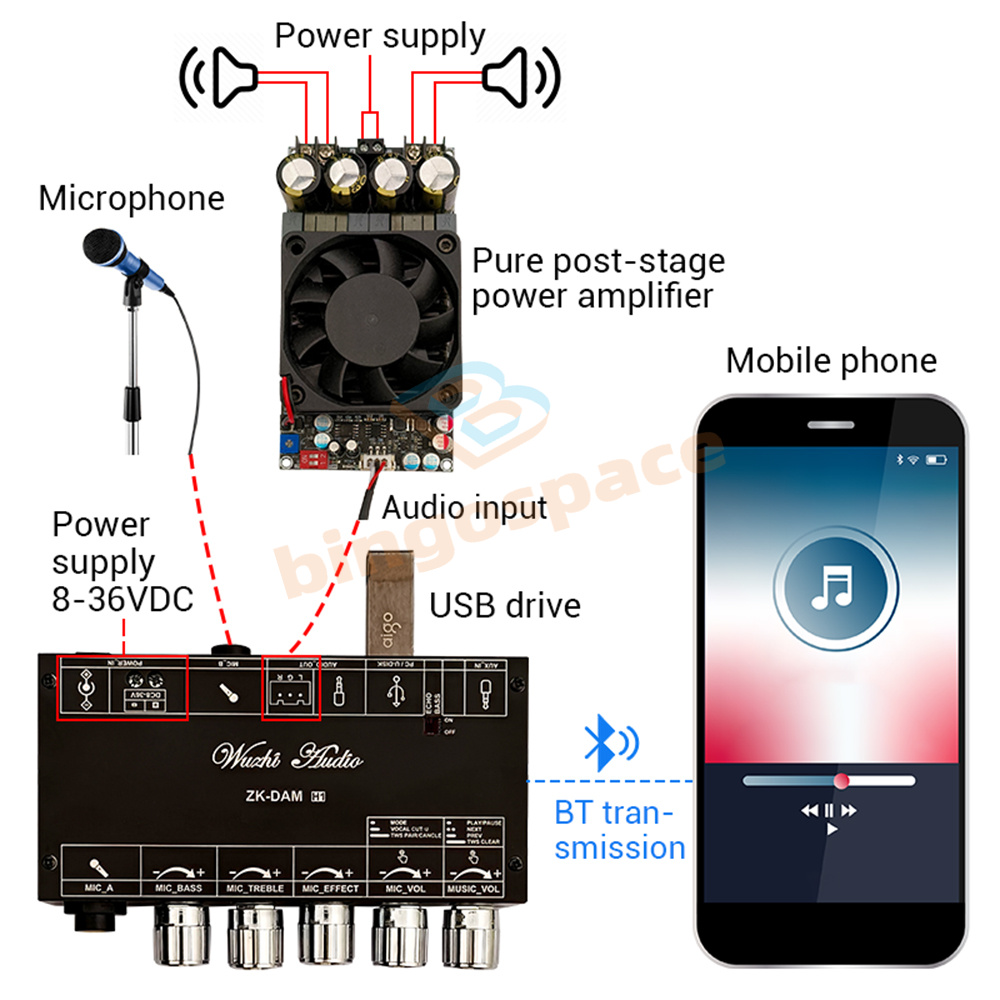

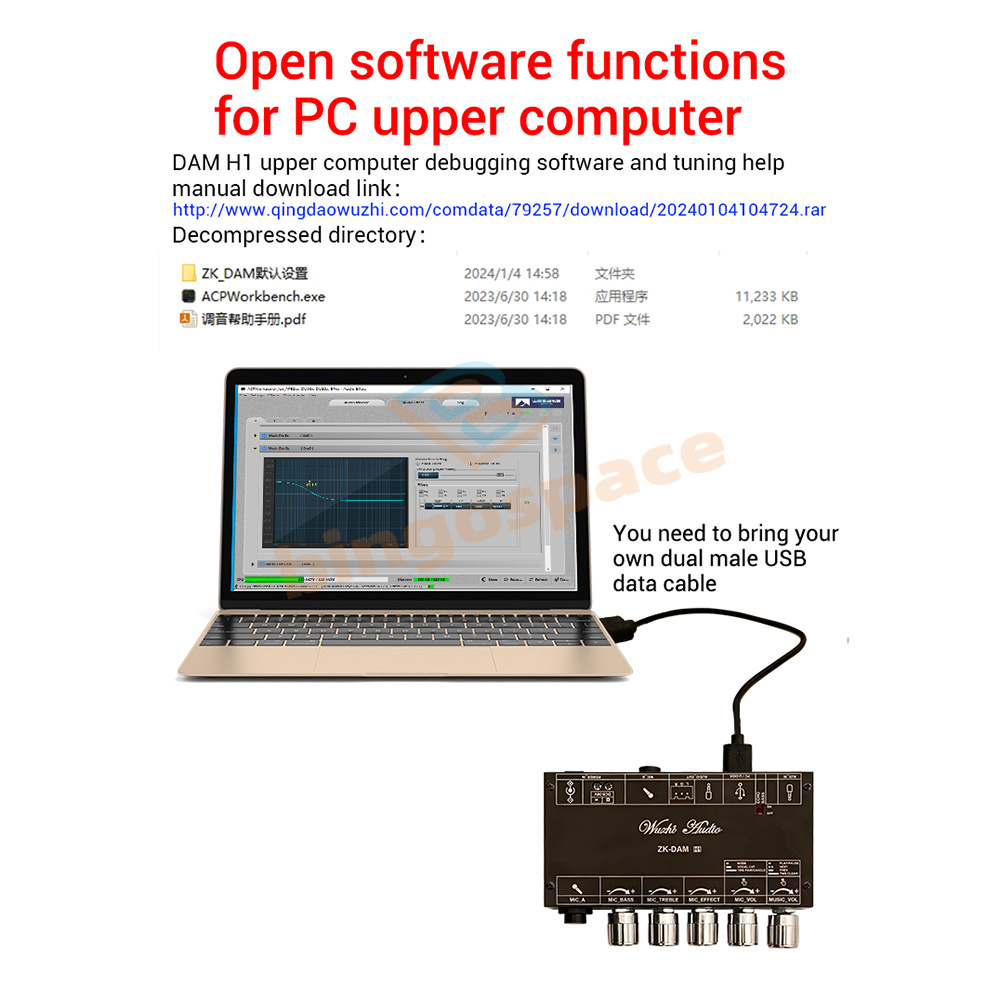

Operating modes: Bluetooth, AUX, USB flash drive/sound card
Indicator light status: U disk and AUX mode blue light flashes slowly, Bluetooth connection success is always on, without any connection super slow flash; start TWS, red light flashes searching for pairing, red light is always on TWS left channel, red light flashes slowly TWS right channel
Mode Priority: Insert U disk or AUX can snatch Bluetooth, the mode can be memorized after power down.Bluetooth can not be searched in U disk or AUX mode.
Product Model: H1
Input Voltage: Wide voltage 8-36VDC, can not input AC
Bluetooth chip: Mountain View BP1048B2, Bluetooth 5.0
Bluetooth decoding format: SBC, AAC
Bluetooth distance: 15 meters
U disk decoding format: MP3, WAV, FLAC, APE bit rate should be less than 1500kbps
Microphone interface: dual 6.35mm microphone interface
Power supply interface: DC5.5-2.1 female socket, or terminal block, either one or the other
Audio output connector: 3.5MM headphone socket, or XH2.54-3P socket, either one or the other
Operating modes: Bluetooth, AUX, USB flash drive/sound card
Indicator light status: U disk and AUX mode blue light flashes slowly, Bluetooth connection success is always on, without any connection super slow flash; start TWS, red light flashes searching for pairing, red light is always on TWS left channel, red light flashes slowly TWS right channel
Mode Priority: Insert U disk or AUX can snatch Bluetooth, the mode can be memorized after power down.Bluetooth can not be searched in U disk or AUX mode.
List
1 x Preamp Board Combination
1 x Preamp Board Combination
Copyright©2018 datacaciques
Top & Fast Shipping！
Get The Right At The Right Price！
H1 DC8-36V Audio Amplifier Power AMP Bluetooth AUX Preamp Board Combination DIY
DESCRIPTION
Features
1. Use high quality materials, quality is guaranteed
2.Exquisite appearance, microphone preamp board with Bluetooth
3. Dual microphone interface, digital reverb, dynamic anti-whistling
4. New multi-function buttons, more convenient to use
5. Wide range of applications, suitable for a variety of occasions
2.Exquisite appearance, microphone preamp board with Bluetooth
3. Dual microphone interface, digital reverb, dynamic anti-whistling
4. New multi-function buttons, more convenient to use
5. Wide range of applications, suitable for a variety of occasions
Specification
Product Model: H1
Input Voltage: Wide voltage 8-36VDC, can not input AC
Bluetooth chip: Mountain View BP1048B2, Bluetooth 5.0
Bluetooth decoding format: SBC, AAC
Bluetooth distance: 15 meters
U disk decoding format: MP3, WAV, FLAC, APE bit rate should be less than 1500kbps
Microphone interface: dual 6.35mm microphone interface
Power supply interface: DC5.5-2.1 female socket, or terminal block, either one or the other
Audio output connector: 3.5MM headphone socket, or XH2.54-3P socket, either one or the other
Operating modes: Bluetooth, AUX, USB flash drive/sound card
Indicator light status: U disk and AUX mode blue light flashes slowly, Bluetooth connection success is always on, without any connection super slow flash; start TWS, red light flashes searching for pairing, red light is always on TWS left channel, red light flashes slowly TWS right channel
Mode Priority: Insert U disk or AUX can snatch Bluetooth, the mode can be memorized after power down.Bluetooth can not be searched in U disk or AUX mode.
Product Model: H1
Input Voltage: Wide voltage 8-36VDC, can not input AC
Bluetooth chip: Mountain View BP1048B2, Bluetooth 5.0
Bluetooth decoding format: SBC, AAC
Bluetooth distance: 15 meters
U disk decoding format: MP3, WAV, FLAC, APE bit rate should be less than 1500kbps
Microphone interface: dual 6.35mm microphone interface
Power supply interface: DC5.5-2.1 female socket, or terminal block, either one or the other
Audio output connector: 3.5MM headphone socket, or XH2.54-3P socket, either one or the other
Operating modes: Bluetooth, AUX, USB flash drive/sound card
Indicator light status: U disk and AUX mode blue light flashes slowly, Bluetooth connection success is always on, without any connection super slow flash; start TWS, red light flashes searching for pairing, red light is always on TWS left channel, red light flashes slowly TWS right channel
Mode Priority: Insert U disk or AUX can snatch Bluetooth, the mode can be memorized after power down.Bluetooth can not be searched in U disk or AUX mode.
List
1 x Preamp Board Combination
1 x Preamp Board Combination
