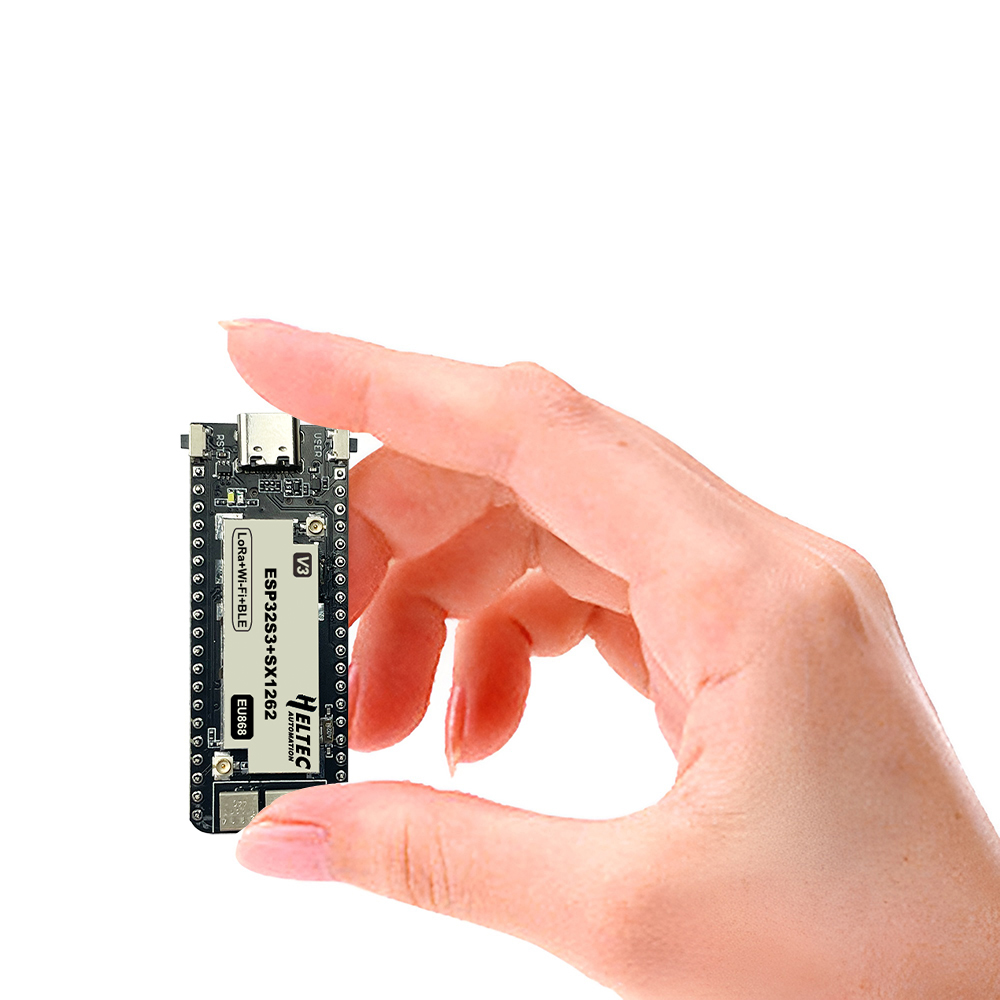

Product Details

Product features:
1. The upgraded version is smaller and more energy-efficient, integrating the advantages of traditional wireless modules, resulting in smaller products and lower energy consumption;

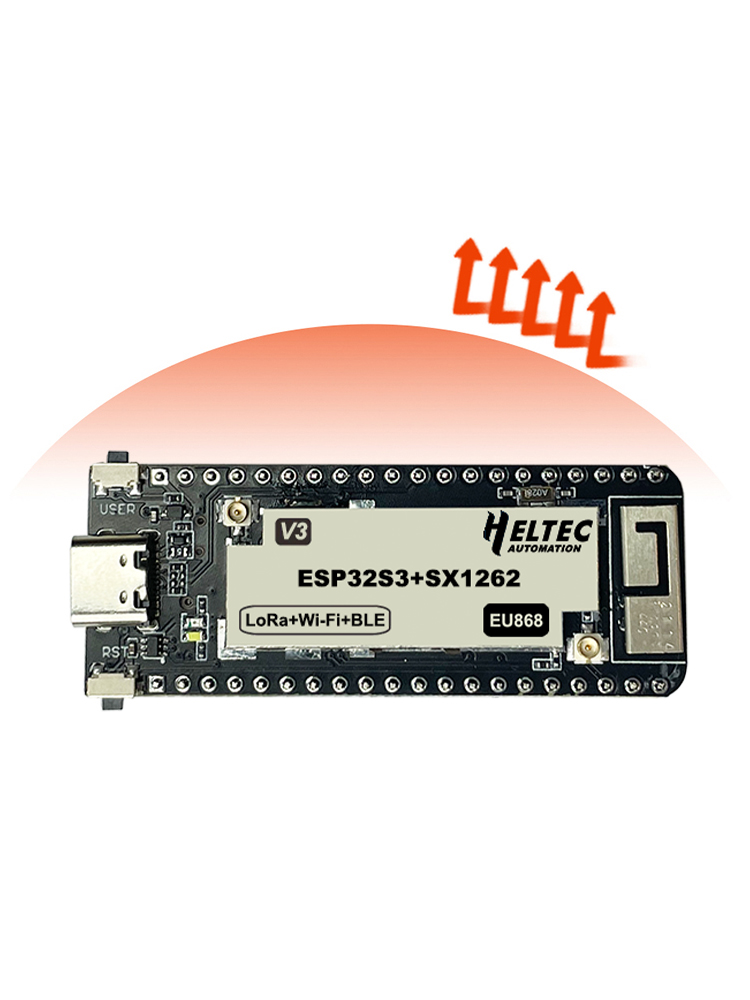

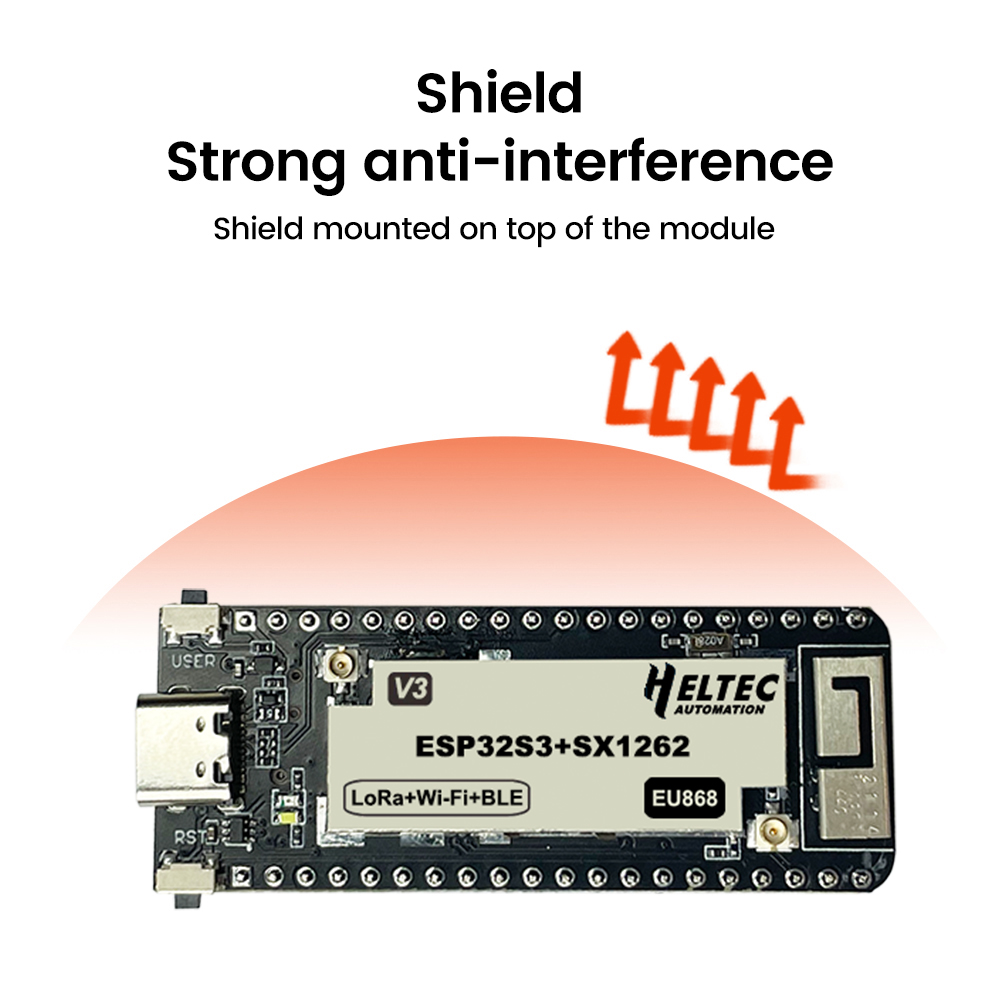

2. Shielding cover, strong anti-interference, with shielding cover installed on the module, greatly improving the product's anti-interference ability;

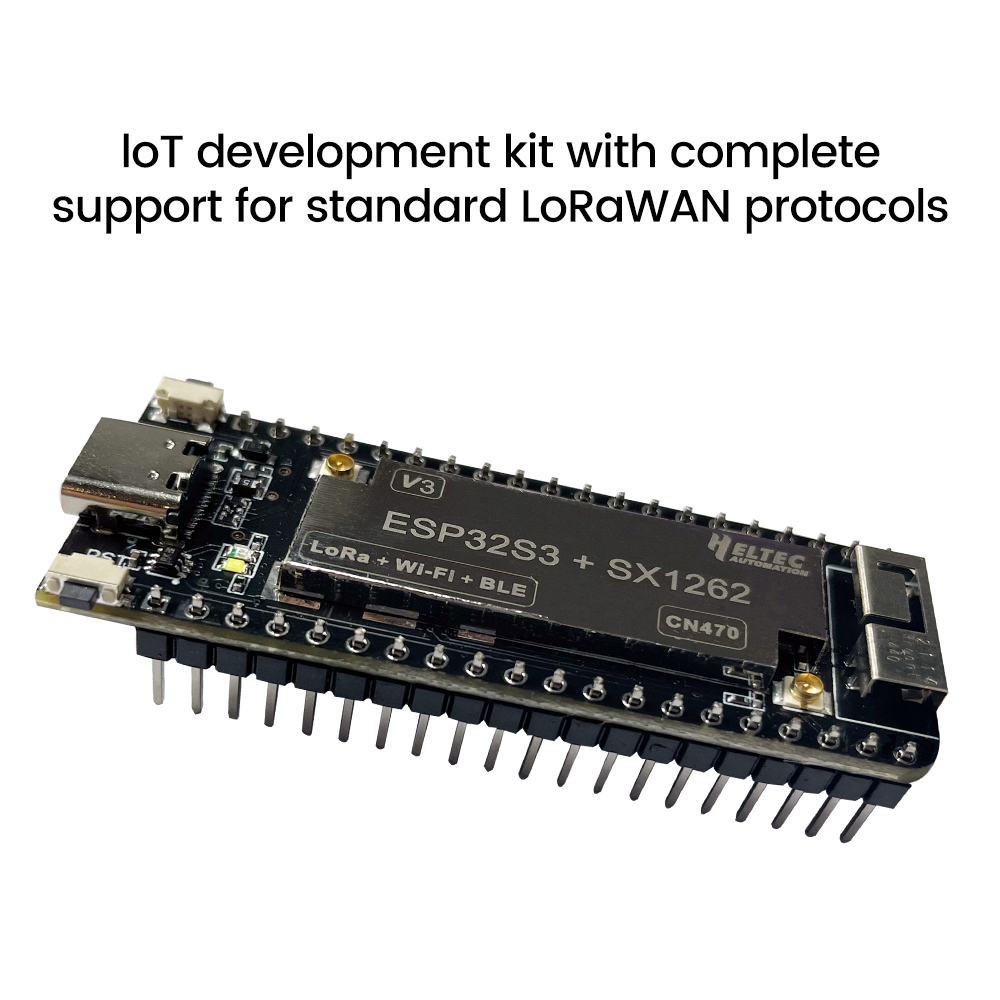

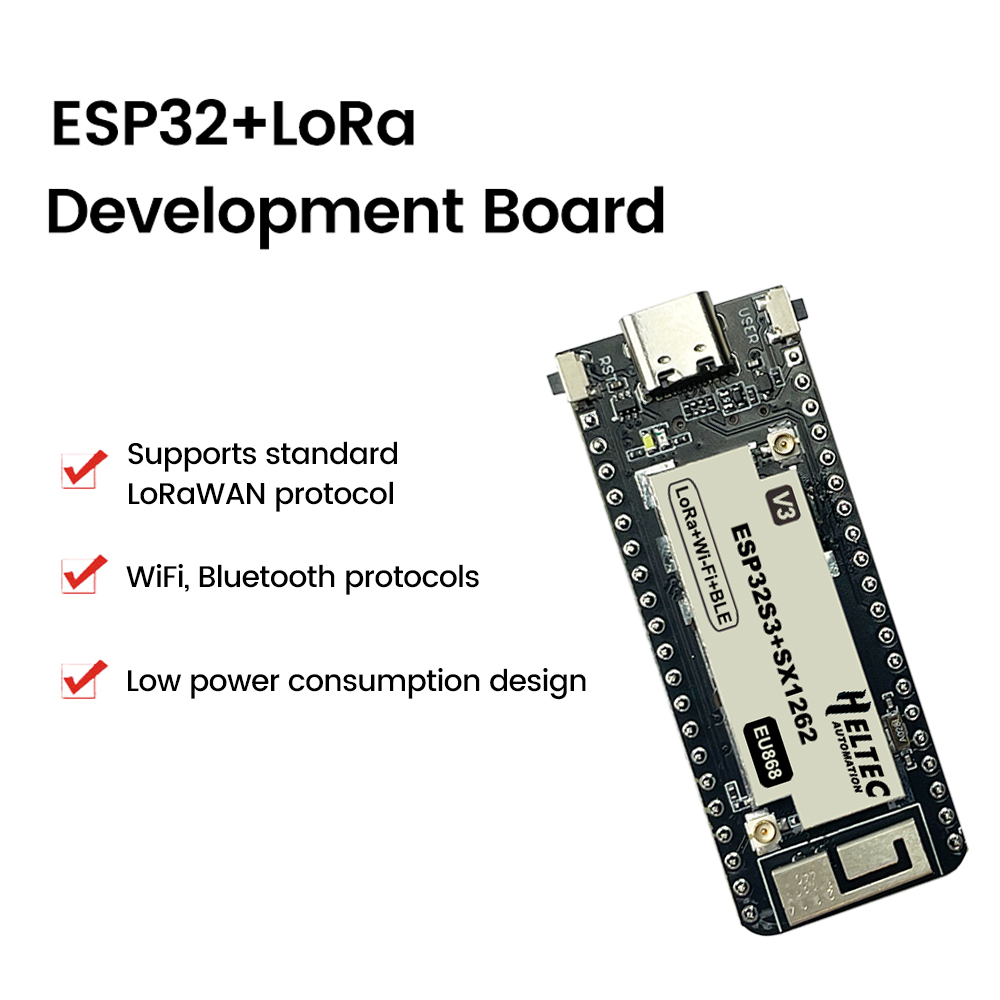

3. An IoT development kit that uses SX1262+ESP32 chips and fully supports the standard LoRaWAN protocol;
4. Rich interfaces, capable of programming products through standard libraries and concise development languages, quickly completing solution validation and product development;

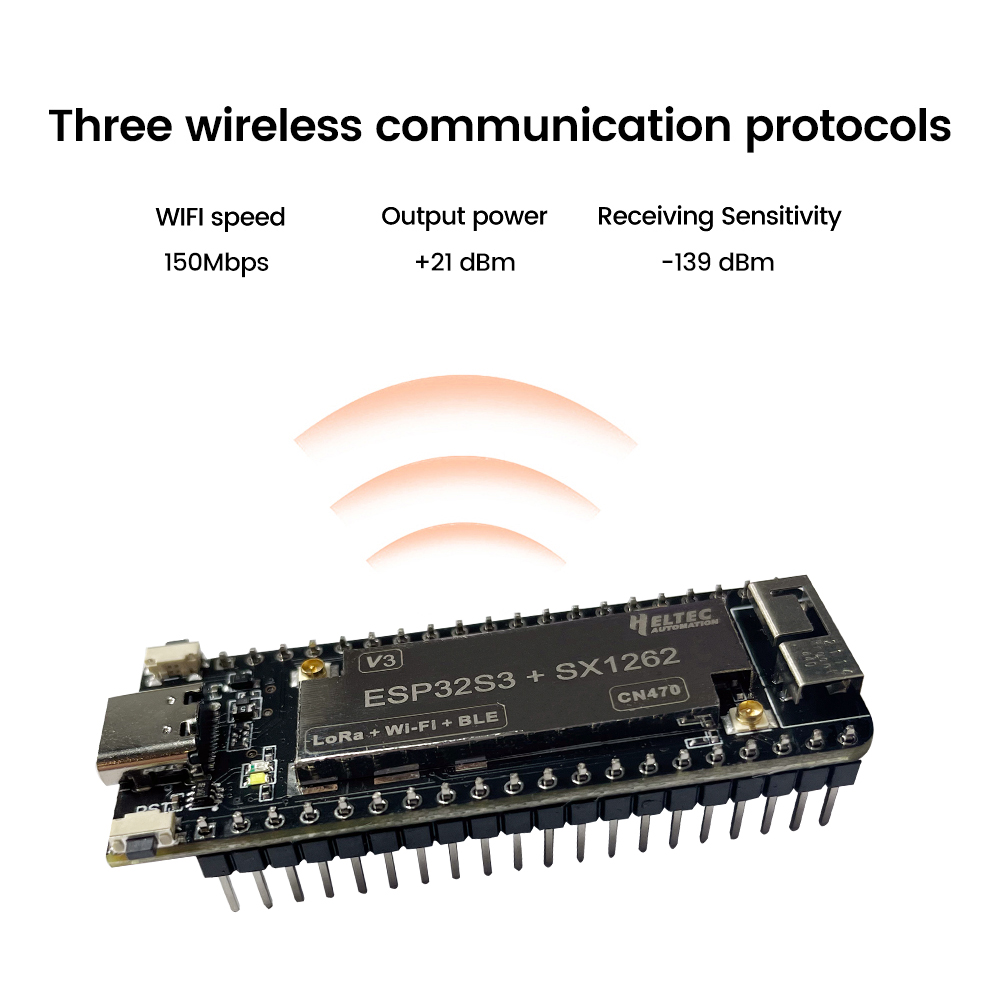

5. Supports three major wireless communication protocols, the ESP32 chip, and supports WIFI, BLE, and LoRa wireless communication functions. Suitable for various intelligent scenarios, it can be used as a gateway for IoT products or as a driving terminal product;
6. The development board is directly based on chip level development, and the product does not use popular WIFI, LoRa and other modules. Instead, special modulation is made in terms of functionality according to the needs of the product itself, which better matches the needs of the product itself.

Product parameters:
Frequency band: 433-510MHz/863-928MHz (optional)
MCU chip: ESP32-S3FN8
LORA chip: SX1262
Maximum receiving sensitivity: -139dBm
LORA maximum output power: 21 ± 1dBm
Hardware resources: 7xADC1; 9xADC2; 8xTouch; 3xUART; 2x I2C; 2xSPI
FLASH: 8MB
Interface: Type - C, battery interface, LORA antenna interface, 2 4G antenna interface (IPEX)
USB to serial chip: CP2102
Battery type: Supports charging and discharging of 3.7V lithium batteries (the product does not include batteries)
Sleep current:<10 uA
WIFI speed: up to 150Mbps
Output power:+21 dBm

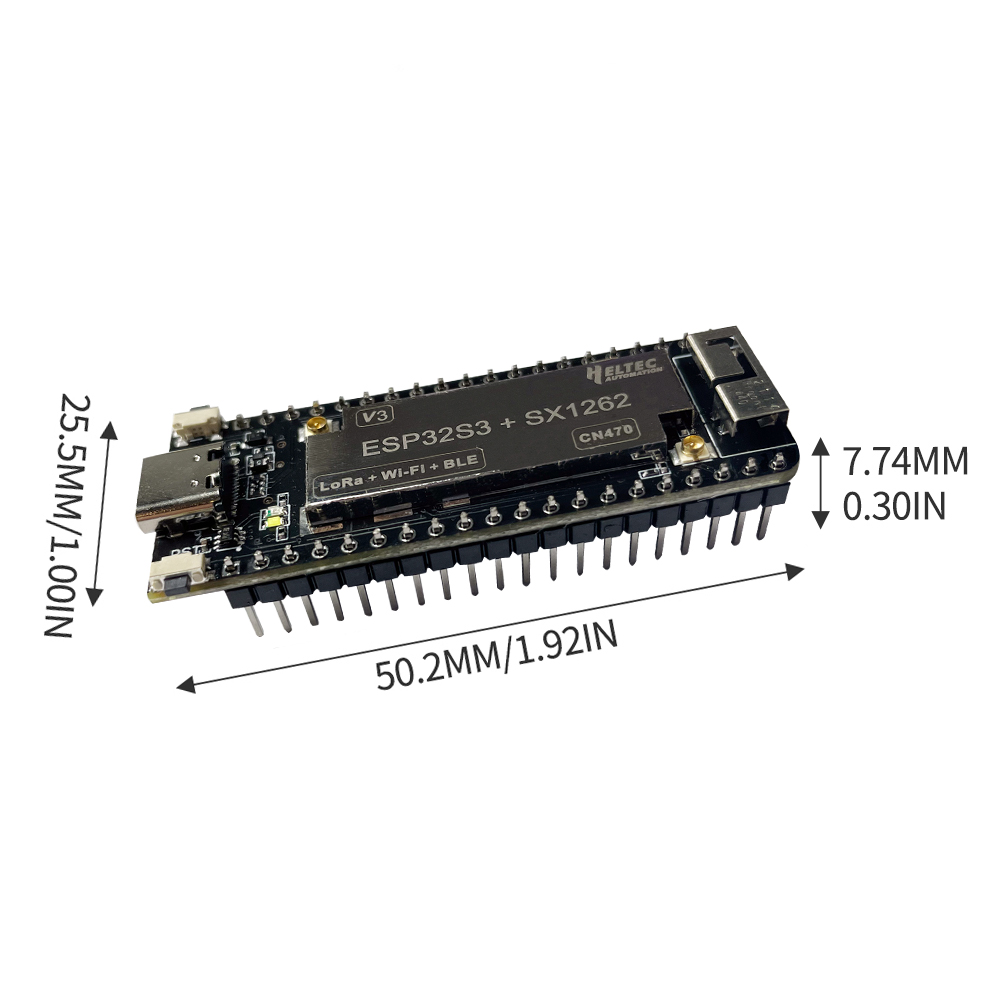

Size: 50.2mm * 25.5mm * 7.74mm

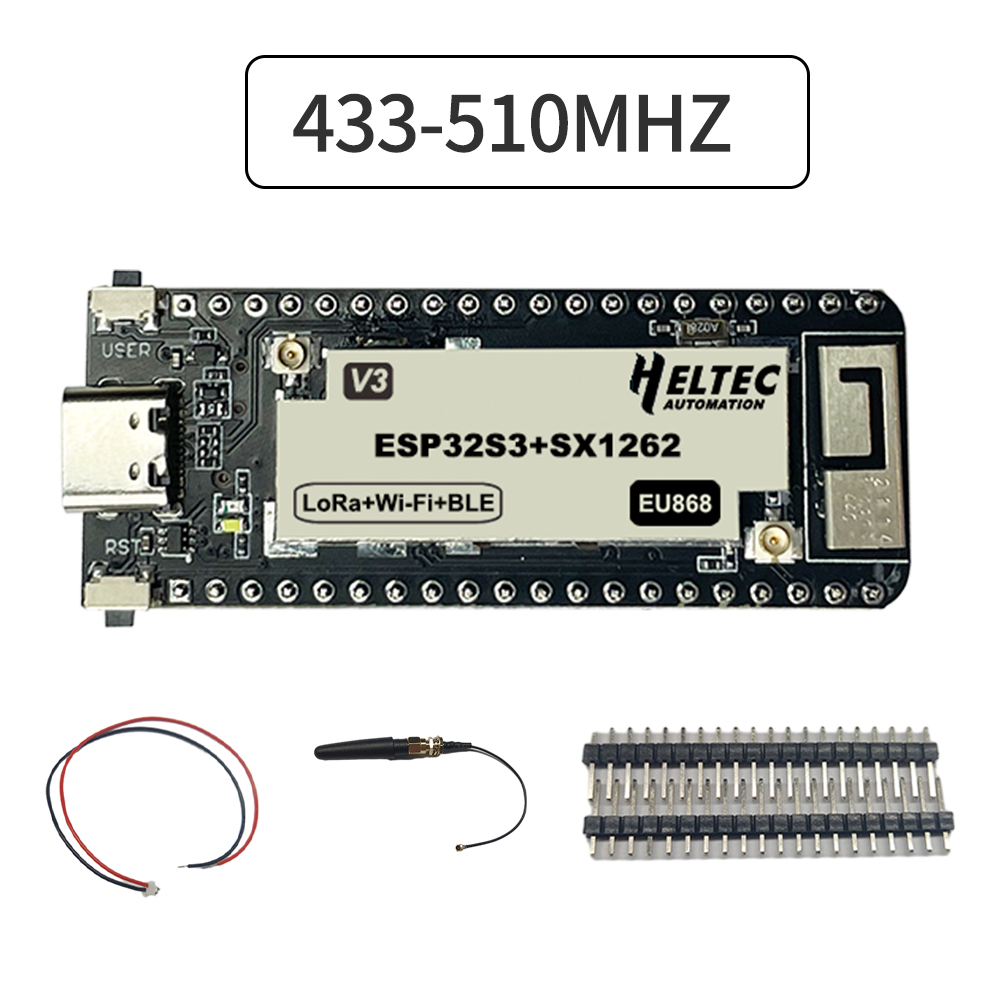

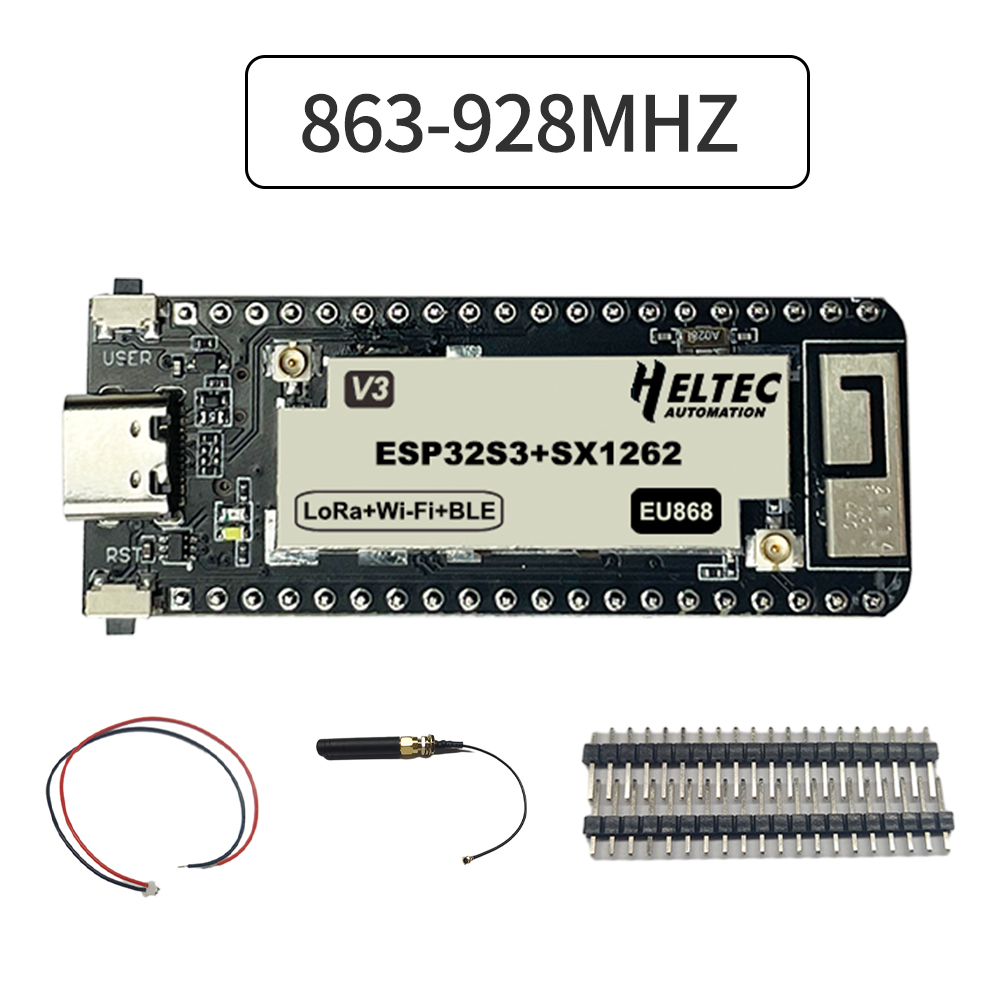

Product List:
1X development board
1X antenna
1X battery cable
2X needle arrangement
