Product Description
Fit for:
Perfect for 1.5L to 2.5L any 4/6 cylinder engine
Perfect for 3.2L-5.0L engines in twin turbo application, capable to 800HP
Boost pressures are 7psi(.5 Bar) to 21psi(1.5 Bar)

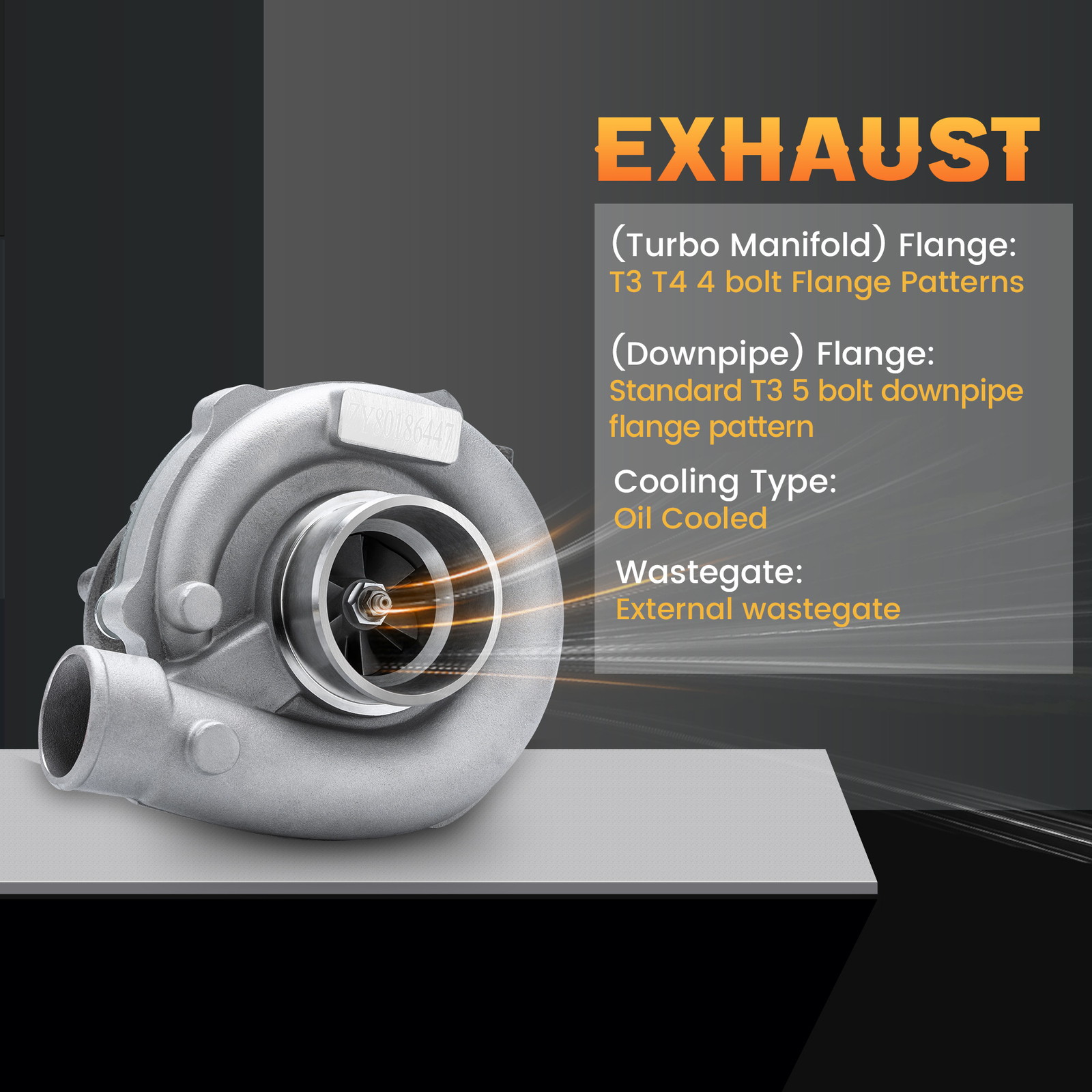

Exhaust (Turbo Manifold) Flange: T3 T4 4 bolt Flange Patterns
Exhaust Flange: Standard T3 5 bolt flange pattern
Cooling Type: Oil Cooling
Bearing Type: Journal Bearing/Floating Bearing
Thrust Bearing: 270 degrees
Horse Power: Up to 400 HP
Wastegate: W/O Wastegate
Actuator Type: W/O Actuator
Oil Inlet: M12*1.25
Oil Outlet: 2*M8*1.25
Turbo Type: Individual
Universal Fitment: Yes
Finish: Matte
Condition: 100% Brand New

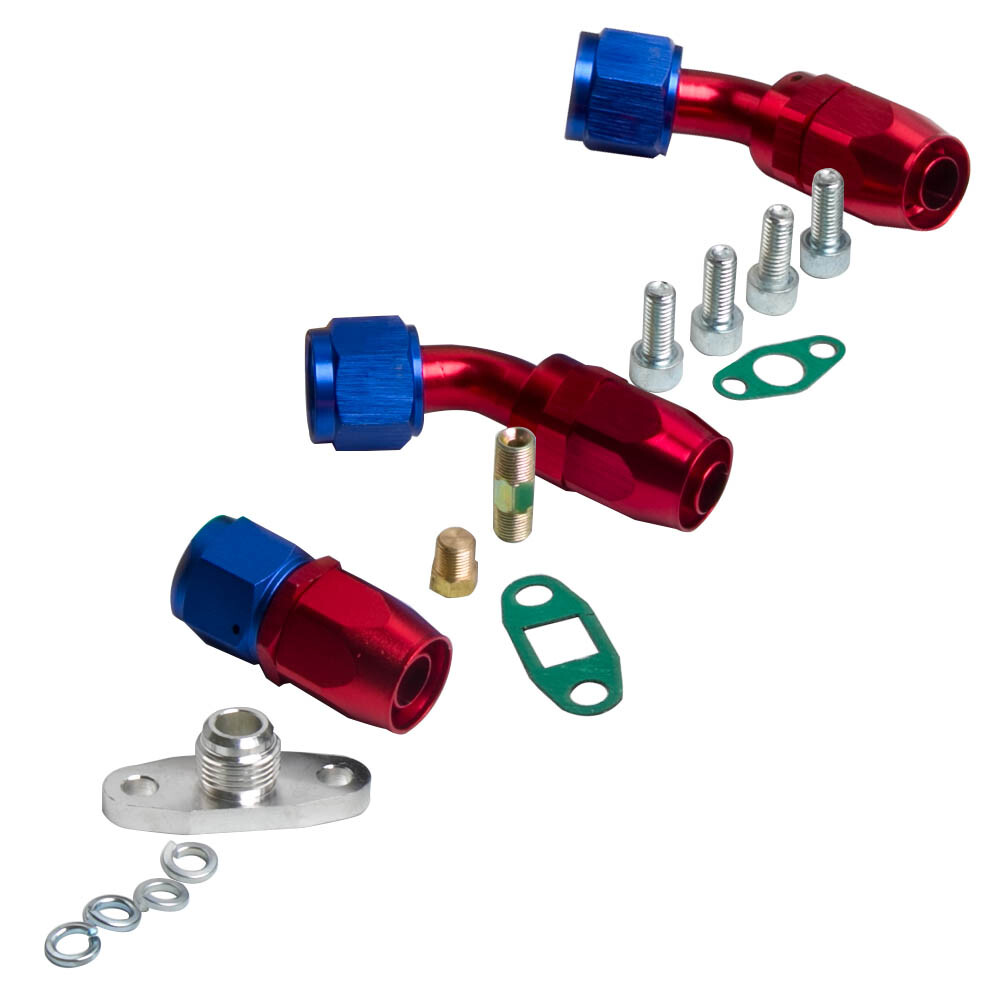

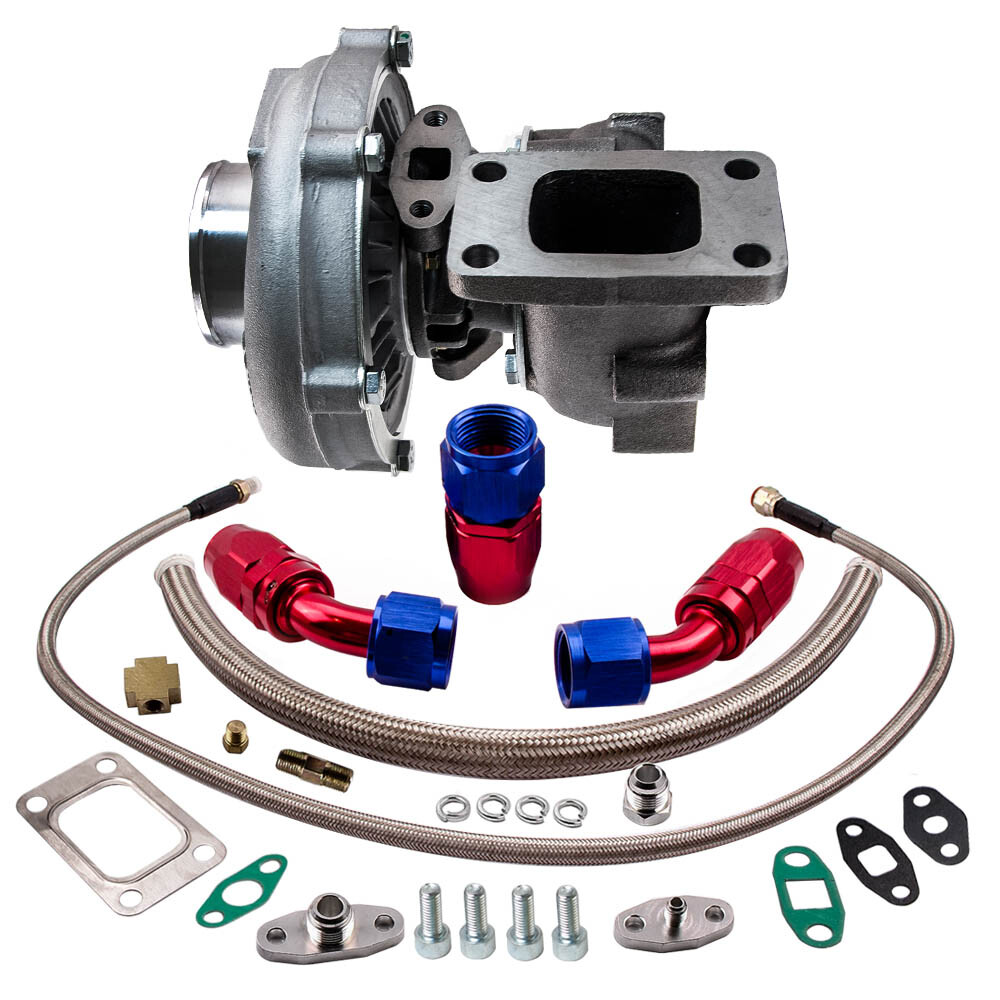

Accessories: You will get exactly as shown as picture above
Package Size: 27x 25x 24 cm
Package Weight: 7250g
Compressor:
Trim: 44
A/R: .5
Inducer: 50.5
Exducer: 76
Turbine:
Trim: 73
A/R: .63
Inducer: 65.5
Exducer: 55.9

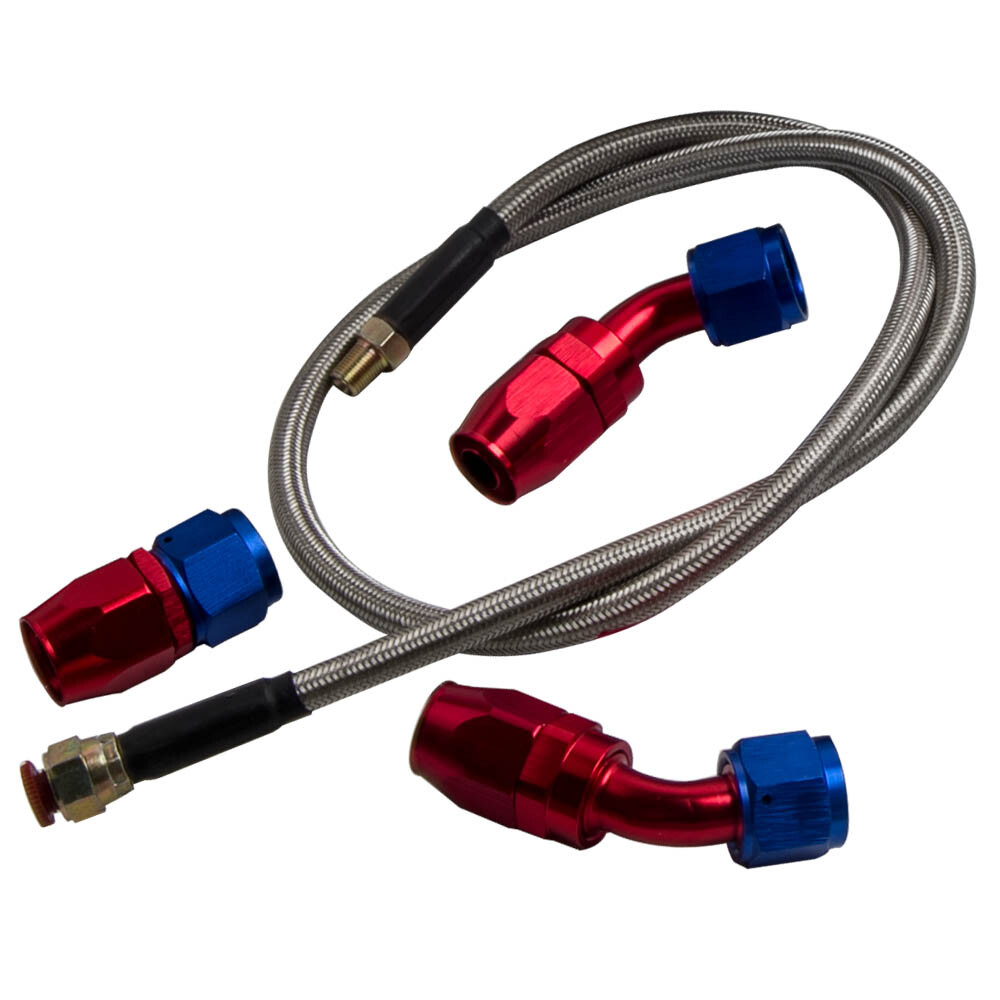

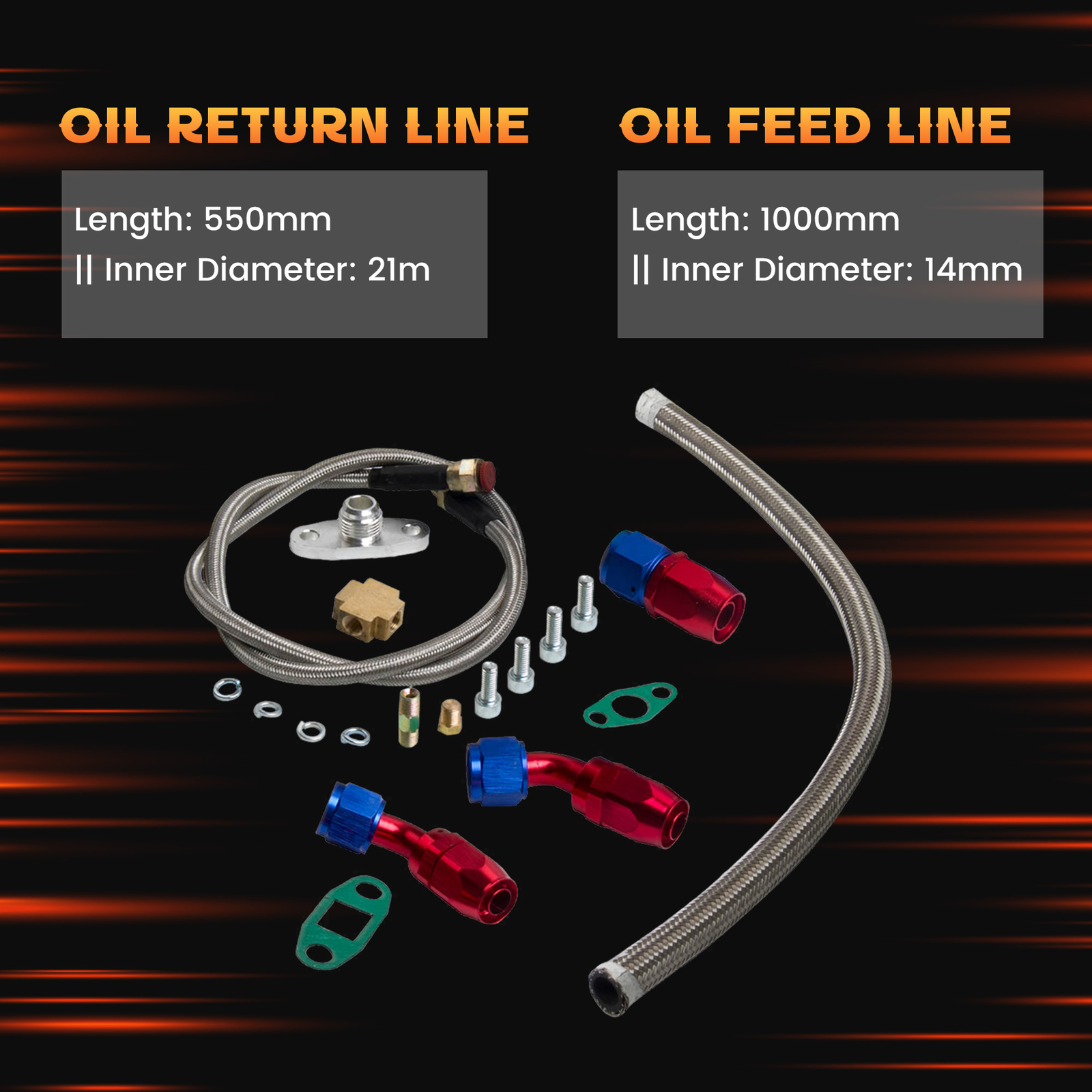

* OIL RETURN LINE: Length: 550mm || Inner Diameter: 21mm
* OIL FEED LINE: Length: 1000mm || Inner Diameter: 14mm
