【E-bike Conversion Kit Paramater】

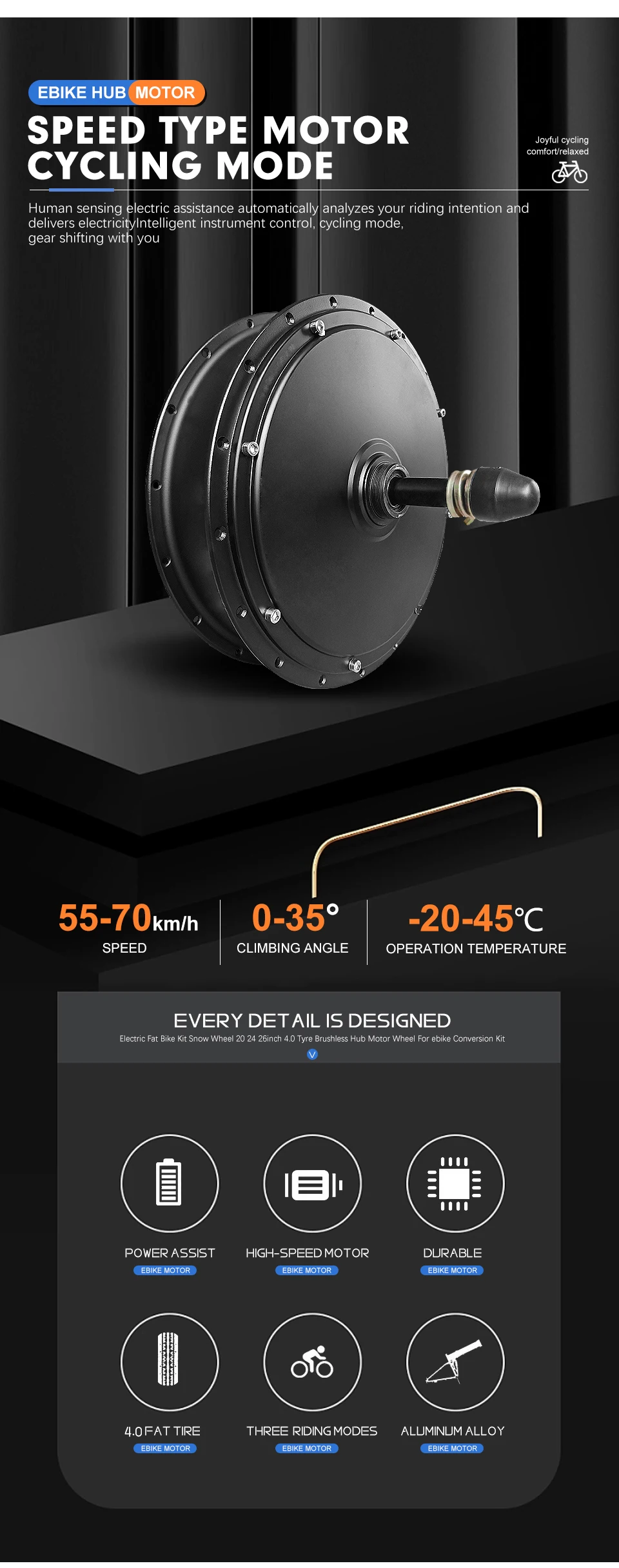

Motor:

●Type:Brushless gearless hub motor

●Installation location:Rear wheel

●Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

●Brake Type:Disc brake available

●Rated speed:55-70 KM/H.

●Load≤200KG

●Motor cable length:200mm

●Wheel size:20inch 26 inch wheel

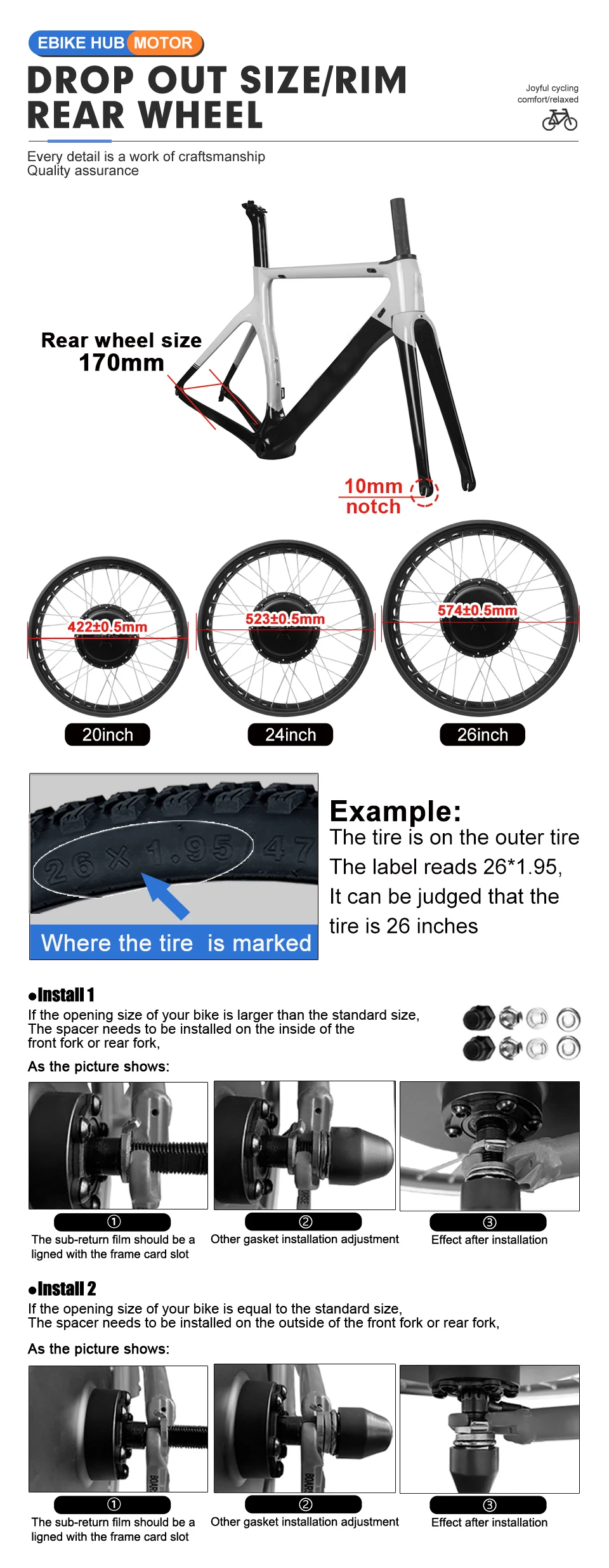

●Rear fork:170mm

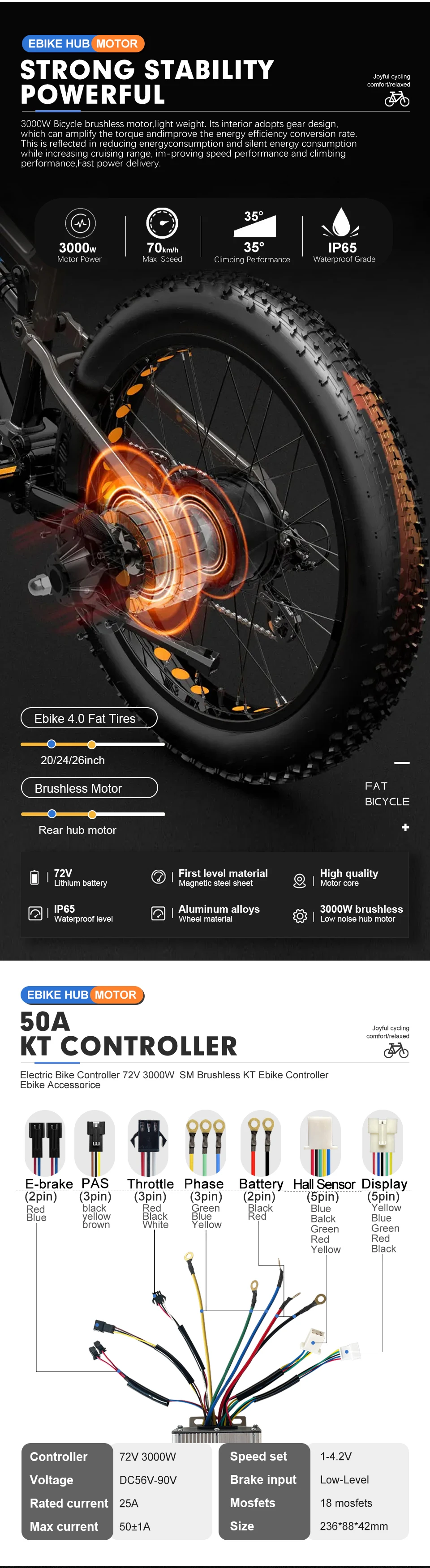

Controller:

Attention: The maximum current that the controller can pass is 50A, please do not exceed it, and we refuse to compensate for damage to the controller due to this

●Dimension:236* 88 * 42 mm

●Weight:800g

●Cable length :all about 13-15cm

●Mosfets :18 mosfets

●Maximum current:50±1A

●Rated voltage:DC56V-90V

●Speed set:1-4.2V

●Rated current:25A

●Brake input :Low-Level

●Low voltage protection:DC56±0.5V

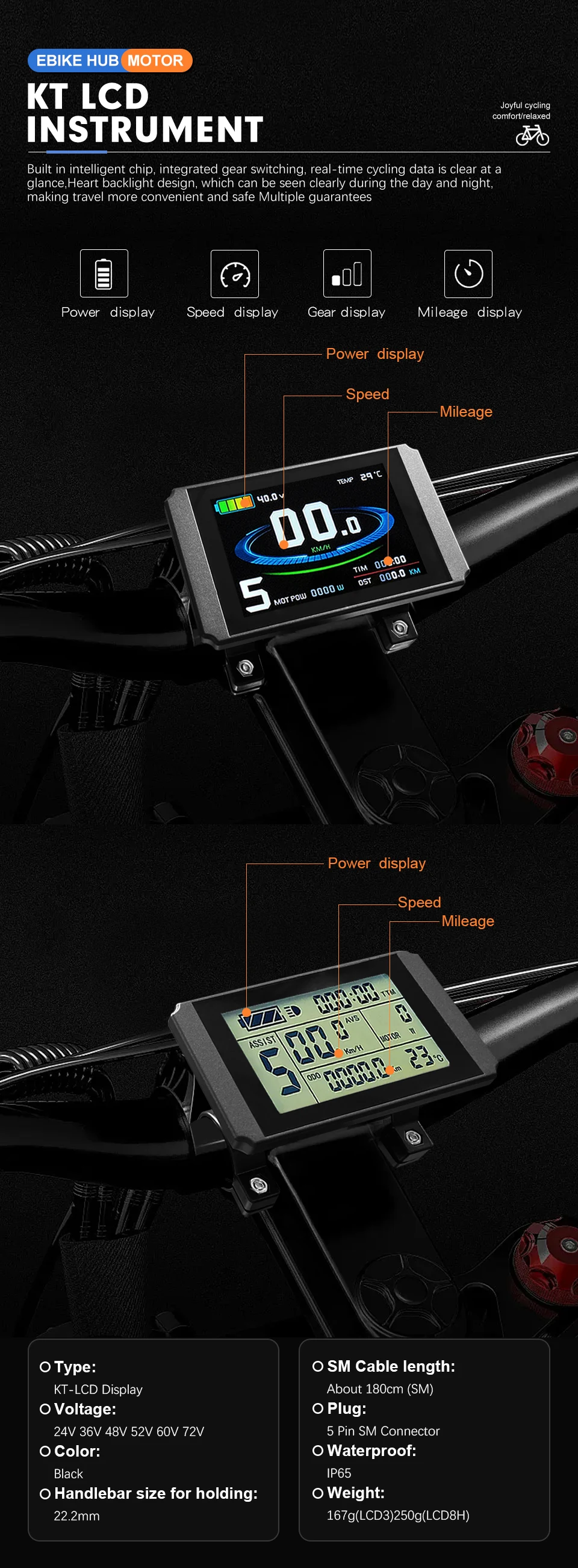

Display(Opition):

●Type :KT LCD/LED/Colourful Display

●Color :Black

●Voltage :24V 36V 48V universal

●Cable length :About 180cm(SM)

●Plug :●Plug :5 Pin SM plug

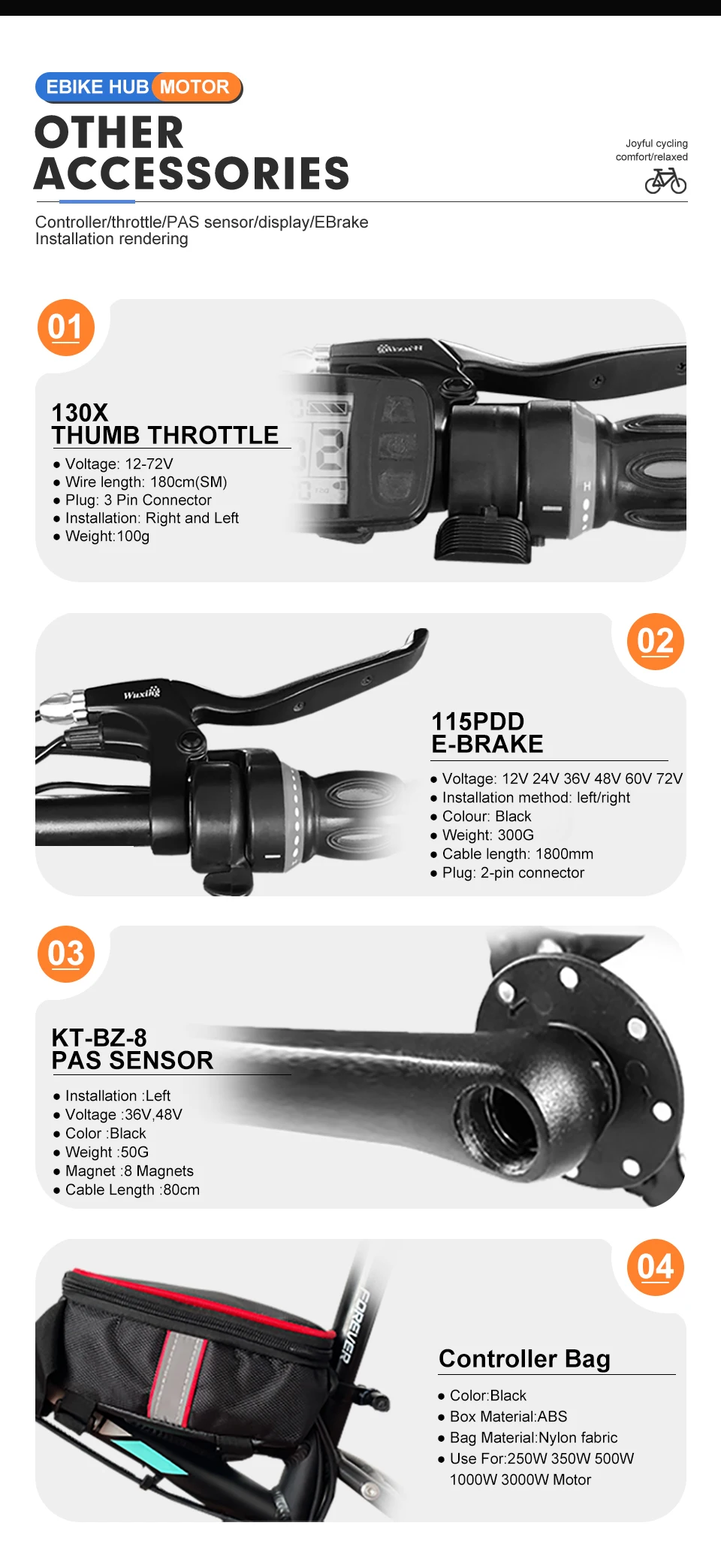

130X Throttle (Default):

●Type:130X Thumb Throttle

●Voltage:12V 24V 36V 48V 52V 60V 72V

●Wire length:180cm(SM)

●Weight :100g

●Waterproof :IP76

●Plug Type:3 Pin SM plug

●Color :●Color :Black

●Installation:Right

●Apply to:E-bike, E-Scooter, Ebike Conversion Kit

●Function:E-bike accelerator Finger Thumb Throttle

115PDD E-Brake (Default):

●Type:115PDD E-brake Cut Off Power

●Voltage:12V 24V 36V 48V 60V 72V

●Cable Length:180cm (SM)

●Weight :●Weight :300g

●Waterproof :IP76

●Material:Aluminum Alloy

●Installation:Left/Right

●Size:●Size:●Size:●Size:●Size:●Size:●Size:●Size:L156mm W105mm H34mm

●Plug :2 pin SM plug

PAS KT-BZ-8(Default):

●Type:KT-BZ-4 (8) Pulse assist sensor

●Voltage:36V/48V

●Cable Length:180cm including the connector

●Magnet :8 Magnets

●Weight :100 g

●Plug Type:3 Pin SM plug

●Color :As pictures shown

● Material:Plastic

●Installation:Left

●Adaptation:Ebike Electric Bike Bicycle

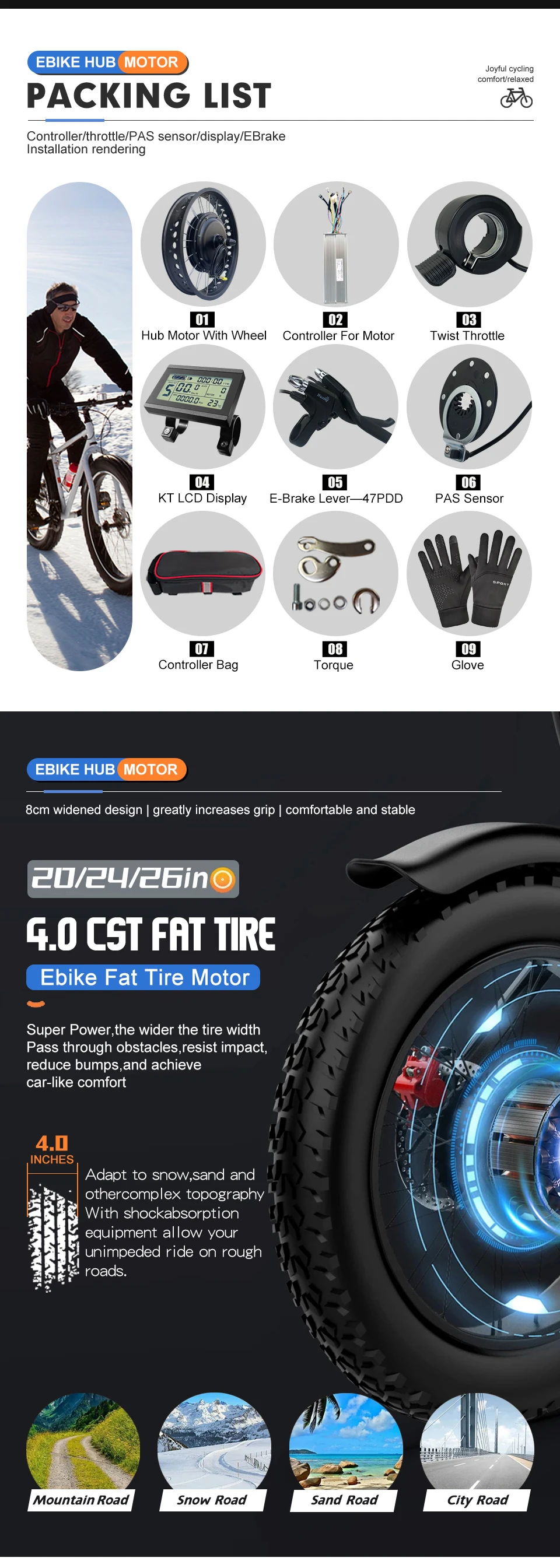

【Packing List】

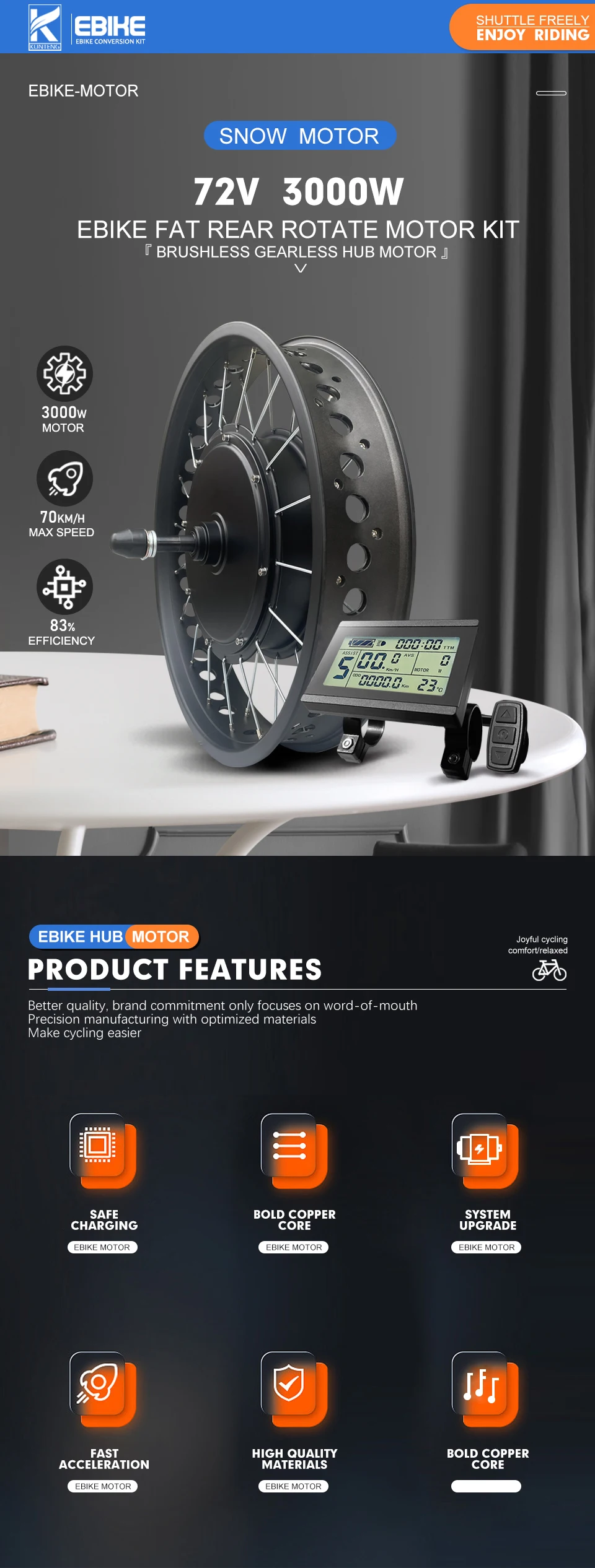

(1) 72V 3000W rear Wheel x1 (without tire)

(2) 50A controller x1

(3) Display and manual x1

(4) Throttle x1

(5) Power Cut-off Brake x1

(6) PAS sensor x1

(7) Zip ties and Protection line x1

(8) Gift! controller bag and torque arm and  a glove x1
