In addition to excellent audio performance, the TPA3255 combines high power efficiency with ultra-low power stage idle loss (less than 2.5W). This is achieved through an 85mR MOSFET and an optimized gate driver scheme. This solution significantly reduces idle losses compared to traditional discrete implementations.
This product uses excellent circuit design and high-quality components, so the performance is guaranteed to work stably at 52V DC, and passes the 60V high-voltage test in the lab. In order to ensure the sound quality, TPA3255 adopts differential input structure, the op-amp adopts TL072 op-amp with field effect input, the sound quality is warm, and the input adopts HIFI tantalum capacitors, which is delicate and natural. The main filter is up to 63V voltage resistant Japanese chemical or Nikon capacitors, safety is guaranteed. The output adopts lossless red ring inductor and CBB high current capacitor. The output adds 1 5V terminal, which can be used as a spare for Bluetooth, player and other external devices.

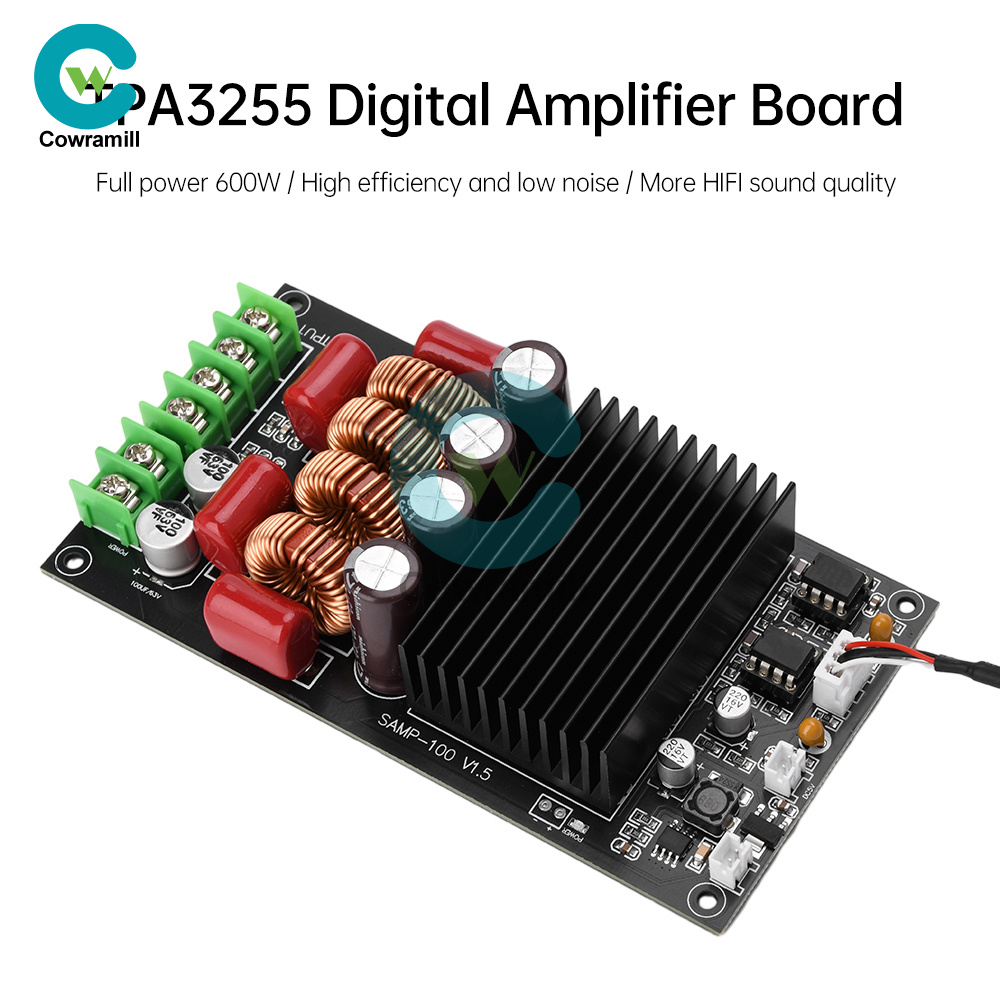

1.The TPA3255 is a high performance Class D power amplifier chip with Class D efficiency and a circuit that delivers true high-end sound quality.
2. This product allows the device to maintain ultra-low distortion throughout the audio frequency band, while demonstrating sound quality.
3. This product adopts excellent circuit design and high-quality components, so the performance is guaranteed, and can work stably under DC 52V.

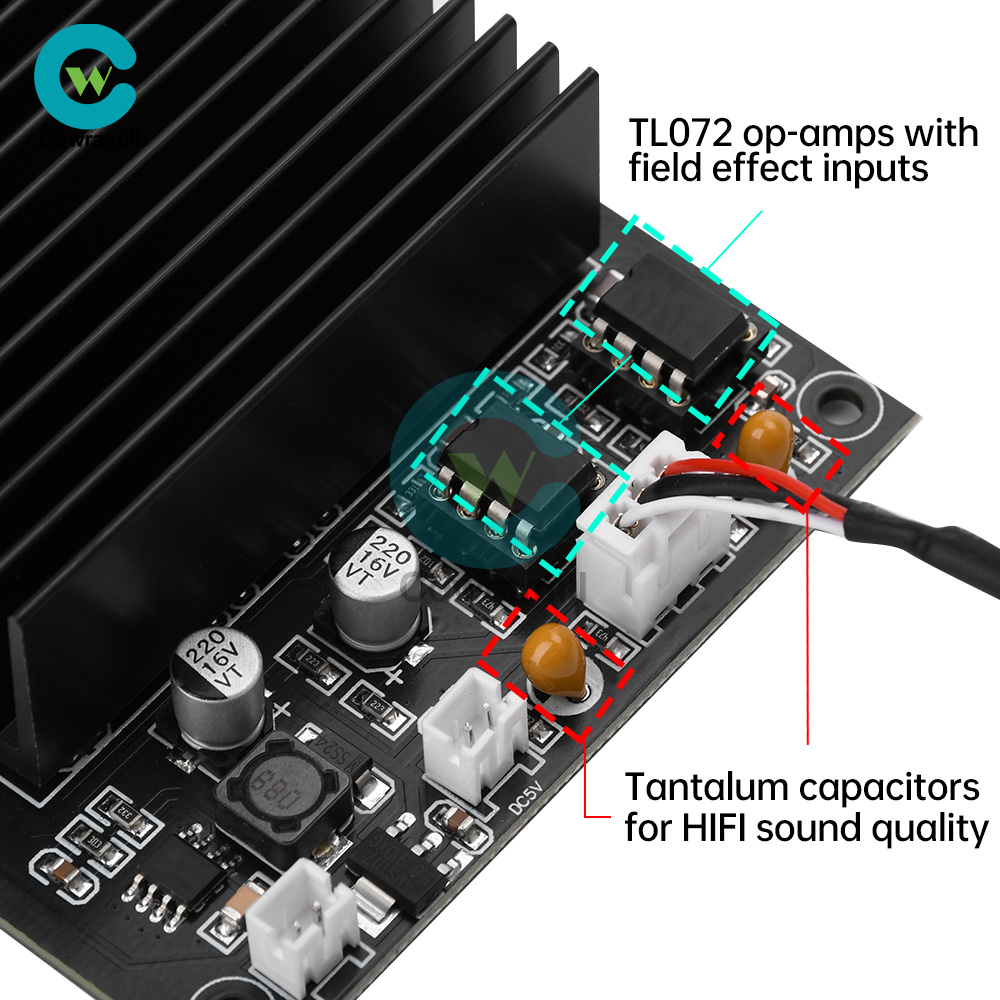

4.TPA3255 adopts differential input structure, the op-amp adopts the field effect input TL072 op-amp, the sound quality is warm, the input adopts HIFI tantalum capacitors, delicate and natural.

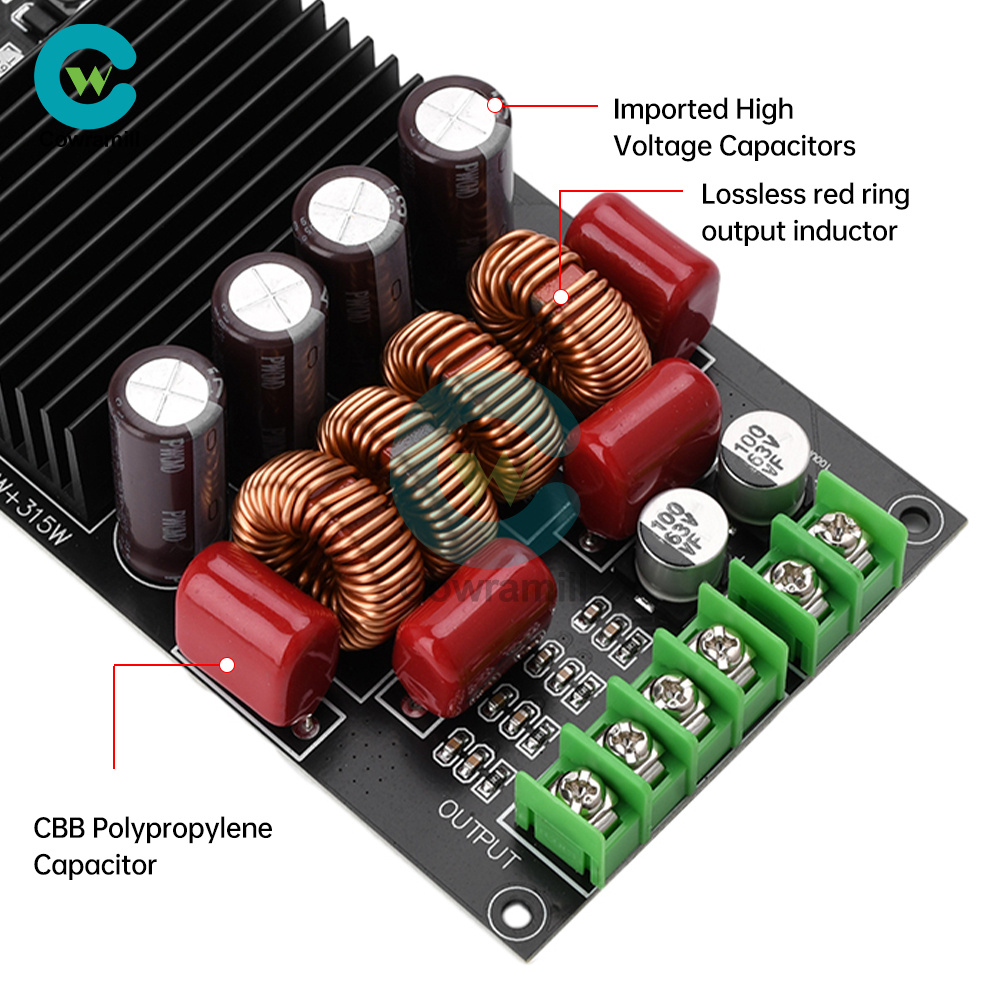

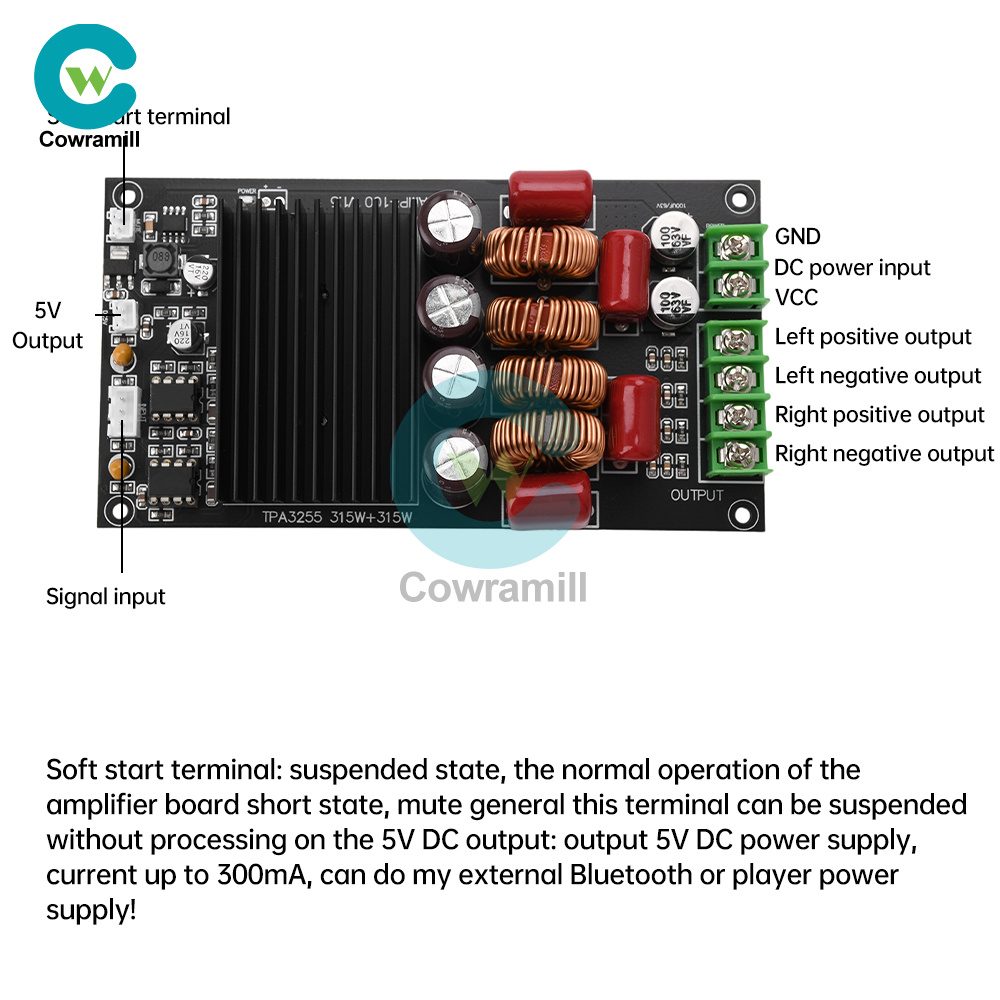

5. Output lossless red ring inductor and CBB high-current capacitors, the output increases a 5V terminal, can be used as a Bluetooth, players and other external devices spare.
Product name:2X300W audio amplifier
Amplifier type: HIFI amplifier
Chip Model:TPA3255
Supply voltage: DC19V-DC52V
Output channels: 2-channel stereo
Frequency Response 20Hz to 20KHz
Dynamic range: >100dB
SNR: >111dB
Operating efficiency: >90%

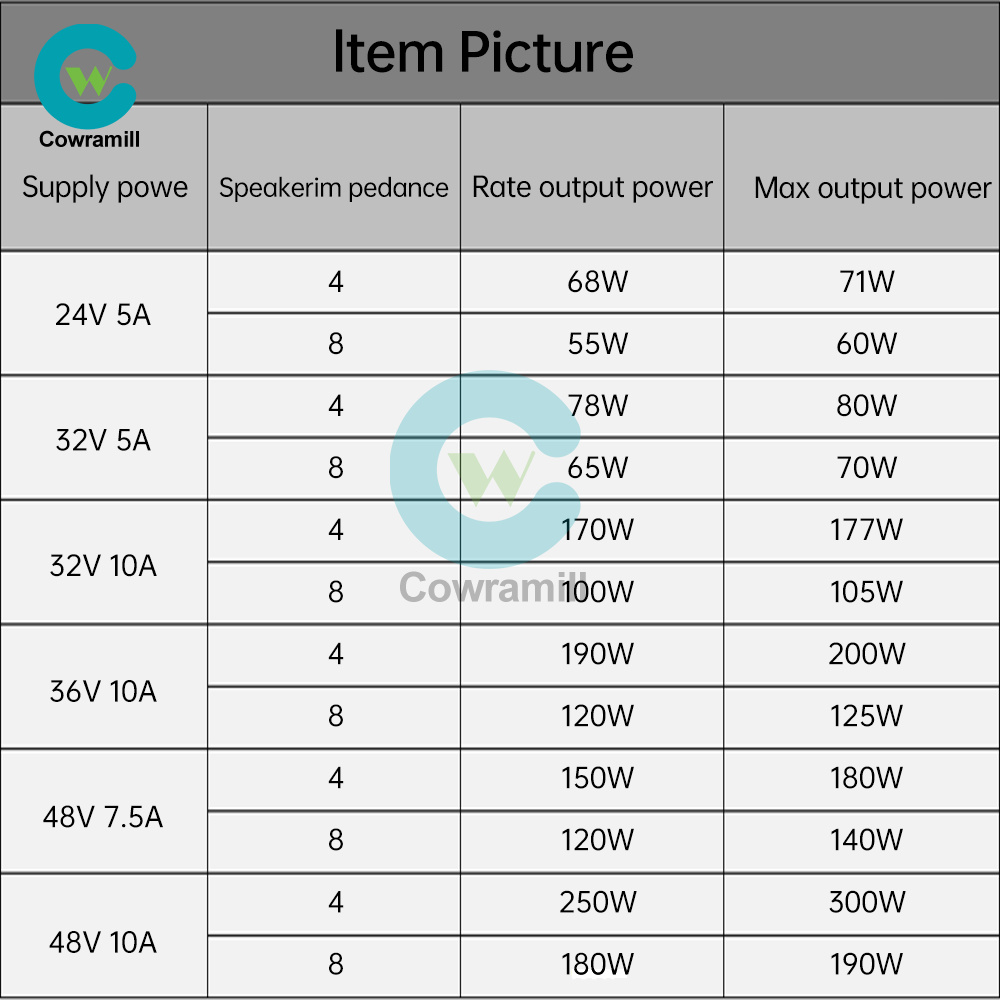

Output Power: 315W/4Ω Distortion 1.5
315W/4Ω Distortion 1.5%
185W/8Ω distortion1.5%
260W/4Ω Distortion 1%
150W/8Ω Distortion 1%
Stereo output above power X2
Impedance: 4-8Ω

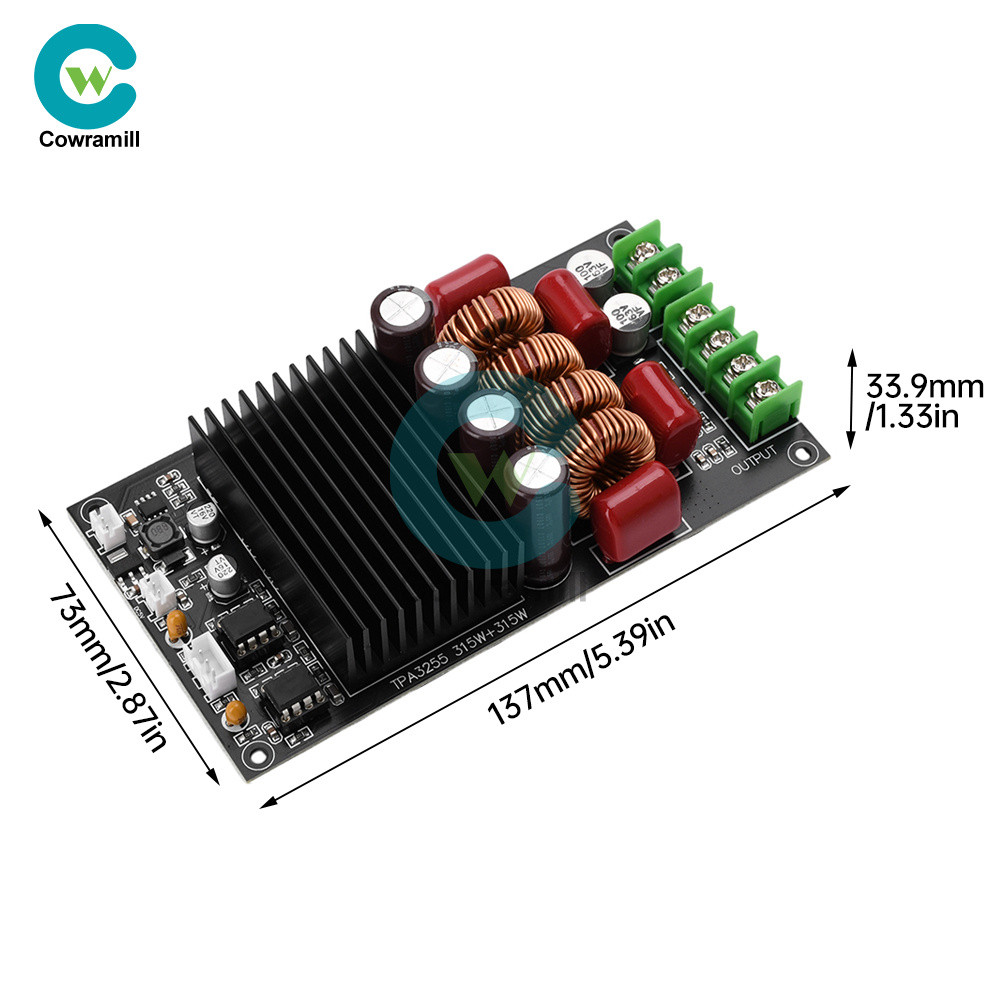

Product size: 136x73mm
Screw hole spacing: 66X128MM

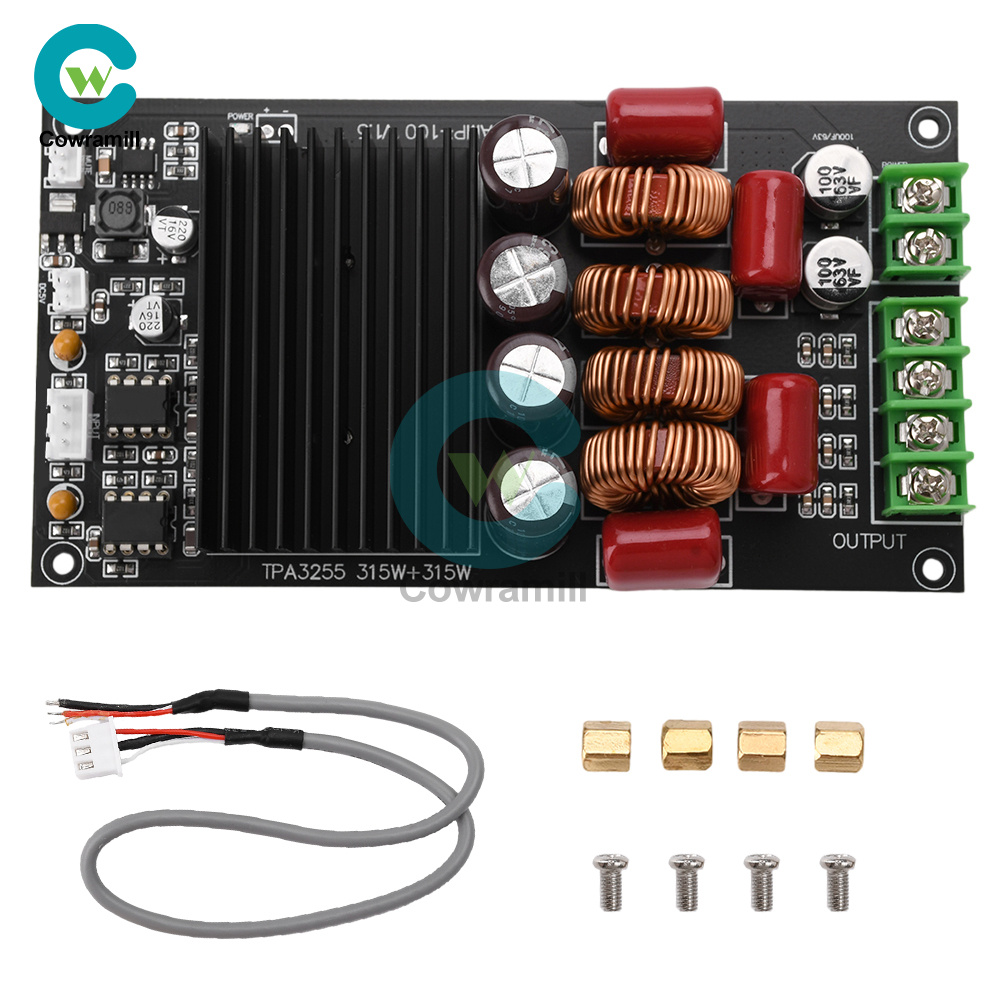

1 x Module
1 x Kit
