Product Details

Product Feature:
1: Wide range of applications
2: Exquisite appearance
3: Small size
4: Simple to use
5: Passive output

Parameter:

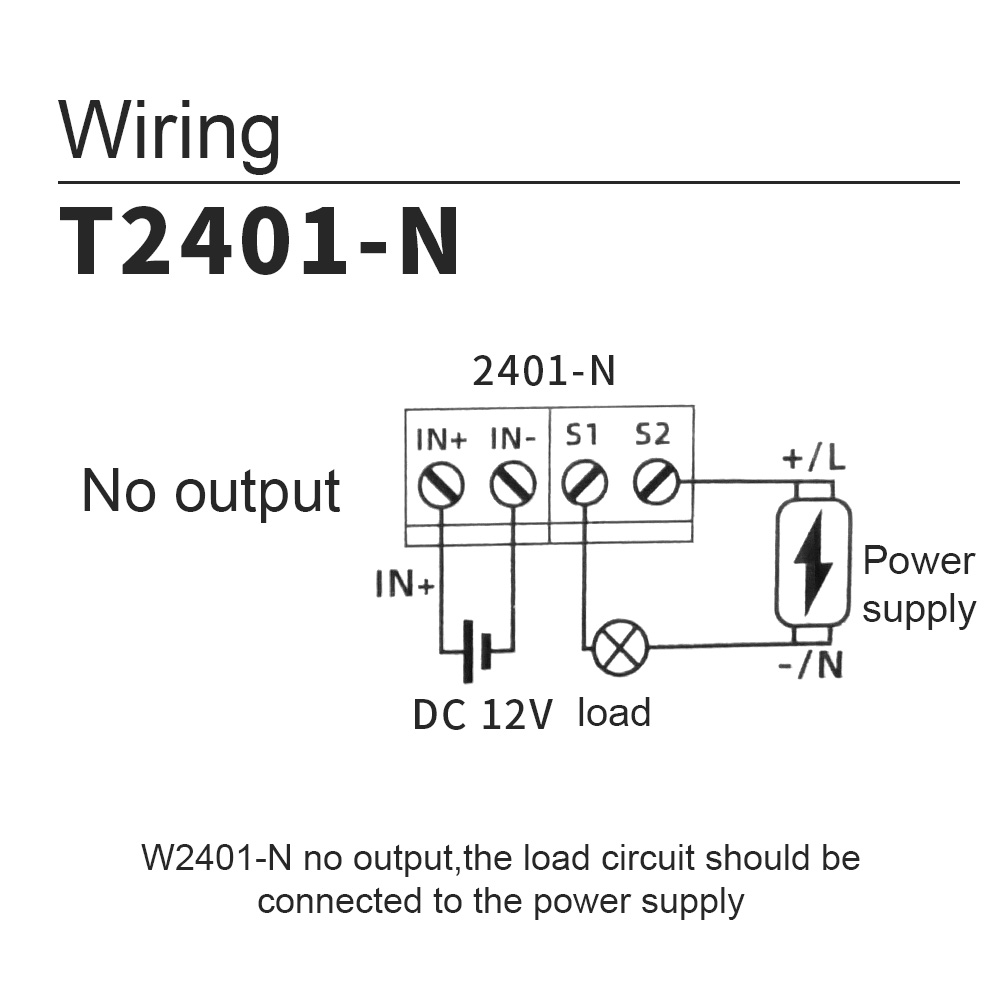

Contacts de-energized No output
Can be connected to loads other than 12V

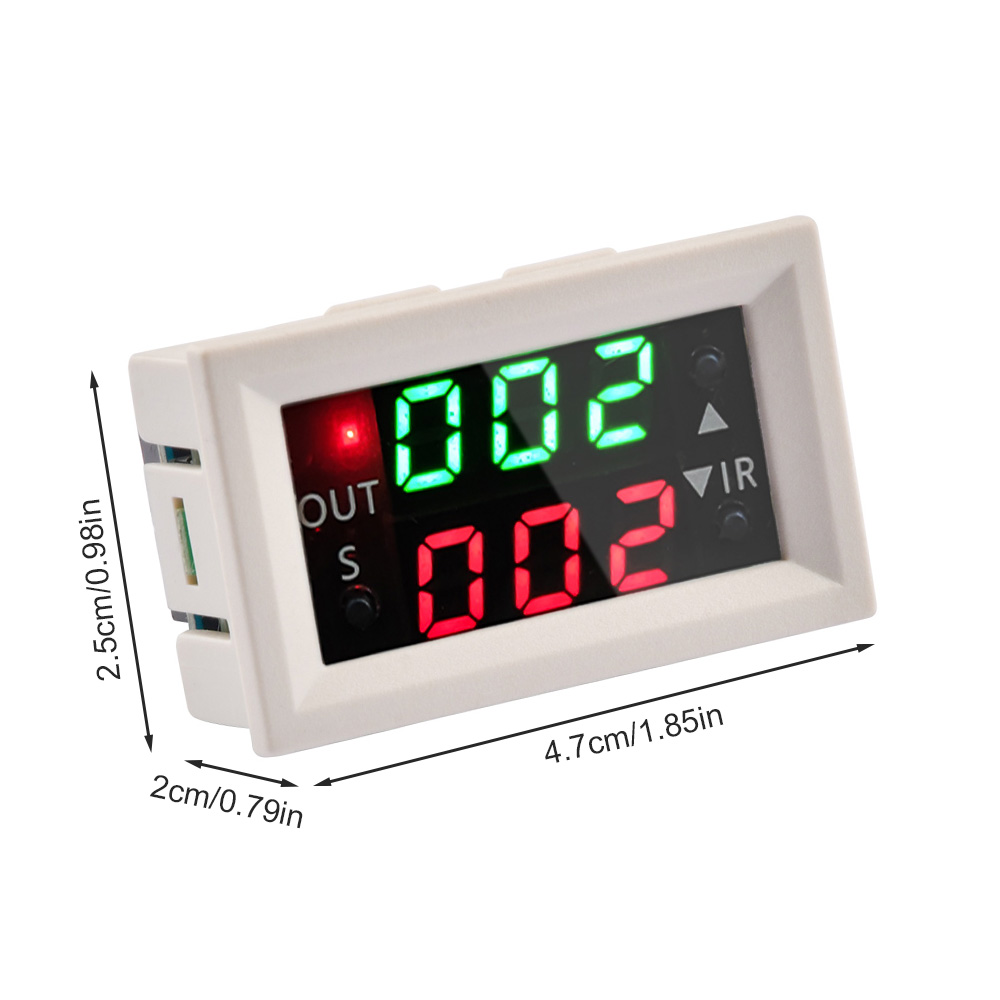

Size: 47.6×28.6×33.2mm
Embedded installation
Mounting opening: 45×26.1mm

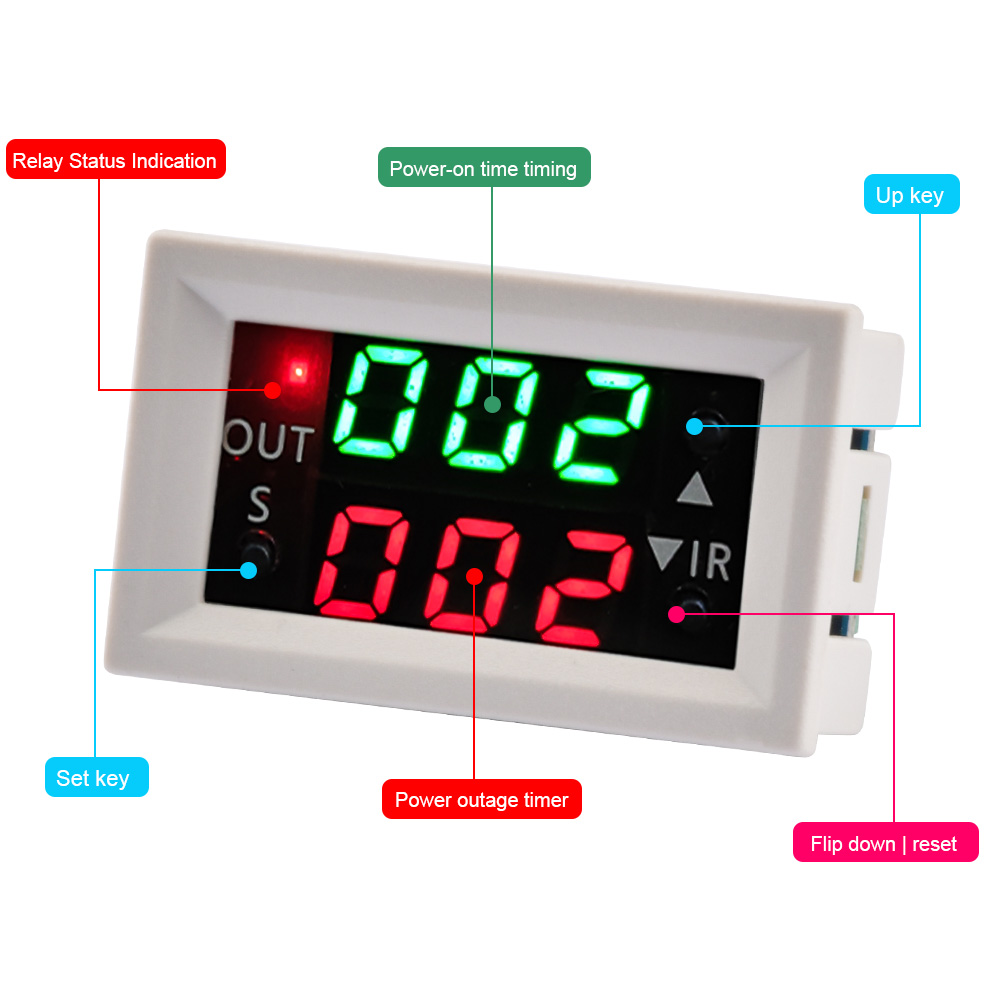

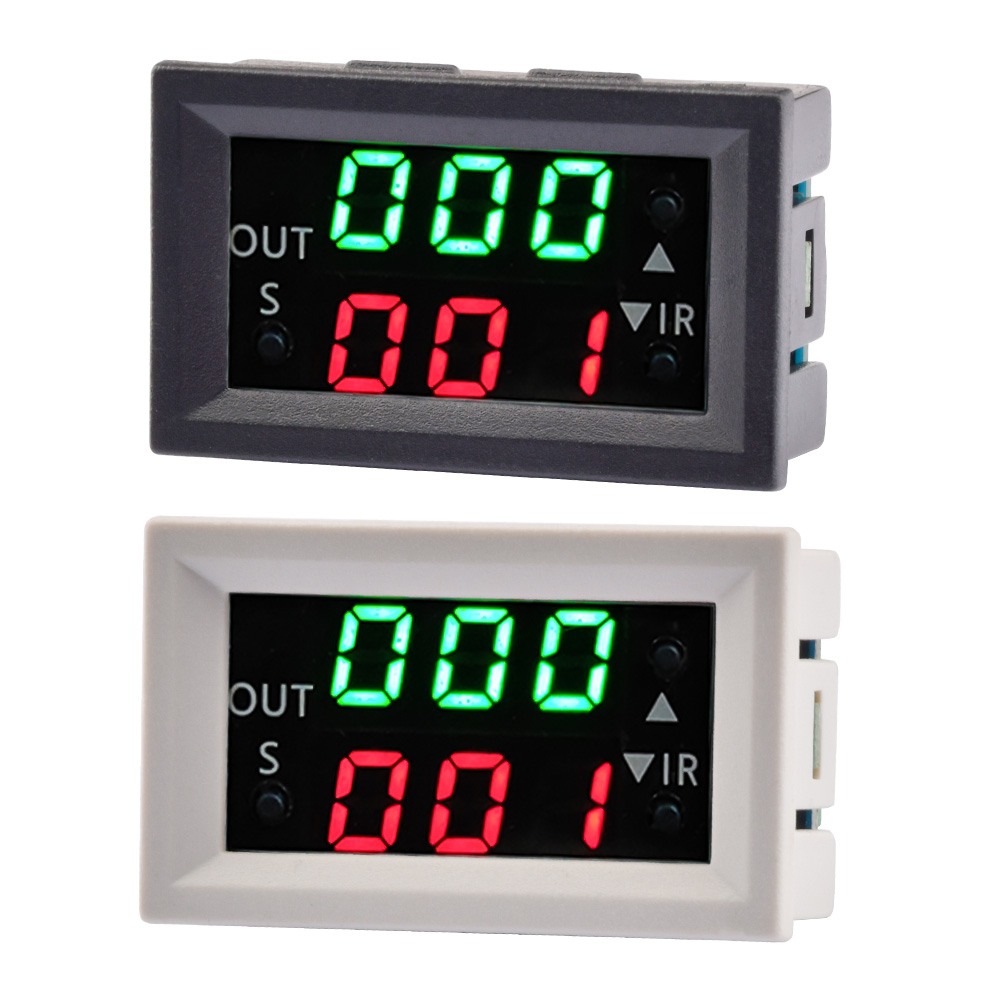

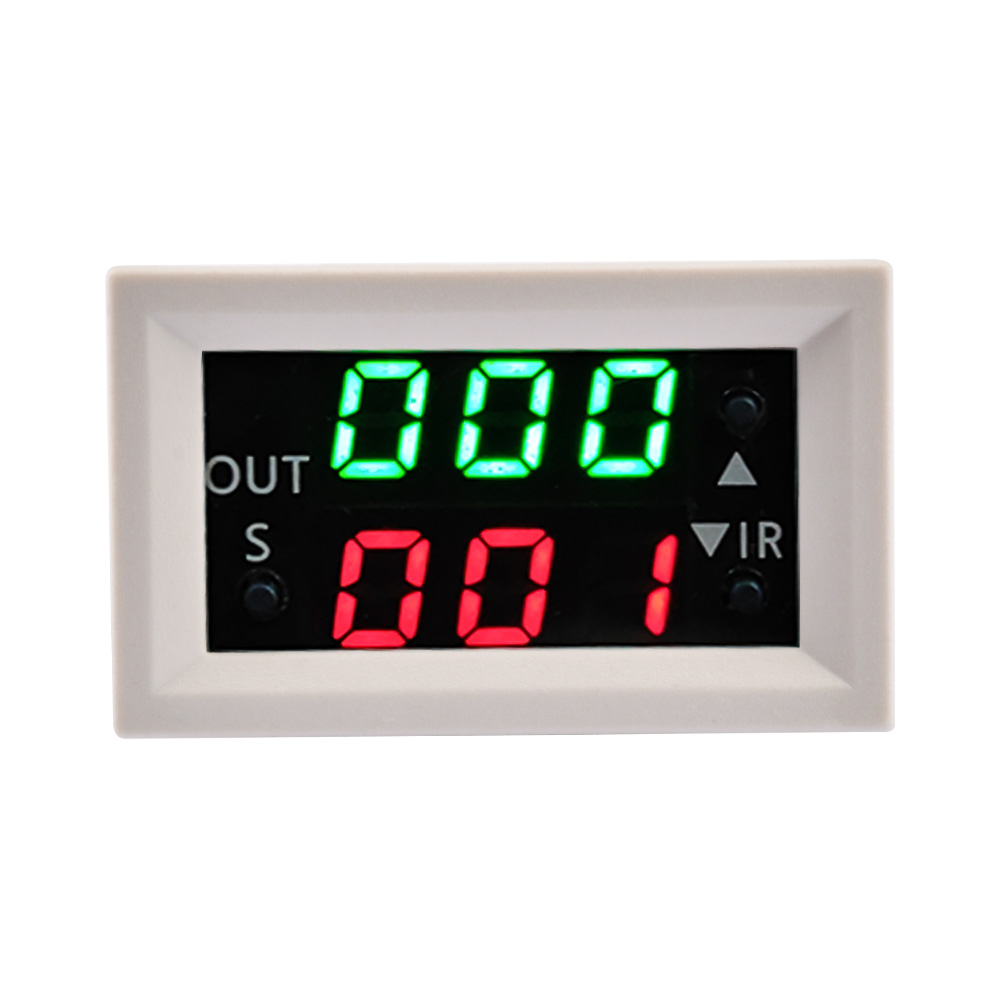

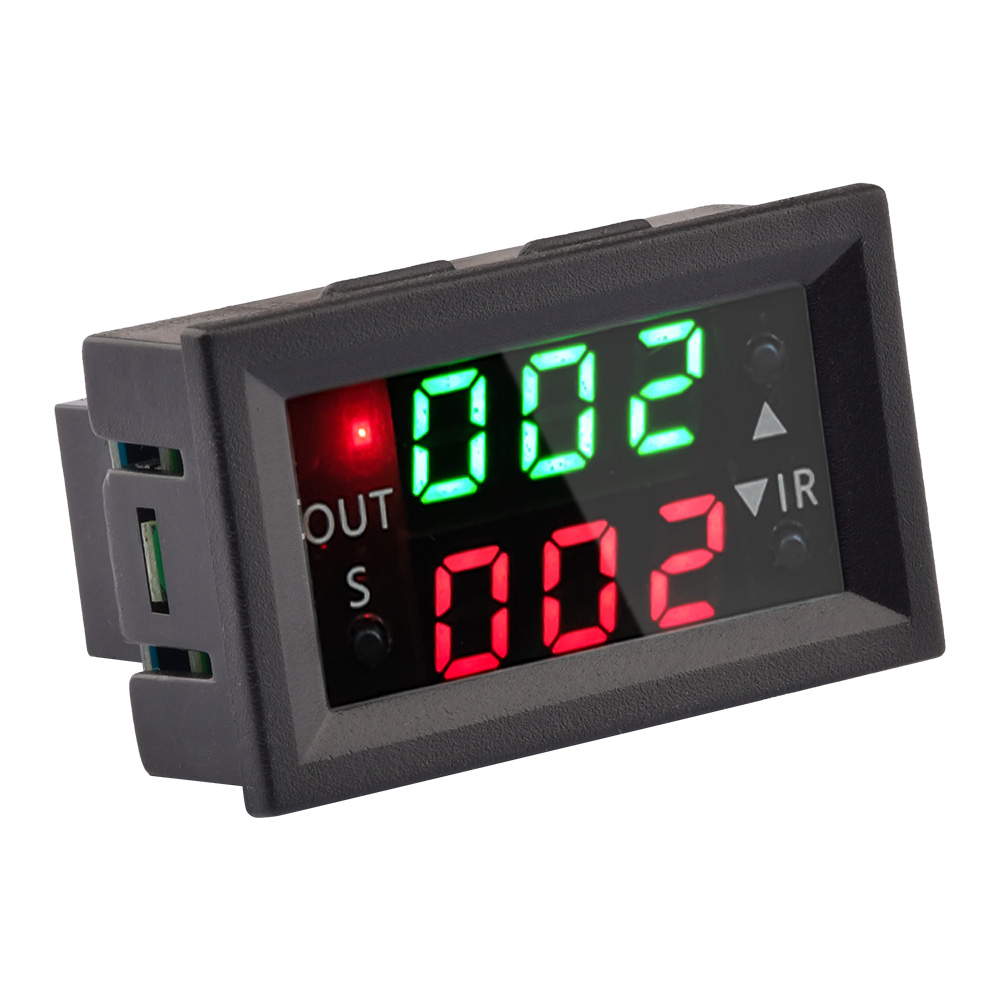

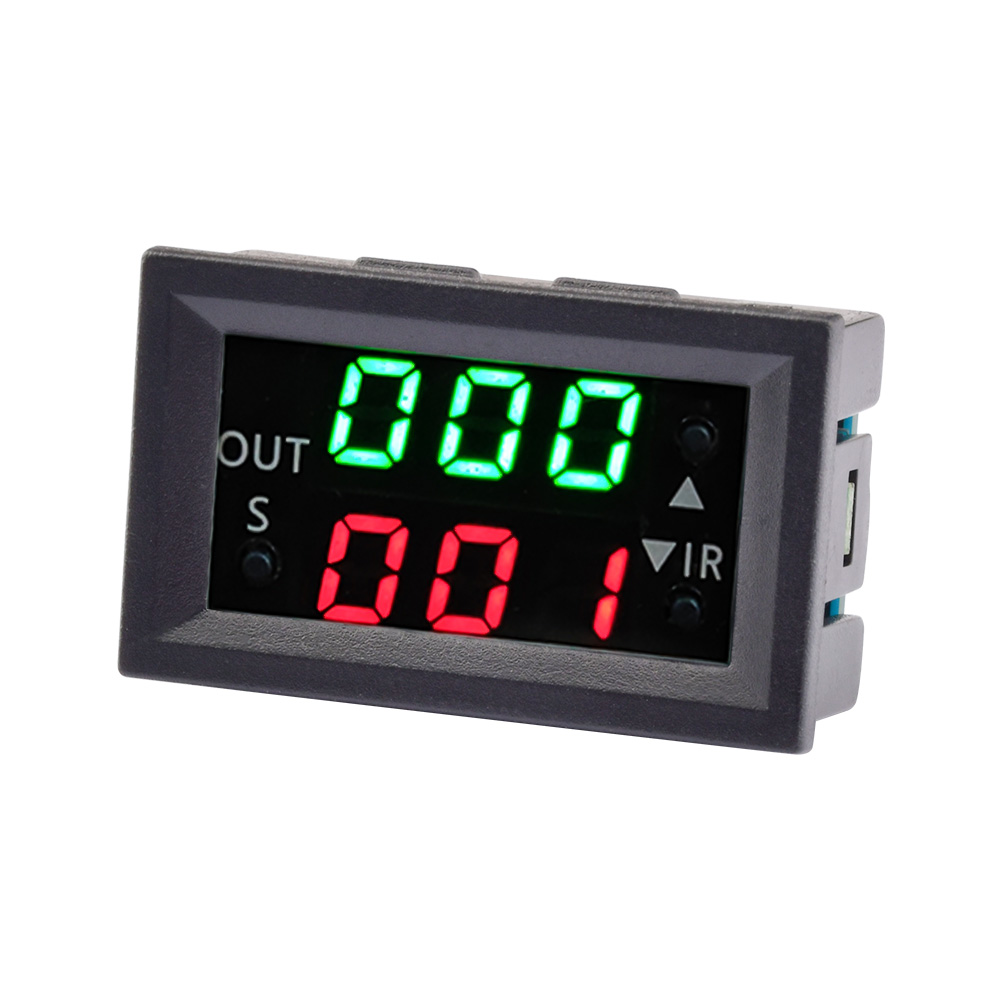

Green on and red off and the timing display starts. The stop timer unit is easy to set independently and easy to use

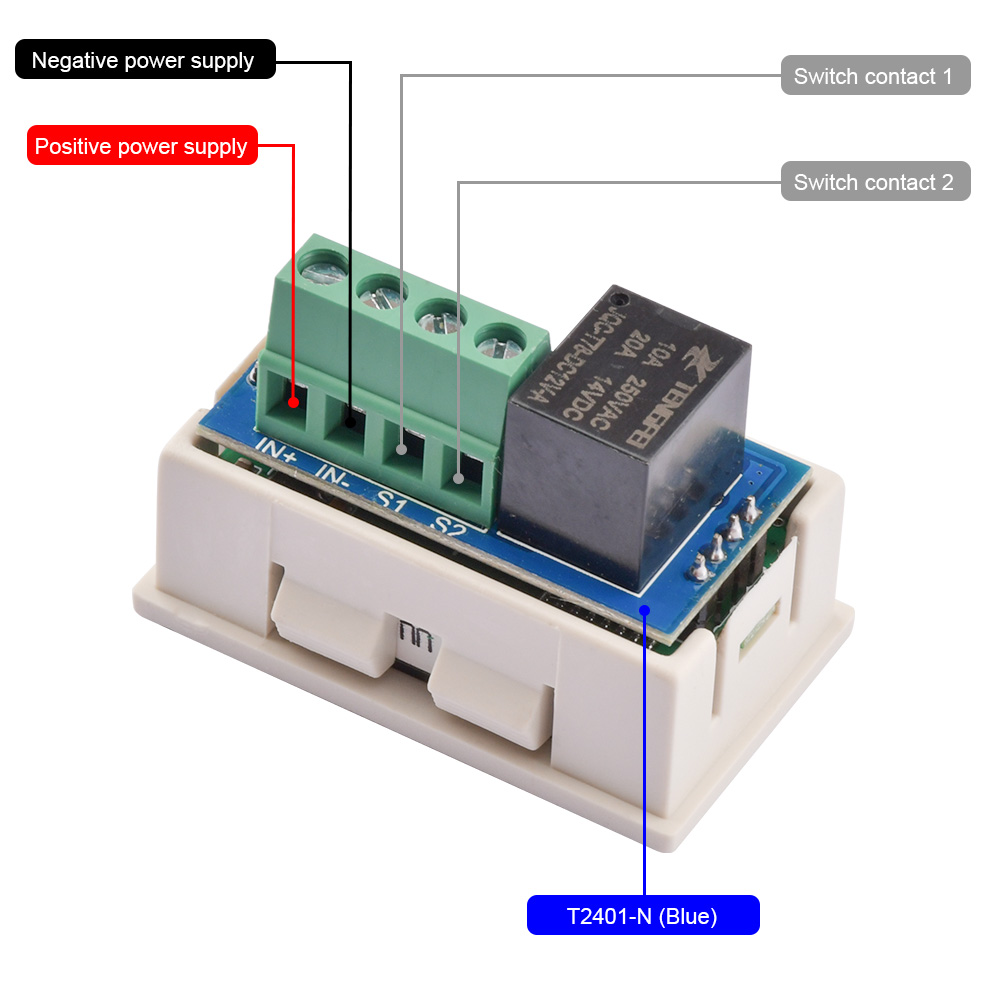

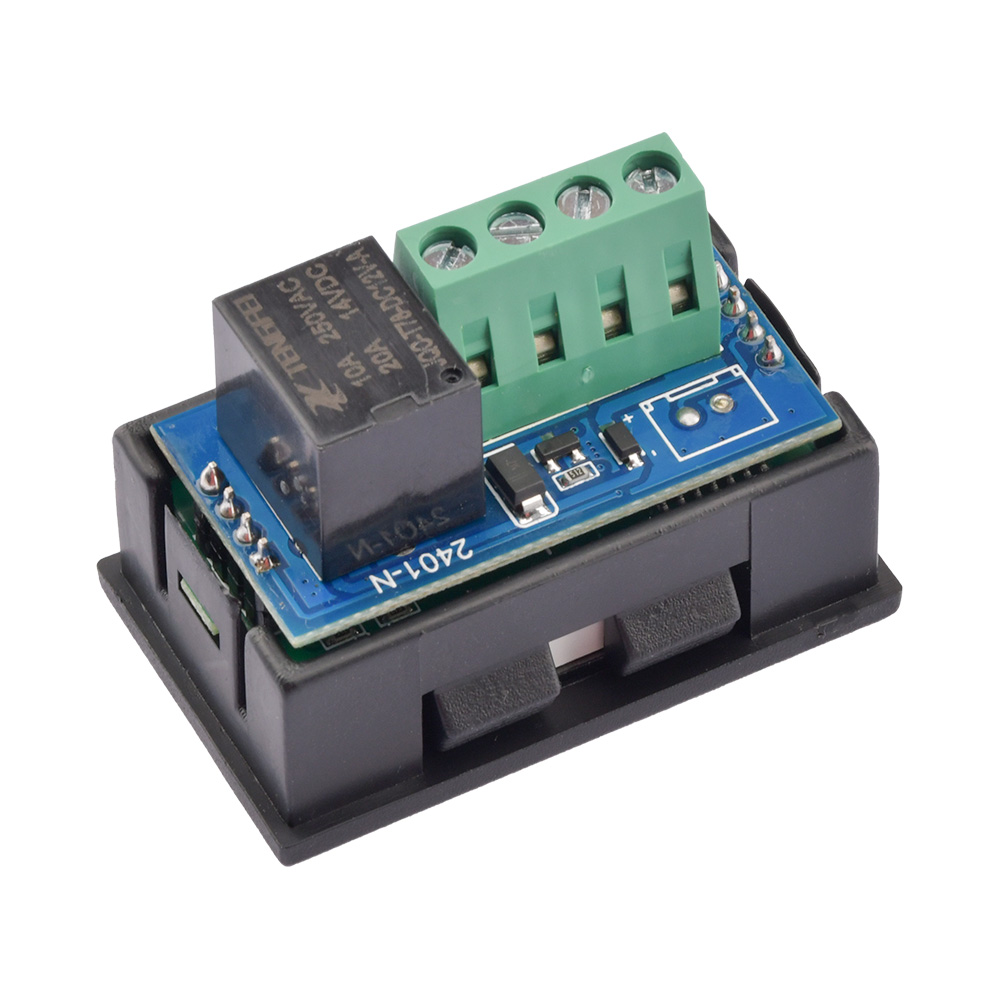

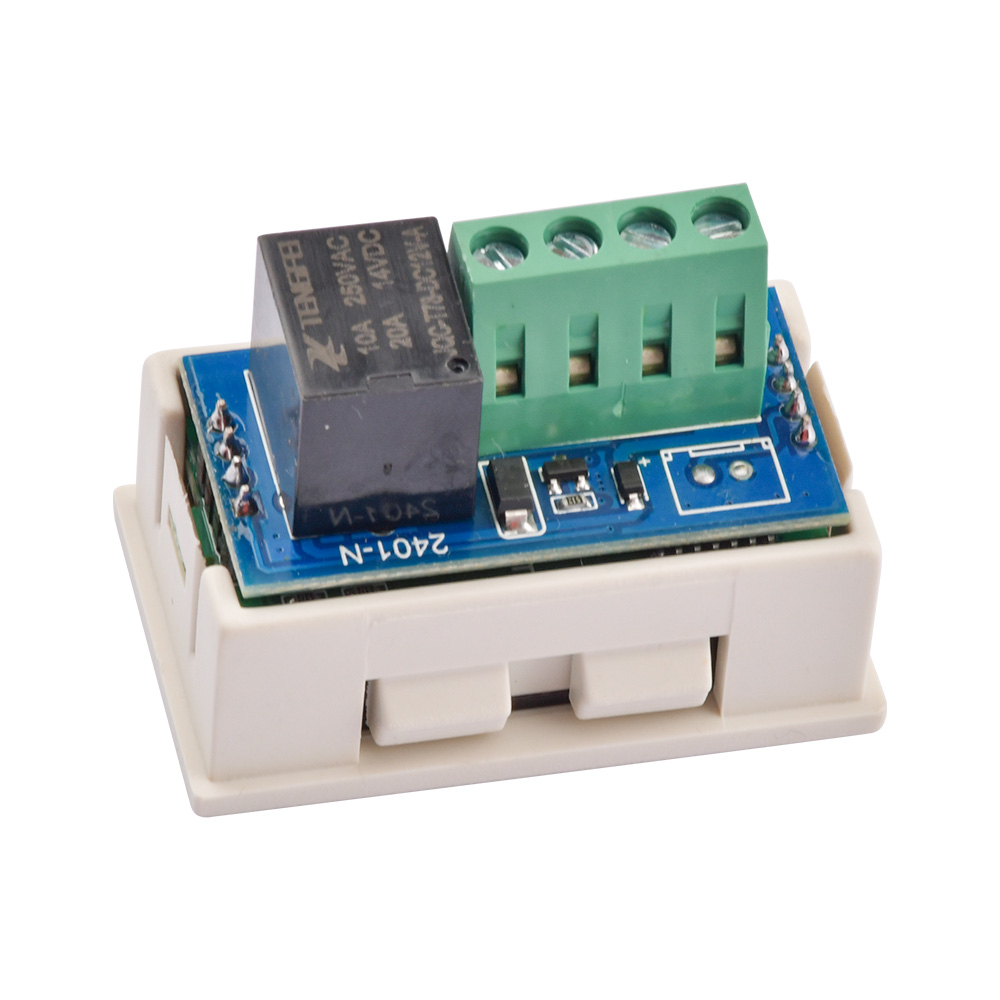

1-way normally open relay control on-off

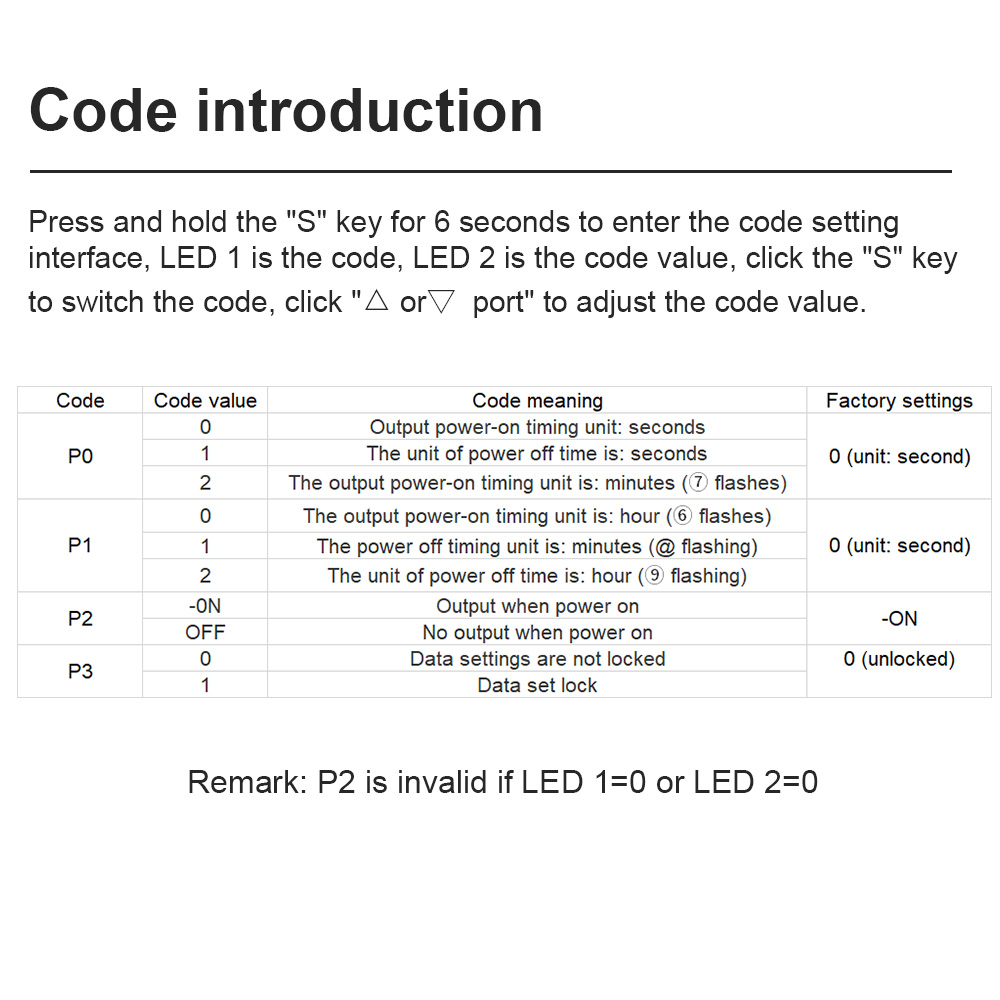

There is a setting lock to prevent accidental touch
Adjustable timing range
0~999 (seconds, minutes, hours) Minimum timing unit: 1 second
Timing error: ±4.5%
Integrated crystal oscillator
Power-on auto-run power-off save settings
Working voltage: DC12V
load power
DC12V 20A240wAC220V 150ow ( max )
Loop switch supported
Alternate 1 switch is not supported

Package list:
1* DC12V delay dual display digital time relay module
