This Item Has A Current Calibration!

Sumitomo Type-37 Micro-Core Singlemode & Multimode Core Alignment Fusion Splicer

Includes Hard Carrying Case & Accessories As Listed Above!

Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY

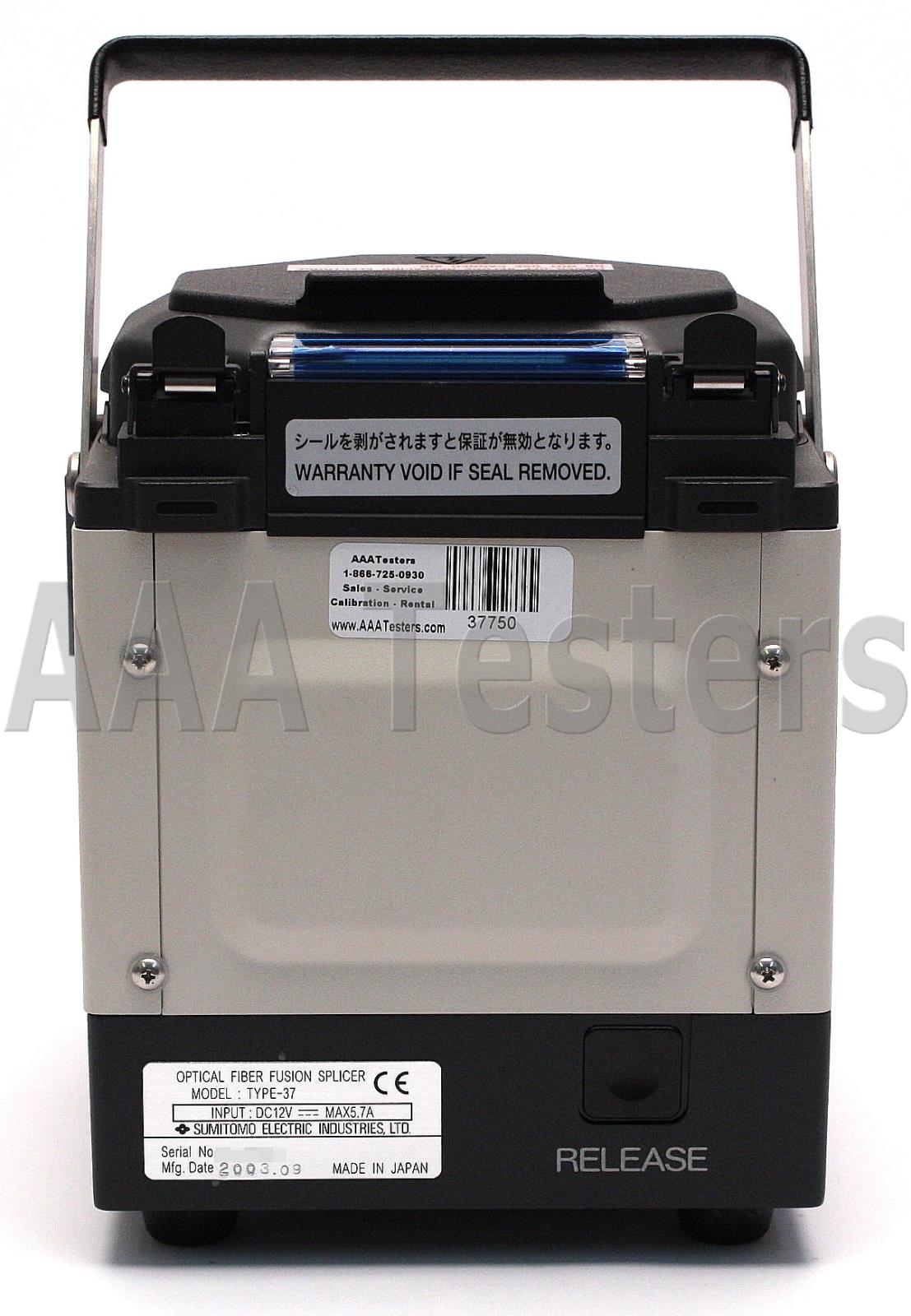

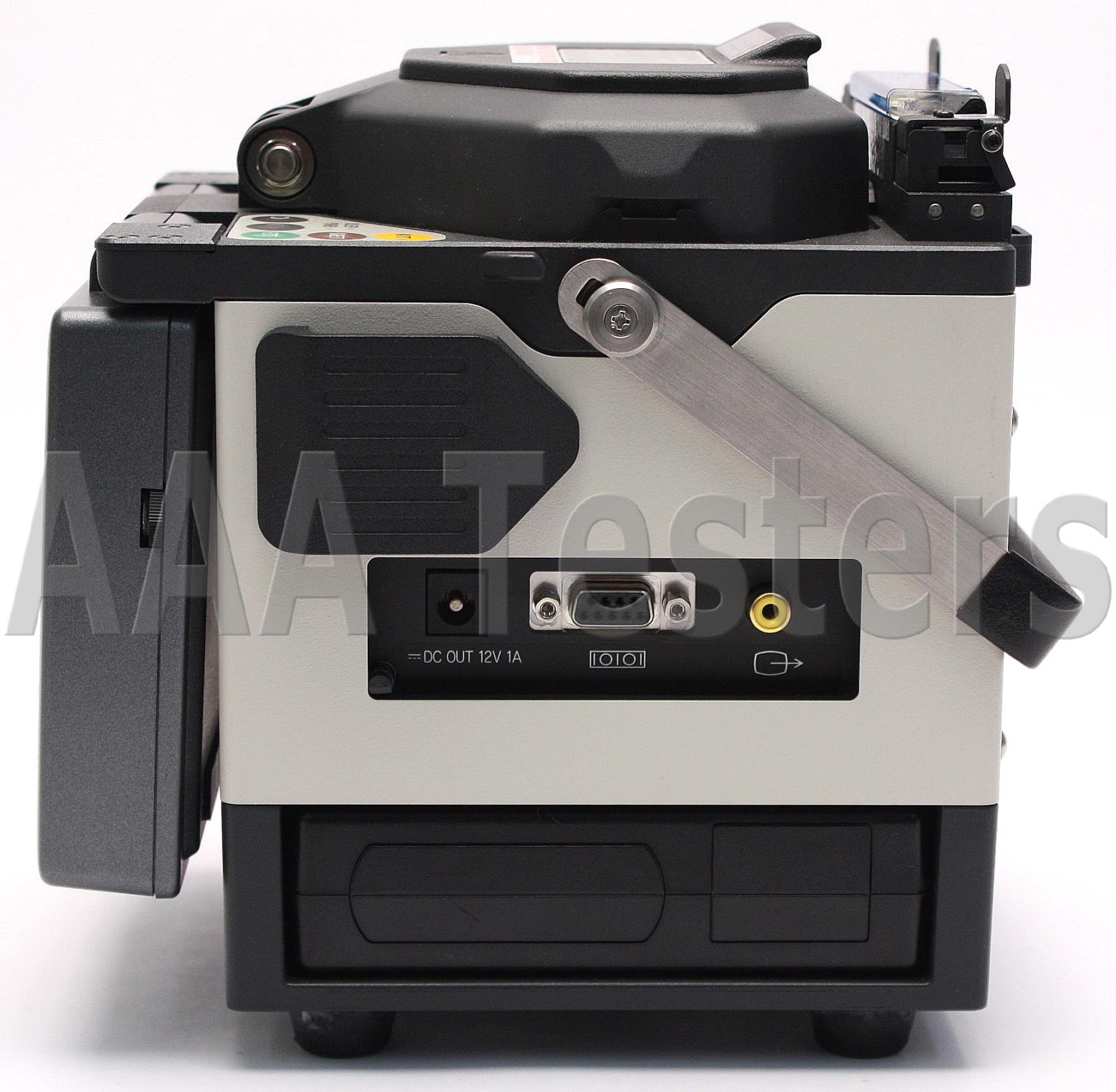

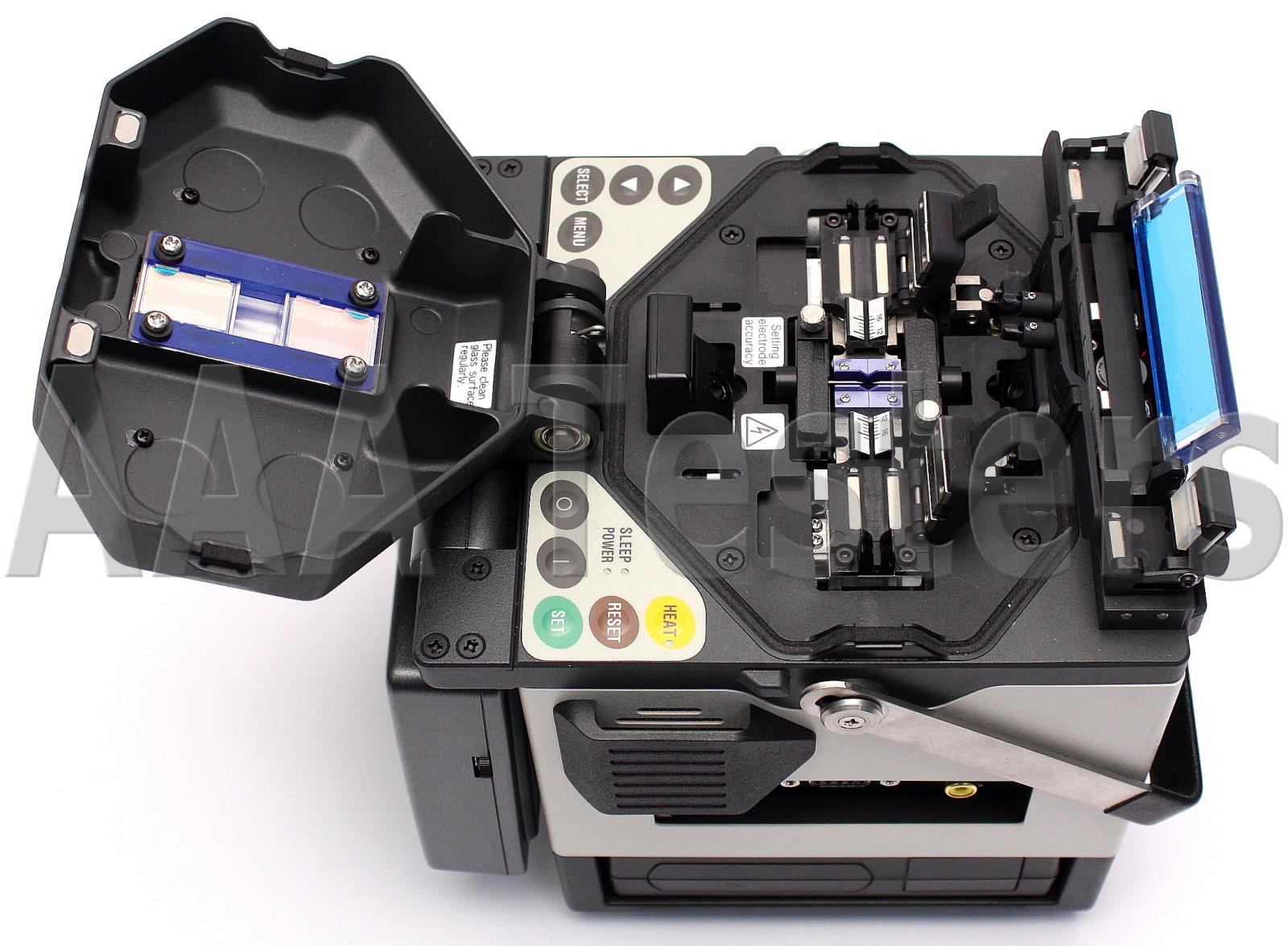

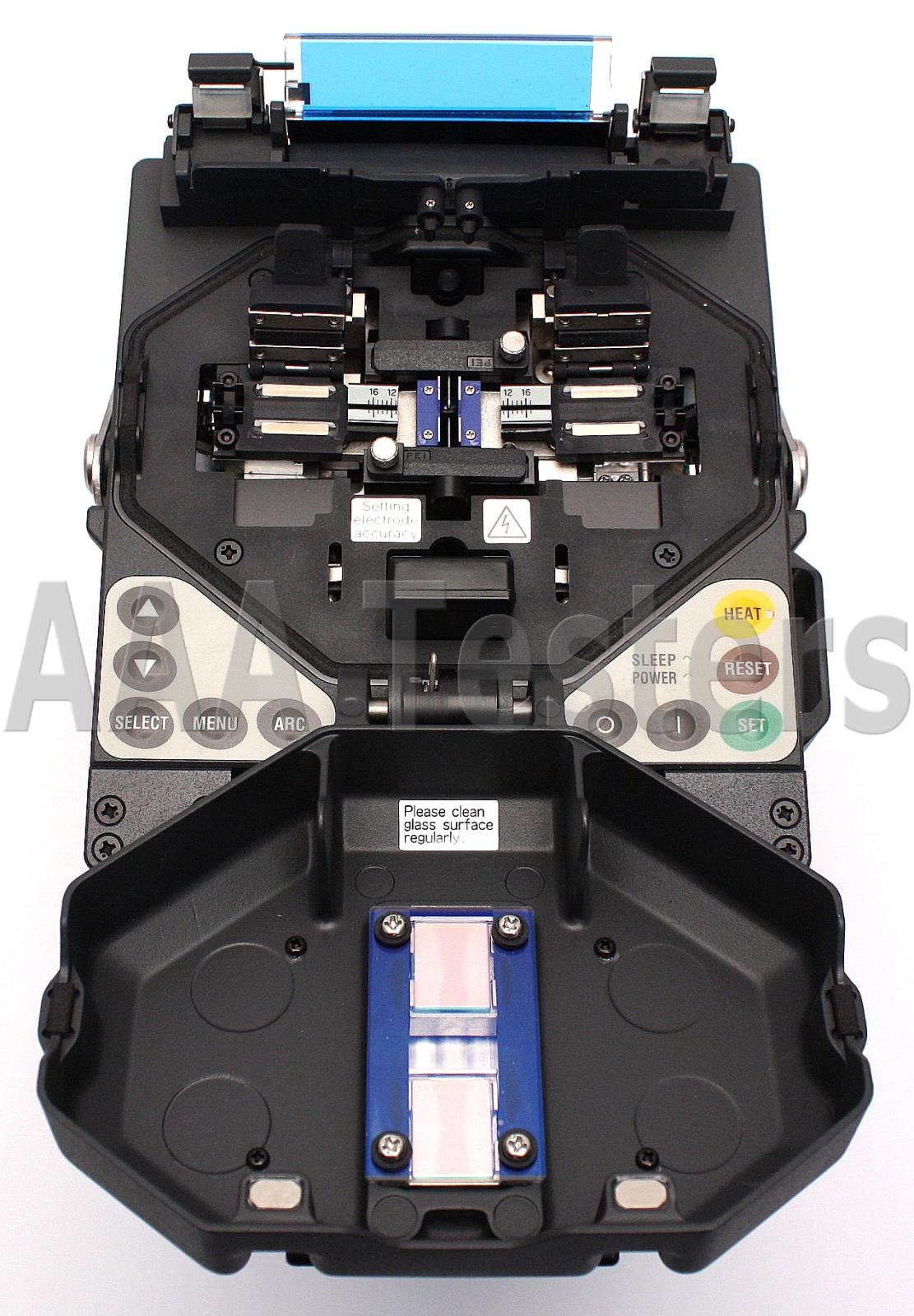

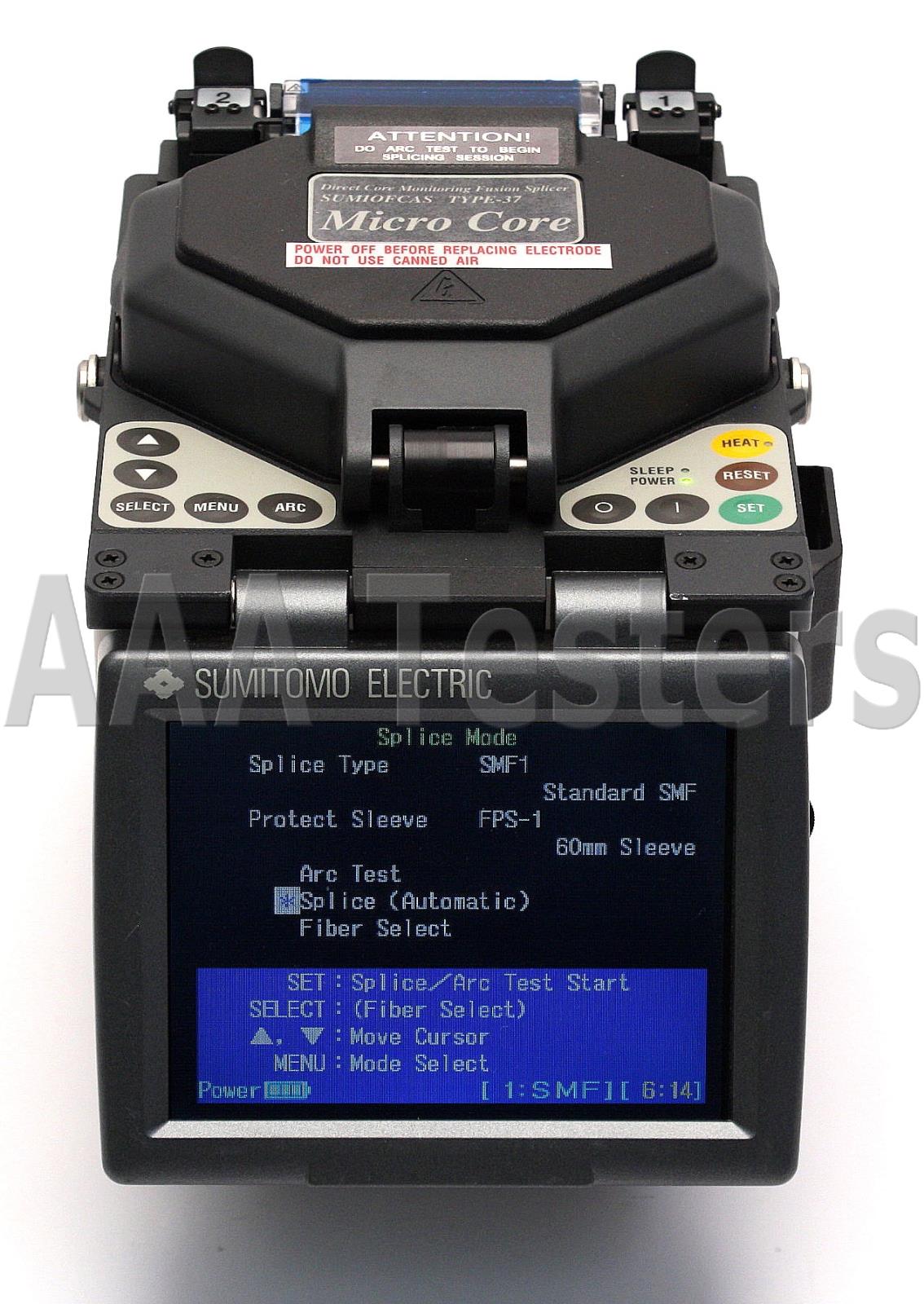

Sumitomo Type-37 Fusion Splicer
The Type-37 Micro-Core splicer features the smallest foot print size in the world and is one of the lightest and fastest core alignment fusion splicers available today. The splicer's 75-second reinforcement sleeve heater cycle time is the lowest in the industry. A portable, fully-automatic, self-contained instrument for creating low-loss optical fiber splices in both field and factory environments, it is designed to work with virtually all fiber types including single-mode, multimode, dispersion shifted, and other specialty fiber.

The splicer automatically aligns a pair of optical fibers in both the X and Y (horizontal and vertical) planes and then fuses them together with heat from an electric arc to form a low-loss splice. HDCM (High-resolution Direct Core Monitoring) image processing software in the splicer is used to perform core alignment and estimates the splice loss. The operation requires less than 18 seconds, and the average splice loss is 0.02 decibels (dB) for identical single-mode fibers.

Features:

• Auto fiber profiling check and detection system (APDS) prevents miss-selection of fiber types.
• Compact and light weight (40% reduction in weight, compared to T-36)
• Automatic arc test insures an optimum arc is achieved for various environmental conditions, as well as splicing different manufactures fiber
• Newly developed FFES optical system provides high speed splicing and clear fiber image, which allows visual check. (FFES-Full fiber in Focus in Equal Size)
• Newly developed heater is capable of high speed heating operation
• White LED illumination enables identification of a ribbon color and fiber loading even at dark places.

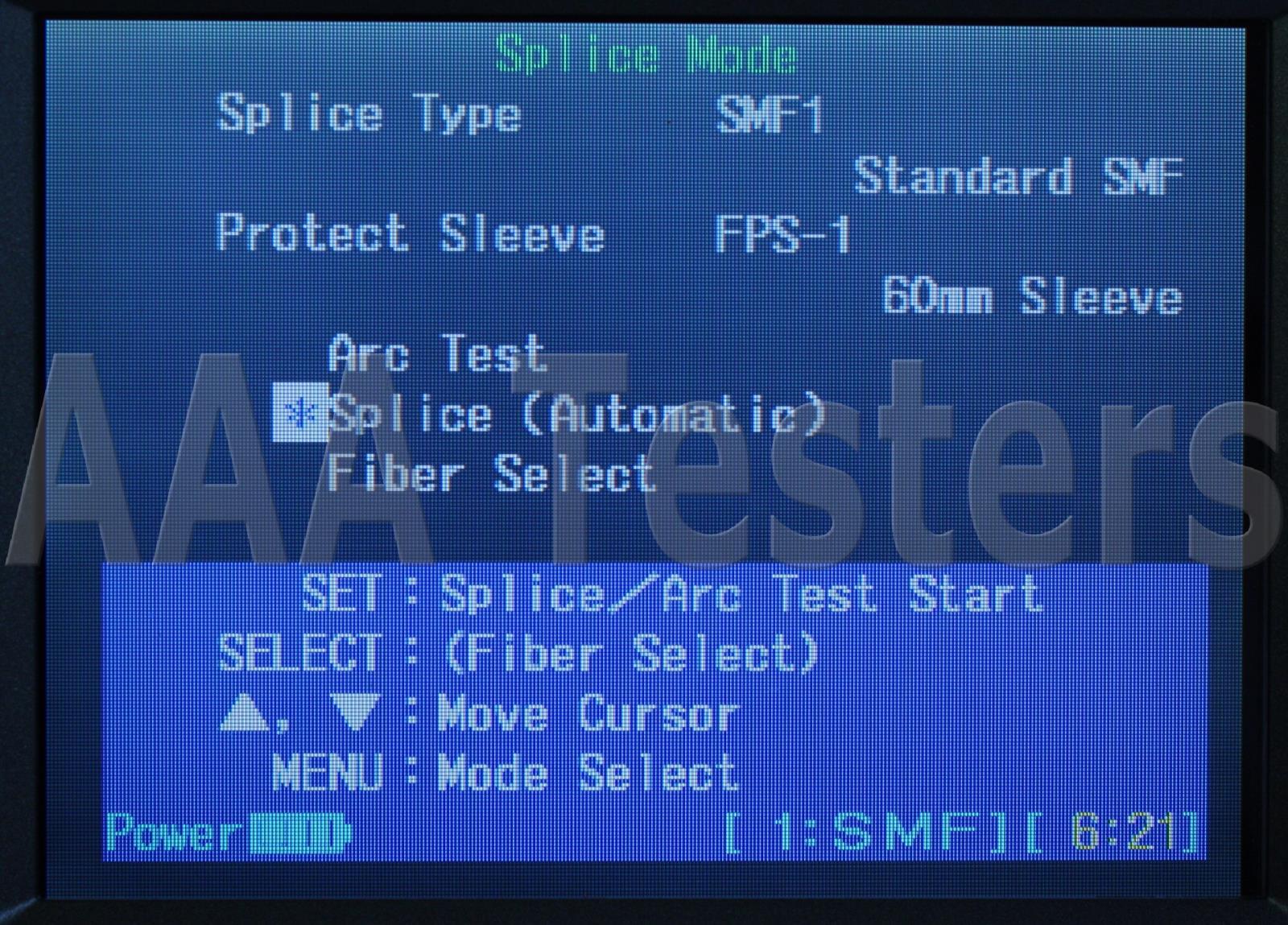

• 5.6 inch large TFT color monitor provides clear fiber image even in direct sunlight
• Protection glass attached to mirror gives you much easier cleaning and maintenance.
• 40 consecutive splicing/heating operation with one fully charge battery

Specifications:
