JN 36V 48V Controller System with S866 115PDD TT-008 KT-BZ-4(8) Light Group for Electric Bicycle 250W-1500W Motor Conversion Kit

  Attention

●Bullet Battery Connector,If you need to change the connector , please contact customer service

  Notice

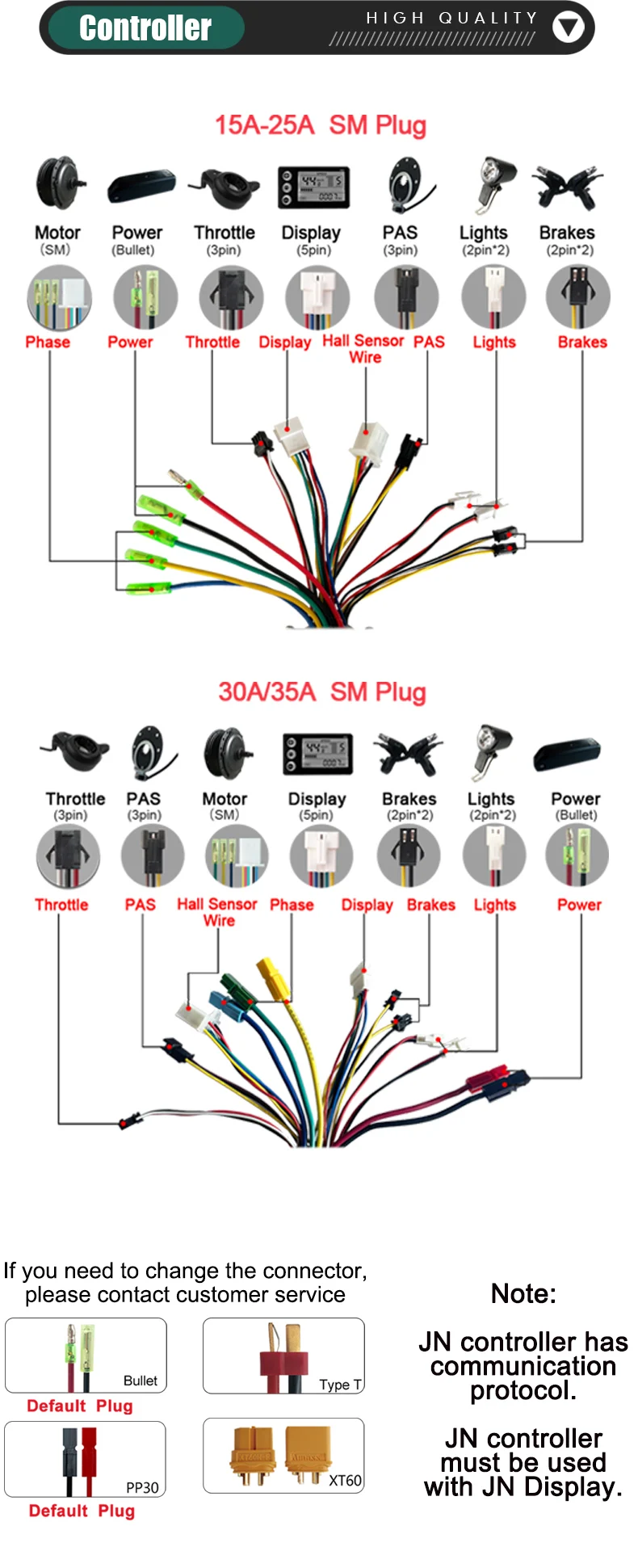

●JN Controller only applies to JN system, please confirm whether you are using JN system, such as JN display.

●Please contact us if you are not sure which is right for you or have further questions by Aliexpress message.

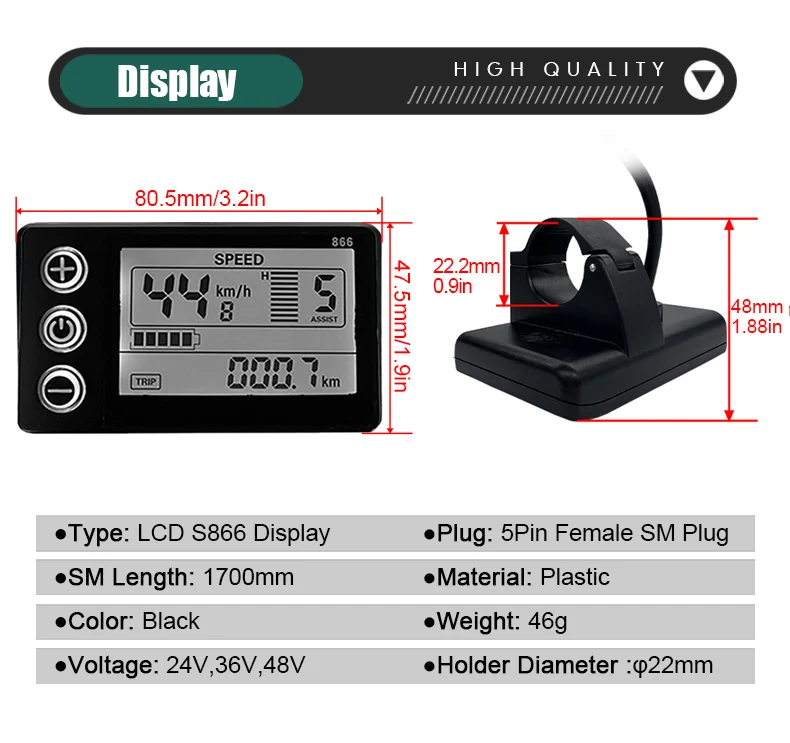

Type :LCD S866 Display

Voltage : 24V 36V 48V 60V

Plug : 5Pin Female SM Plug

Size:80.5*47.5*49.5(mm)

Cable Length: 170cm ( SM )

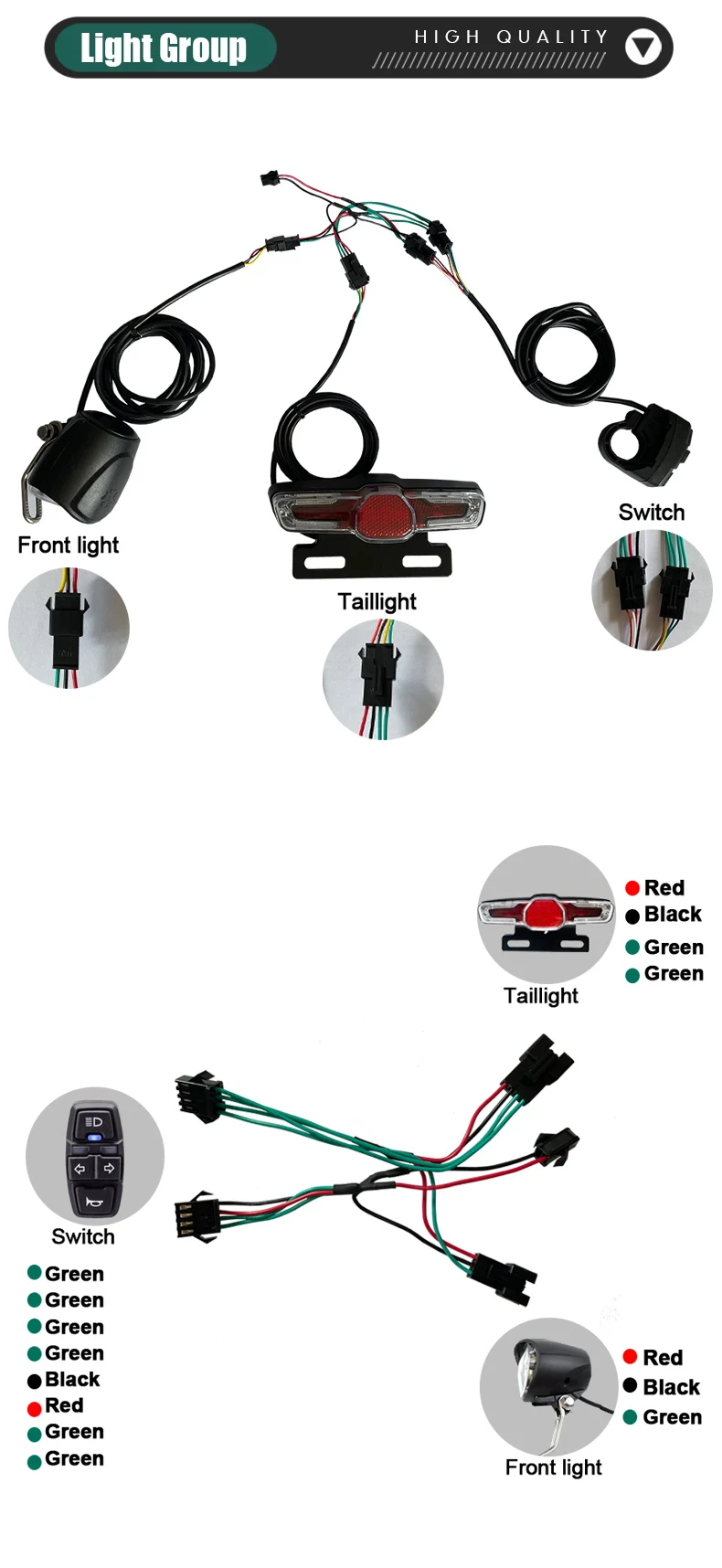

  Front Light
Material:PC ABS
Product Size:Approx65mmx52mmx45mm
Light Source:LED

Light Color:Black
Lighting Distance: 40-60meters at night

   Rear Light
Type:tail light

Model:D-05DC

Size:147*44*42mm

Applicable voltage:48V / 36V

Rear light current:48V/13mA, 36V/10mA

Material:ABS

Power:0.5W

Function:rear light, brake light, turn signal

Light brightness:15 LM

Outlet:four-core wire

Waterproof grade:IPX4

Installation location:the rear of the frame

  Wuxing Switch

Brand:WUXING

Model:DK336

Name:Light /Horn /Turn Switch

Voltage:12V-72V

Cable length:1500mm/59.06in

Weight:38.4g

Operating temperature:-20°C~60°C

Material:PP TPR

Wire pulling force:> 130N

Core: 8 Pins

Current:0.5A/12V DC

Waterproof:Waterproof:IPX4

Red button:Bicycle light

Green button:Bicycle Horn

Installation diameter:Installation diameter:φ22.2mm

Function:Control horn and light ON/OFF
