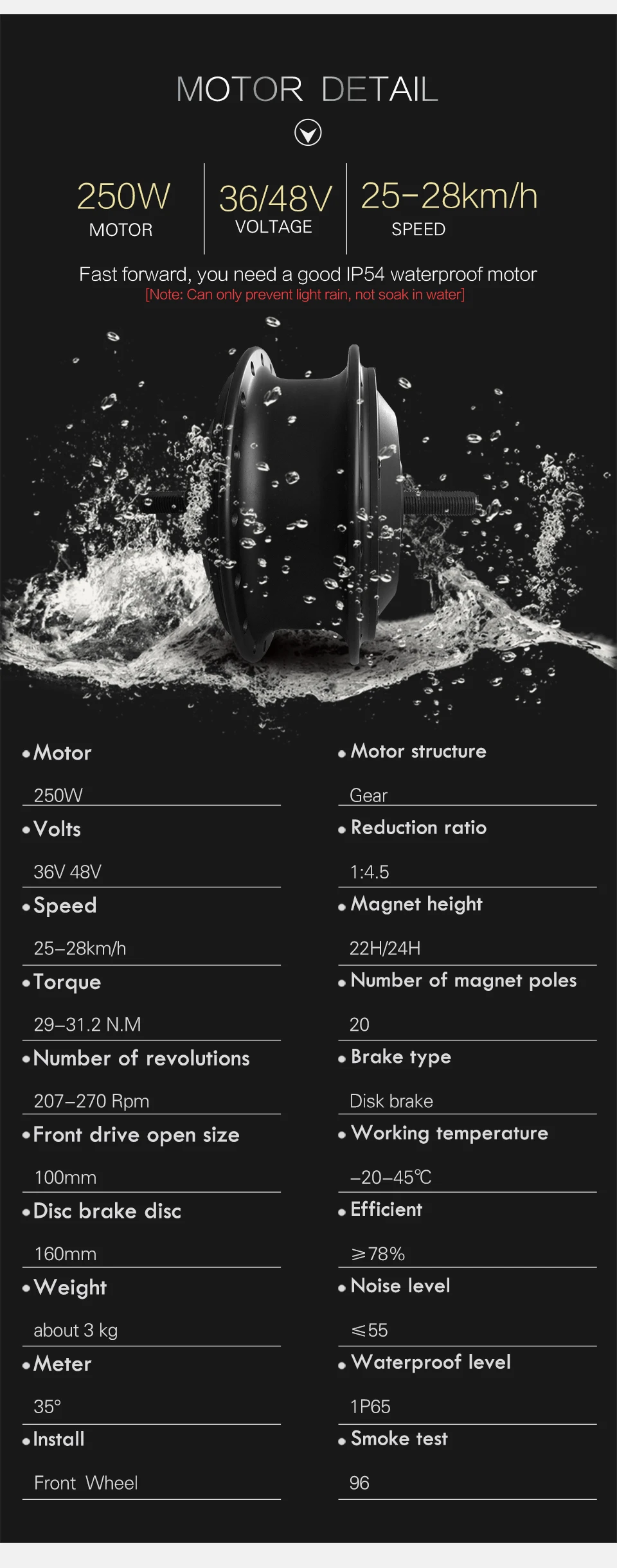

250W Front Hub Motor

Model:250W

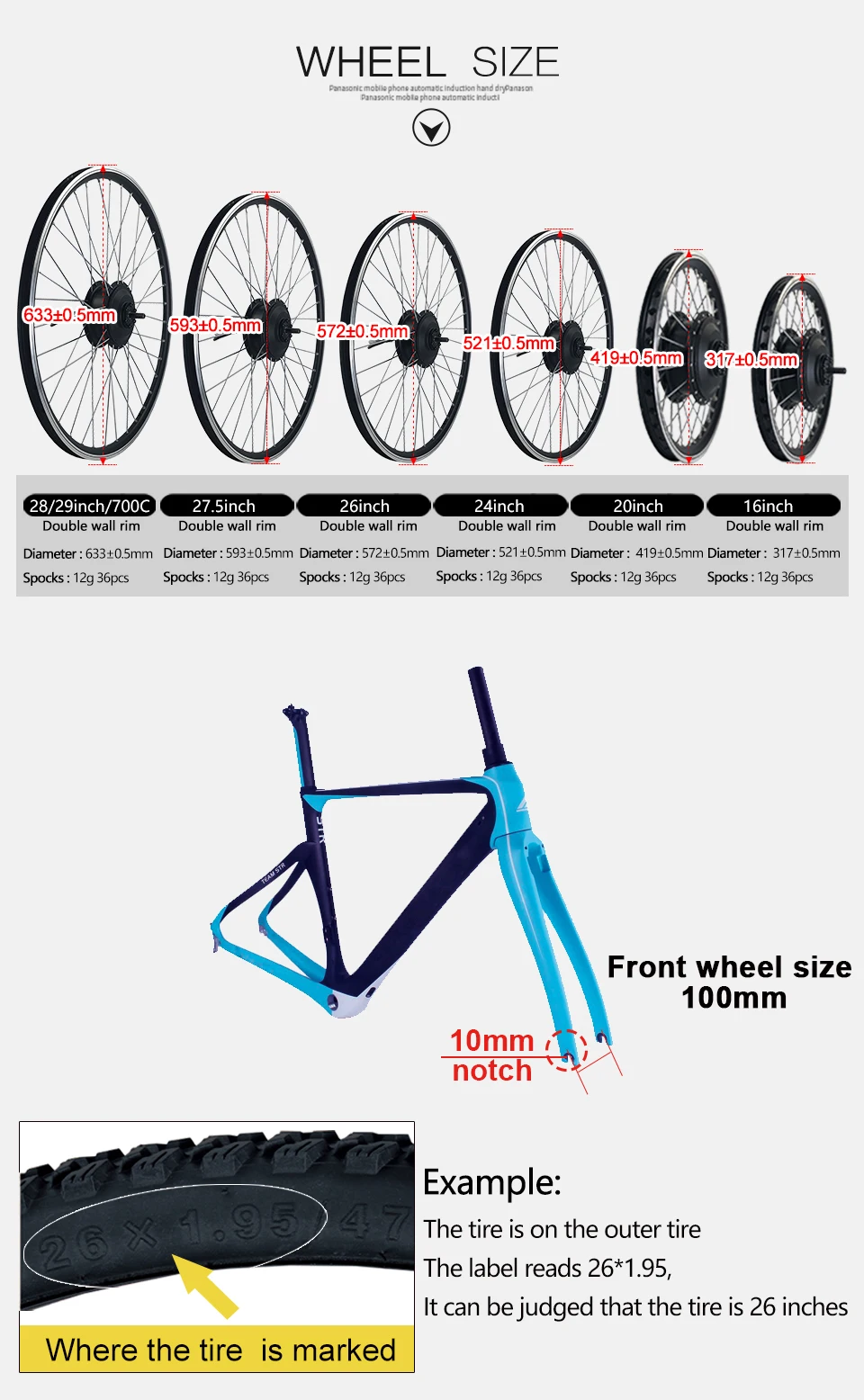

Wheel Diameter (Inch): 16"/20"/24"/26"/27.5"/28"/29"/700C---Optional

Construction:Gear drive

Rated Voltage (DCV): 3648

Rated Power (W): 250

Max Speed (KM/H): 28

Speed (Rpm): 207-270

Torque (N.M): 29-31.2

Front drive open size (mm): 100

Magnet height (48V): 24H

Number of magnet poles: 20

Efficiency (%)≥ 80

Color: Black

Weight (kg): 2.6kg

Noise Grade (dB)< 55

Operating Temperature: -20-45℃

Rim: Double-wall Aluminium Alloy Rim

Controller Voltage: 36V 48V

Controller Power: 250W

Controller Current: 15± 1

Controller Size: 82 *53* 32mm

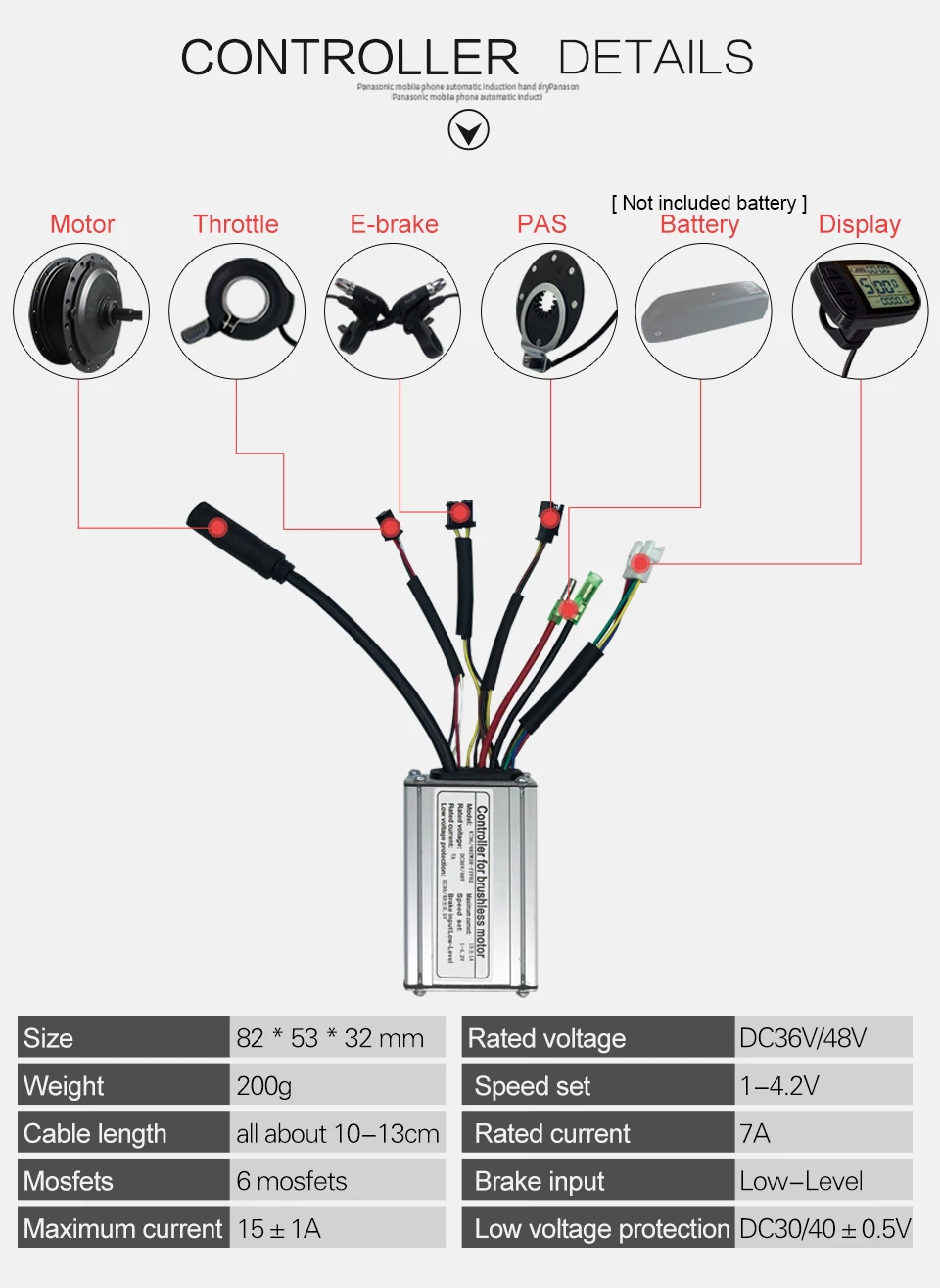

Controller details

Brand : KT（KUNTENG）15A Controller

Color :Silver

Dimension :82 *53* 32mm

Mosfet :9 Mosfets

Maximum current :15±1A

Rated current :7A

Rated voltage :DC36V/48V

Speed set : 1-4.2V

Brake input :Low-Level

Low voltage protection :DC30/40±0.5V

Cable length : all about 10-16cm

Weight : about 250g

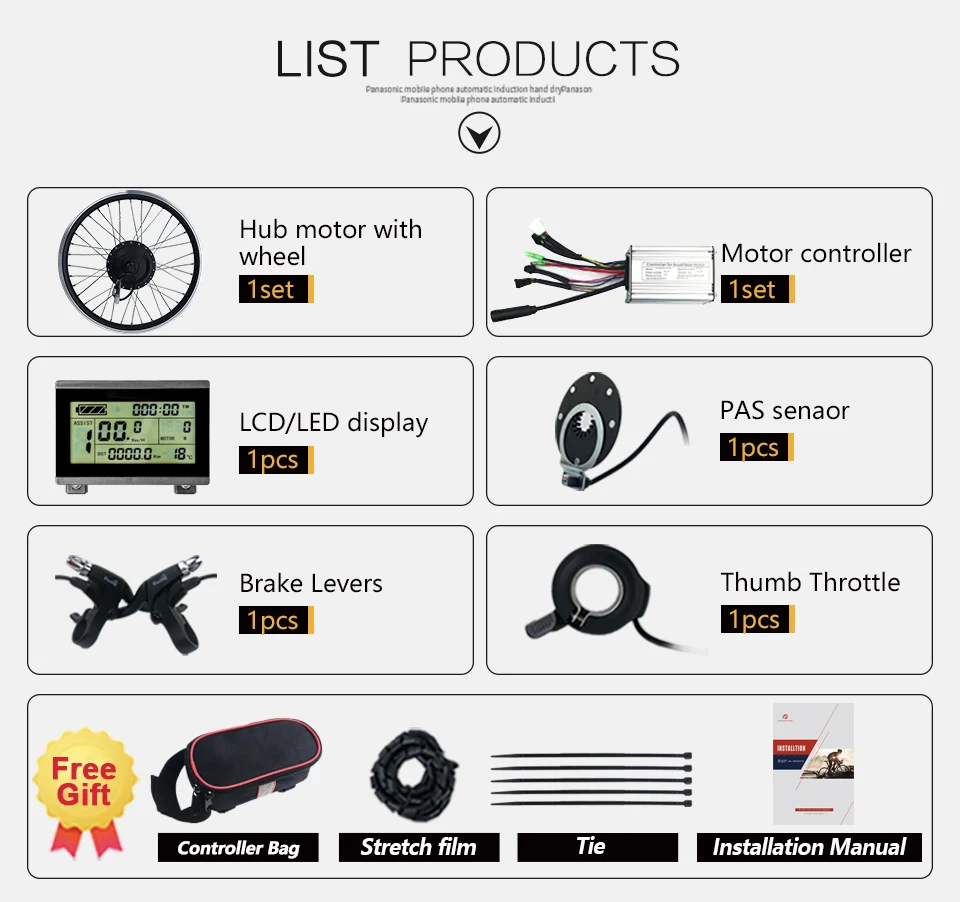

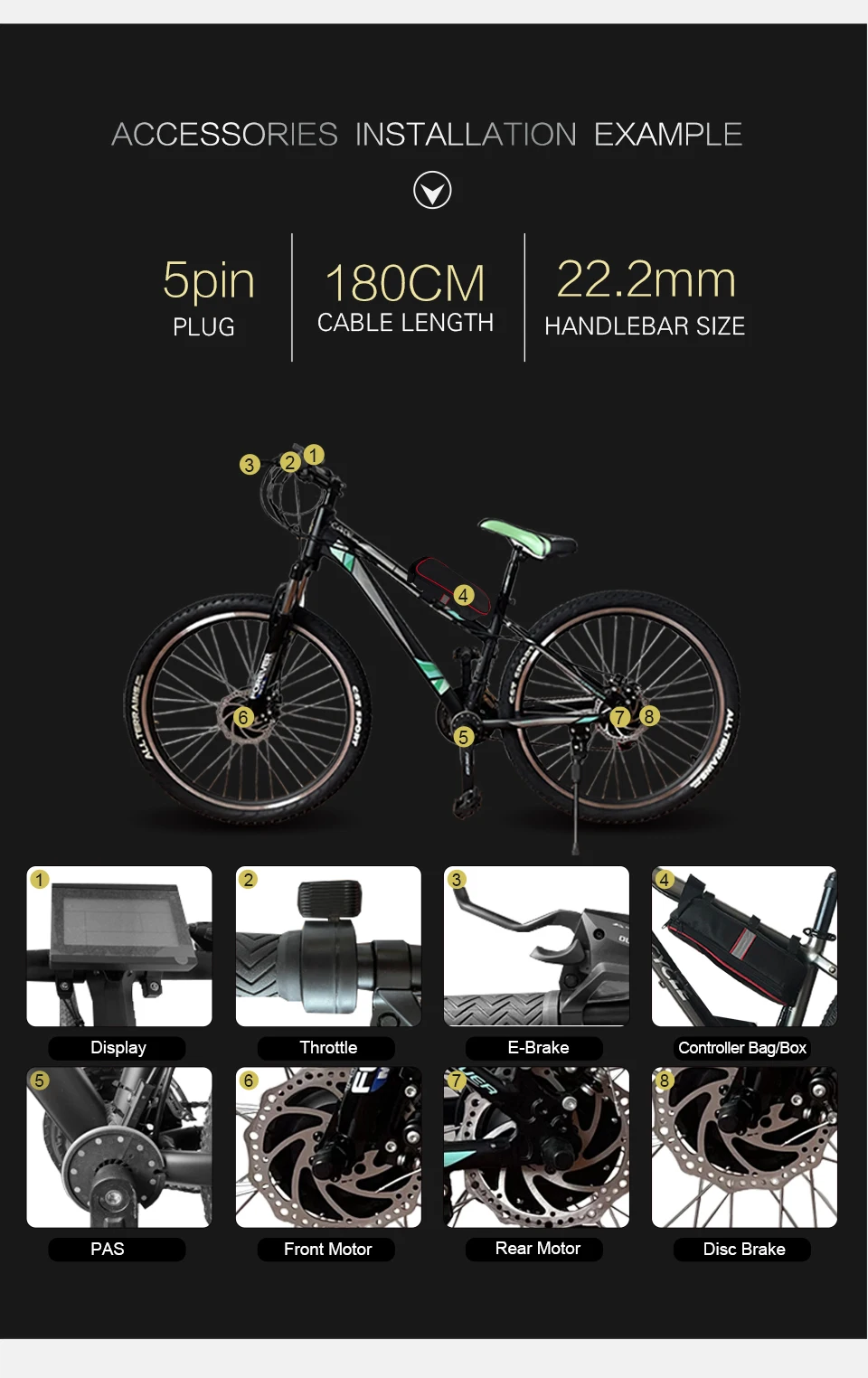

1 PCS * 250W Front Hub Motor with Rim and Spokes

1 PCS * Motor Controller

1 PCS * Controller Bag(not battery)

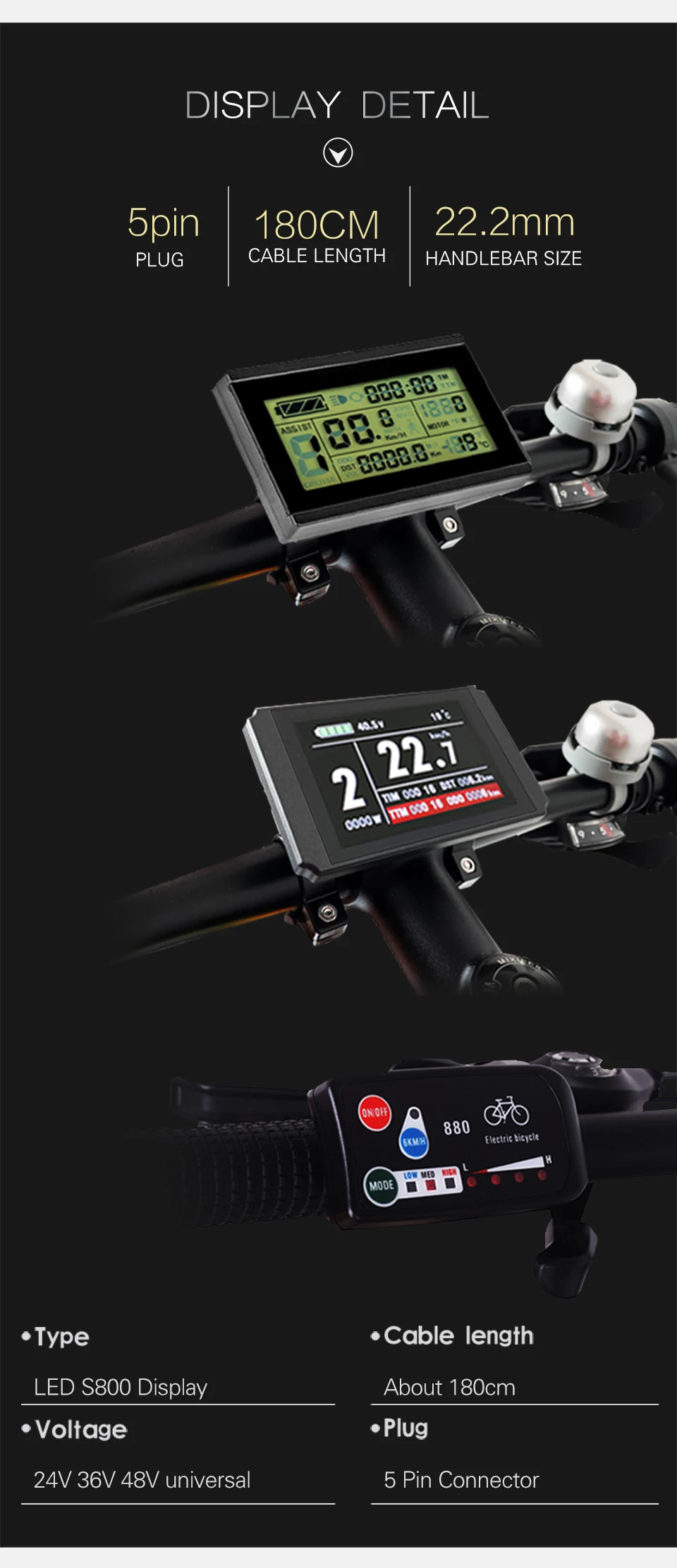

1 PCS * Display(LCD3,LCD5,LCD8H,LED880, option)

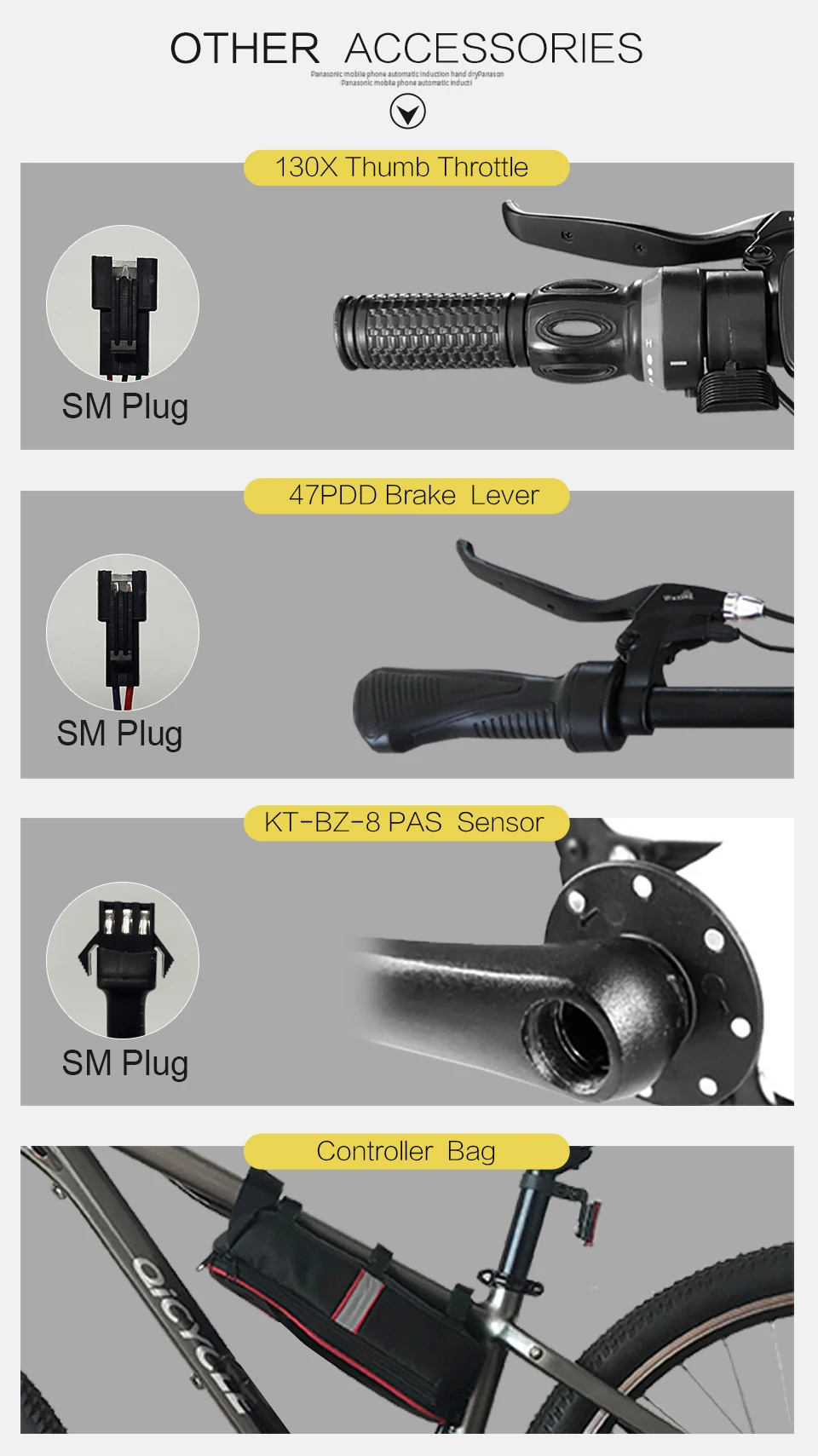

1 PCS * Thumb Throttle ( can change to twist throttle for free if you buy from China)

1 PCS * PAS Sensor

1 Pair * Brake Levers
