Coilover Suspension Lowering Kit for VW MK5 MK6 Beetle Jetta EOS CC Passat B6

Introduction

maXpeedingrods' MXR-B1 series is ideal for those who want to change the old worn-out strut but improve handling at the same time. It features height adjustable and maintains the OE ride quality to the greatest extent.

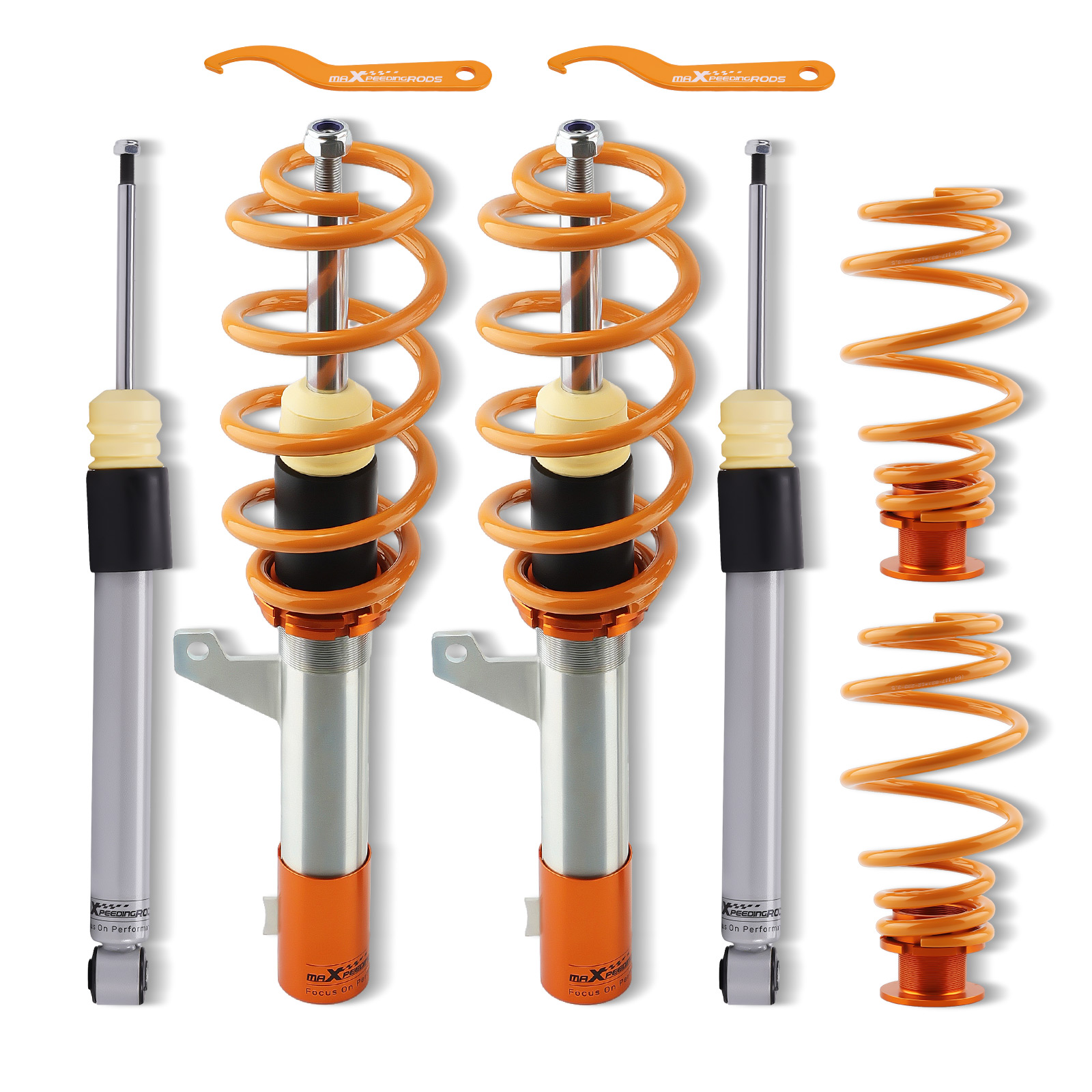

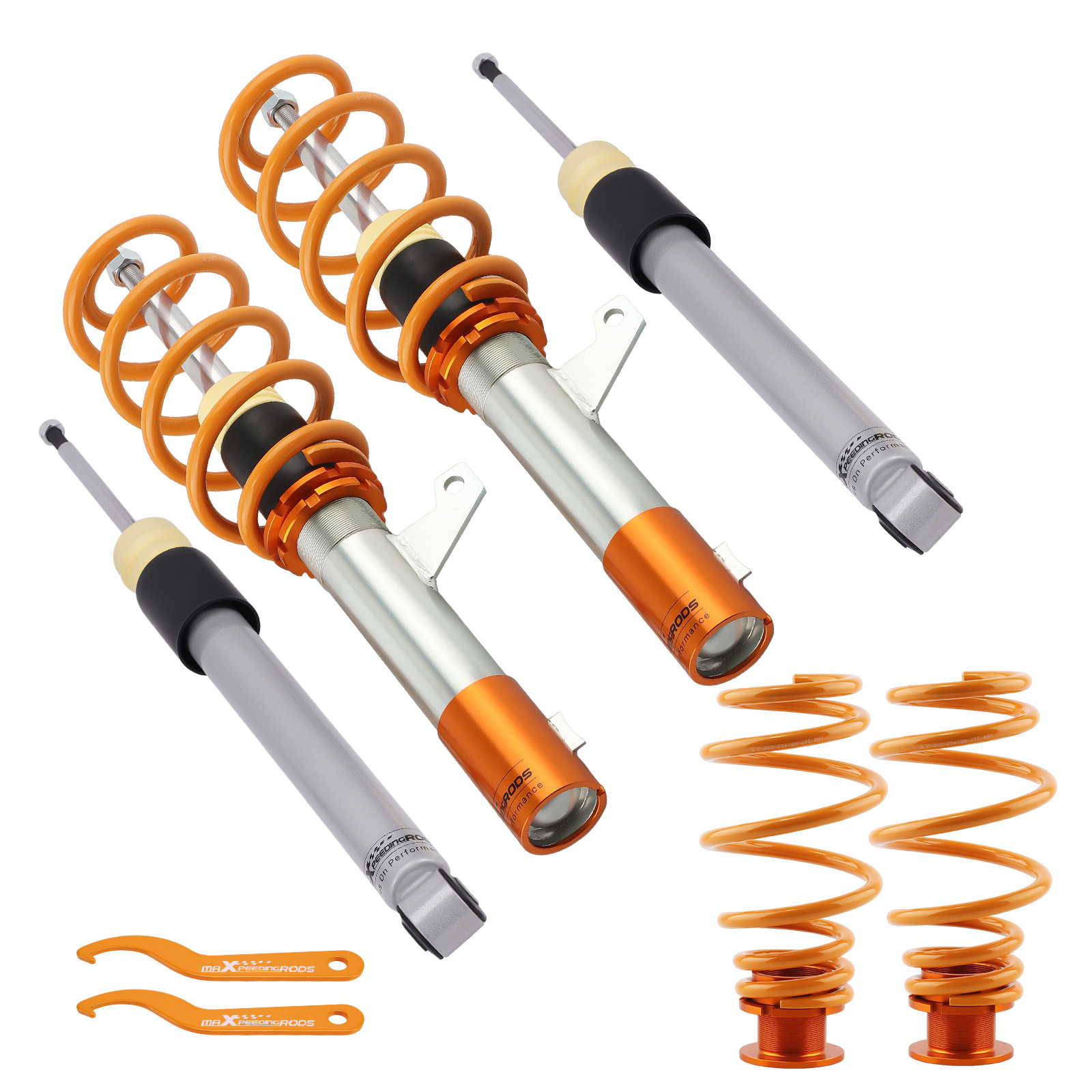

Package included

2x Front coil-overs
2x Rear coil-overs
2x C spanners

Application

For VW Golf MK5 A5 Typ 1K 2003-2008
For VW Jetta MK5 A5, Typ 1K5 2006-2011
For VW Golf MK6 A6 Typ 5K 2008-2012
For VW B6 Passat 2006-2010
For VW EOS 2007-2014
For VW CC 2009-2014
For VW Tiguan 2009-2014
For VW Beetle 2012-2014
For Audi A3 8P (FWD) 2006-2014
For Audi TT 8J (FWD) 2006-2014

Standard Technical Specifications

Top mounts	Front and rear OE top mounts required
Damping adjustable	Not available
Camber adjustable	Not available
Height adjustable	Yes, lowering 0-25mm depending on the vehicle models
Spring Rate Front	4 kg/mm (224 lbs/in)

Spring Rate Rear	3.5 kg/mm (196 lbs/in)
Spring length Front	245 mm
Spring length Rear	239 mm
Spring Preload advised	7-10 mm

Details

Feature

Lowered height 30mm which allow lower center of gravity and also add a more aggressive stance

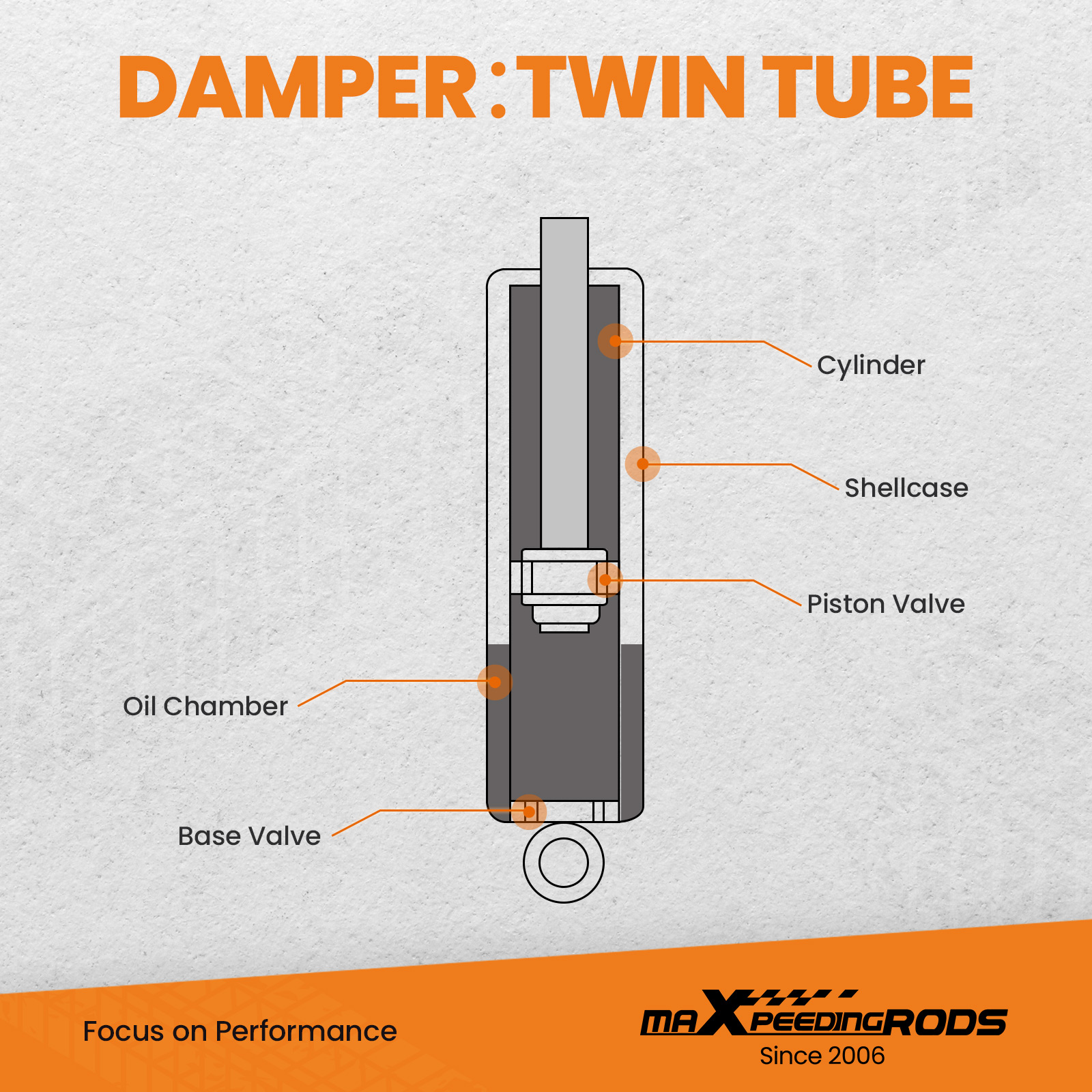

Twin-Tube structure allows sufficient stroke within the shock absorber.
High Tensile performance spring - STRESS TESTED OVER 600,000 times while the spring distortion is less than 0.04%. Plus the special surface treatment improves the durability and performance.
Height Adjustment tools included.
Steel shock bodies are electroplated with Zinc for Anti-corrosion.
