A complete brine system - Salt chlorinator and control panel integration
EC12 - UP TO 16,000 gallon, ≤ 60m³ For the swimming pool
EC20 - UP TO 26,400 gallon, ≤ 100m³ For the swimming pool
Lighter and easier to control, with one-button automatic cleaning function


Features:

1. The controller and generator are designed in one piece, which is easy to install and takes up little space.

2. The inlet and outlet are the same axial level, which reduces the arrangement of the pipeline.

3. Designed with removable structure for detachable titanium metal plate for easy installation and maintenance.

4. The amount of chlorine produced in each grade can be selected and adjusted according to needs, energy saving and environmental protection.

5. With salt high and low tips and fault alarm function

6. With water temperature protection (10-40 degrees), water shortage and water protection, etc., effectively extend the life of salt chlorine generator

7. Water level detection. Work is allowed when the probe detects water.

8. Power on automatically start and remember the last working state.

Specification:

Material: ABS

Applicable Specifications: EC12 - 12g/H, EC20 - 20g/H

Input Voltage: 100-240V

Frequency: 50/60Hz

Application:a single unit can meet ≤60-100㎡ swimming pool salt and chlorine cleaning

Note:Please follow the instructions provided in the box to install and use.

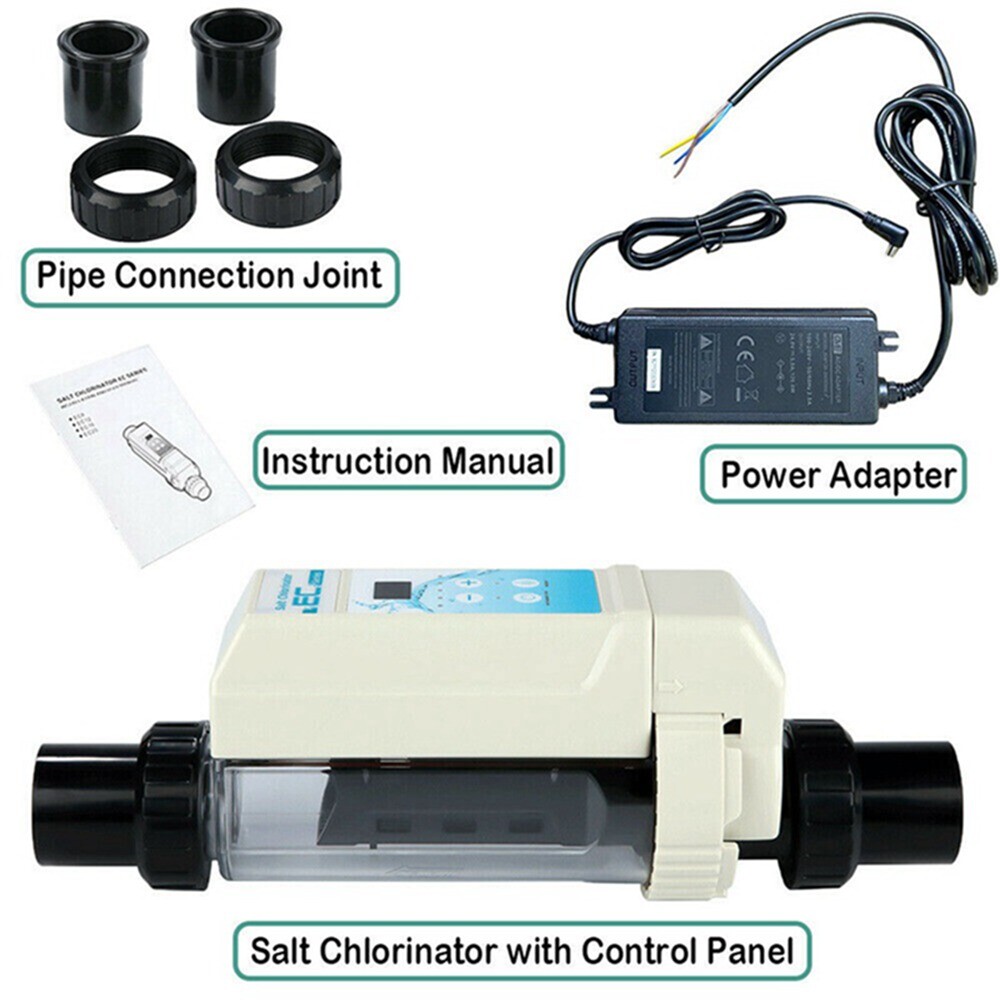

Package Included:

(One of EC12/EC20) Salt Chlorine Generator *1

Power Adapter *1
