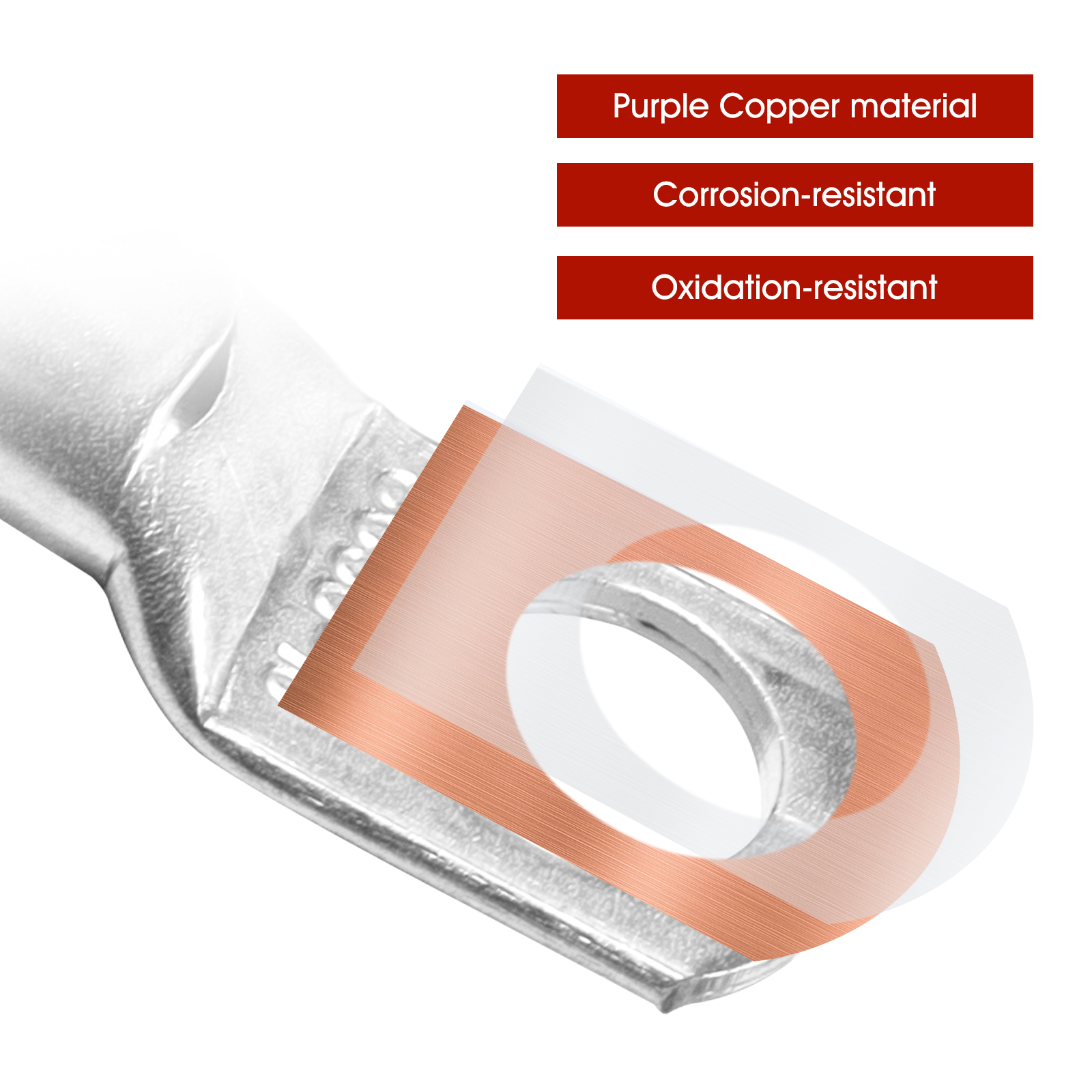

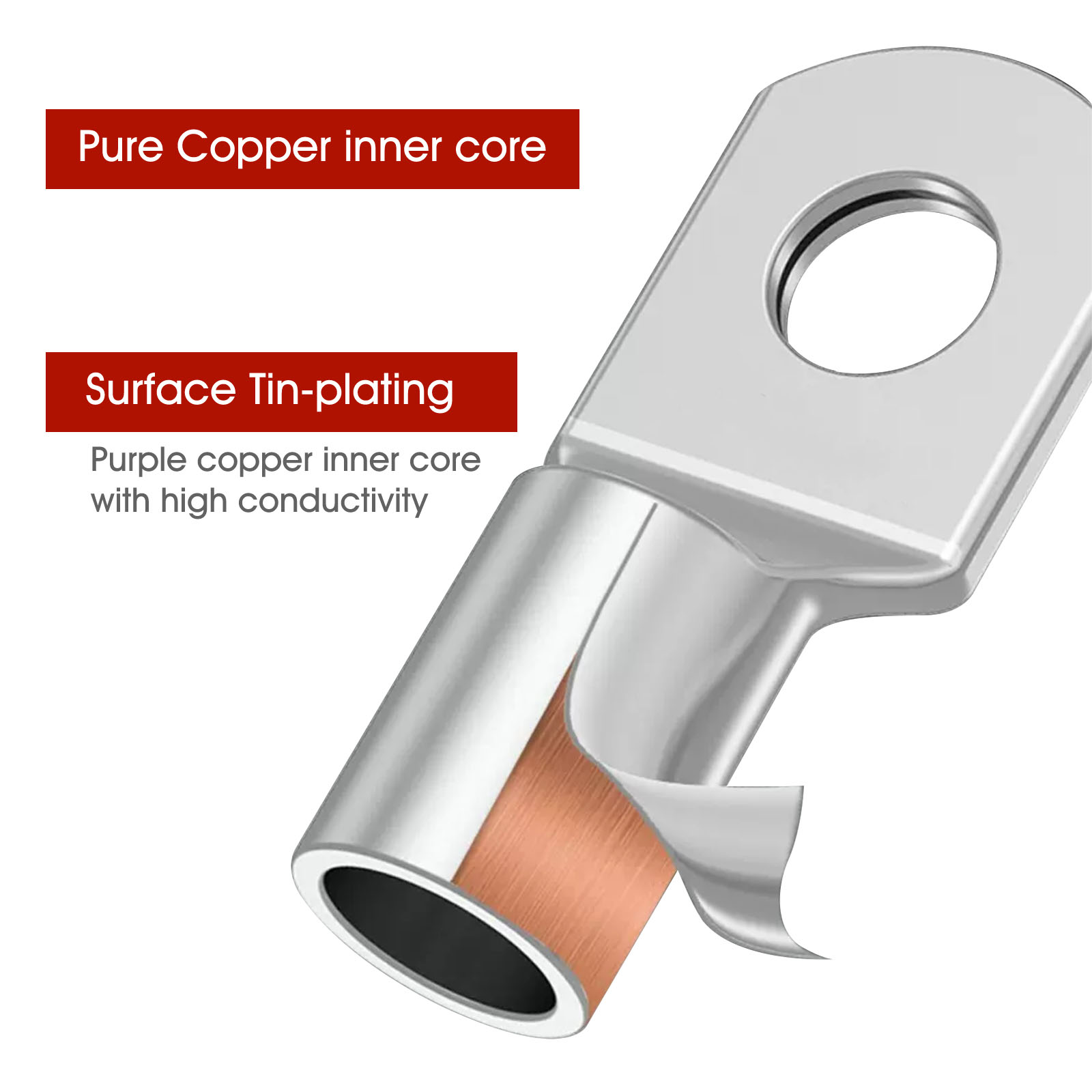

【High-quality Materials】Our cable lug is made of tinned copper with corrosion protection on the surface and copper inside.Tinned surface is wear-resistant to ensure a long service life,Copper inside offer high electrical rate,and low resistance,it doesn't get hot very easily.
【Specification Instructions】Each cable lug has a corresponding size mark on it, such as SC35-6,Sc stands for thick-walled steel pipe,The number on the front(35-)indicates the size of the cable to which the terminal can be connected, and the number on the end(6) indicates the diameter of the screw to be installed.
【Firm Wiring】These battery lugs with heavy duty construction，Fast connection, Suitable for all types of wires,safe to use.the thickness of cable hole wall is 0.2 to 1.2 mm, and the thickness of screw hole wall is 0.4 to 2.4 mm,the larger the size, the thicker the wall.

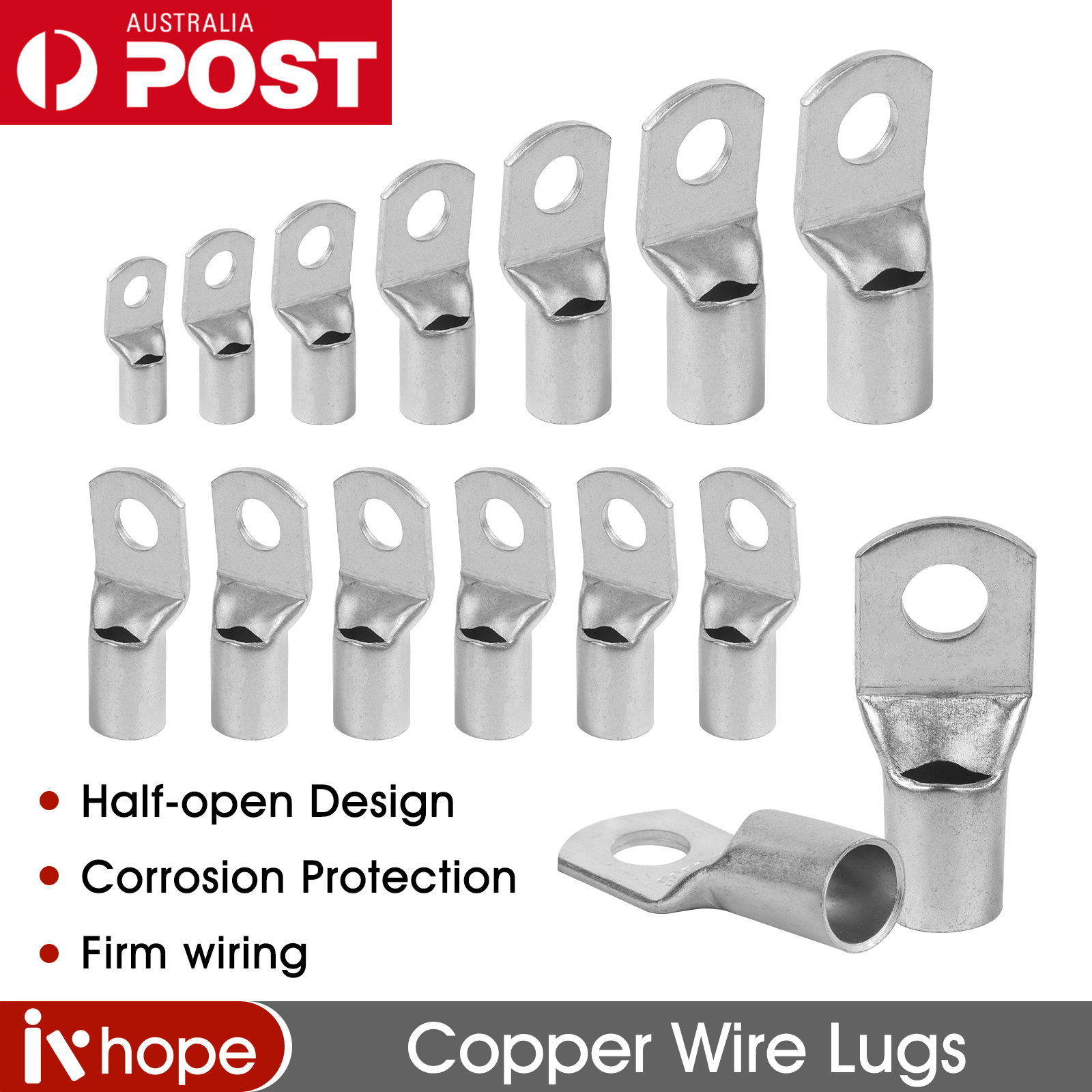

【Freedom to Choose the Stud Size】Almost 20 size available, can be crimped or soldered,recommend to check product dimension and cable size to ensure a proper fit.

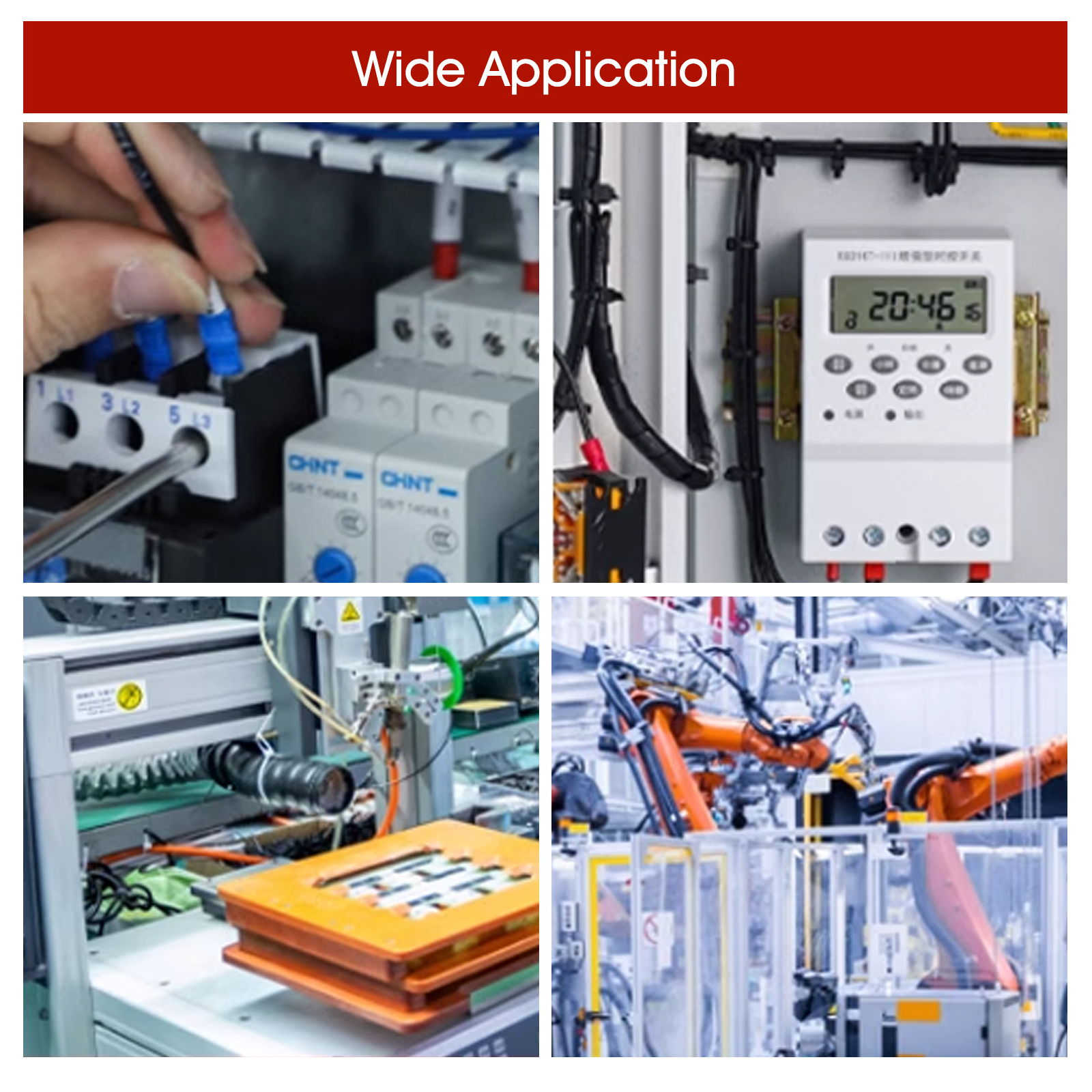

【Application Recommended】Size 9AWG(6mm²)-2AWG(35mm²): Recommended to use for automobile(battery cable,Amplifier,Car stereo,Vehicle engine),Boat/Marine(Marine engine battery),Industry(Printing press,Lighting,Hydraulic press,Inverter,welding machine),Solar(Solar controller,generator,Photovoltaic Cells)
1/0 AWG(50mm²)-4/0 AWG(95mm²): RV,Truck,Marine,Generator,Solar System,Electric Vehicle Portable Charger,Camper battery
|
|
Specification:
Product：Battery Cable Lugs
Size Details:
SC6-6(6mm²-6): The maximum size the cable can fit into 6mm²/9AWG,Mounting Hole Diameter 6mm or 1/4 inch
SC6-8(6mm²-8): The maximum size the cable can fit into 6mm²/9AWG,Mounting Hole Diameter 8mm or 5/16 inch
SC10-6(10mm²-6): The maximum size the cable can fit into 10mm²/7AWG,Mounting Hole Diameter 6mm or 1/4 inch
SC10-8(10mm²-8): The maximum size the cable can fit into 10mm²/7AWG,Mounting Hole Diameter 8mm or 5/16 inch
SC10-10(10mm²-10): The maximum size the cable can fit into 10mm²/7AWG,Mounting Hole Diameter 10mm or 3/8 inch
SC10-12(10mm²-12): The maximum size the cable can fit into 10mm²/7AWG,Mounting Hole Diameter 12mm or 1/2 inch
SC16-6(16mm²-6): The maximum size the cable can fit into 16mm²/5AWG,Mounting Hole Diameter 6mm or 1/4 inch
SC16-8(16mm²-8): The maximum size the cable can fit into 16mm²/5AWG,Mounting Hole Diameter 8mm or 5/16 inch
SC25-6(25mm²-6): The maximum size the cable can fit into 25mm²/3AWG,Mounting Hole Diameter 6mm or 1/4 inch
SC25-8(25mm²-8): The maximum size the cable can fit into 25mm²/3AWG,Mounting Hole Diameter 8mm or 5/16 inch
SC25-10(25mm²-10): The maximum size the cable can fit into 25mm²/3AWG,Mounting Hole Diameter 10mm or 3/8 inch
SC35-6(35mm²-6): The maximum size the cable can fit into 35mm²/2AWG,Mounting Hole Diameter 6mm or 1/4 inch
SC35-8(35mm²-8): The maximum size the cable can fit into 35mm²/2AWG,Mounting Hole Diameter 8mm or 5/16 inch
SC35-10(35mm²-10): The maximum size the cable can fit into 35mm²/2AWG,Mounting Hole Diameter 10mm or 3/8 inch
SC50-8(50mm²-8): The maximum size the cable can fit into 50mm²/(1/0AWG),Mounting Hole Diameter 8mm or 5/16 inch
SC50-10(50mm²-10): The maximum size the cable can fit into 50mm²/(1/0AWG),Mounting Hole Diameter 10mm or 3/8 inch
SC70-10(70mm²-10): The maximum size the cable can fit into 70mm²/(2/0AWG),Mounting Hole Diameter 10mm or 3/8 inch
SC70-12(70mm²-12): The maximum size the cable can fit into 70mm²/(2/0AWG),Mounting Hole Diameter 12mm or 1/2 inch
SC95-10(95mm²-10): The maximum size the cable can fit into 95mm²/(3/0AWG),Mounting Hole Diameter 10mm or 3/8 inch
SC95-12(95mm²-12): The maximum size the cable can fit into 95mm²/(3/0AWG),Mounting Hole Diameter 12mm or 1/2 inch
|
|
