KT LCD LED Display Parameter
Type:KT LCD/LED/Colourful Display
Color:Black
Voltage:24V 36V 48V universal,72V for LCD3
Cable length:About 180cm(SM),25cm(WP)
Plug:5 Pin SM/Waterproof Connector

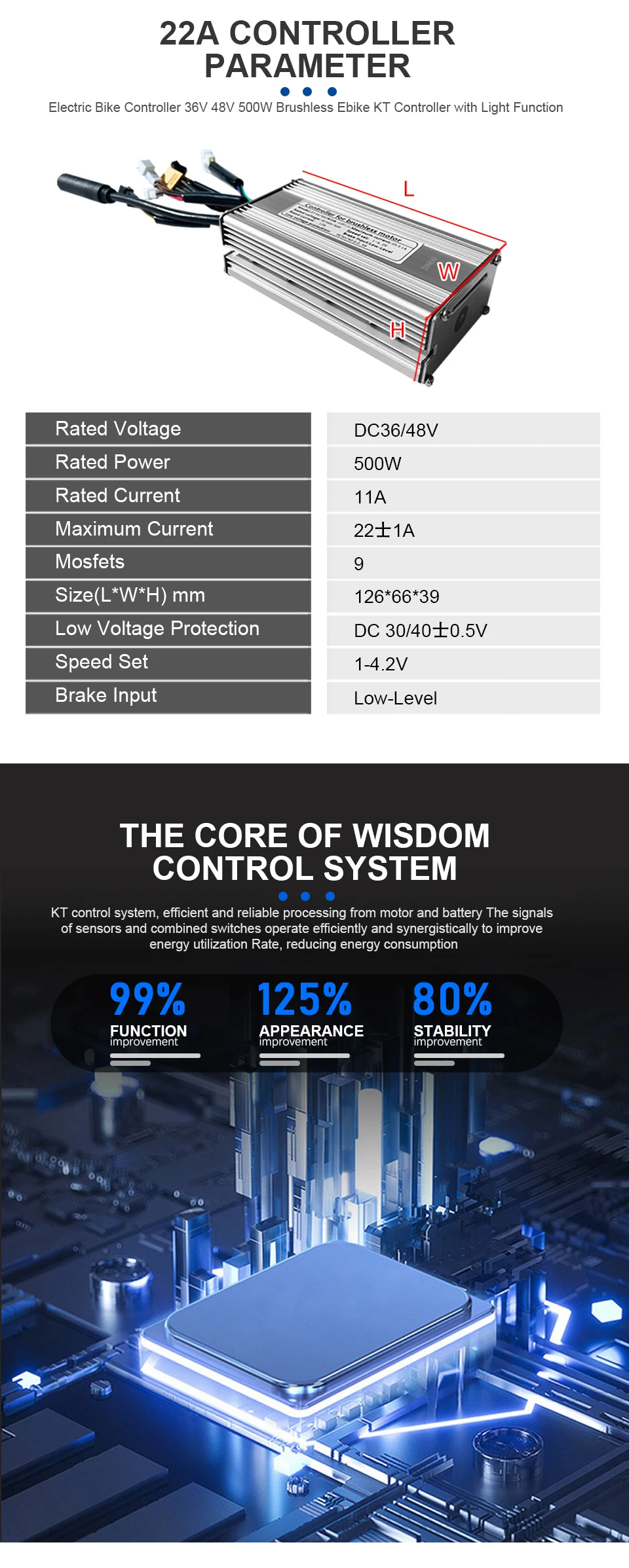

36/48V 22A Controller
●Dimesion:128*68 * 38 mm
●Mosfet:9 mosfets
●Maximum current:22±1A
●Rated current:11A
●Rated voltage:DC36V/48V
●Speed set:1-4.2V
●Brake input :Low-Level
●Low voltage protection:DC30/40±0.5V
●Cable length:all about 10-13cm
●Weight:350g
●Color:silver
A Light / Lamp for our KT controller ,it must be about 70 mA ( less than 100 mA )or the controller will be damaged. I suggest you do not use the front and rear lights at the same time.
Packing List
1 * Controller
1 pair * Power cut-off Brake lever
1 * Display
1 * 8 Magnet Pedal Assistant Sensor
1 * Throttle
1 * Controller Box
