KT-LCD10H display is KT series controller electric bicycle LCD display. Only applicable to KT series controllers. It does not apply to other controllers.

 Connector:

A.5pin SM connector

B.5pin WP connector (1T4 waterproof cable required)

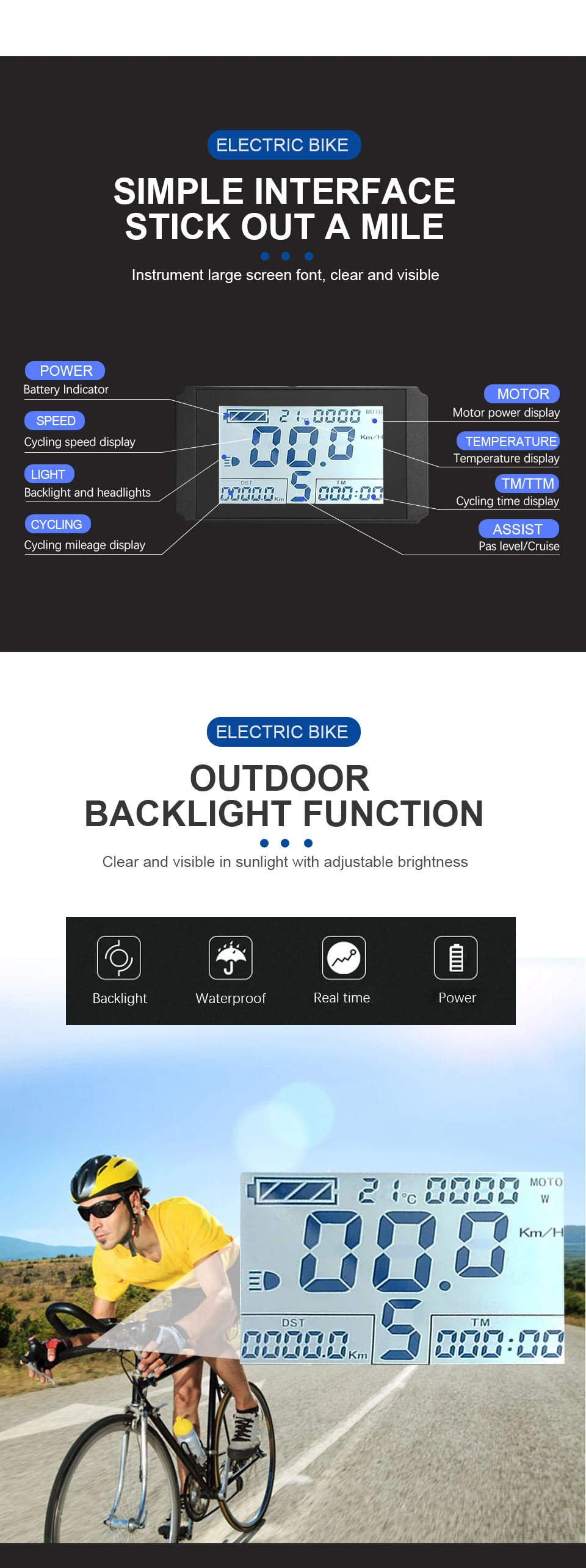

  Feature:

1. Single travel time (TM) + total travel time (TTM) real-time km/h or MPH display

2. Single maximum speed (MXS) + single average speed (AVS)

3. One-way distance (DST) + total travel distance (ODO)

4. 6km/h push function, cruise function. Headlights, taillights, optional switches, brake status display

5. Torque sensor analog speed sensor 0-5 level + battery capacity display

6. 24V, 36V, 48V compatible.

7. The controller can be reprogrammed through parameter setting.

8. Data reset + parameter copy + fault code display.

9. Display of motor working power (W). And motor working temperature display.

10. The LCD motor overheats alarm.

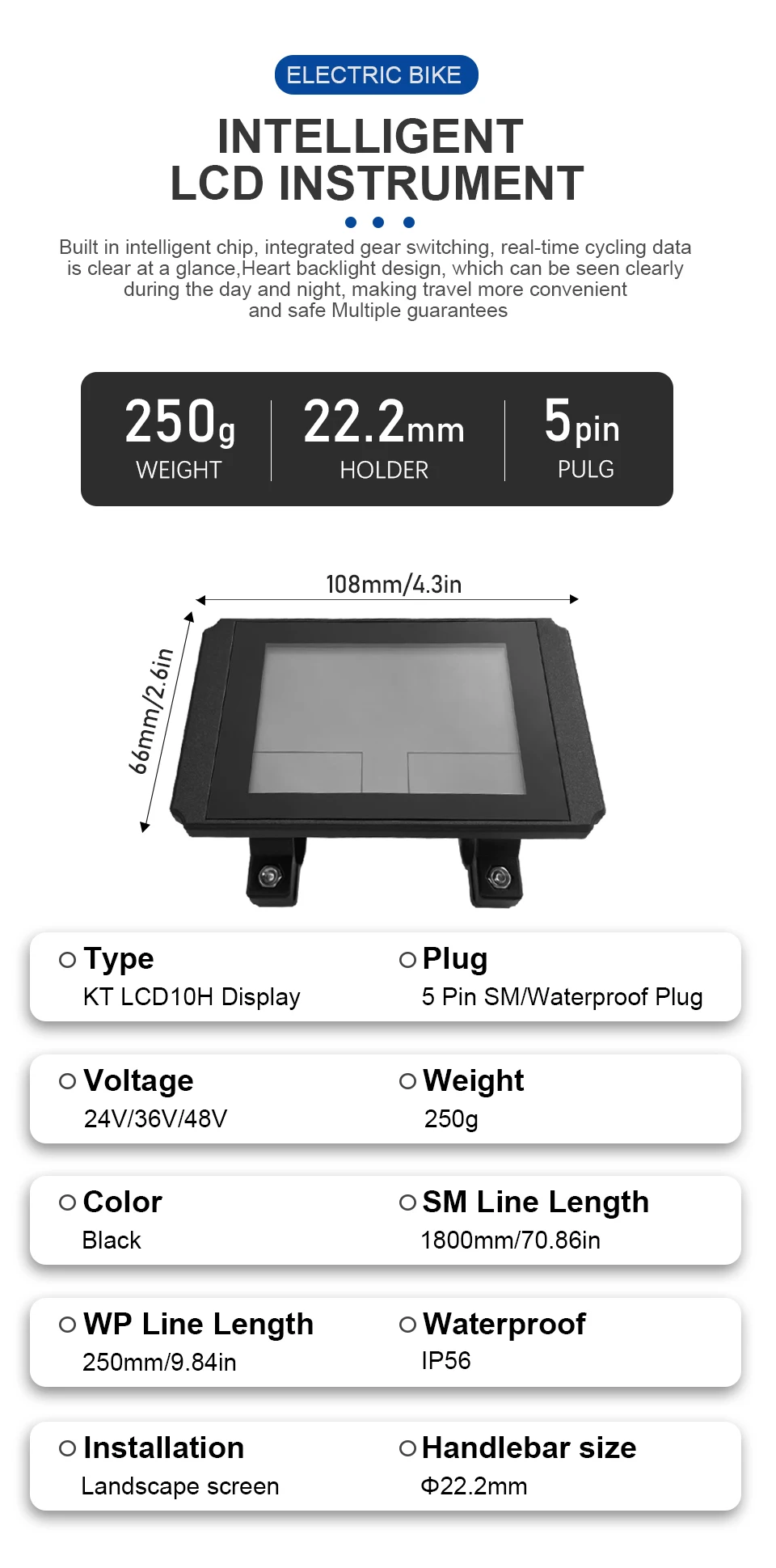

  Parameter

Voltage: 24V,36V,48V

Color: Black

Weight: 250g

Handlebar size for holding: 22.2mm

Cable length: About 25cm(WP), About 180cm (SM) including the connector

Plug: 5 Pin SM/WP Connector

  Packing List:

1. KT LCD10H display

2. Display stand and a set of adjustable washers

3. Instruction Manual

The item comply with UL requirement, and it is certified to meet
UL 2849 safety standards
