MaXpeedingrods Air Suspension Kit W/ Compressor For Peugeot Boxer 1994-2024 4ton

MaXpeedingrods Air suspension kit

[Practical Installation]

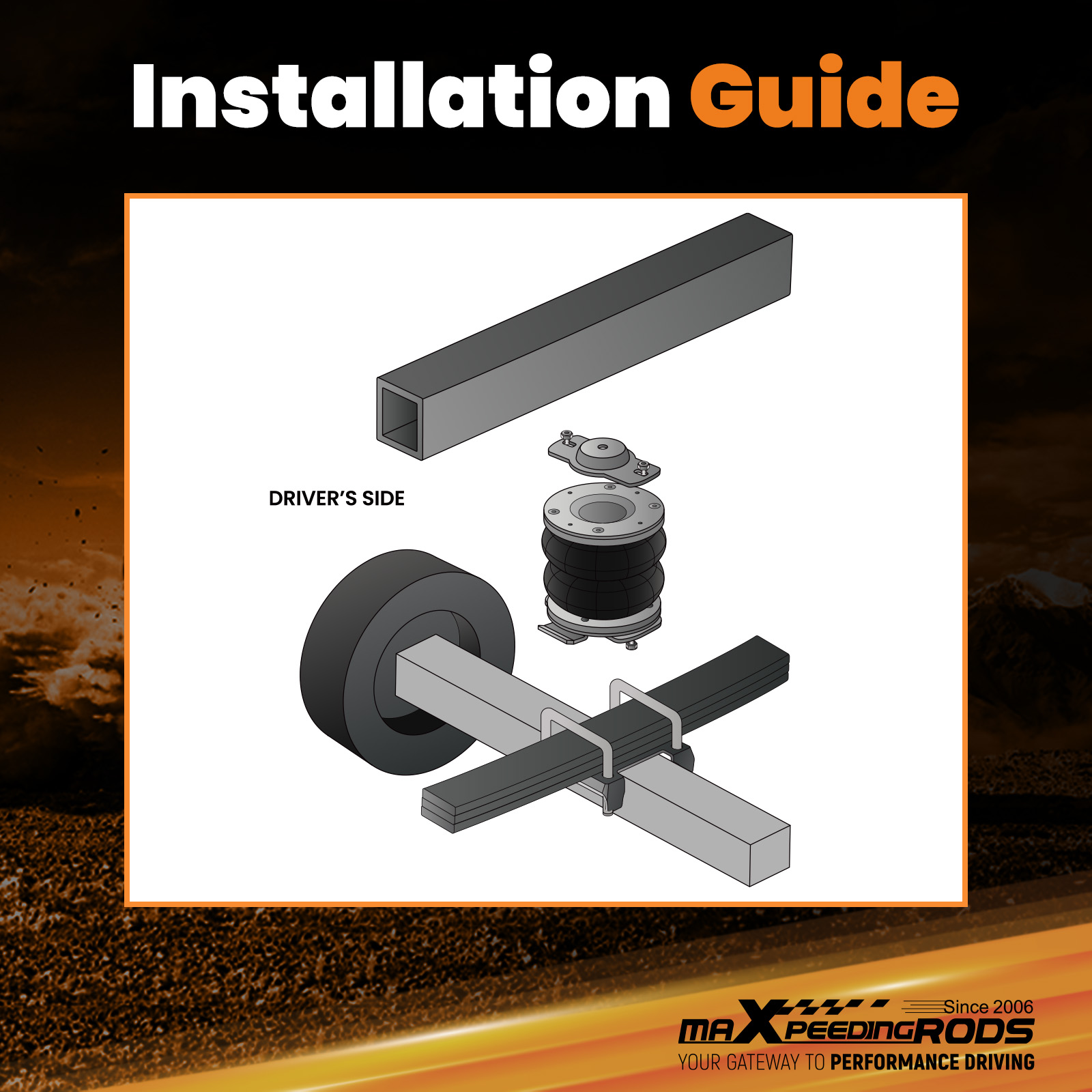

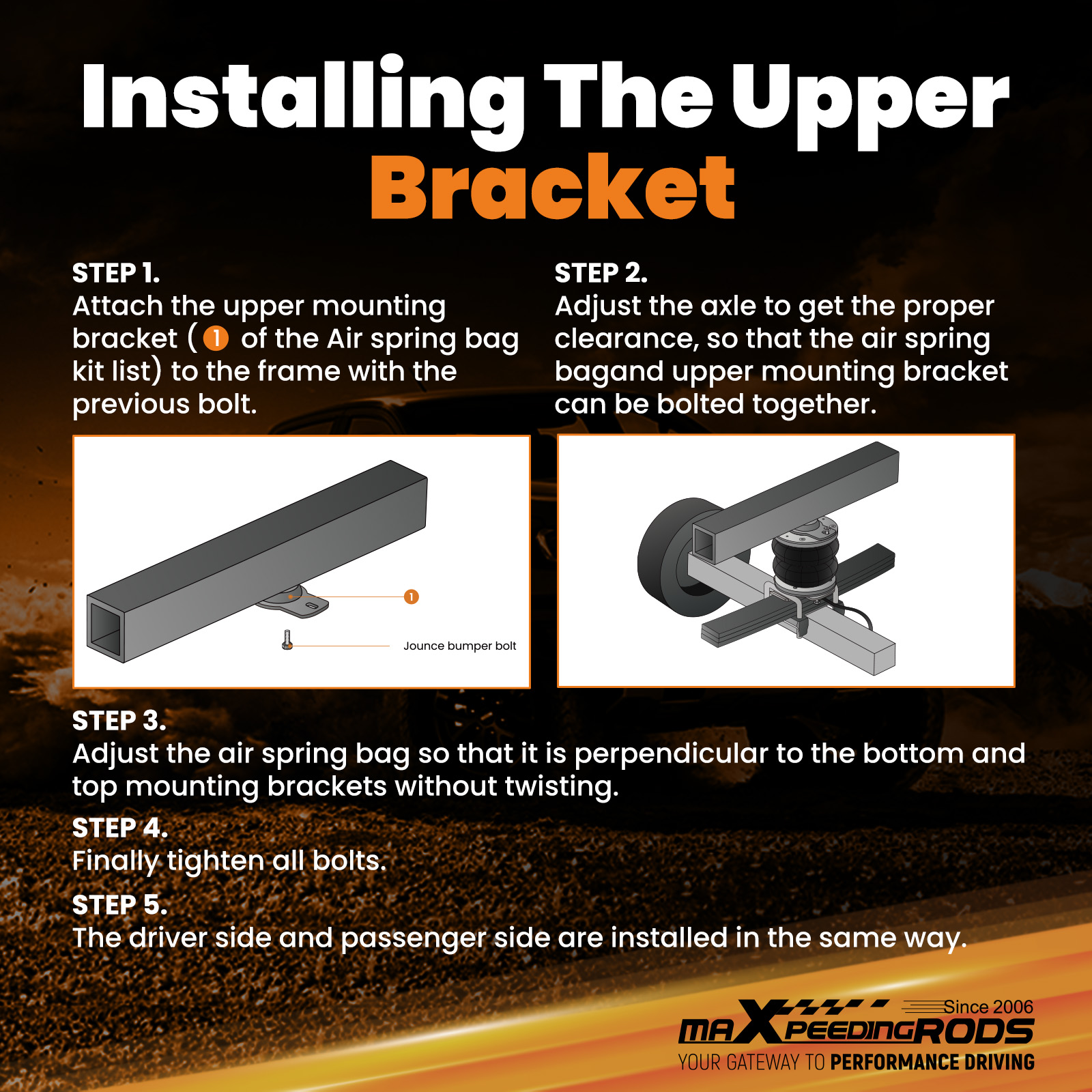

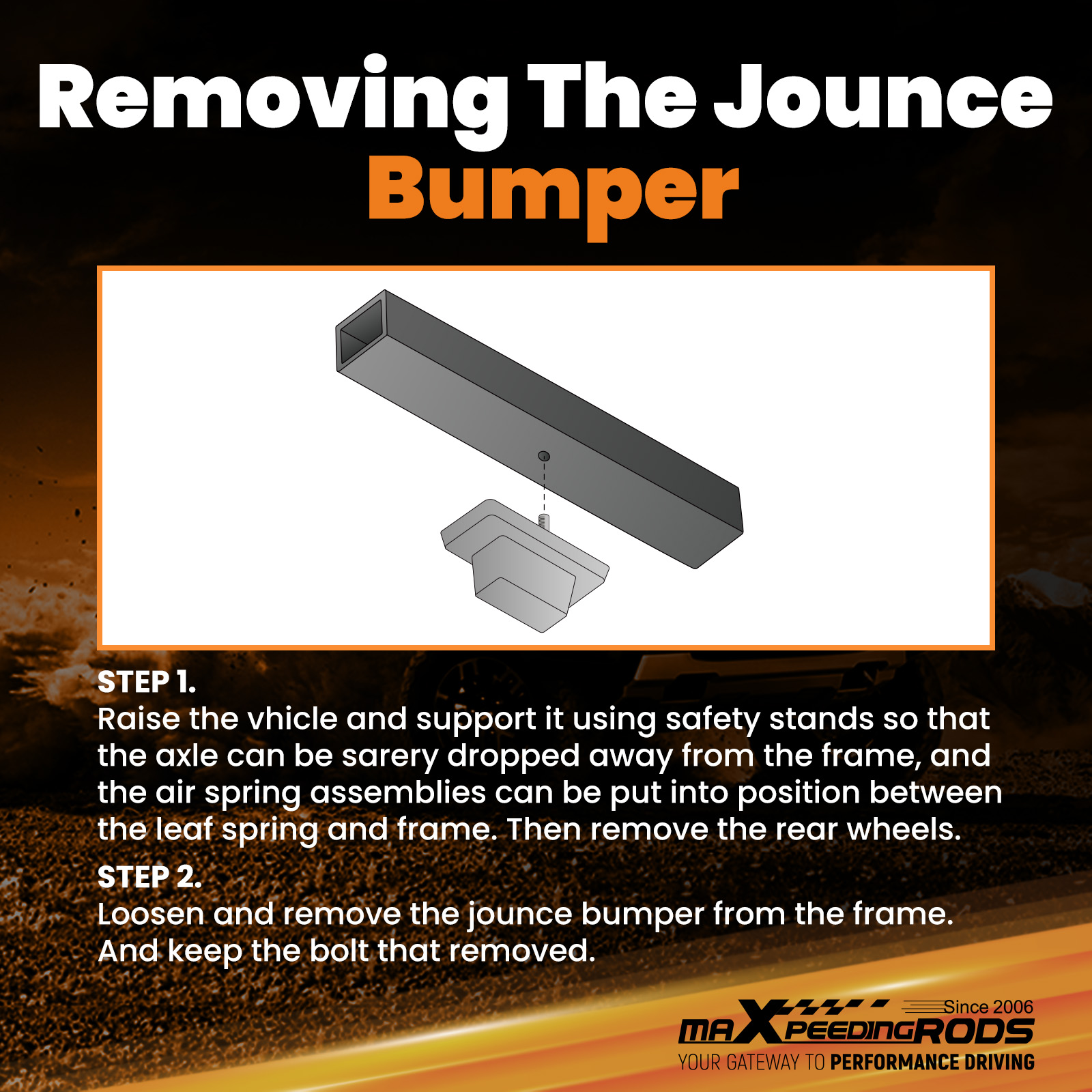

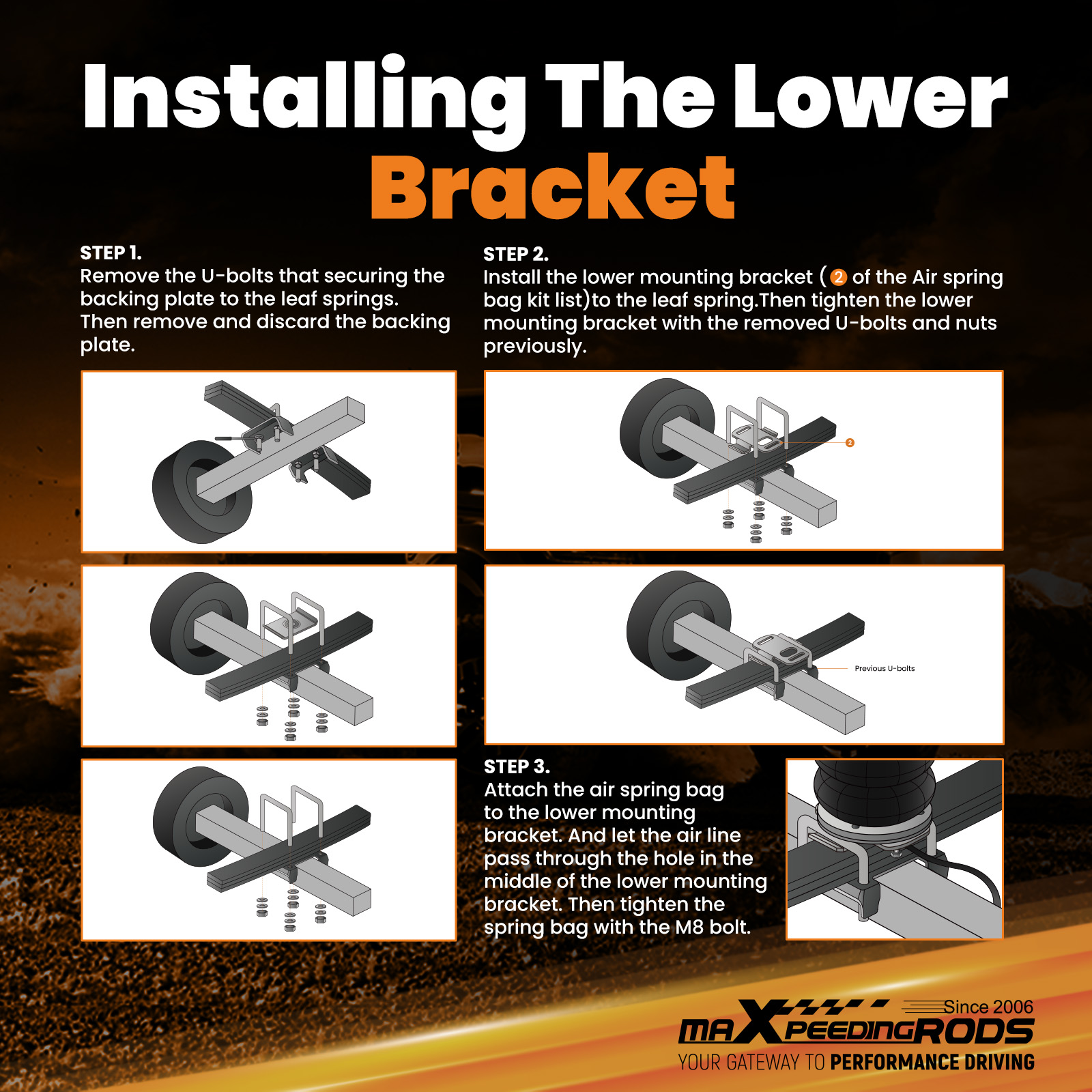

Easy to install, no-drill systems, typically takes 1 to 2 hours. Professional installation is recommended

[Manufacturing Process]

Galvanised Heavy duty bracket, with Natural Rubber and Hi-tensile steel offers high load-bearing 4000KG capacity and long life

Why Choose MaXpeedingrdos?

Air Tightness Test

MaXpeedingrods air spring bags past 24 hours air tightness test ≤2.0Mpa. Ensure no air leakage

Stress Test

MaXpeedingrods air spring bags past stress test over 5000000 times. Ensure high load-bearing capacity and long life

High quality material

MaXpeedingrods air spring bags are made of High quality heavy duty rubber, using Natural Rubber and Hi-tensile steel

Works well in complicated climate

MaXpeedingrods air spring bags work well in temperature ≤+70° , ≥-40°, easily handle complicated climate

MaXpeedingrods System and accessories

Single Path System

12V Heavy Duty Air Compressor

Pneumatic PVC Hose

Brackets and Washer Kit

Maxpeedingrods Air Spring Bag

Condition	Brand New
Placement on Vehicle	Rear Left and Right
Capacity	8800 LB / 4000 KG
Design height	172 mm
Stroke	140mm
Max. Extended	230mm
Min. Compressed	90mm
Unloaded	Min 10 PSI
Loaded	75 PSI
Maximum Working Voltage	10 bar (1 MPa )
Operating Pressure	≤2.0Mpa
Temperature	≤+70° , ≥-40°
Wheelbase	156mm

MaXpeedingrods Air Compresssor

Air Compressor inlcuded	Yes
Power	150 W
Output Voltage	12 V
Maximum Current	10 A
Cigarette lighter socket included	Yes
Compressor hose dia	0.72m
Compressor cable dia	2.6m

MaXpeedingrods Air suspension kit

Application

For Fiat Ducato 1994-2024

For Citroën Relay 1994-2024

For Peugeot Boxer 1994-2024

For Citroën Jumper 1994-2024

Single rear wheel and Twin rear wheel, RWD and FWD

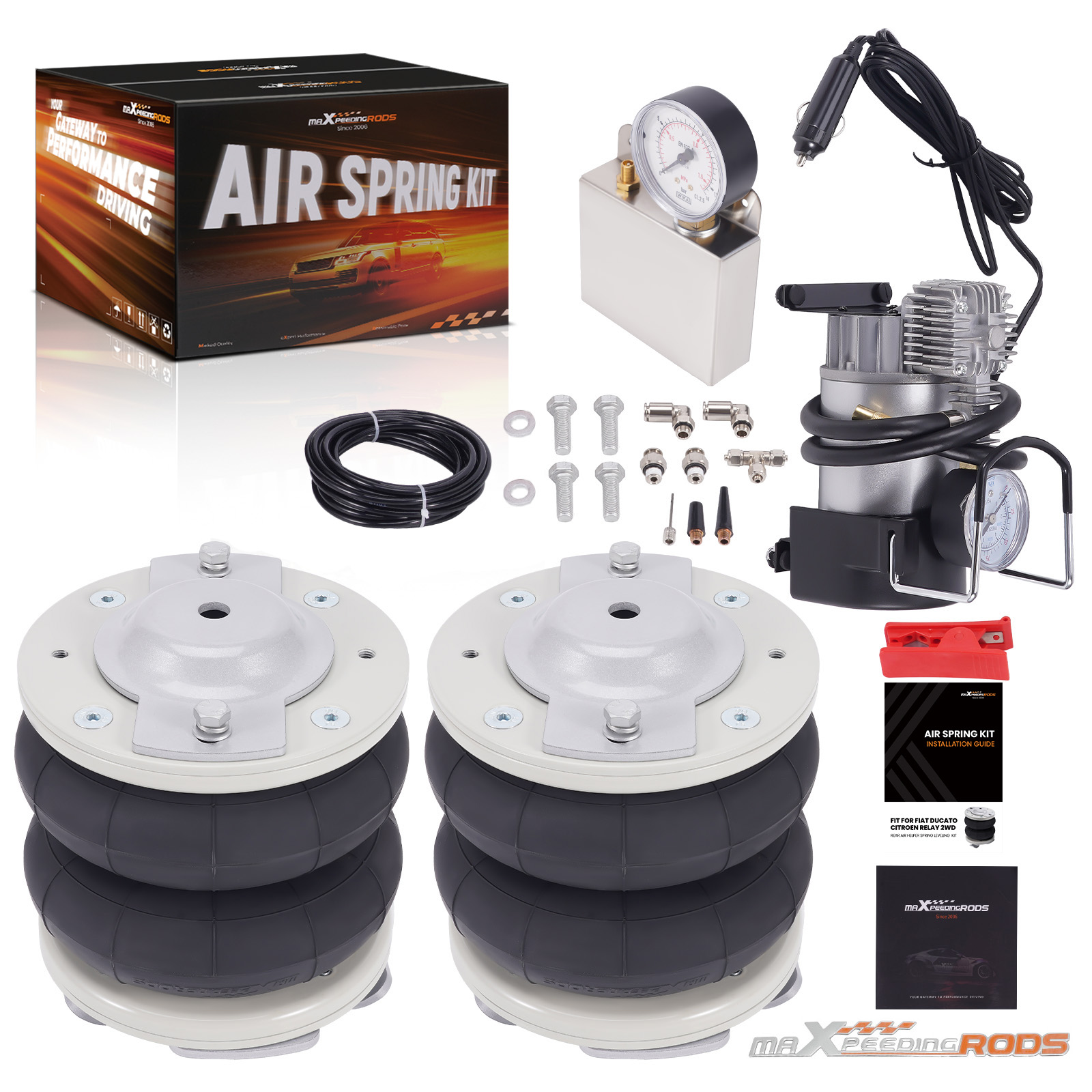

Package Includes:

2x Natural Rubber & Hi-tensile steel Air spring bag

4x Galvanised Heavy duty mounting bracket

1x Heavy Duty 12V Air compressor

1x Barometer

1x Air line 8m

1x Tee T-fitting

2x Hex Valve Air fittings G1/8

2x 90⁰ Air fittings G1/8

1x Installation box

Other bolts, screws, washers, spring washers and all you need to fit the kit

Notice:

- Professional installation is recommended

MaXpeedingrods Air suspension kit

How to Prevent Leaks Caused by Installation Mistakes

————————————————

1. Make sure leave a perfectly smooth and tight seal.

2. Verify that the air line is properly placed and routed.

3. Use a spray bottle filled with soap and water to spray down all of your fittings (included the bag itself) which helps you find a leak instantly and easily.
