This Item Has A Current Calibration!
|
|
|
|

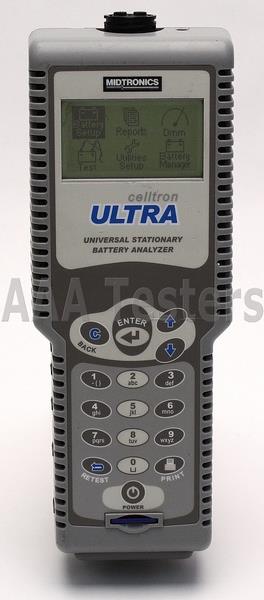

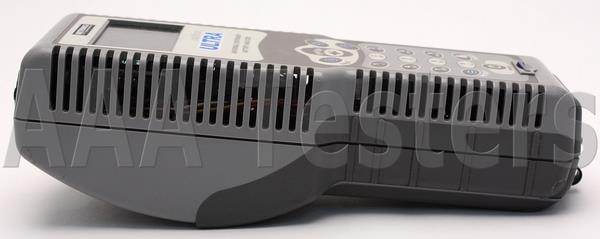

Midtronics Celltron Ultra Universal Stationary Battery Analyzer CTU-6000
For testing stationary batteries used in UPS systems, power utility, and telecommunications industries
Enhanced conductance methodology enables accurate and repeatable testing in the presence of ultra-high electrical interference.

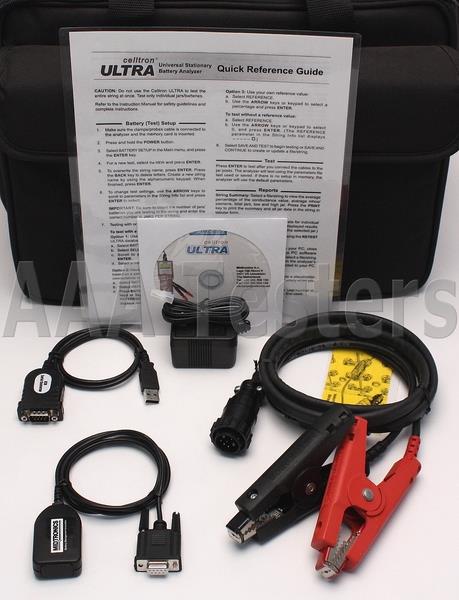

Includes Carrying Case & Accessories As Listed Above!
Working Condition: Excellent
Condition: Refurbished
Calibrated: Yes
Warranty: 1 YEAR WARRANTY
Midtronics CTU-6000
Celltron Ultra Universal Stationary Battery Analyzer
For testing stationary batteries used in UPS systems, power utility, and telecommunications industries
FEATURES:
- Enhanced conductance methodology enables accurate and repeatable testing in the presence of ultra-high electrical interference.
- Software and data management techniques allow for the easy establishment of battery reference/baseline values when pre-determined data is not readily available, allowing for “reference-free” testing.
- The industry’s first lighted probes increasing visibility in confined battery cabinets and racks. This advance improves technician safety and test reliability while reducing risk of equipment damage.

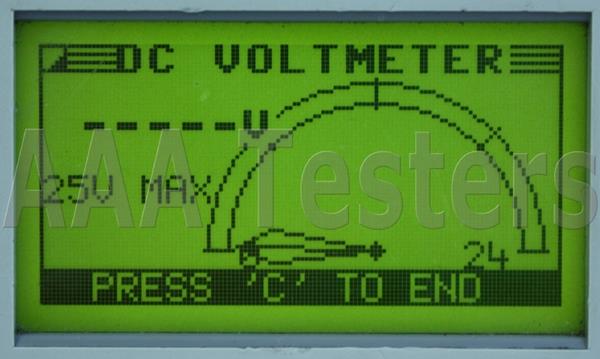

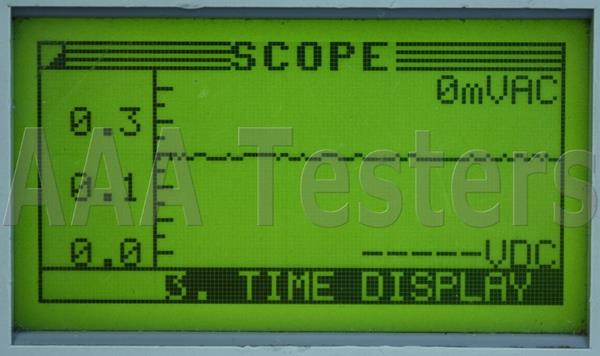

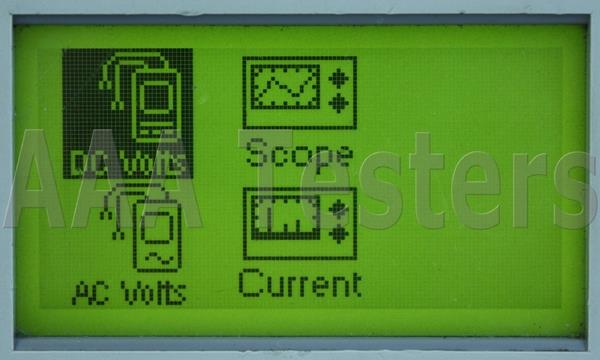

- Versatile multi-meter function allows for the measurement of AC & DC Voltage and Current. Scope mode displays AC ripple current and more.
- Data on 12 battery manufacturers pre-loaded to expedite testing and record-keeping process.
- ULTRA stores over 250 pre-established reference/benchmark values to assist in the development of battery pass/fail thresholds.
SPECIFICATIONS:
| Model Number: |
CTU-6000 |
| Applications: |
Tests individual lead acid cells or monoblocs (up to 16 Volts) in any
common configuration, approximately 10-6000 Ah. |
| Voltage |
1.5 - 20.0 Volts DC |
| Conductance: |
100 - 19,990 Siemens |
| Test Data Storage: |
500 string locations of 480 test results stored internally |
| Accuracy: |
+ 2% across test range |
| Voltmeter Resolution: |
5 mV |
| User Programmable Functions: |
• Preset values for over 250 battery types
• Low voltage alarm setting
• Low conductance warning
• Low conductance failure
• Test mode (push button/auto start)
|
| Calibration: |
Auto-calibration prior to every test, no future calibration required
|

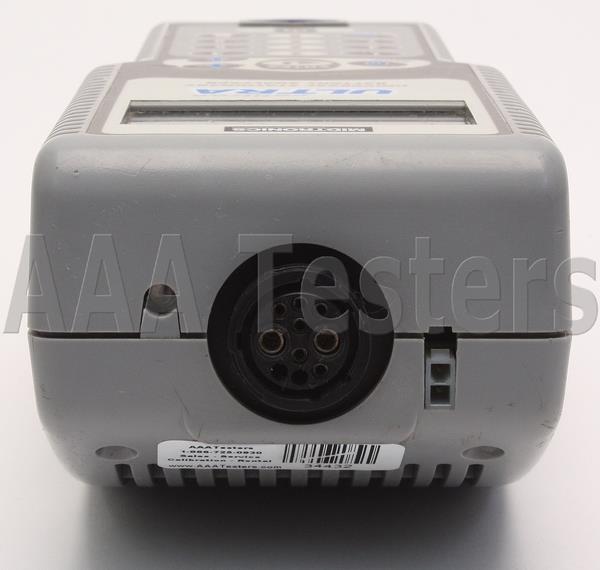

Connectorized Test
Cable Options:
|
• Dual contact clamps
• Dual contact probes
• Custom cables by quotation |
| Power Requirements: |
9.6V, 1600mAH, NiMH Internal swappable battery & charger |

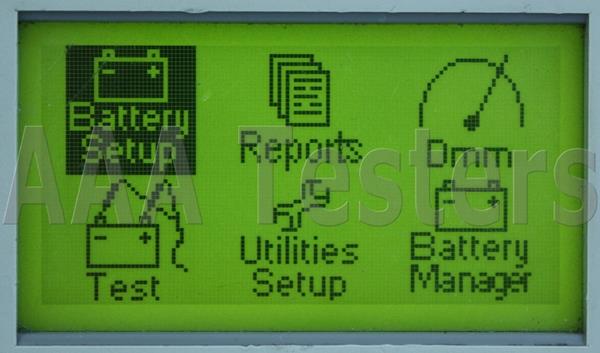

| LCD - FSTN |
2.619 in x 1.309 in, 128 x 64 pixels, 40 degree viewing angle, contrast ratio 8, Green LED backlight |
| Keypad: |
Stainless-steel dome, polycarbonate overlay, 1,000,000 actuations |
| Data Transfer: |

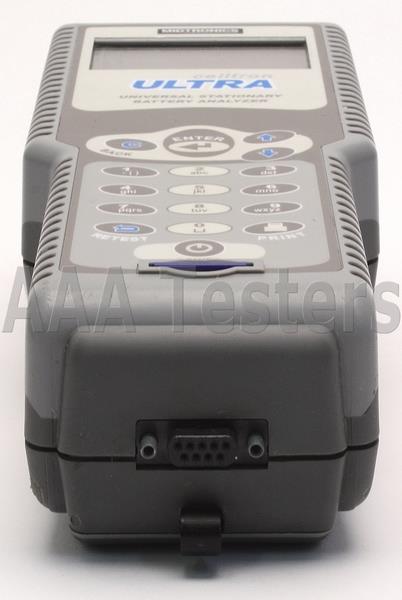

Infra-red HP protocol, Infra-red, half-duplex IRDA protocol, RS-232 printer, Secure digital card |
| Environmental Operating Range: |
0 to +40°C, 95% relative humidity,
non-condensing |
| Storage Temperature: |
-20 to 82°C |
| Over Voltage Protection: |
• Auto-reset disconnect
• Reverse polarity protected |
| Housing Material: |
Acid resistant ABS plastic santoprene overmold |

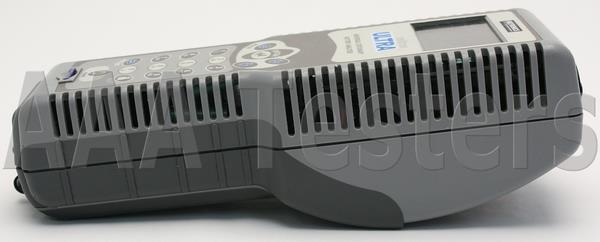

| Analyzer Dimensions: |
11 in x 4 in x 3 in
280 mm x 105 mm x 80 mm |
Analyzer Weight:
|
2.6 lb |
For full Midtronics CTU-6000 product specifications, please click here: Midtronics CTU-6000
|
|
|
|
