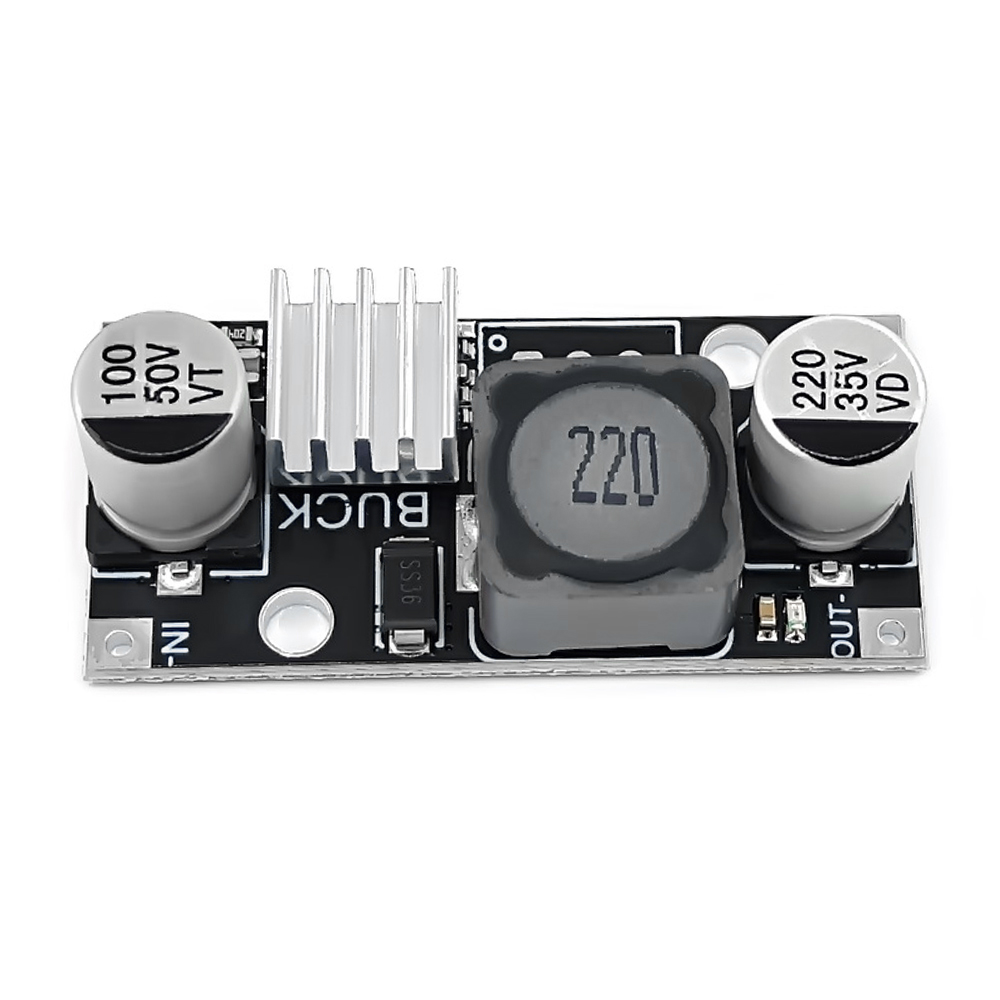

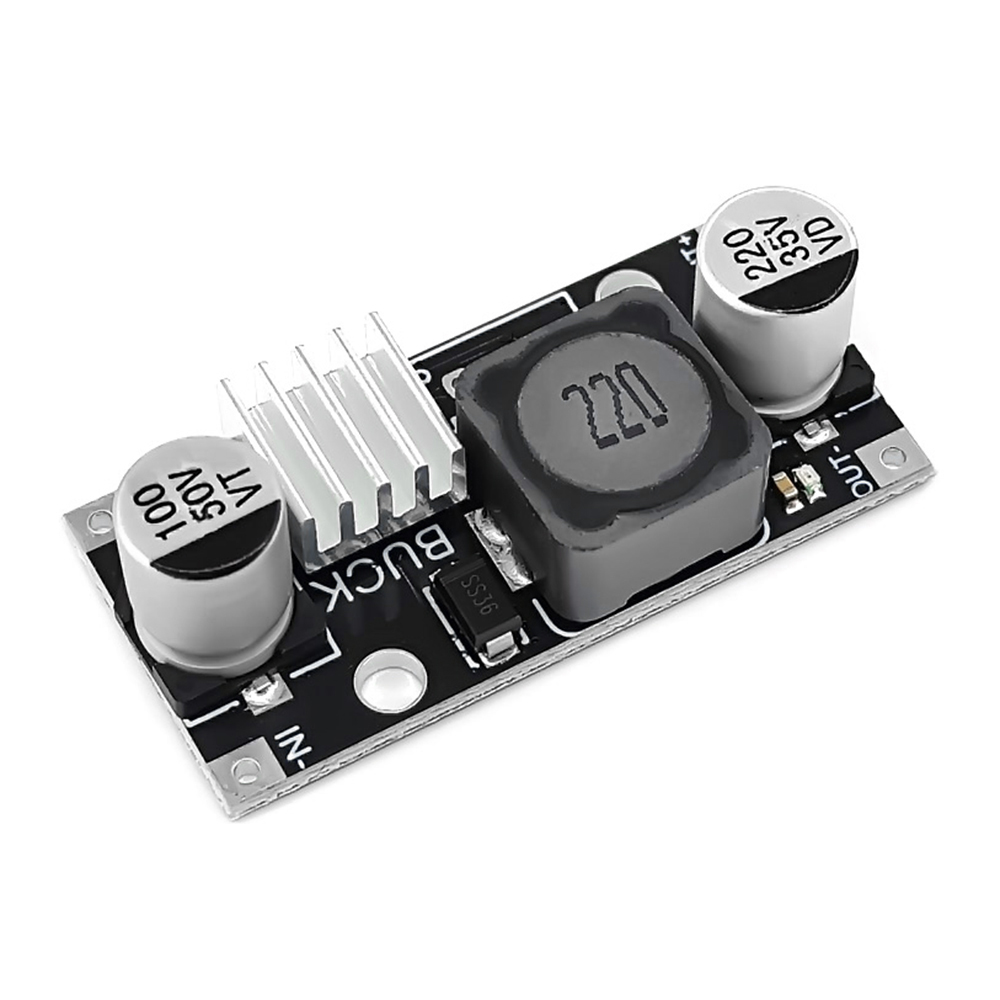

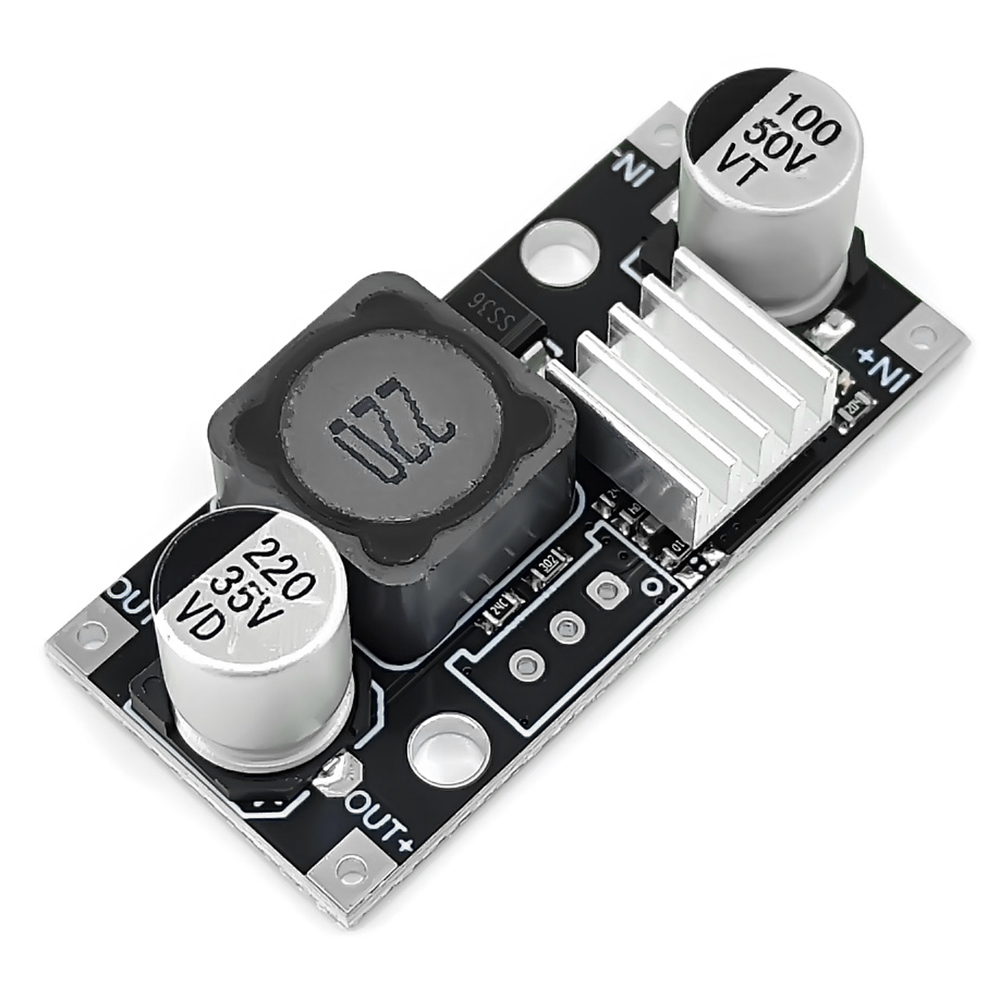

Product View
Detail
Features:

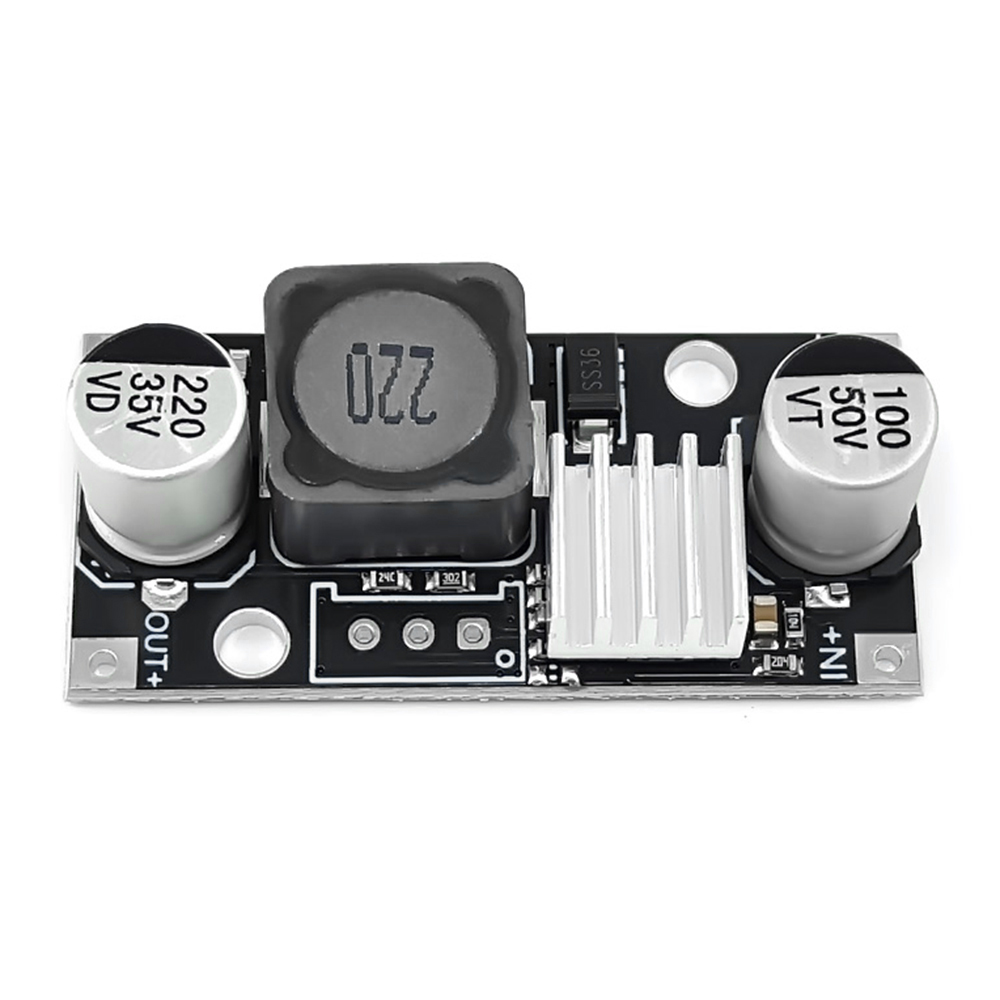

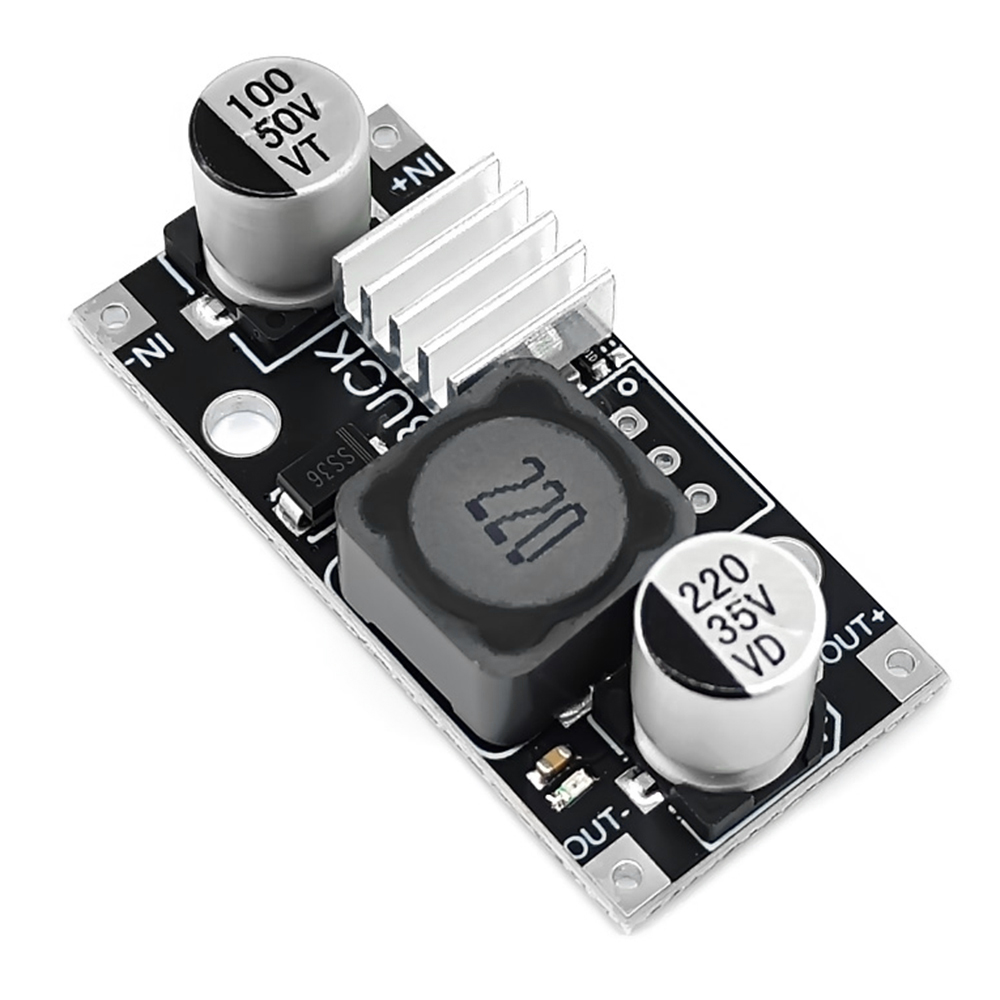

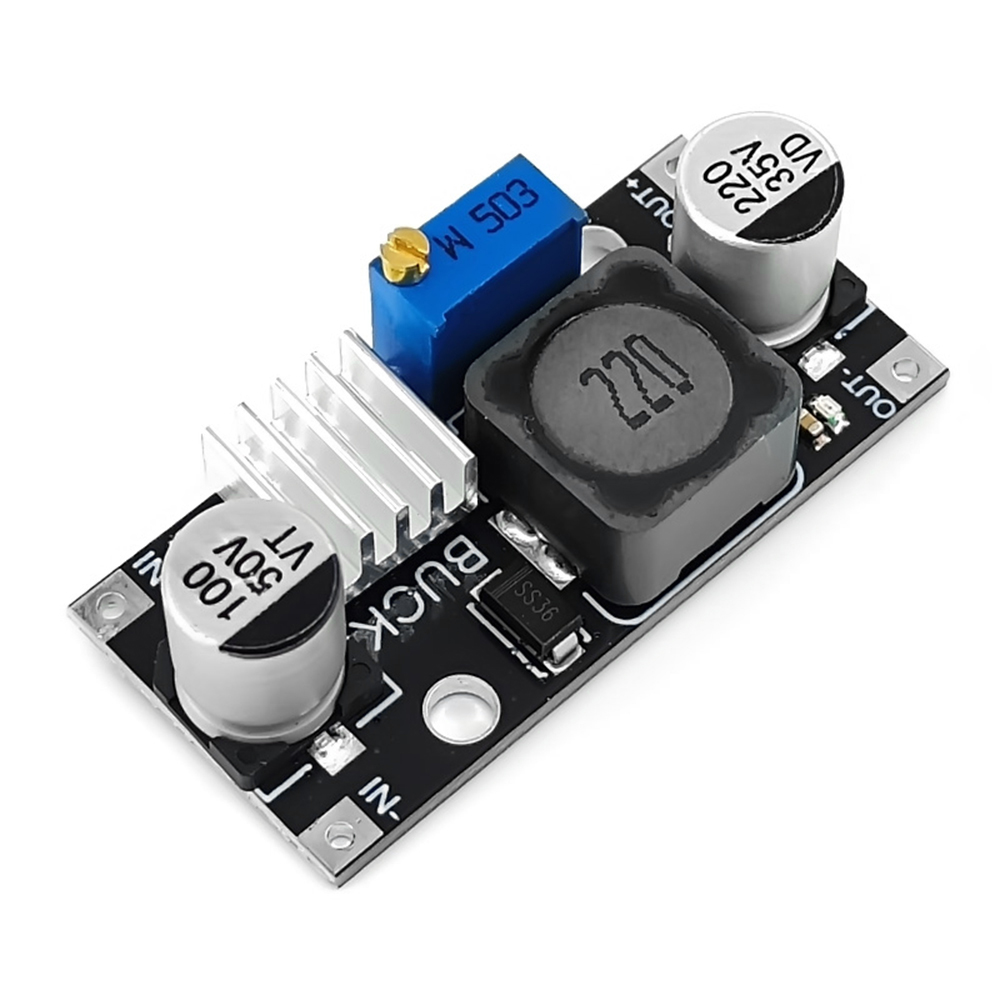

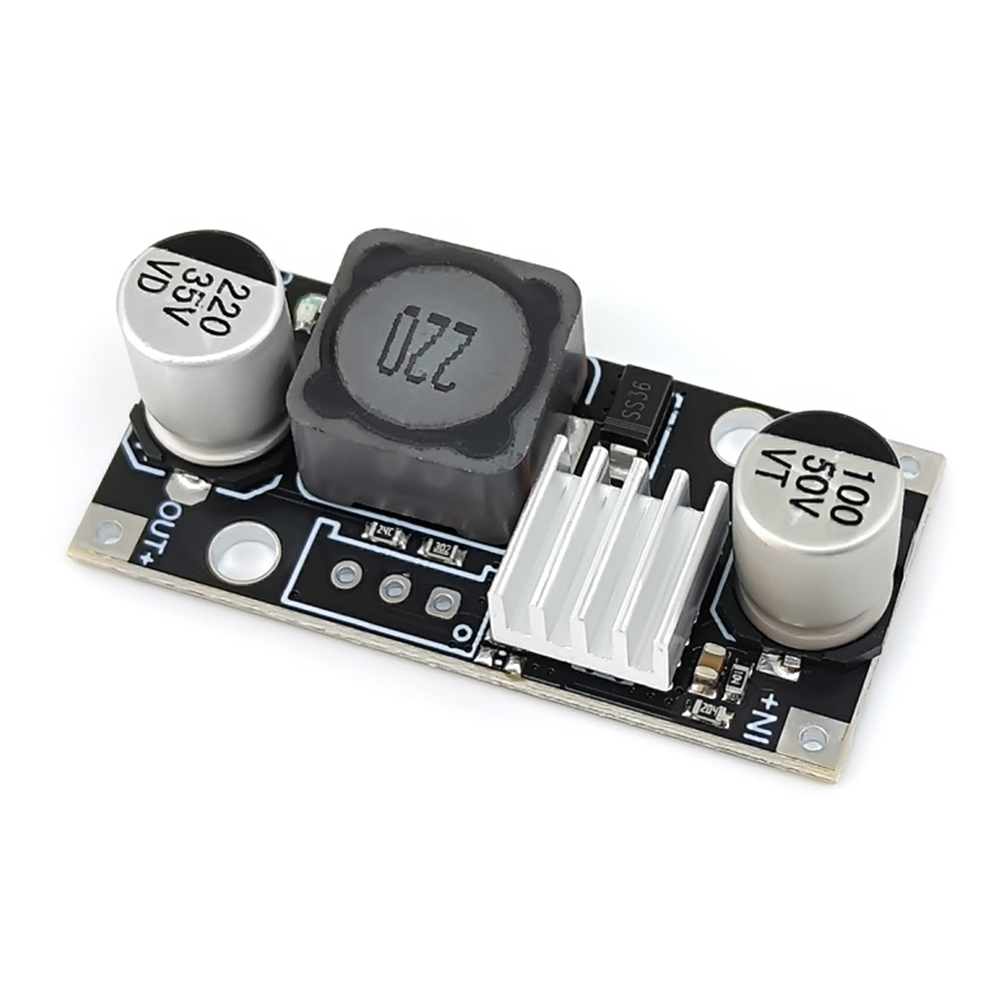

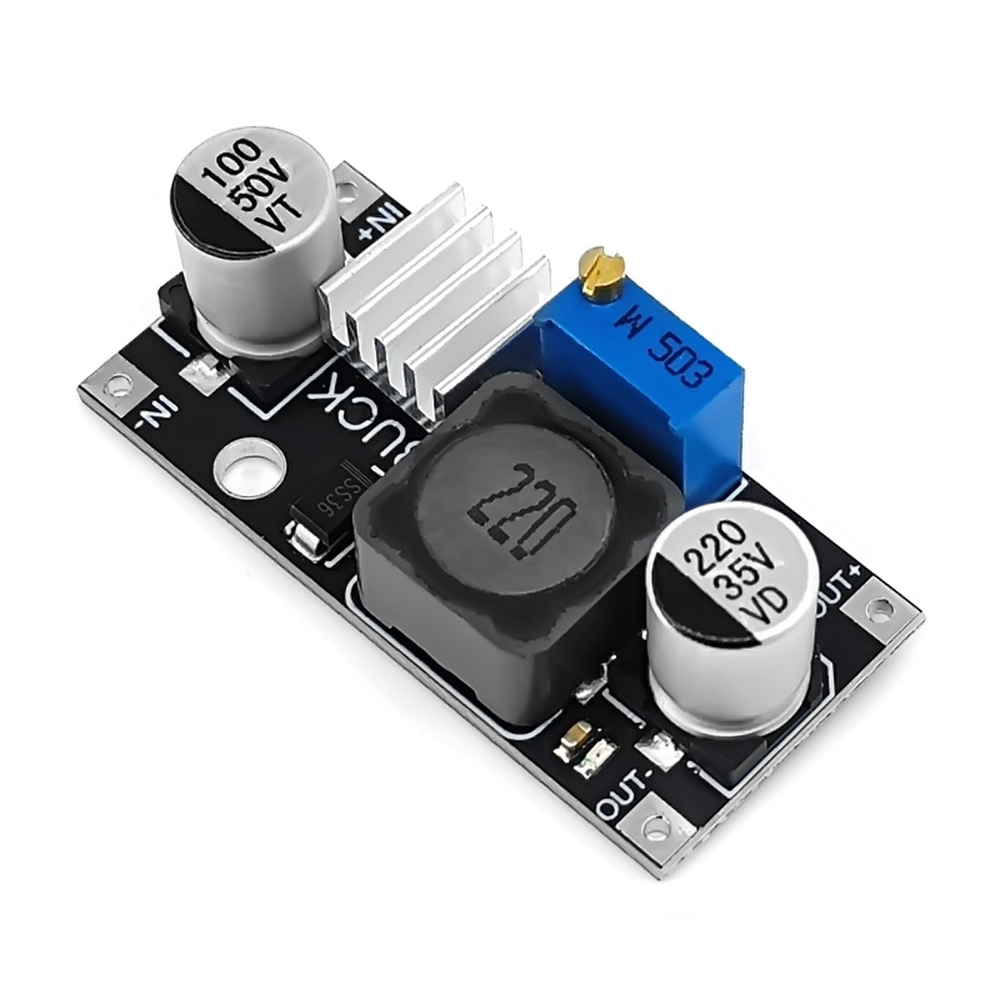

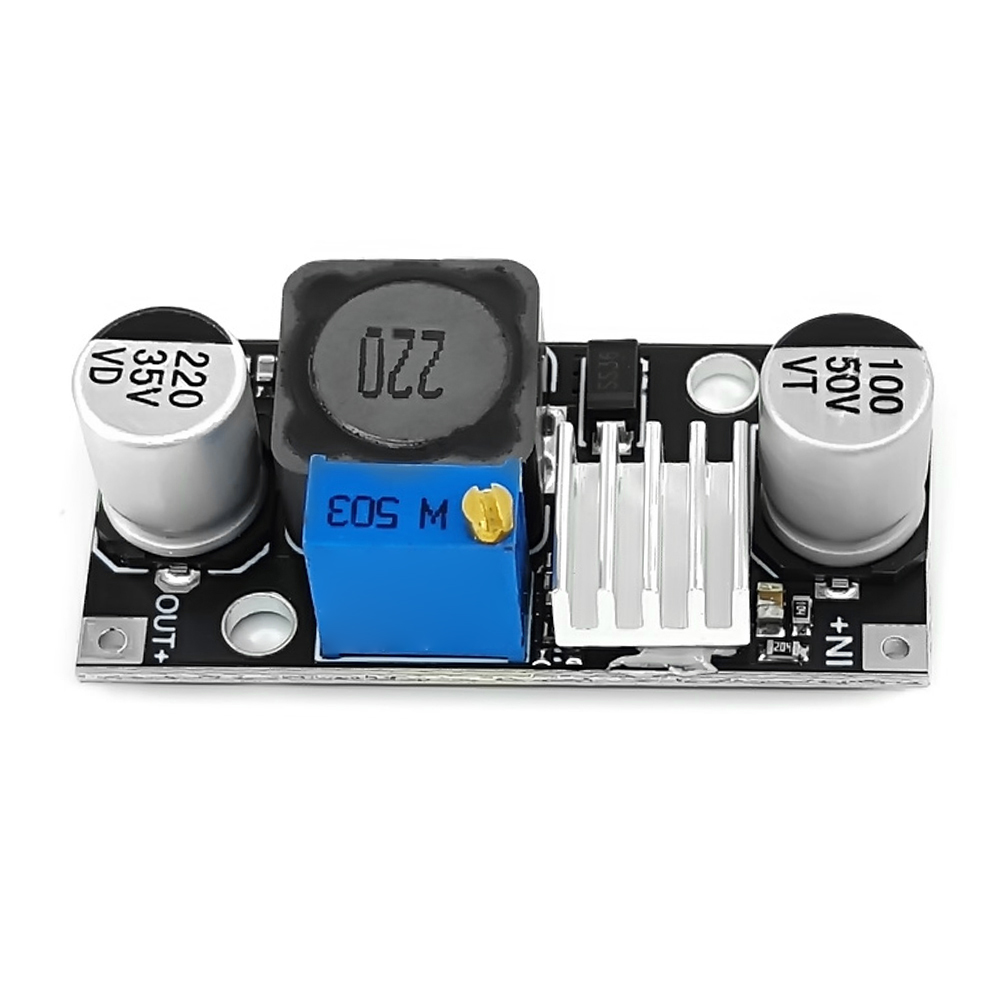

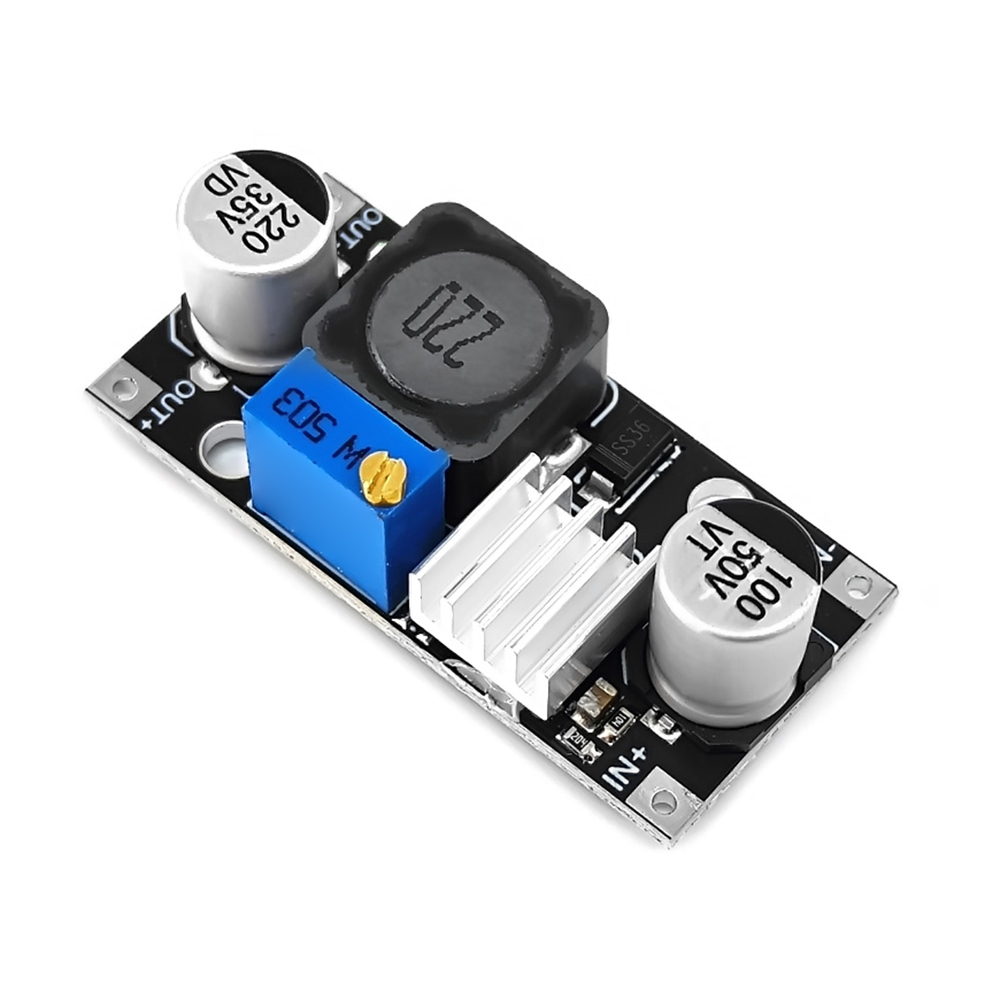

1. This product is an efficient and low ripple voltage reduction module that uses original chips, supports a maximum output of 3A, and can continuously output 3A.
2. The product has high efficiency, can be smaller in size, can achieve lower heat generation, and can continuously output higher currents.
3. The module adopts low resistance MOS, which has good performance and smaller voltage difference. The 500KHZ frequency low ripple ceramic capacitor combined with electrolytic capacitor filter outputs low ripple.
4. We have put in a lot of effort in product design, materials, and PCB technology, so that this module can achieve impressive parameters and functions in a very small volume.
5. High conversion efficiency, up to 95% conversion efficiency, capable of continuously outputting 3A current or continuously 60W.
Parameter:
Input voltage: 6V-40V (maximum 40V)
Output voltage: 3.3V, 5V, 9V, 12V, 24V, 2.5-26V adjustable
Pressure difference: Input and output require a pressure difference of 0.7V or more
Current output: 3A (maximum), capable of continuous current output of 3A
Power: 60W
Static current: 1mA
Conversion efficiency: up to 95%
Frequency: 500KHZ, low ripple frequency
Protection: Output short circuit protection
Working temperature: -40 ℃ to+85 ℃
Output indicator light: with
Size: 40 * 19mm; Board thickness 12.5MM (potentiometer 14MM), two screw apertures 3.1MM

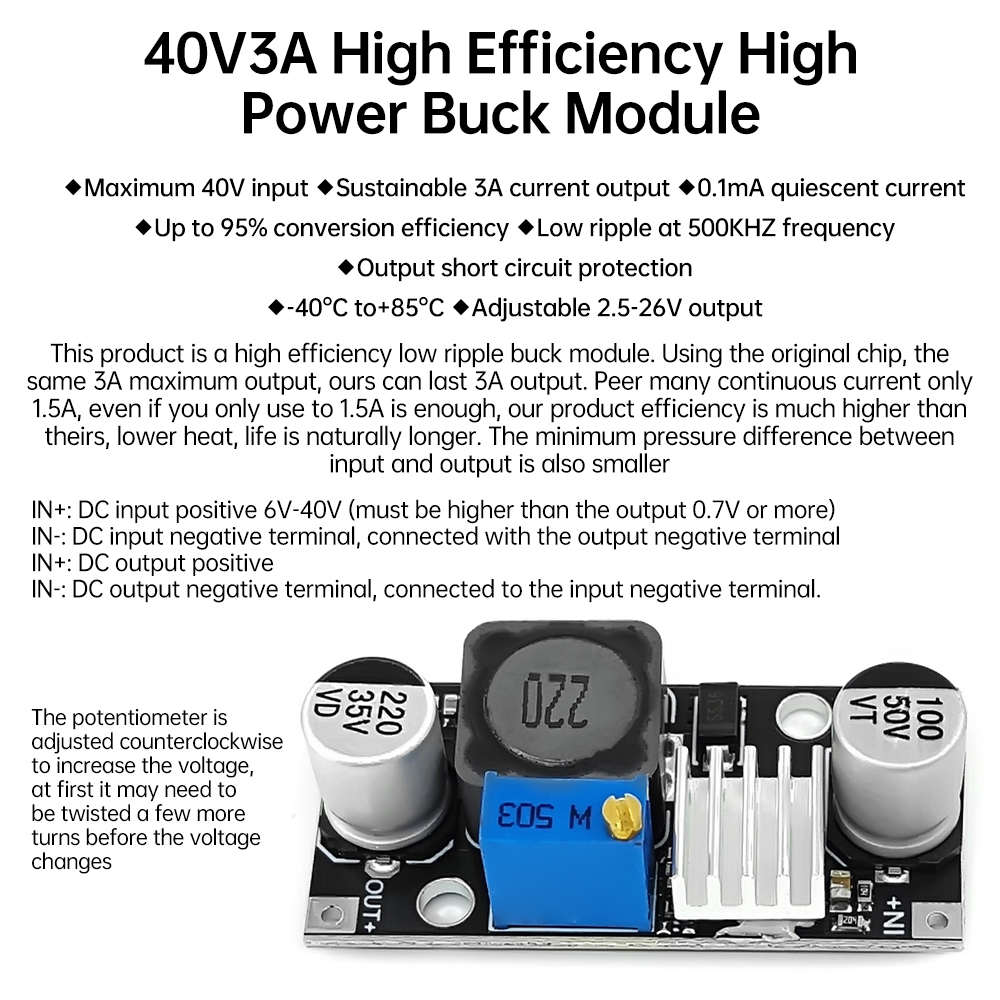

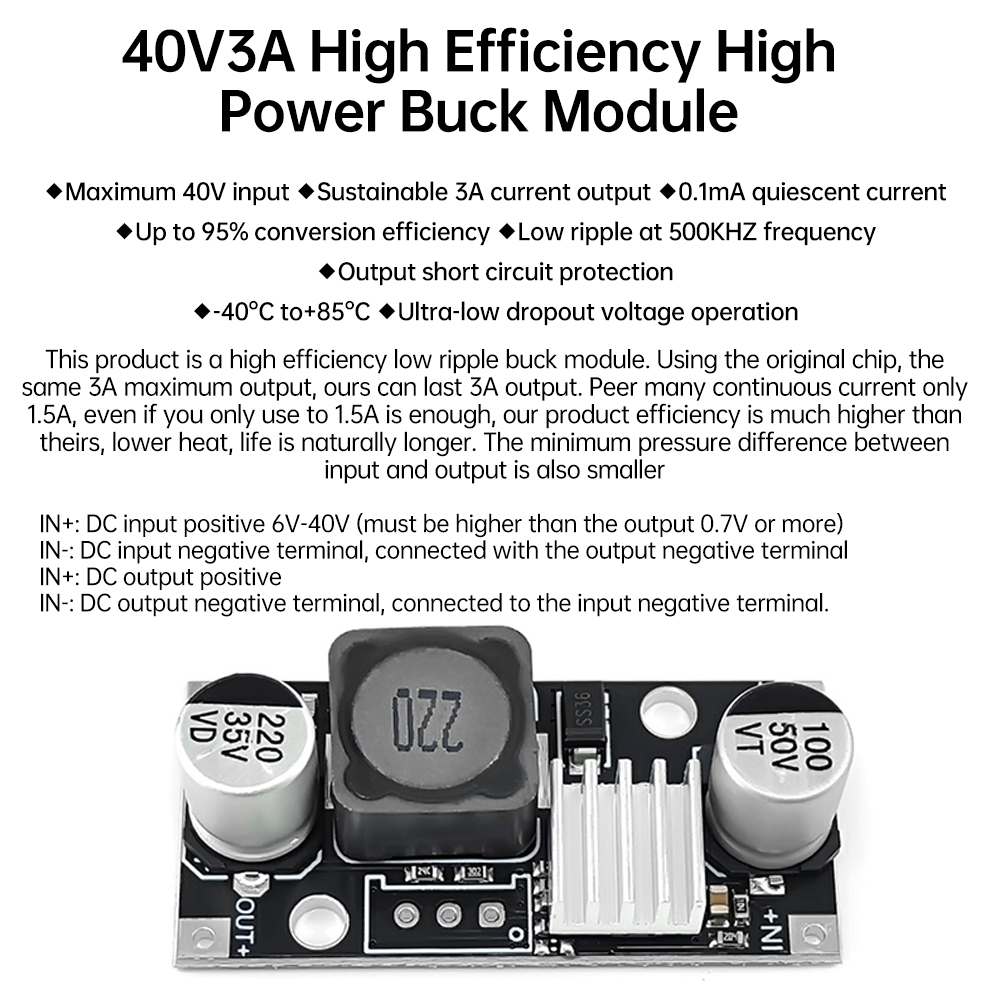

Module interface:
IN+: Input DC positive pole 6V-40V (needs to be higher than output 0.7V).
IN -: Input DC negative pole, connected to output negative pole.
OUT+: Output DC positive pole.
OUT -: Output DC negative pole, connected to input negative pole.
Instructions for use:
1. The module has a very small volume and limited heat dissipation area. High power output heat generation is a normal phenomenon. We use high-quality materials, so there is no need to worry about heat generation affecting the lifespan.
2. The input and output voltage require a voltage difference of more than 0.7V to achieve voltage reduction.
Package include:
1X Module
