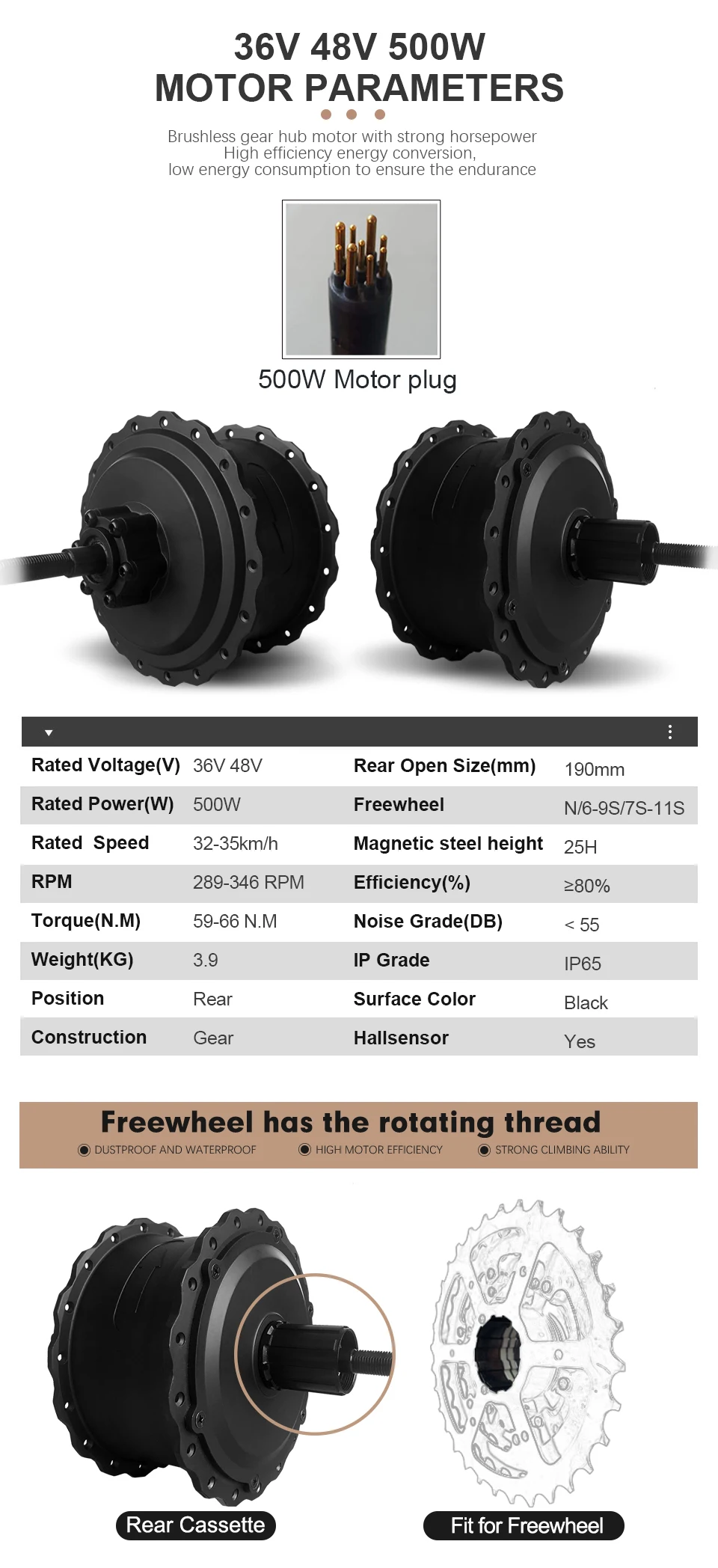

500W Rear Cassette Hub Motor
●Construction:Gear drive
●Rated Voltage (DCV): 36/48V
●Rated Power (W): 500W
●Rated Speed(KM/H): 32-35km/h
●Rated Speed(rpm): 289-346RPM
●Torque(N.m): 59-66N.M

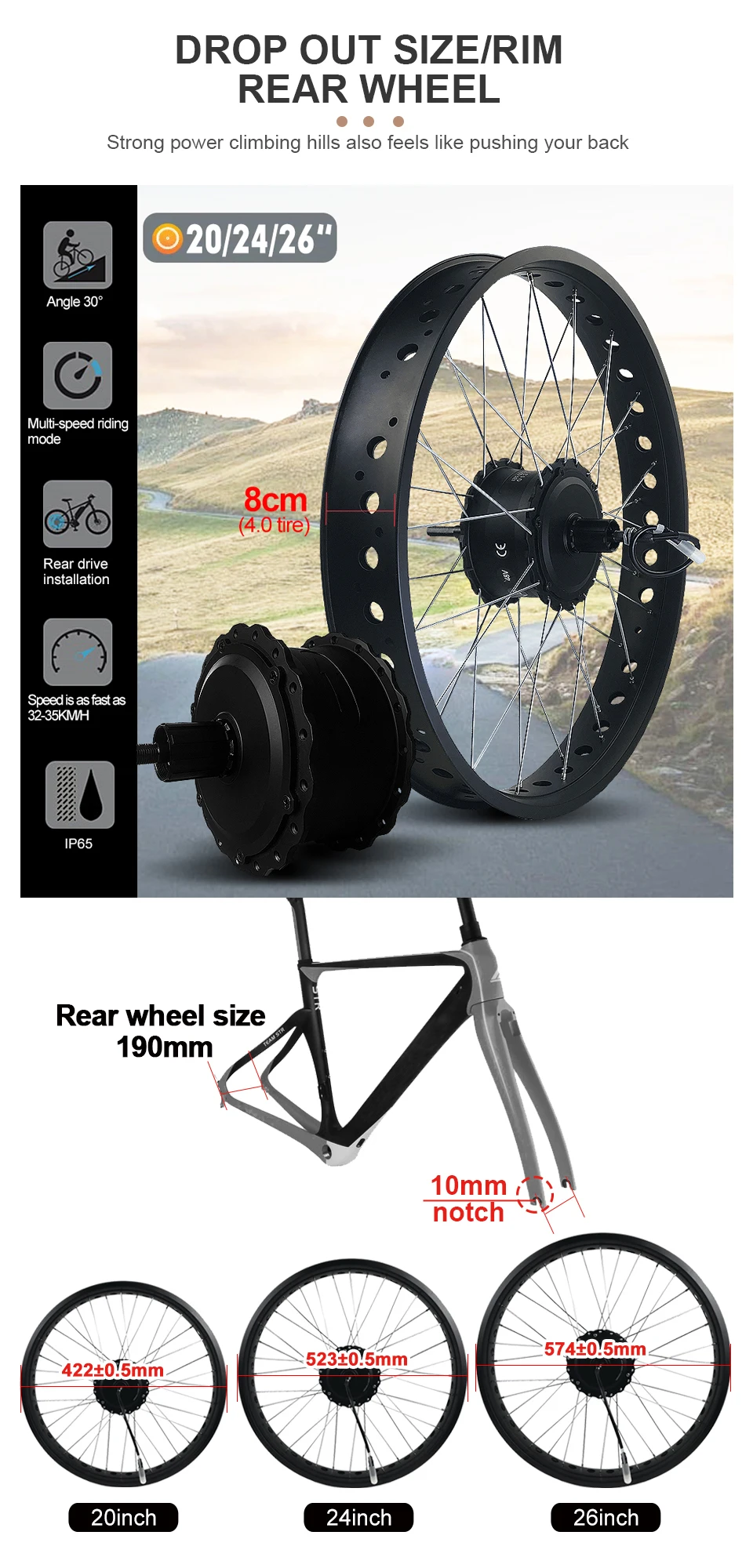

●Fork size(mm):190mm
●Installation: Rear
●Certification: CE
●Wheel Diameter (Inch): 20/24/26inch---Optional

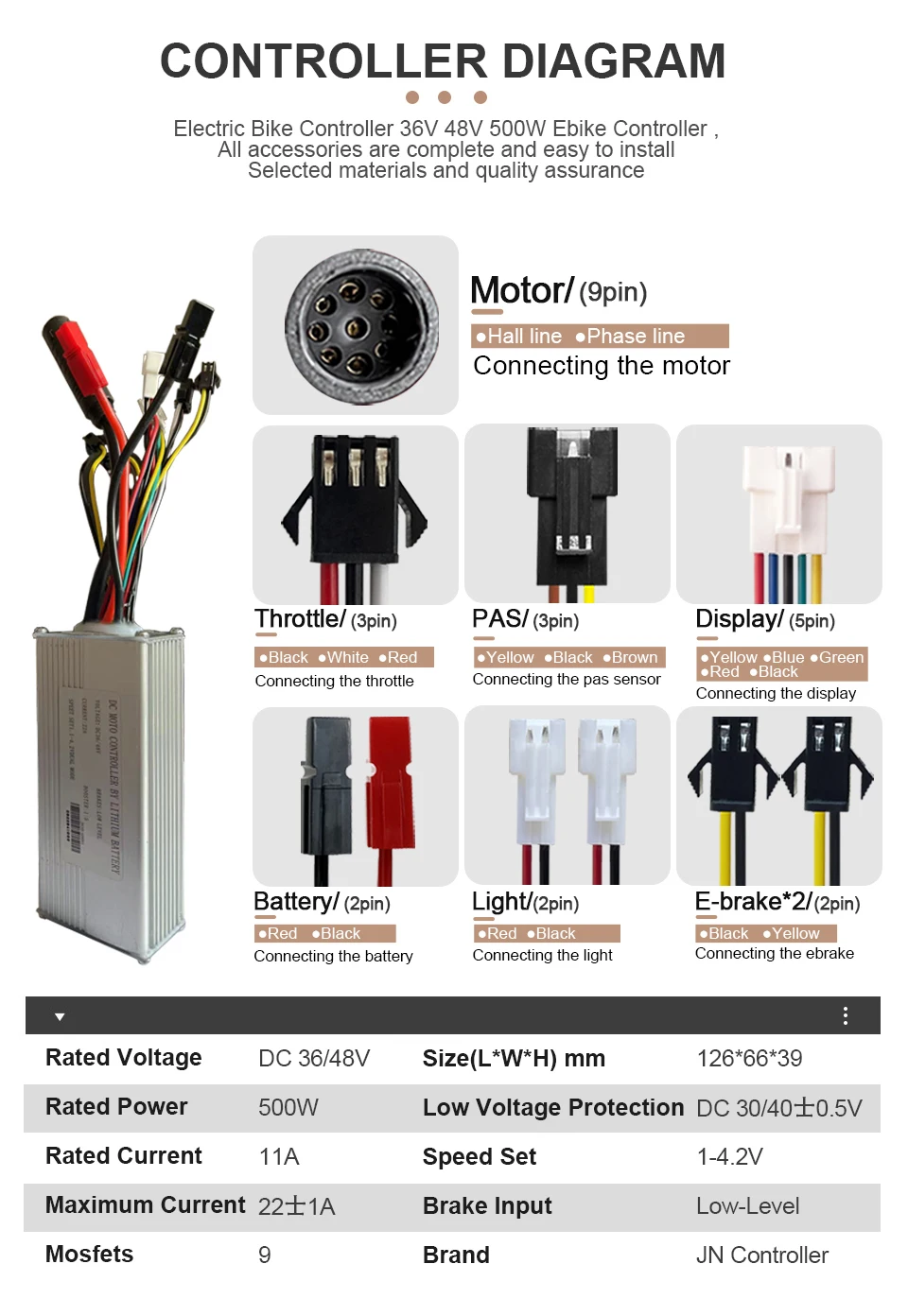

●Maximum current: 22±1A
●Dimension: 118*52*30 mm
●Mosfets: 9 mosfets
●Weight: 243g
●Rated current: 11A
●Rated voltage: DC36V/48V
●Speed set: 1-4.2V
●Brake input: Low-Level
●Low voltage protection: DC30/40±0.5V

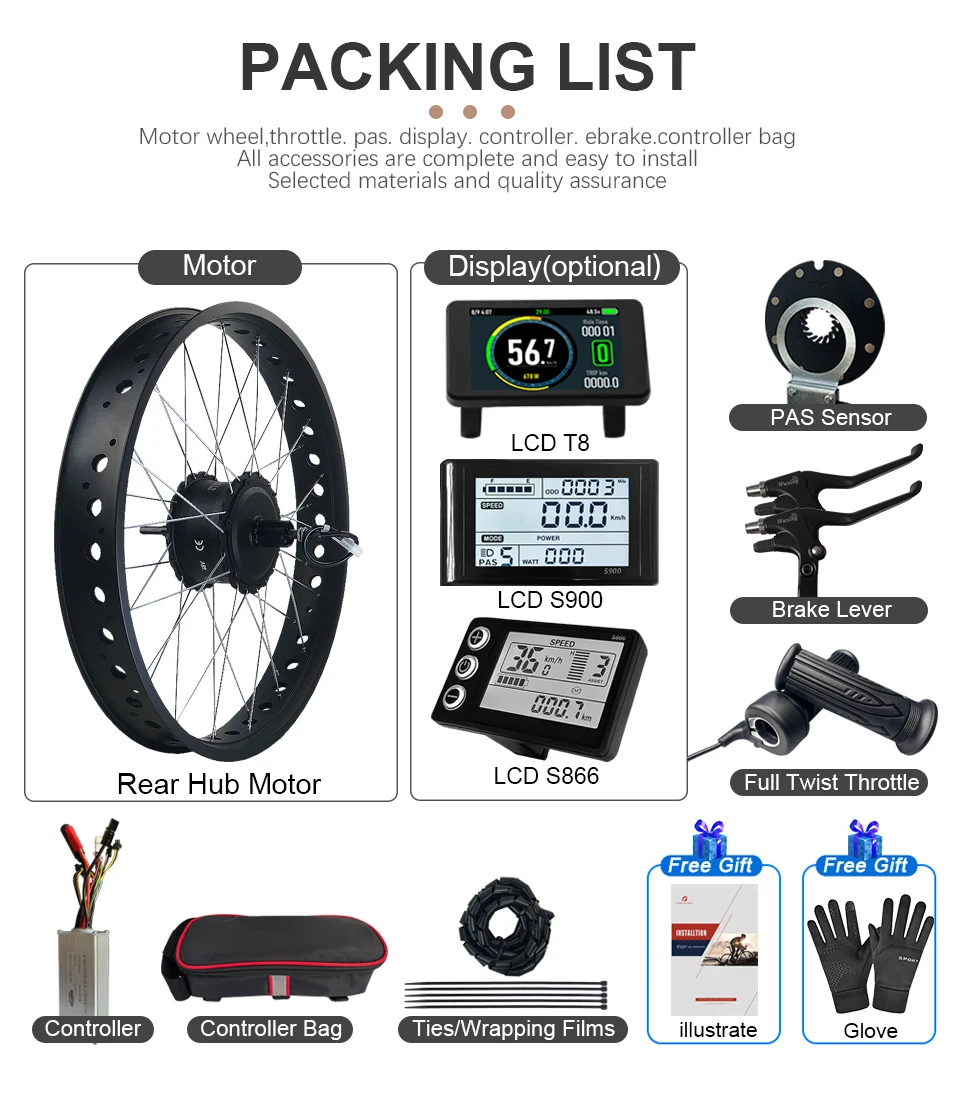

●1 PCS * 500W Rear Hub Motor with Rim and Spokes
●1 PCS * Motor Controller

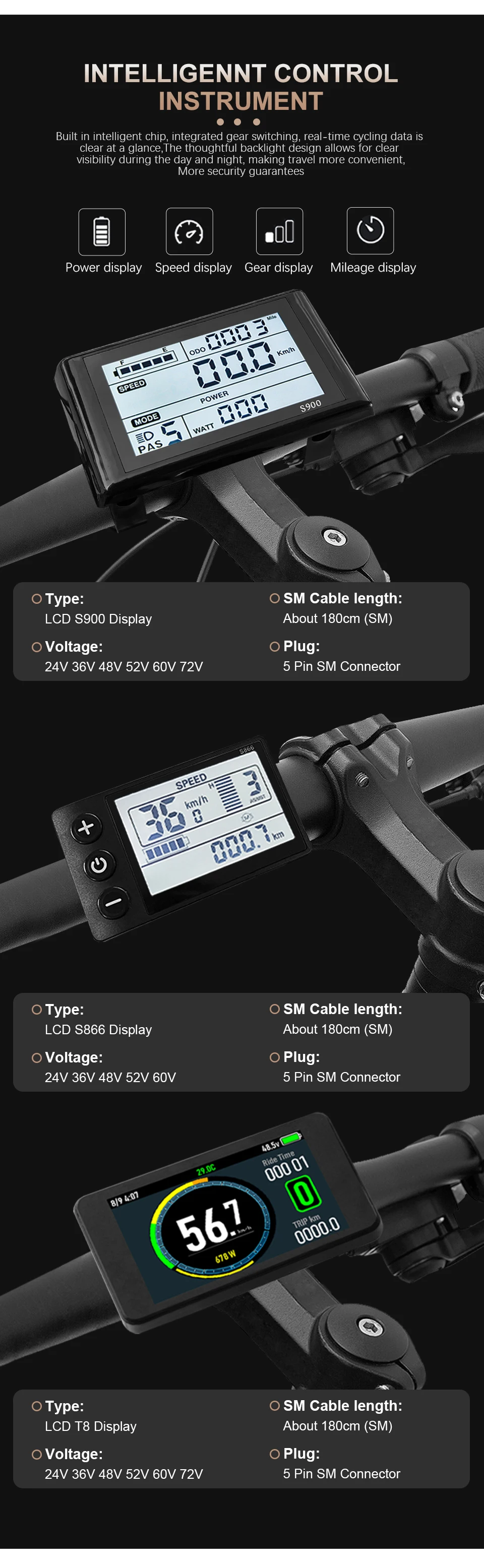

●1 PCS * Display(option)

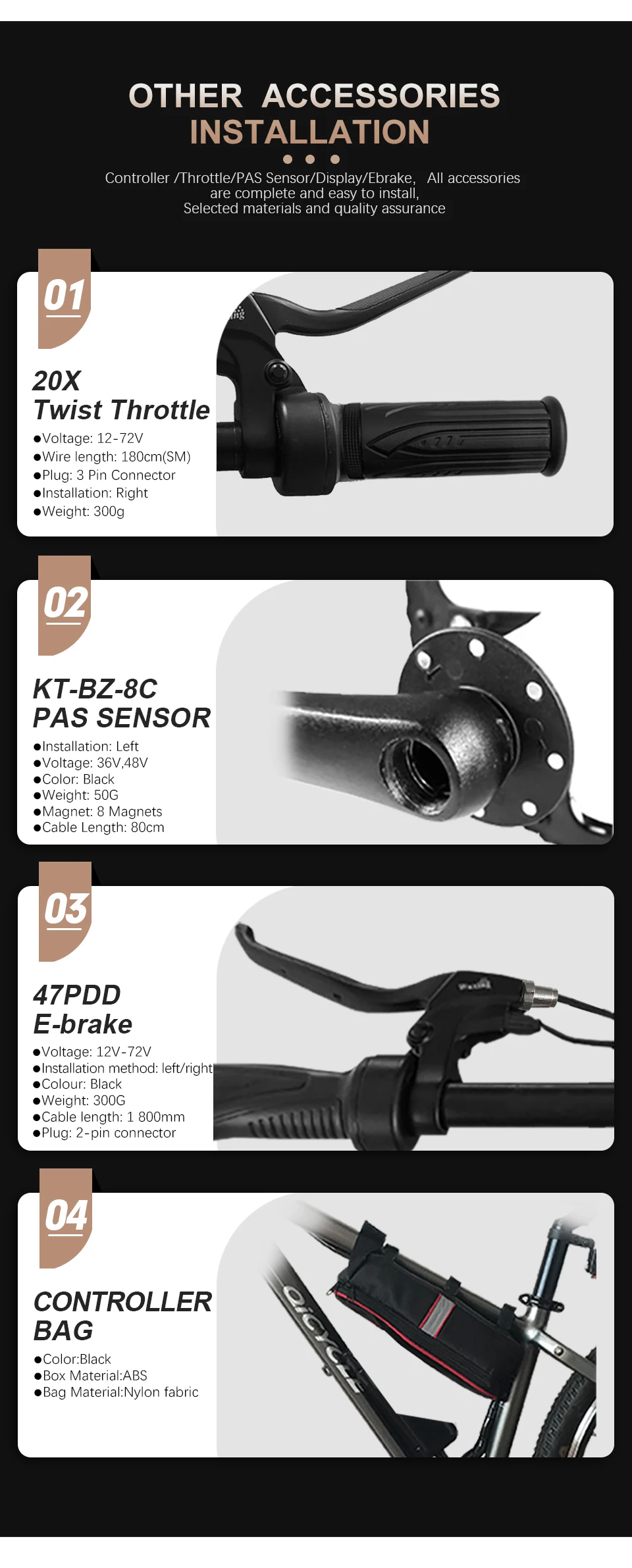

●1 PCS * Twist Throttle (We default to ship thumb throttle, it can be changed to twist throttle if you need)
●1 PCS * PAS Sensor
●1 Pair * Brake Levers(We default to shipBrake Levers, it can be changed to Brake Sensors if you need)
●1 PCS * Motor Extension Cable
Gifts: 1 * Controller Bag( not battery) +1*Install cable ties and stretch film+1*Installation Manual
