【Precautions】

•The conversion kitdoesnot include batteries

•PAS, Throttle, and E-brake in the kit are optional. If you need to replace it, or please contact us.

•Please refer to the list form for packaging products.

•All packaged goods are subject to SKU pictures and list lists

【Product Features】

This product can easily convert your ordinary bike into an electric bike.It's hundreds of doller cheaper than buying a new electric bike.It takes one person 1-2 hours to successfully convert it.We will put the installation manual in the box.And we will give you a controller bag as a gift !!!

【Packing List】

• 48V 2000W front / Rear wheel x1 (without tire)

• 50A controller x1

• Display and manual x1

• Throttle x1

• Power Cut-off Brake Levers x1Pair

• PAS sensor x1

• Gift! Zip ties and Protection line x1

• Gift! Motor extension cable x1

• Gift! controller Bag x1

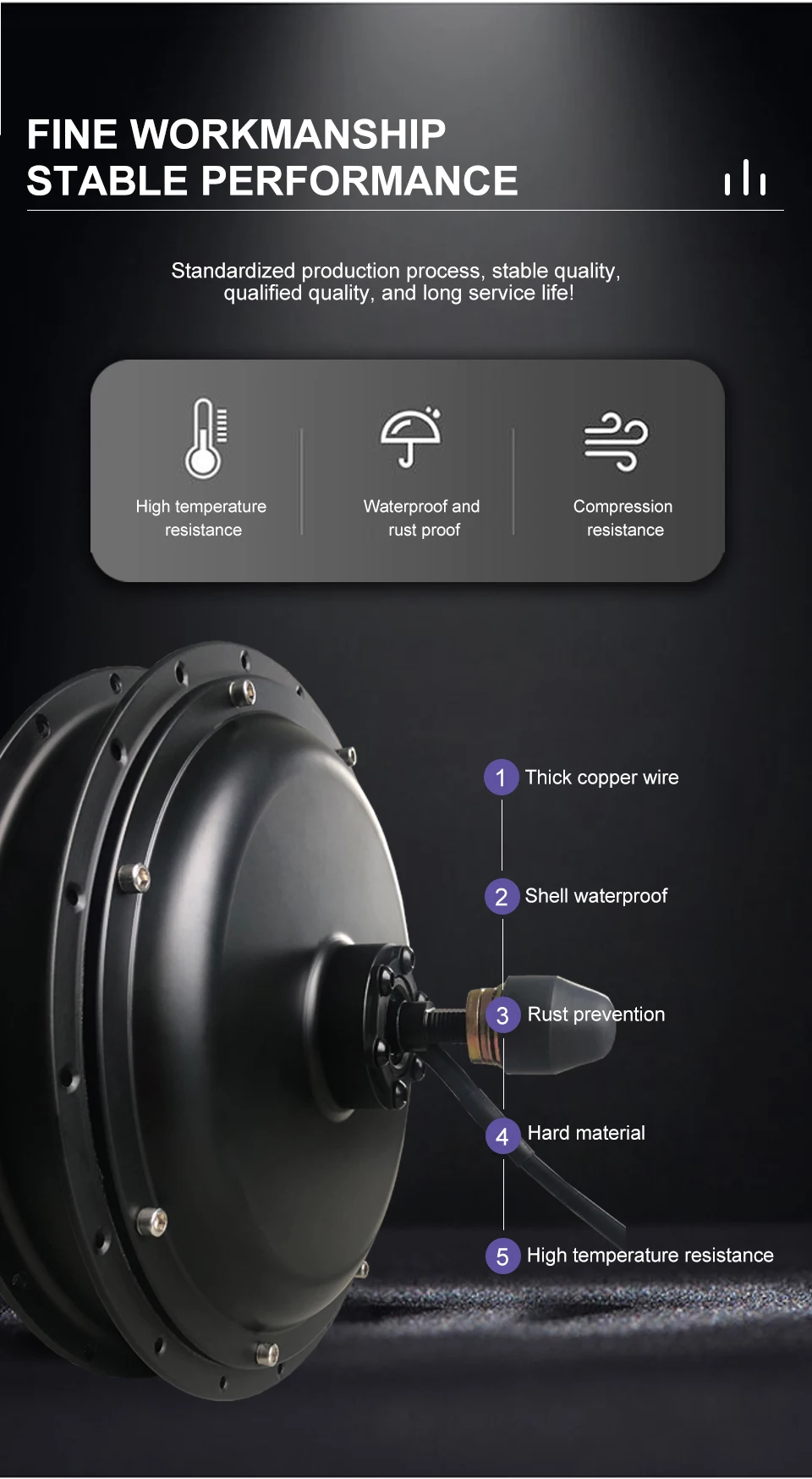

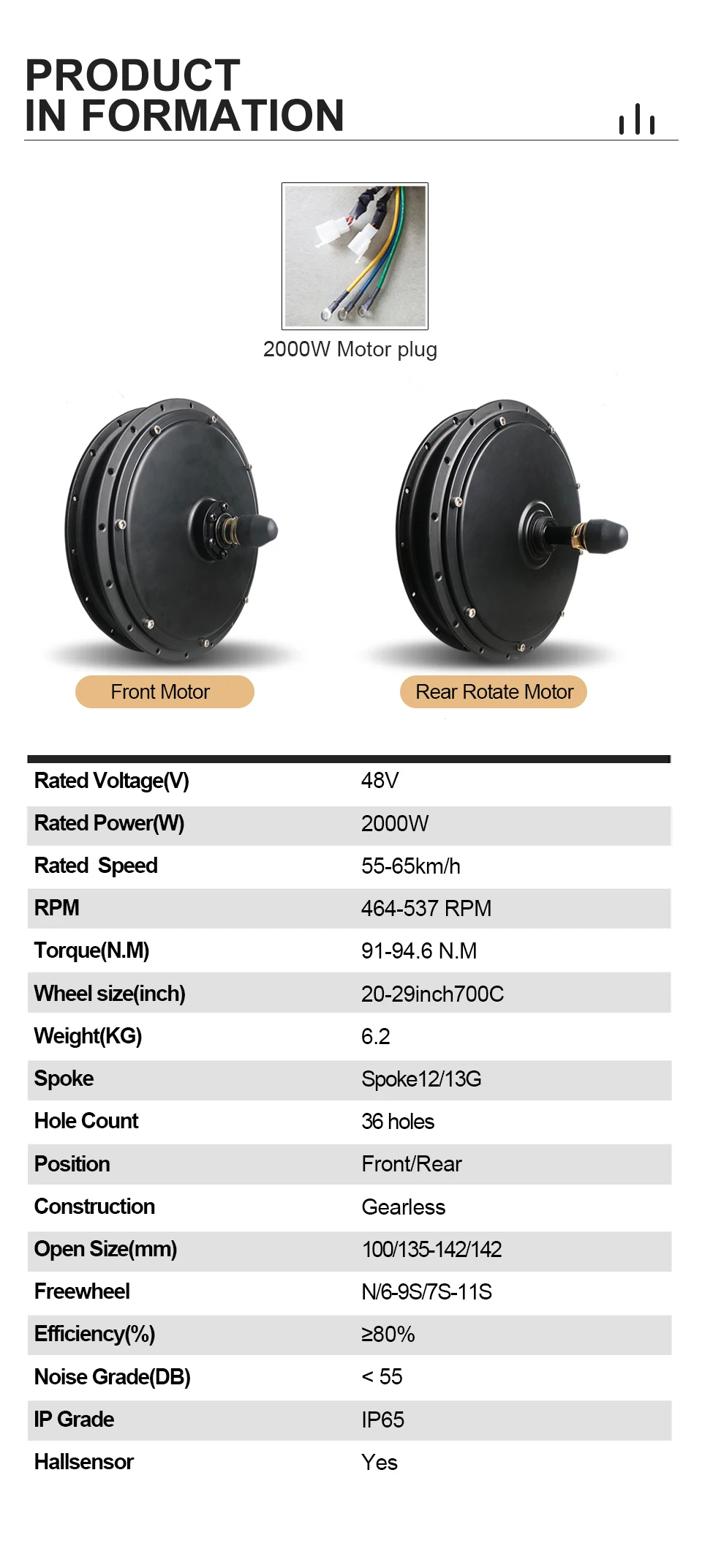

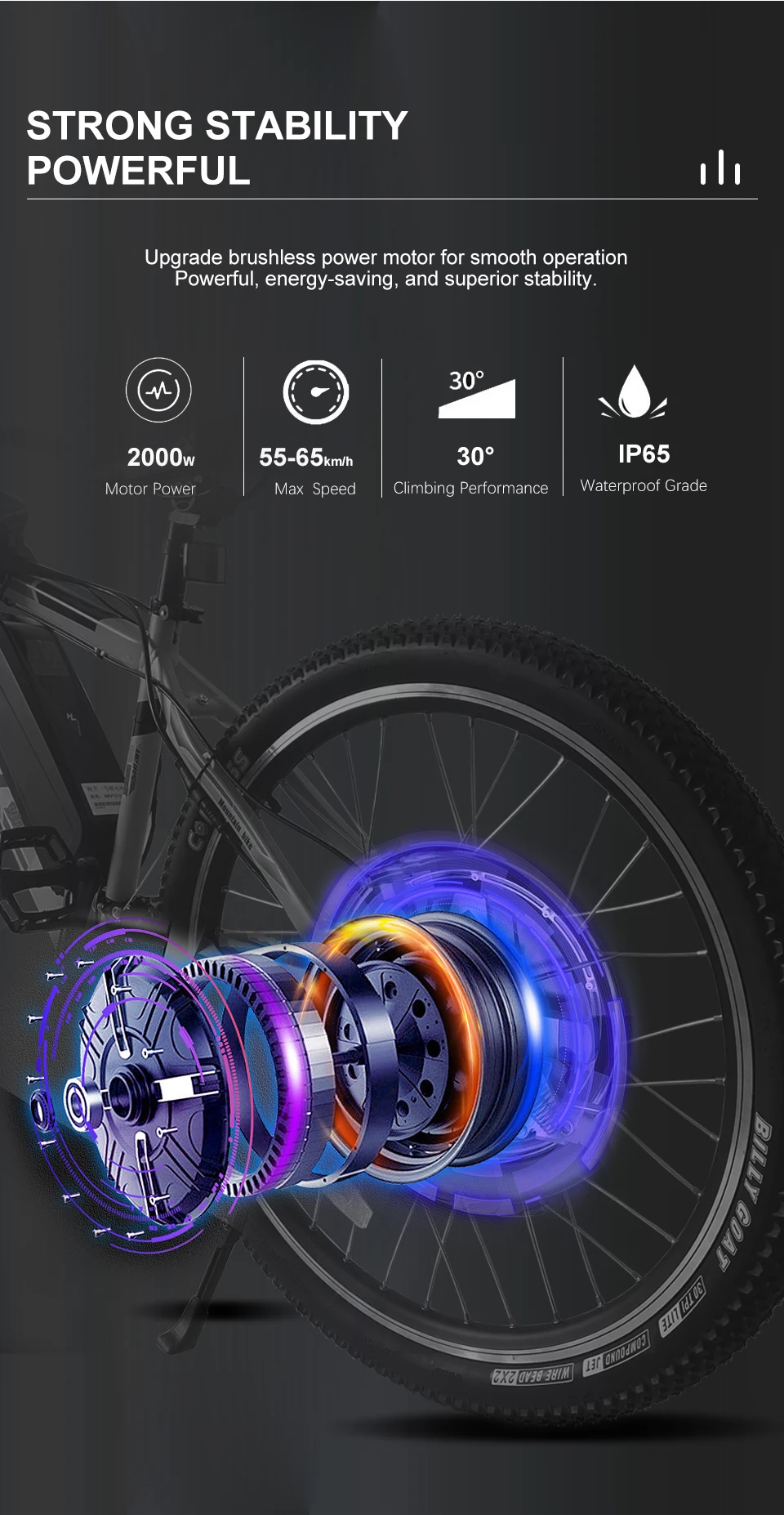

Motor：

• Rated Voltage：48V

• Rated Power：2000W

• Rated Speed：about 55-65km/h

• RPM：464-537 RPM

• Torque(N.M)：91-94.6 N.M

• Front Fork(mm)：100mm

• Rear Fork(mm)：135-142mm

• Brake Type：V/Disc Brake

• Type：Brushless gearless hub motor

• Installation location:Front /Rear wheel

• Spokedwith double-wall Aluminum alloy rim with 36 eyelets,stainless steel spokes

• Load≤200KG

• Motor cable length：200mm

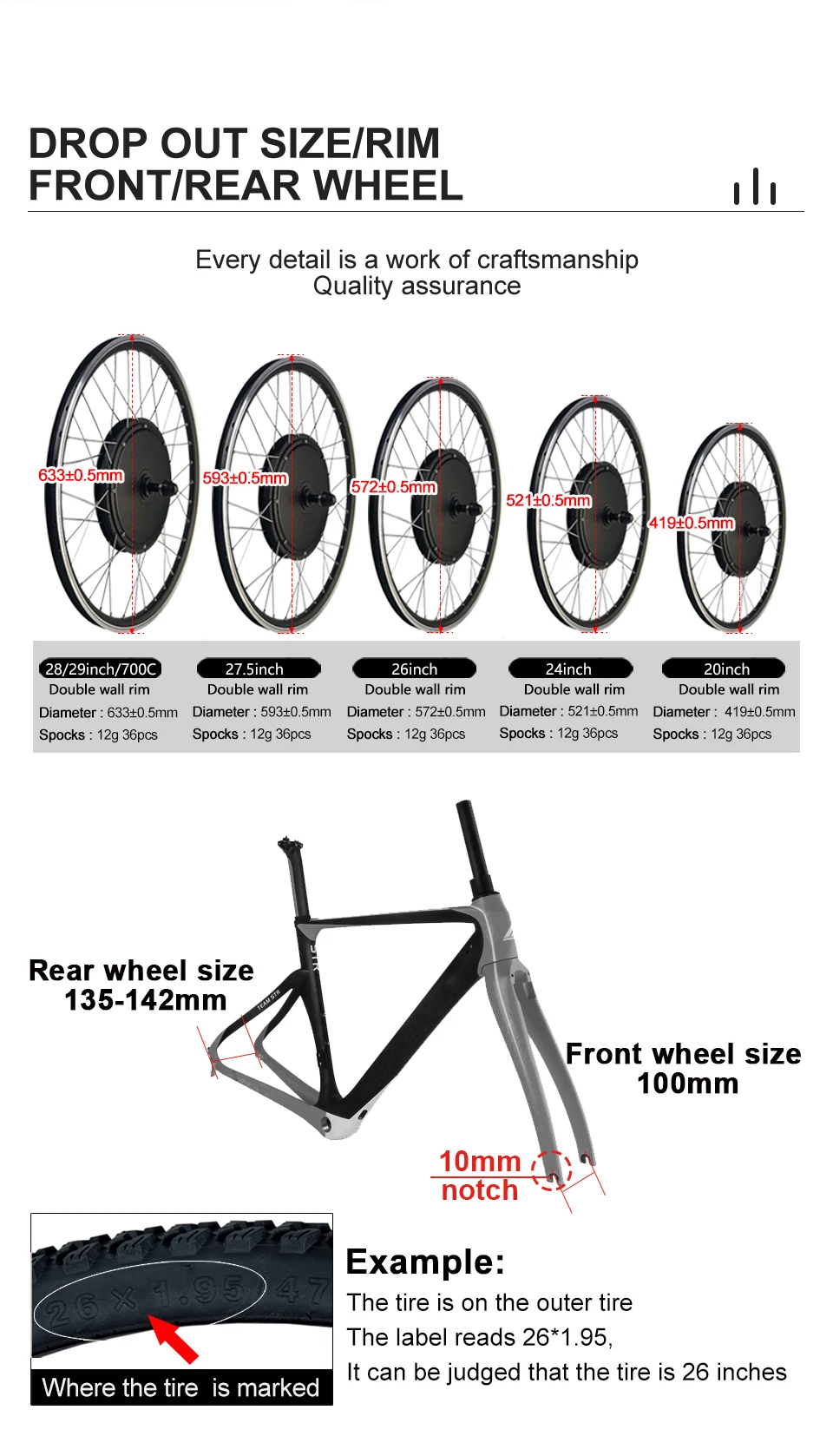

• Wheel size：20inch 24inch 26 inch 27.5inch 28inch 29inch 700C wheel

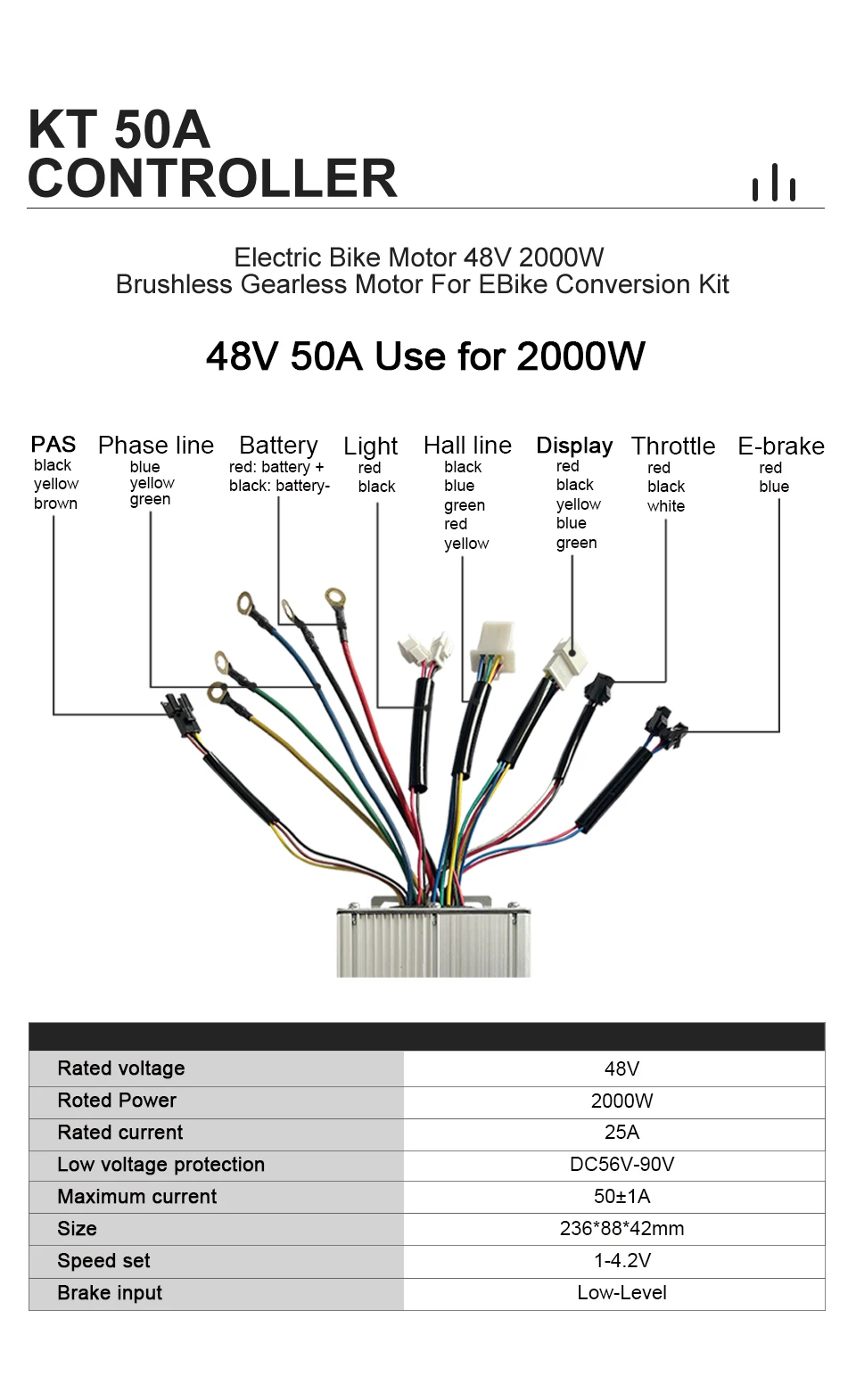

KT-Controller:

• Dimension :236* 83 * 42mm

• Weight : about 650g

• Cable length :all about 10-13cm

• Mosfets:15mosfets

• Maximum current :50±1A

• Rated voltage :DC48V

• Speed set :1-4.2V

• Brake input :Low-Level

• Low voltage protection :DC40±0.5V

PAS KT-8C (Default):

• Type:KT-8C Pulse assist sensor

• Voltage:36V/48V

• Cable Length:180cm including the connector

• Magnet :8 Magnets

• Weight :100 g

• Plug Type:3 Pin SM plug

• Color :As pictures shown

• Material:Plastic

• Installation:Left

• Adaptation:Ebike Electric Bike Bicycle

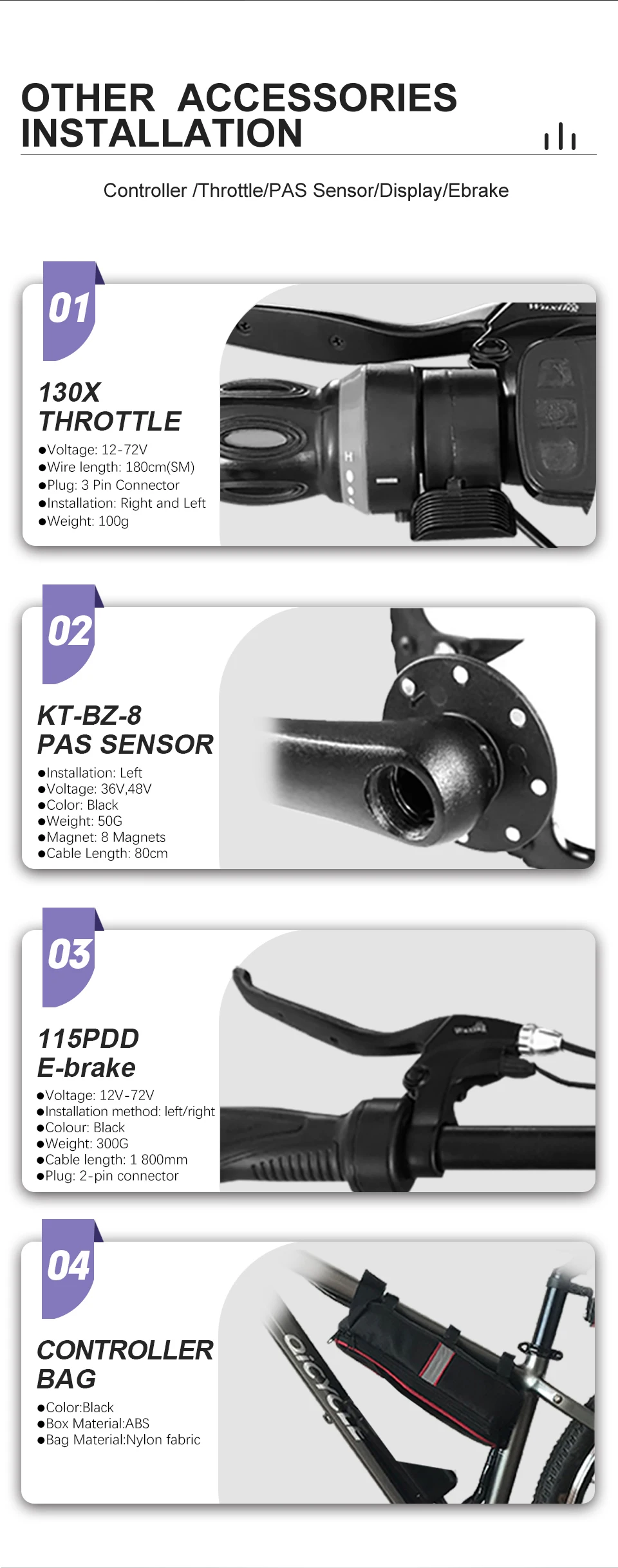

130X Throttle (Default):

• Voltage: 24V 36V 48V 52V 60V 72V

• Wire length:180cm(SM)

• Weight :100g

• Waterproof :IP76

• Plug Type:3 Pin SM plug

• Color :Black

• Installation:Right

115PDD E-Brake (Default):

• Type:115PDD E-brake Cut Off Power

• Voltage: 24V 36V 48V 60V 72V

• Cable Length:180cm (SM)

• Weight :300g

• Waterproof :IP76

• Material:Aluminum Alloy

• Installation:Left/Right

• Size:L156mm W105mm H34mm

• Plug :2 pin SM plugDisplay（Opition):

Type :KT LCD/LED/Colourful

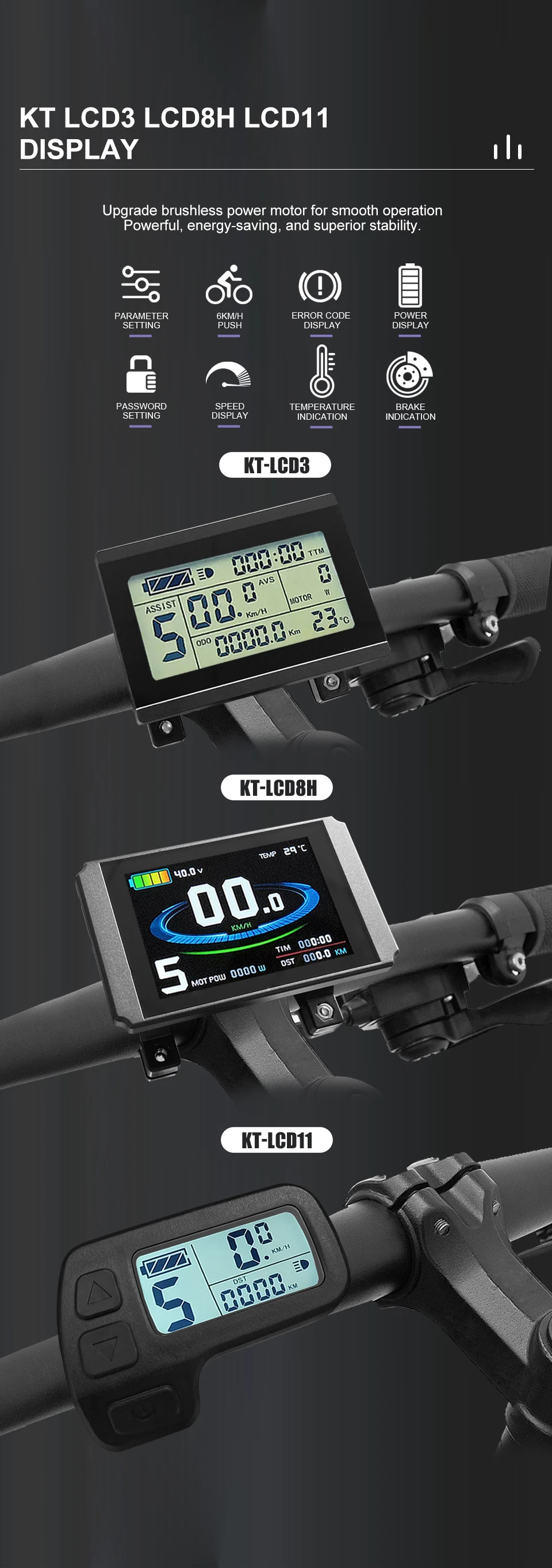

KT-Display:

• Display：LCD3,LCD4,LCD5,,LCD8H,LED900S,

• Color :Black

• Voltage :36V 48V universal

• Cable length :About 180cm(SM)

• Plug :5 Pin SM plug
