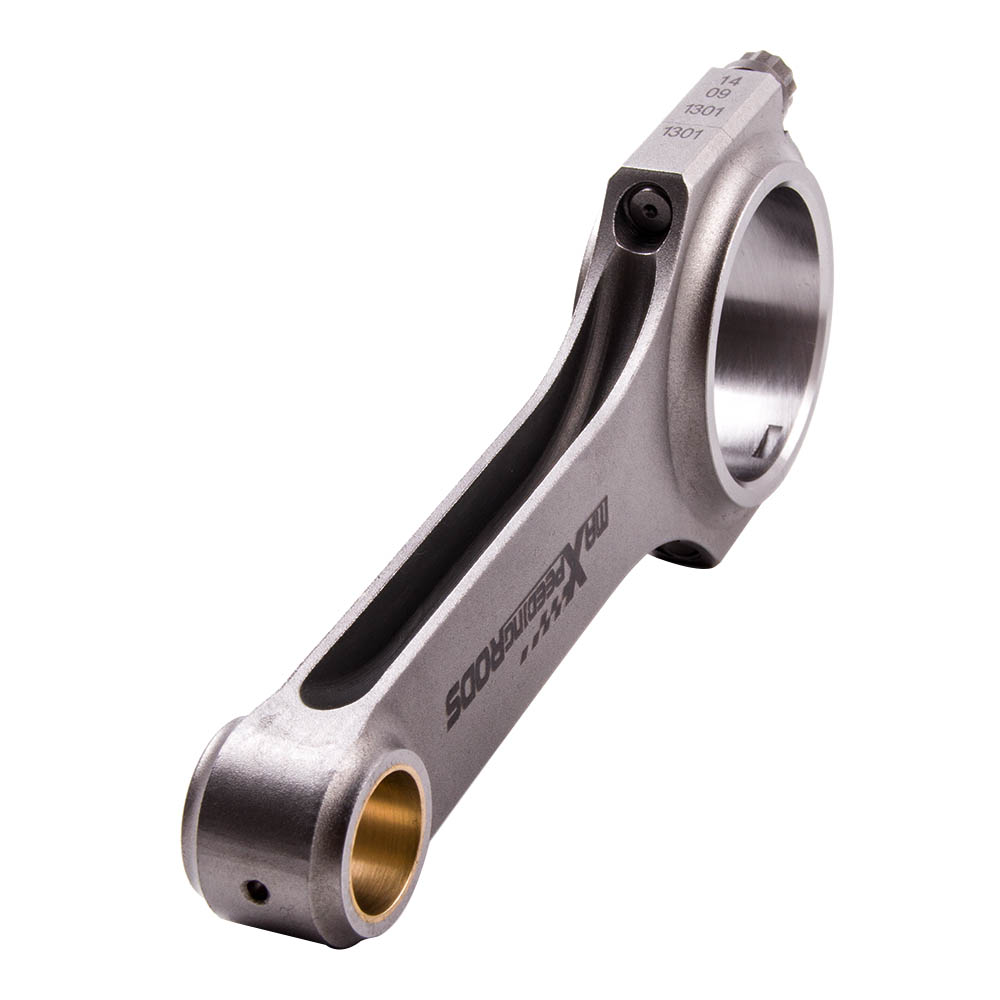

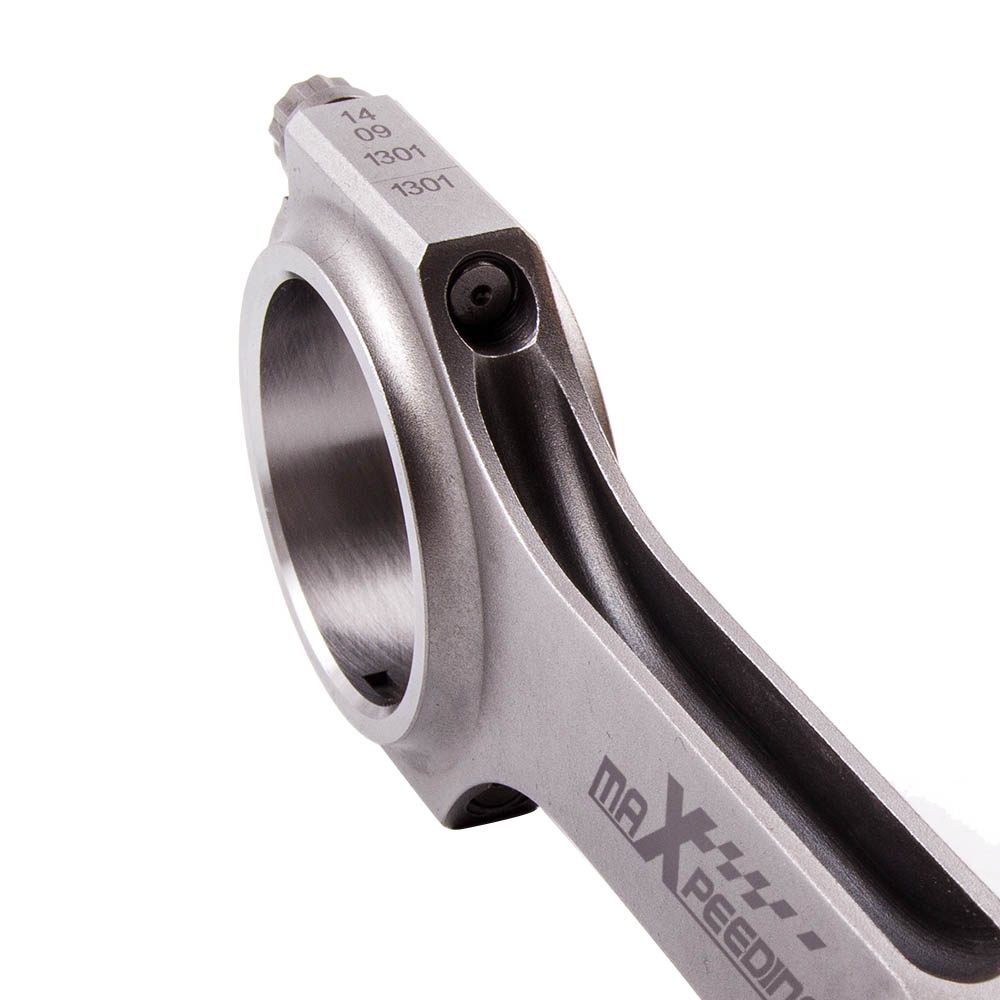

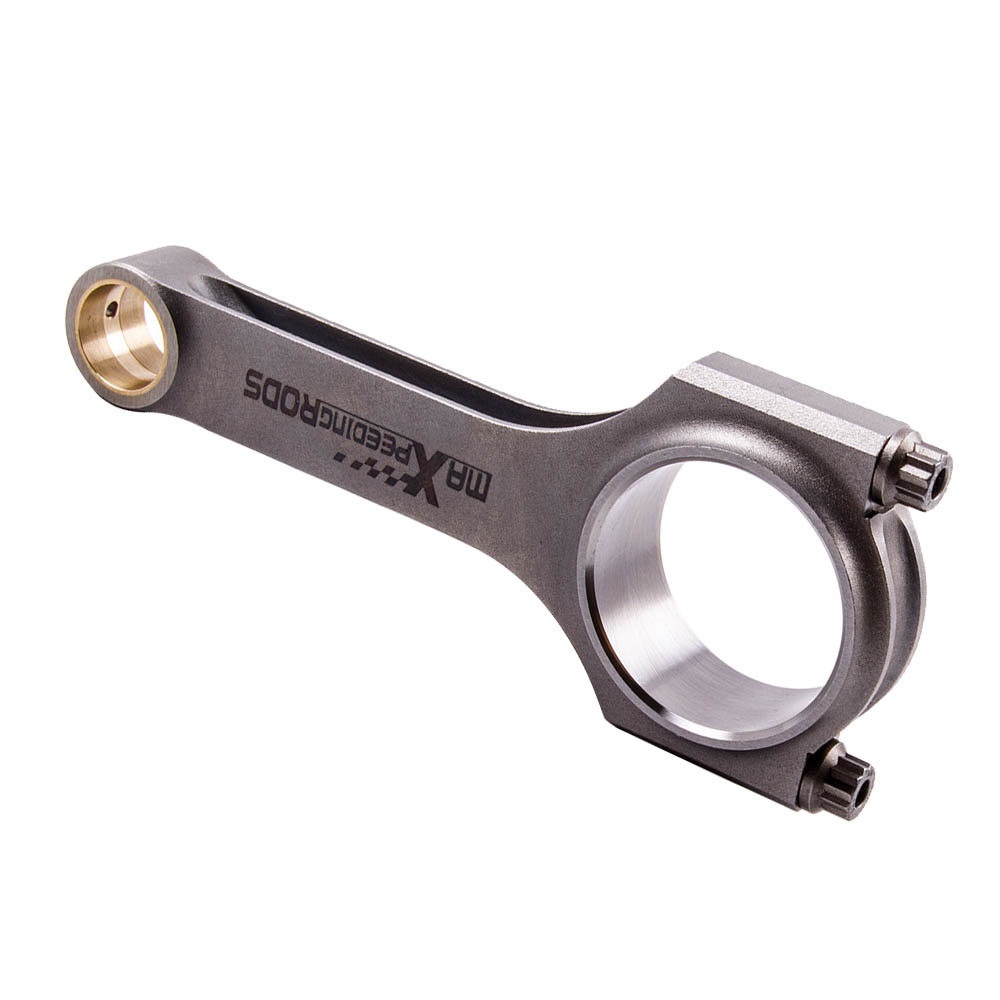

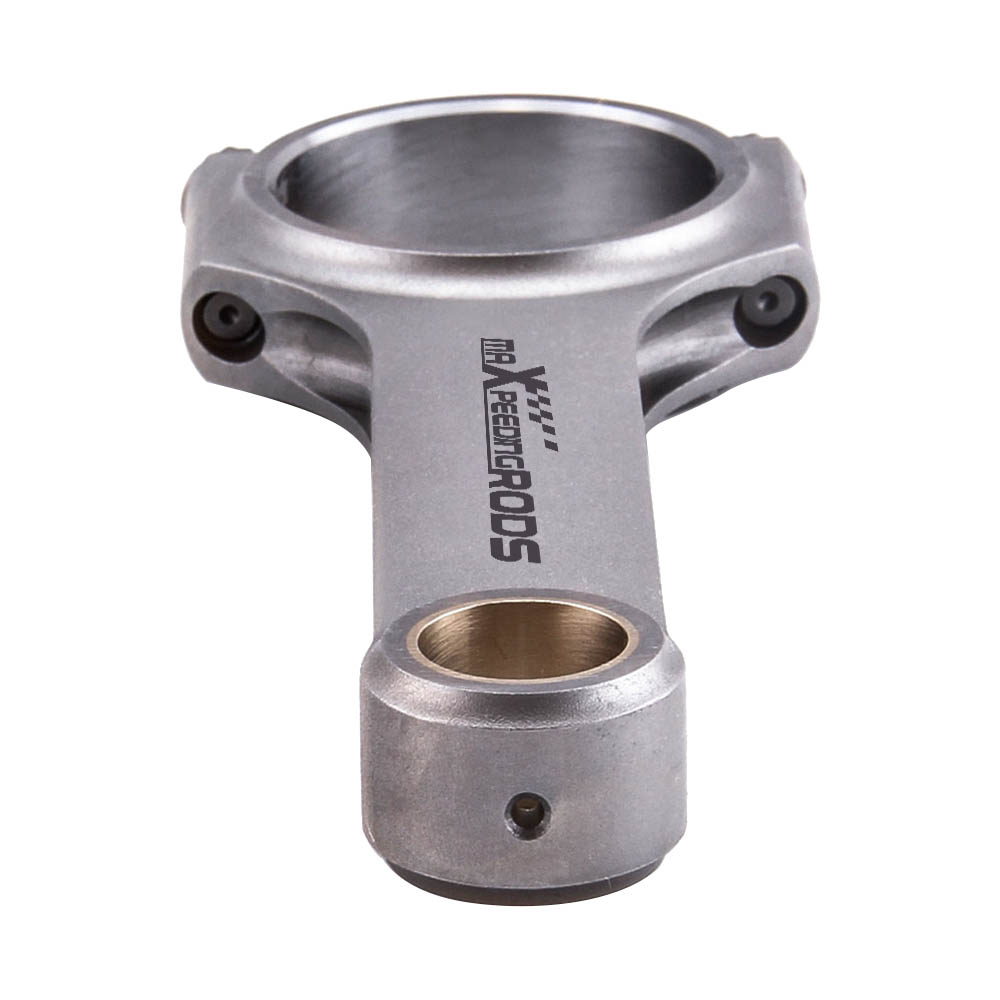

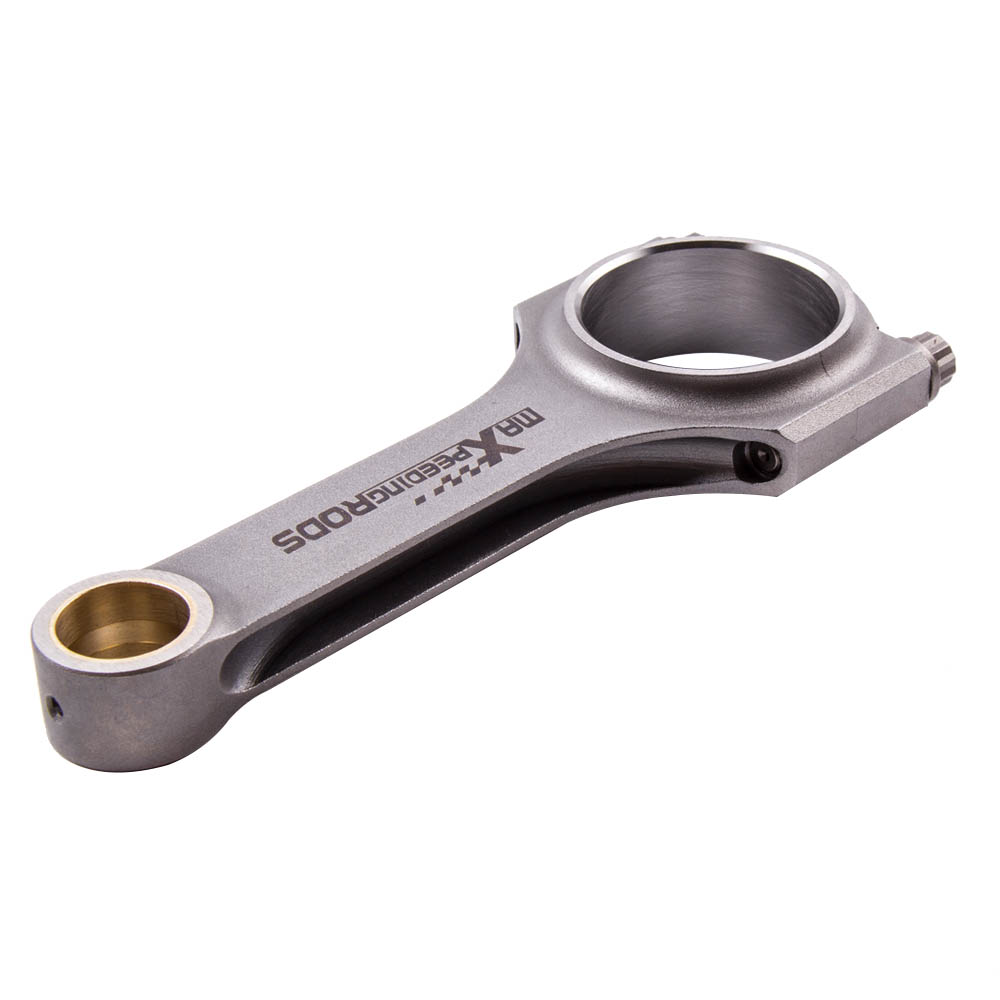

4x Forged 4340 EN24 Connecting Rods for Mazda MZR for Ford Duratec 2.5 151.76mm

Images

4x Forged 4340 EN24 Connecting Rods for Mazda MZR for Ford Duratec 2.5 151.76mm 4x Forged 4340 EN24 Connecting Rods for Mazda MZR for Ford Duratec 2.5 151.76mm 4x Forged 4340 EN24 Connecting Rods for Mazda MZR for Ford Duratec 2.5 151.76mm 4x Forged 4340 EN24 Connecting Rods for Mazda MZR for Ford Duratec 2.5 151.76mm 4x Forged 4340 EN24 Connecting Rods for Mazda MZR for Ford Duratec 2.5 151.76mm 4x Forged 4340 EN24 Connecting Rods for Mazda MZR for Ford Duratec 2.5 151.76mm



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

Application
For Mazda MZR / Ford Duratec 2.5 Engine




Dimensions
- Connecting Rod Length Centre to Centre: 151.76mm / 5.975in
- Approximate Single Rod Weight: 579g
- Big End Bore Diameter: 55.00mm / 2.165in
- Small End Wrist Pin Bore Diameter: 21.00mm / 0.827in
- Big End Width: 21.80mm / 0.858in
- Small End Width: 17.90mm / 0.705in




Specifications
- Beam Style: H-beam design for road and track use
- Material: High-grade 4340 Chromoly Steel
- Surface Finish: Shot-peened to relieve internal stress and improve fatigue resistance
- Wrist Pin Fitment: Floating
- Machined clearance compatible with stroker crank kits: Yes

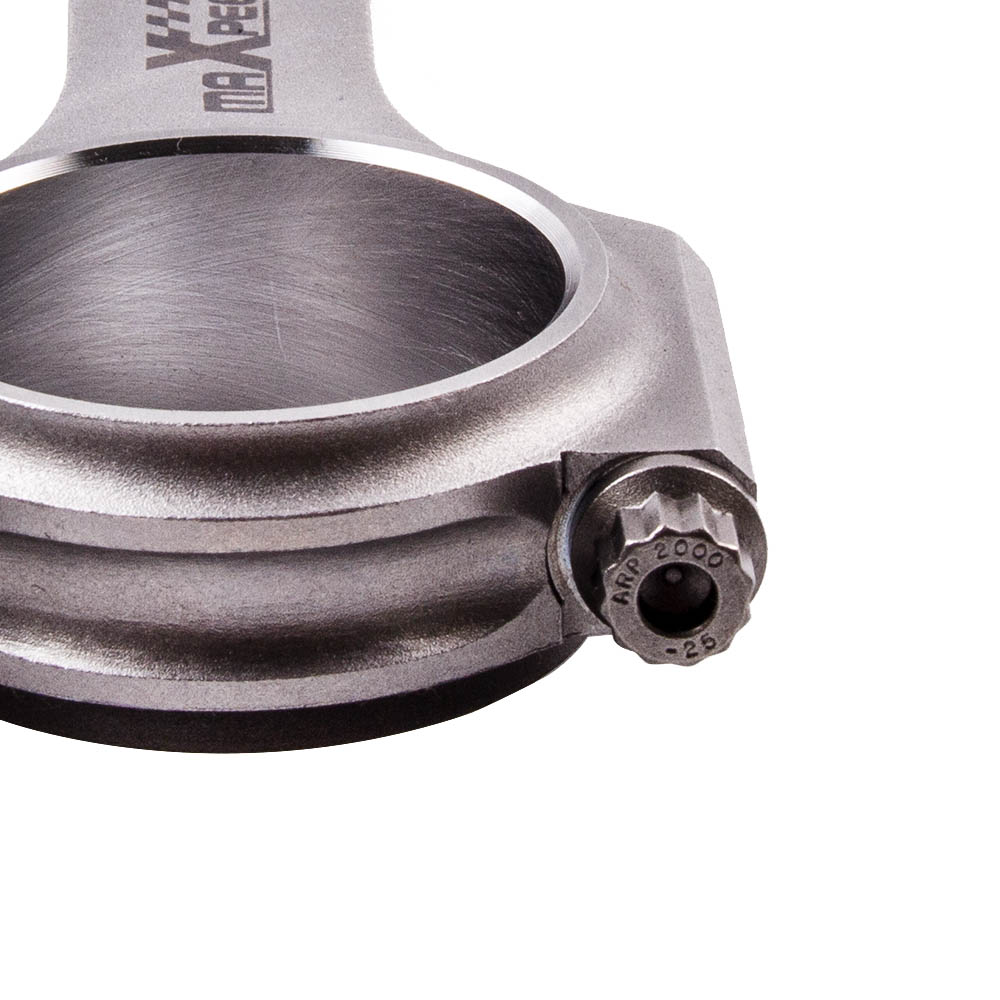

- Rod Cap Fastening: Through-bolt construction for superior clamping strength
- Connecting Rod Bolt Brand: ARP
- Bolt Diameter: 3/8"
- Bolt Material: High-strength Alloy Steel
- Standard Fastener Yield Strength: 220,000 psi (ARP 2000 Series)
- Optional Upgraded Fasteners: ARP L19 (260,000 psi)
- Bolt Head Format: 12-point
- Machining: High Precision CNC Machined
- Rod Cap Positioning: Precision alignment dowels for accurate fitting
- Bore Machining Tolerance: ±0.005 mm
- Balancing Tolerance: ±1 gram per individual rod
- Fully Weight Matched Complete Set: Yes
- Condition: Brand New, Non-Remanufactured
- Quality Control Tests: Magnaflux crack detection, X-ray inspection, ultrasonic material testing
- Manufacturing Process: Fully heat treated for enhanced structural durability




Performance Ratings
- Rated Horsepower Per Rod: 200HP
- Safe Maximum Operating RPM: 9,000rpm




Packaging
- Quantity Supplied: Complete set of 4 connecting rods
- Outer Package Dimensions: 28CM × 20CM × 10CM
