Details
OE Number
EP381,360700,58PSI
Will fit Following Models
Undertaking an LS series engine swap on a GM TBI truck, van or SUV? This pump will not overload factory wiring nor will it overpower OE pressure regulators. Compatible with all LS series motors; LM7, LR4, L33, LC9, LQ4, LQ9, L92, LS1, LS2, LS6, etc. Direct replacement for AC Delco EP381.
SPECIFICATIONS:
Noise Output: QUIET
Condition: 100% BRAND NEW

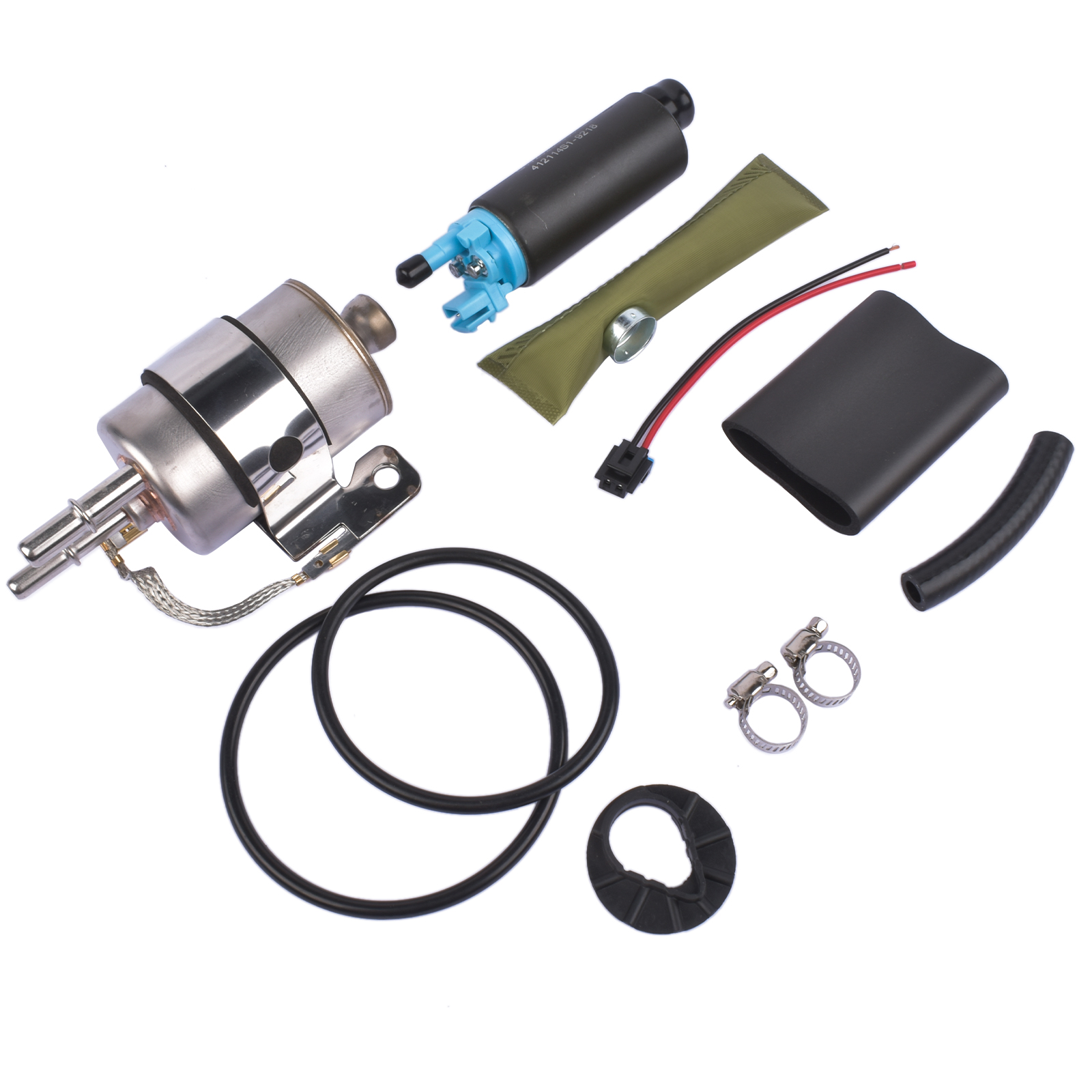

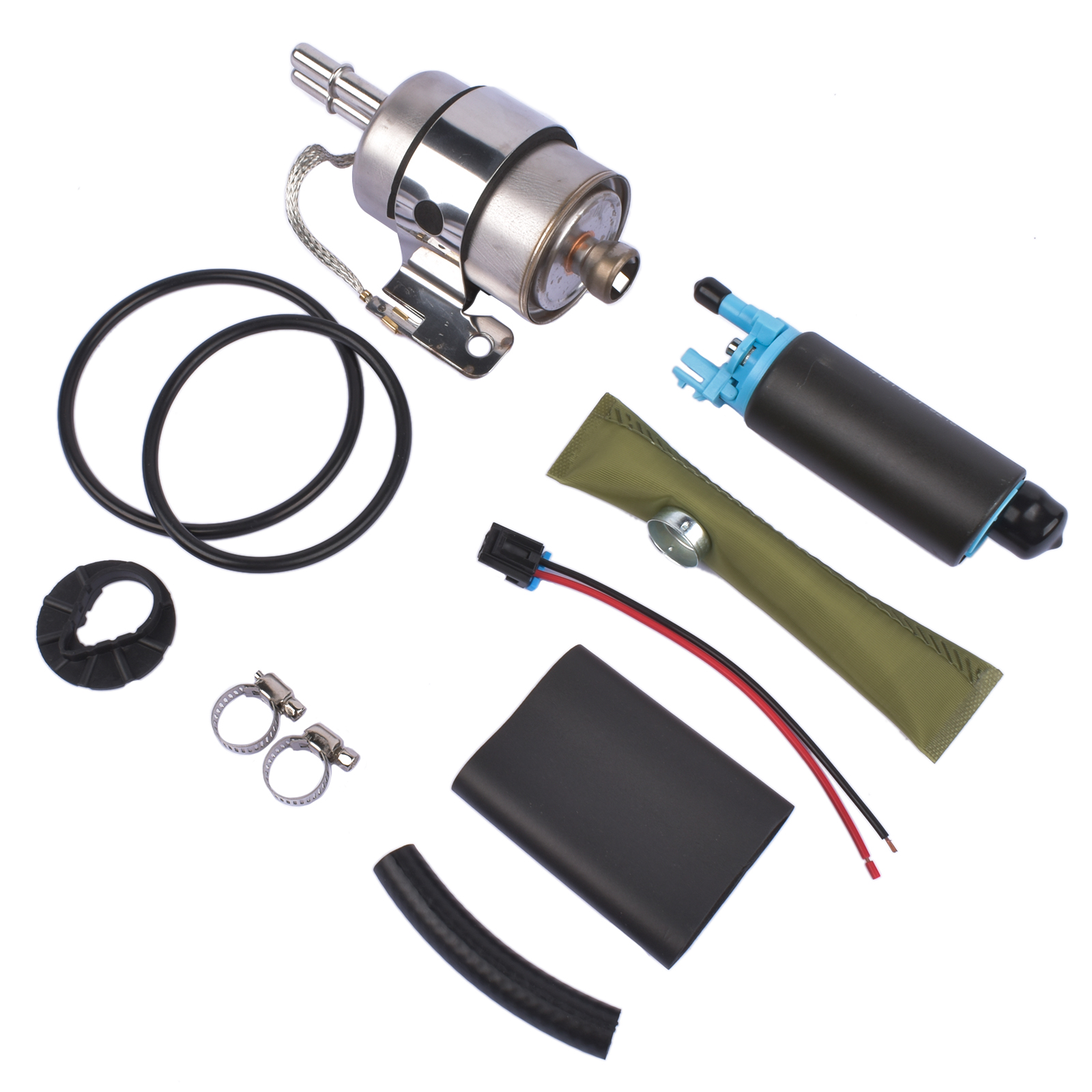

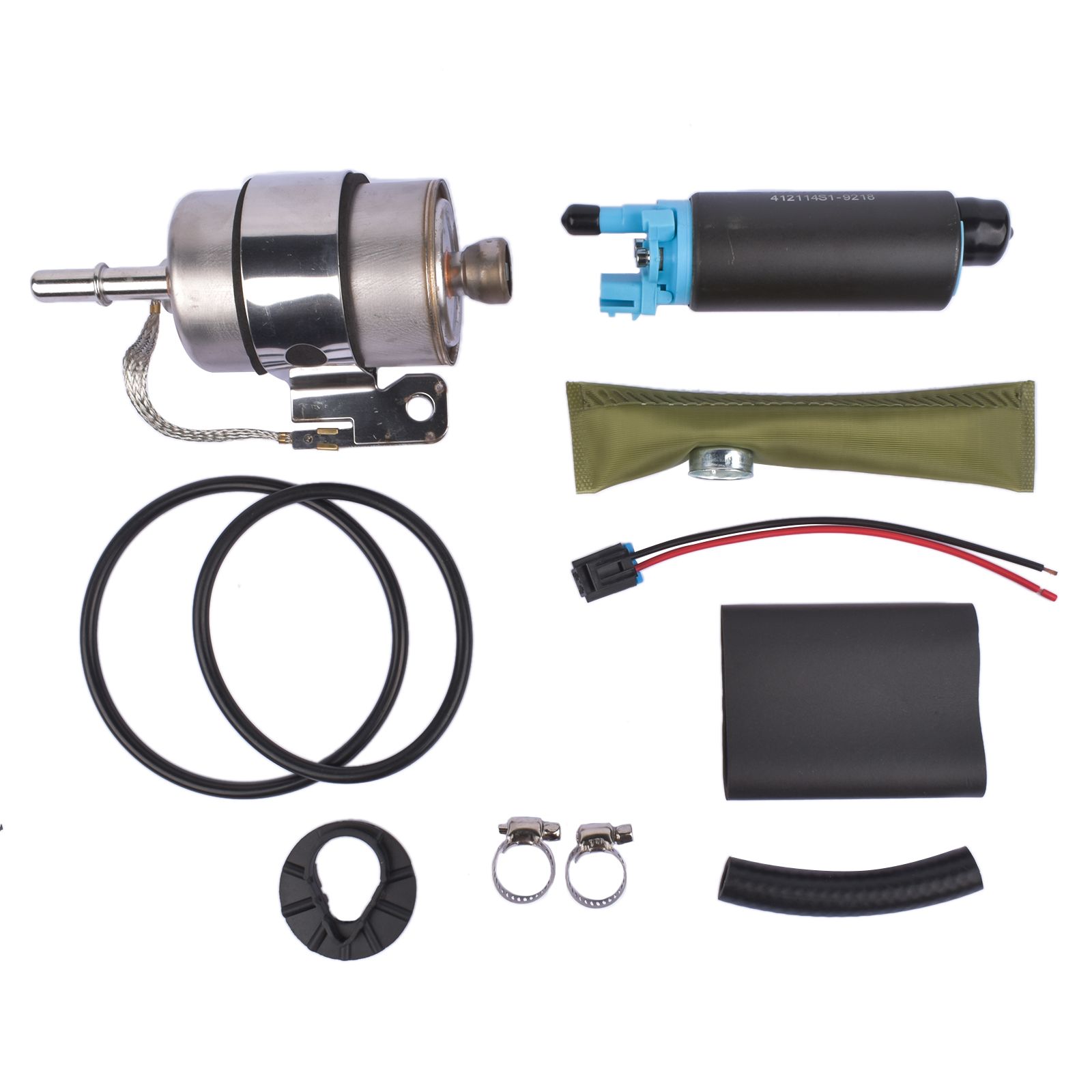

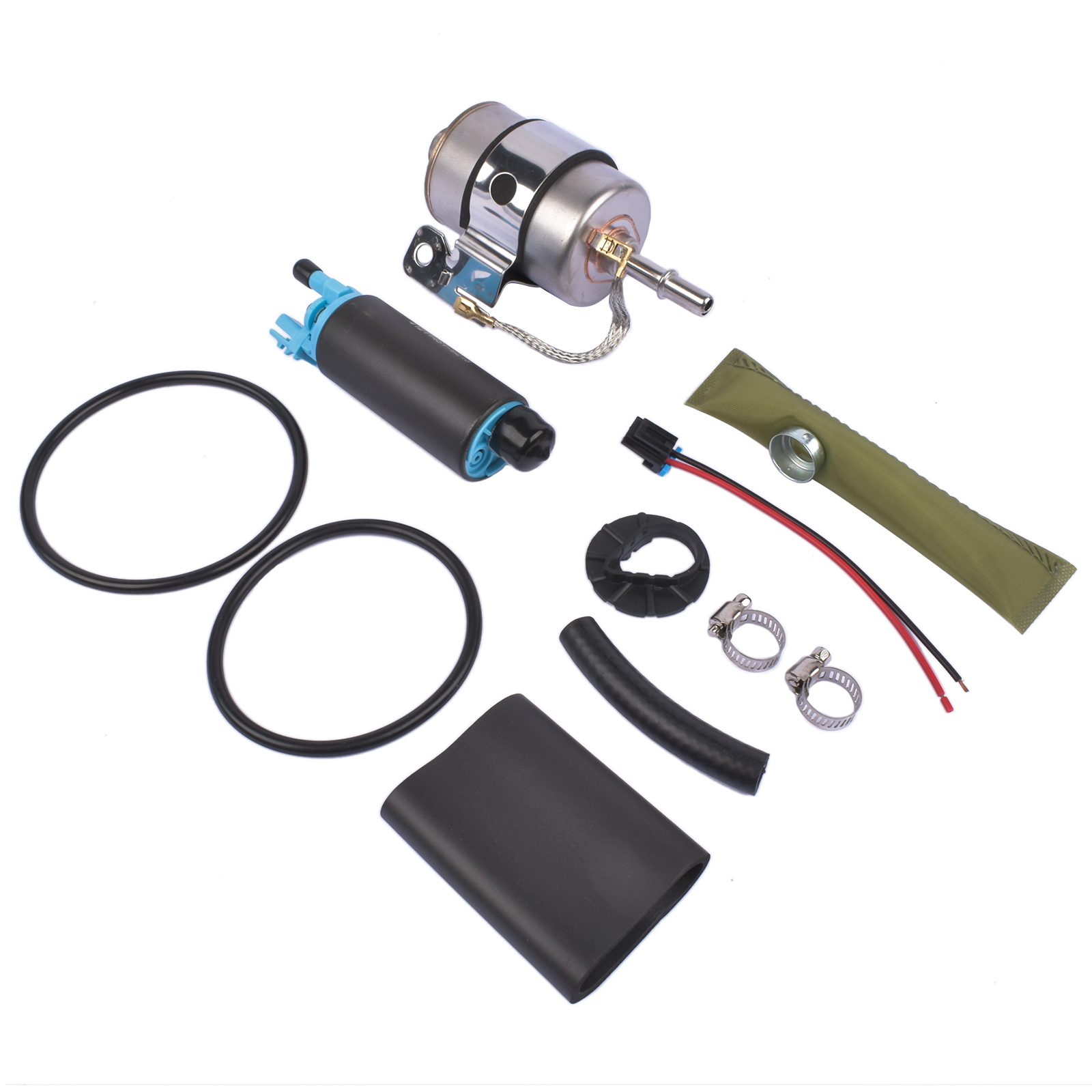

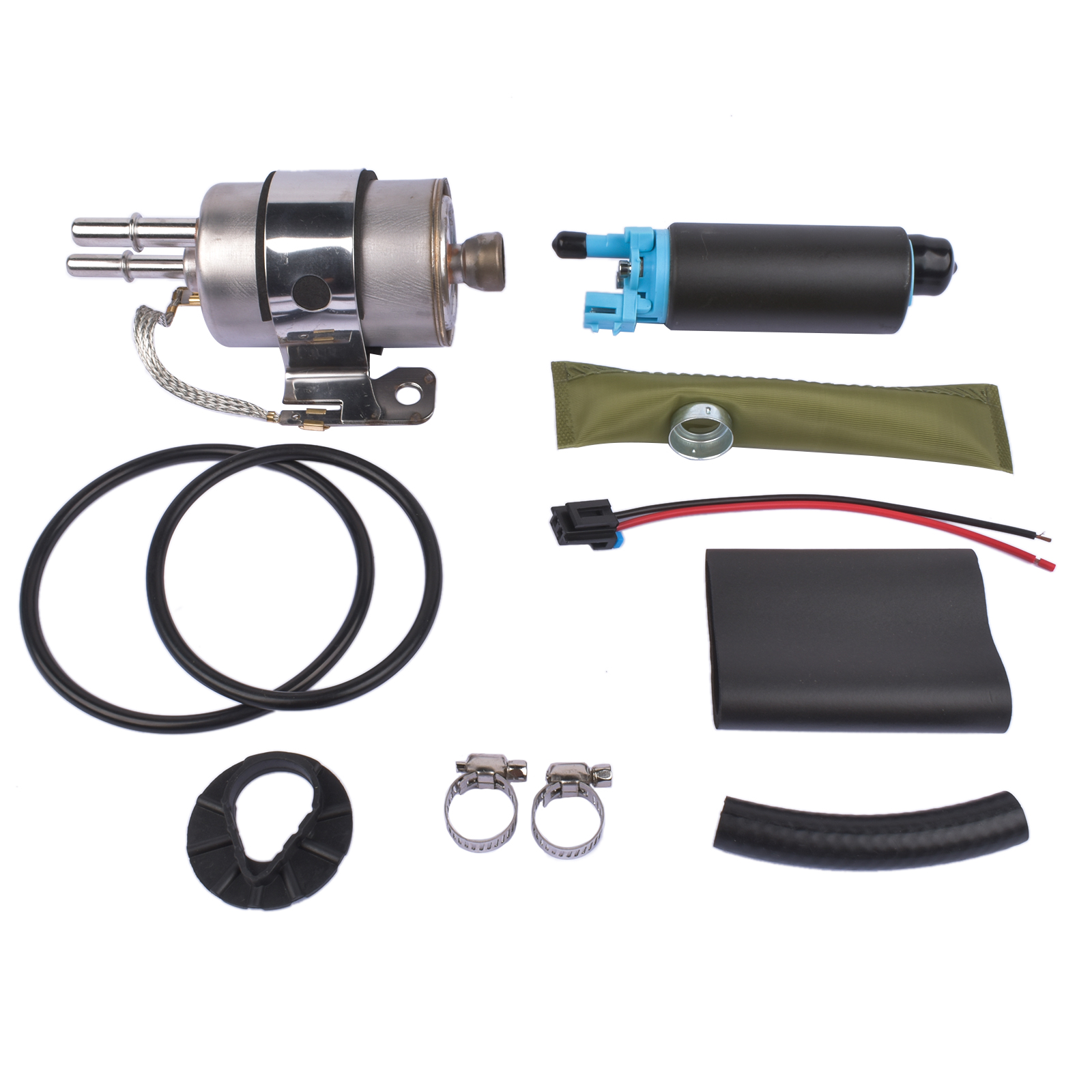

Includes: Pump, Fuel Filter, Strainer, Tank Seals, Clamps (all items shown)
Design: Intank EFI Fuel Pump
Pressure: 58PSI (fuel pressure set by using C5 Corvette regulator/ filter or rail mounted regulator found on 2002 and earlier fuel rails)
Flow: 160LPH
Flow: 164LPH, Draws 4.6 Amps @ 45psi
Flow: 145LPH, Draws 5.1 Amps @ 60psi
FEATURES:
• Direct drop-in for all 1982-1995 GM TBI fuel pump hangers
• Provides 58psi fuel pressure required by all LS Engines
• Supports 500hp naturally aspirated
• Low amperage draw designed for factory TBI bulkhead connectors
• Stainless steel hose clamps
DIMENSIONS:
Overall Length: 5"
Length of Pump Body Metal Case: 3 3/8"
Pump Body Diameter: 1 1/2"
Inlet Diameter: 3/4"
Outlet Diameter: 3/8"
-Please leave us your full name, your telephone number and detailed address when ordering.
-We ship to your eBay or Paypal address. Please make sure your eBay and Paypal address is correct before you pay the order.
-We try our best to pack the products as good and safe as possible ,so they always arrive in a good condition.
-We accept PayPal only.
-All major credit cards are accepted through secure payment processor PayPal.
-Payment must be received within 4 business days of auction closing.
-We offer sophisticated products at a high technological level, with the highest possible quality and the most favorable price.
-With these parts you can replace your defective parts simply plug and play.
-Our warranty is valid for max. 24 months without mileage limitation.
-Please compare carefully with Photos or OE number before purchasing the part.
-Once a problem occurs with the purchased product, please do not hesitate to let us know with Ebay messages,we will offer you refund or replacement.
OE Number
EP381,360700,58PSI
Will fit Following Models
Undertaking an LS series engine swap on a GM TBI truck, van or SUV? This pump will not overload factory wiring nor will it overpower OE pressure regulators. Compatible with all LS series motors; LM7, LR4, L33, LC9, LQ4, LQ9, L92, LS1, LS2, LS6, etc. Direct replacement for AC Delco EP381.
SPECIFICATIONS:
Noise Output: QUIET
Condition: 100% BRAND NEW
Includes: Pump, Fuel Filter, Strainer, Tank Seals, Clamps (all items shown)
Design: Intank EFI Fuel Pump
Pressure: 58PSI (fuel pressure set by using C5 Corvette regulator/ filter or rail mounted regulator found on 2002 and earlier fuel rails)
Flow: 160LPH
Flow: 164LPH, Draws 4.6 Amps @ 45psi
Flow: 145LPH, Draws 5.1 Amps @ 60psi
FEATURES:
• Direct drop-in for all 1982-1995 GM TBI fuel pump hangers
• Provides 58psi fuel pressure required by all LS Engines
• Supports 500hp naturally aspirated
• Low amperage draw designed for factory TBI bulkhead connectors
• Stainless steel hose clamps
DIMENSIONS:
Overall Length: 5"
Length of Pump Body Metal Case: 3 3/8"
Pump Body Diameter: 1 1/2"
Inlet Diameter: 3/4"
Outlet Diameter: 3/8"
