Our Advantages
【2 Riding Ways】 E-Bike Mode: You can ride the E-bike to enjoy a long-time travel. The wear resistant wheel with high grip is ideal for sand, lawn and other terrain. Pedal Assistance System: It allows you to ride without throttle response.

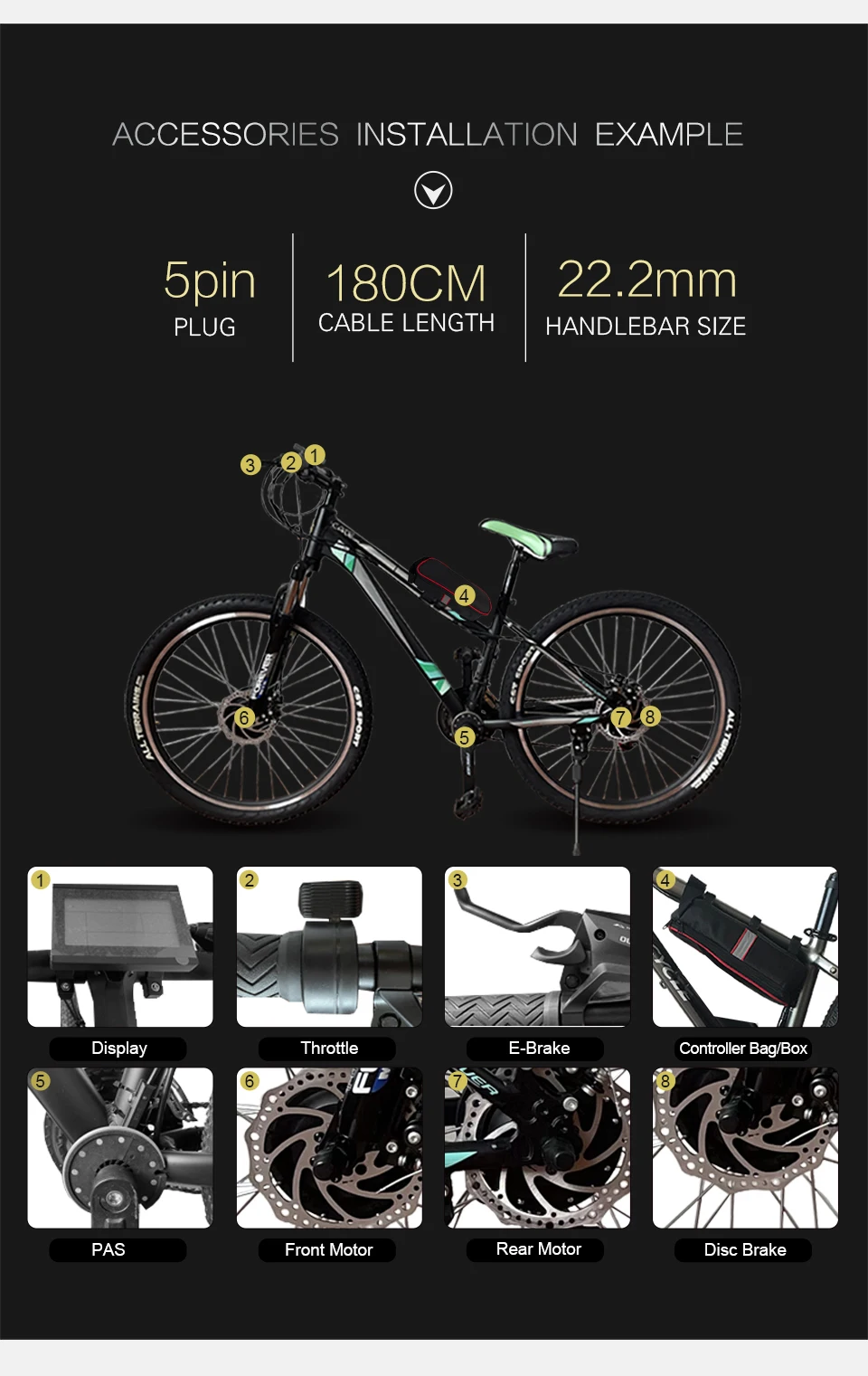

【Complete Accessories】The E-bike conversion kit includes all necessary components for installation: motor wheel, controller, display, thumb, brake lever, PAS, controller box. Battery is NOT included.

【2 times cross】Compared with one sigle cross, two times cross method increased force points. Spokes are not easy to break after long time use. Attention 20inch motor, 1000W and 1500W motor can't do 2 times cross.

【Safety & Security】Built to the highest international standards CE and 100% testing before shipment. We offer a 12 months warranty on the motor.

【Oversea warehouse】Poland, Spain warehouse, fast delivery.

【DDP Service】Order from China.For below countries, the tax or duty is paid by us.

Germany Belgium Luxembourg Netherlands Slovenia France Poland Austria Czech Republic Denmark Hungary Slovakia Lithuania Spain Sweden Latvia Italy Portugal Estonia Croatia Finland Romania Greece Ireland Bulgaria Monaco Russia United Kingdom Australia Canada United States.


Product Parameters:

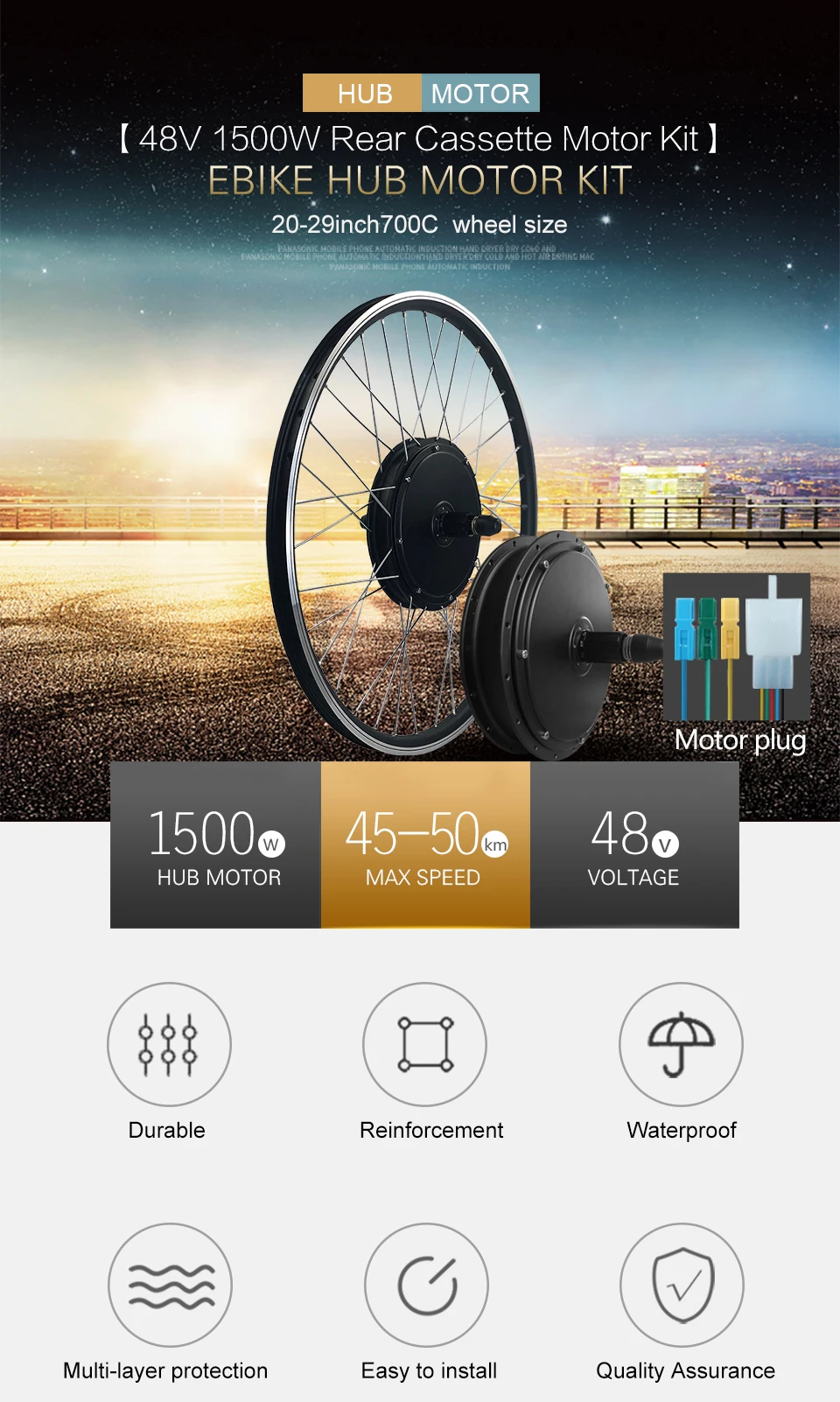

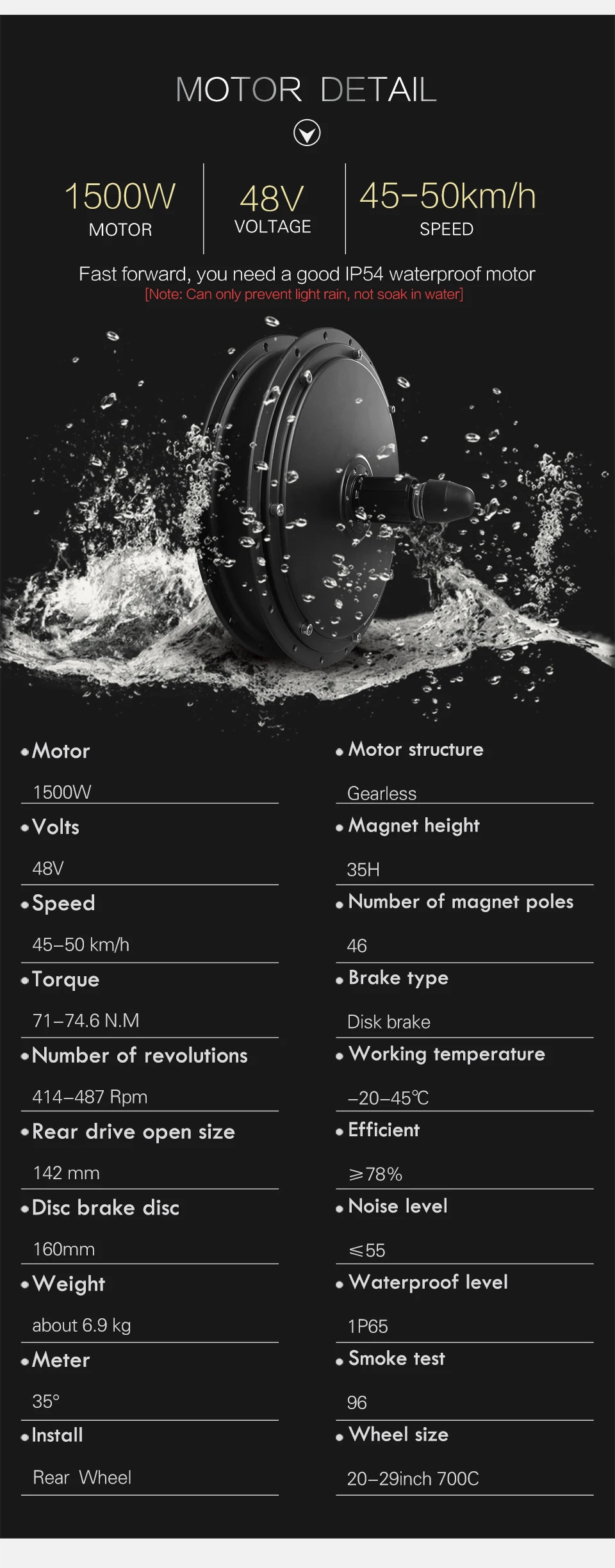

48V 1500W Rear Cassette Hub Motor

Model:48V 1500W

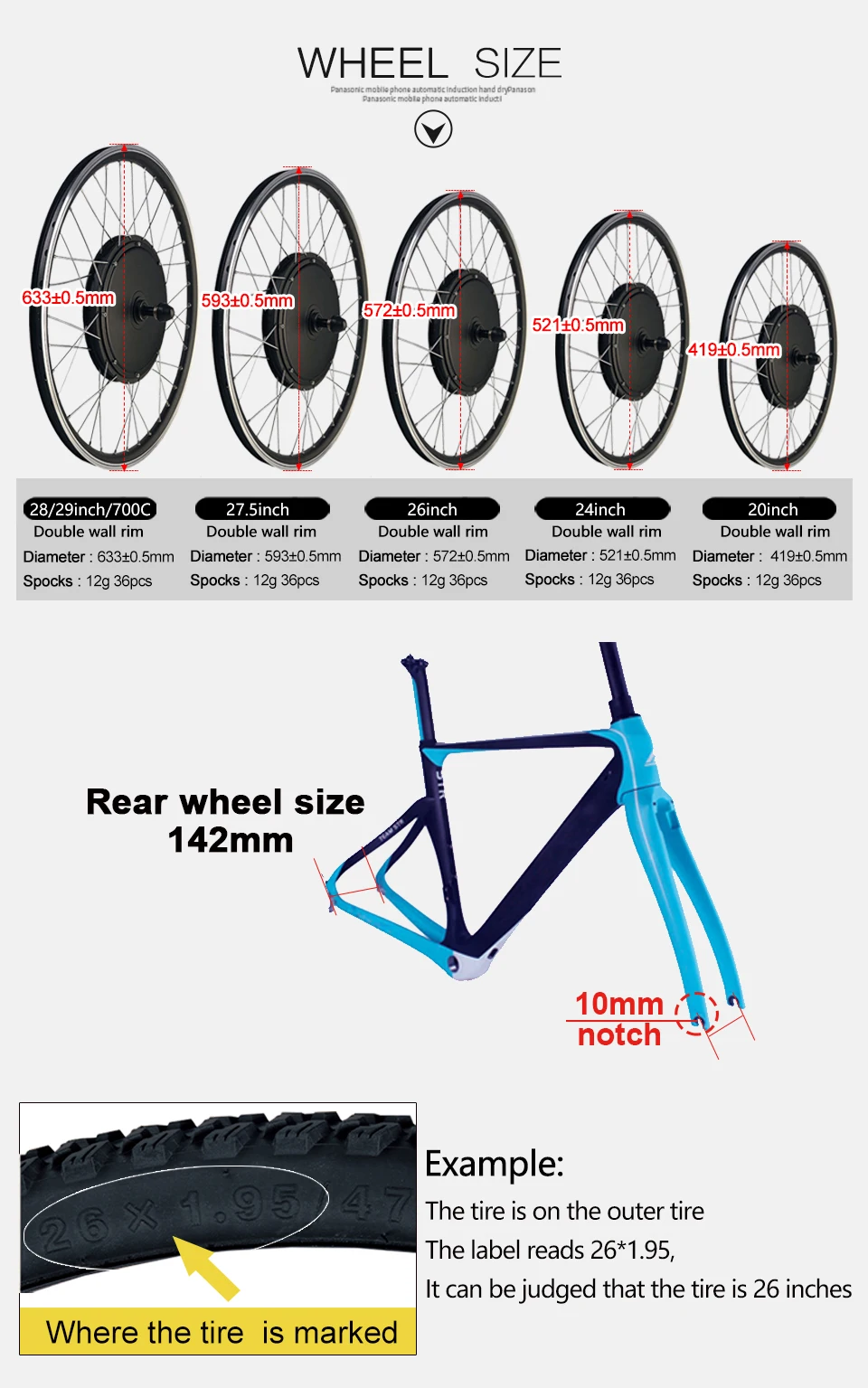

Wheel Diameter (Inch): 20"/24"/26"/27.5"/28"/29"/700C---Optional

Construction:Gearless drive

Rated Voltage (DCV): 48

Rated Power (W): 1500

Max Speed (KM/H): 50

Speed (Rpm): 414-487

Torque (N.M): 71-74.6

Rear drive open size (mm): 142

Magnet height (48V): 35H

Number of magnet poles: 46

Efficiency (%)≥ 80

Color: Black

Weight (kg): 7kg

Noise Grade (dB)< 55

Operating Temperature: -20-45℃

Rim: Double-wall Aluminium Alloy Rim

Controller Voltage: 48V

Controller Power: 1500W

Controller Current: 30± 1

Controller Size: 172 *82* 42mm

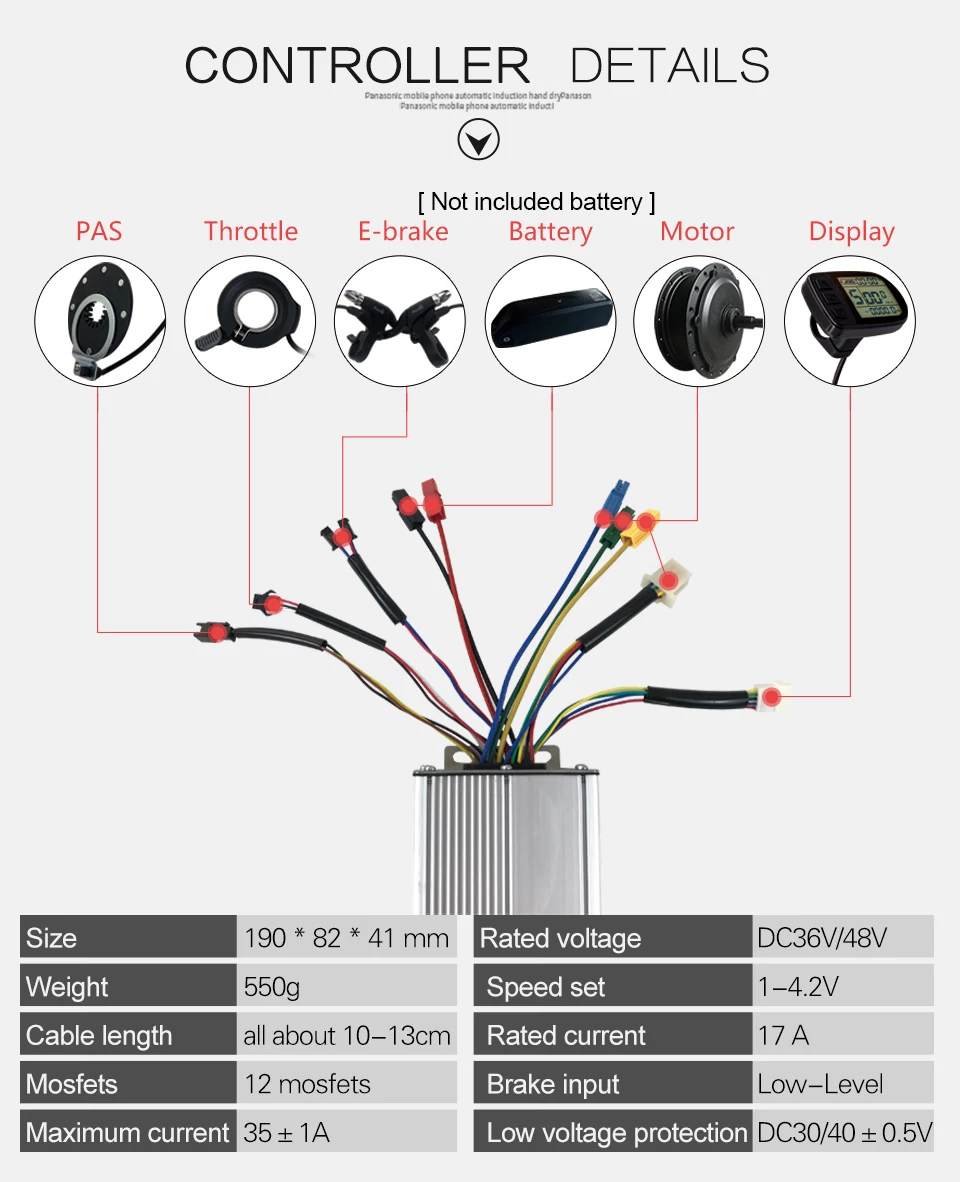

Controller details

Brand : KT（KUNTENG）35A Controller

Color :Silver

Dimension :170 * 88 * 43 mm

Mosfet :12 Mosfets

Maximum current :35±1A

Rated current :17A

Rated voltage :DC36V/48V

Speed set : 1-4.2V

Brake input :Low-Level

Low voltage protection :DC30/40±0.5V

Cable length : all about 10-16cm

Weight : about 650g

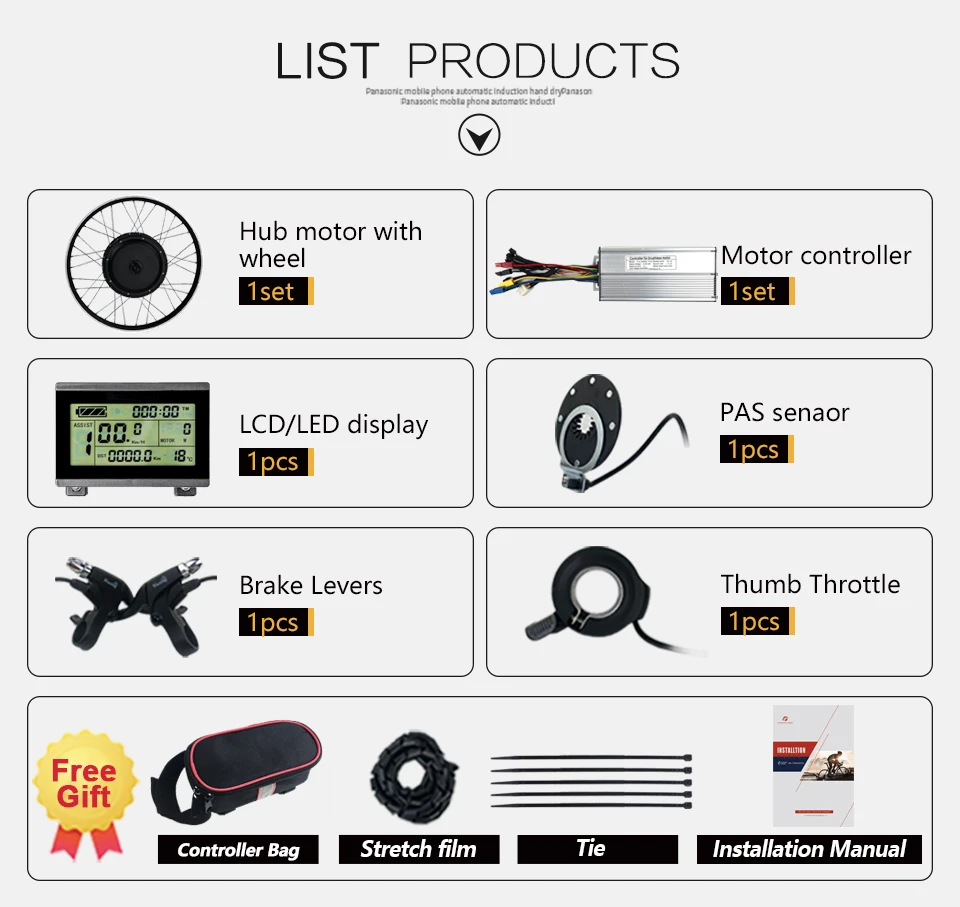

Packing List
Conversion Kit not include Battery

1 PCS * 48V 1500W Rear Hub Motor with Rim and Spokes

1 PCS * 48V 1500W Motor Controller

1 PCS * Controller Bag(not battery)

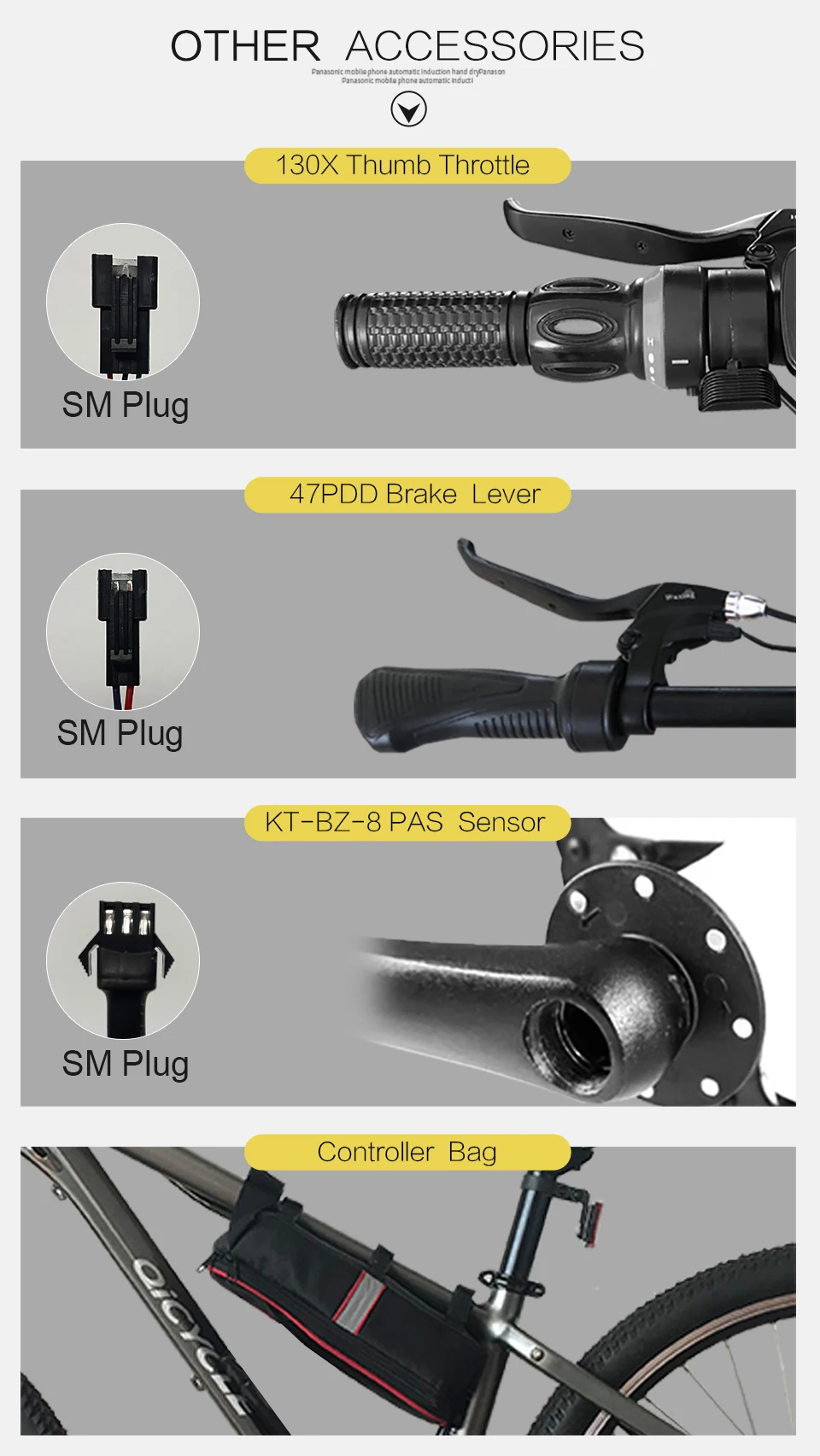

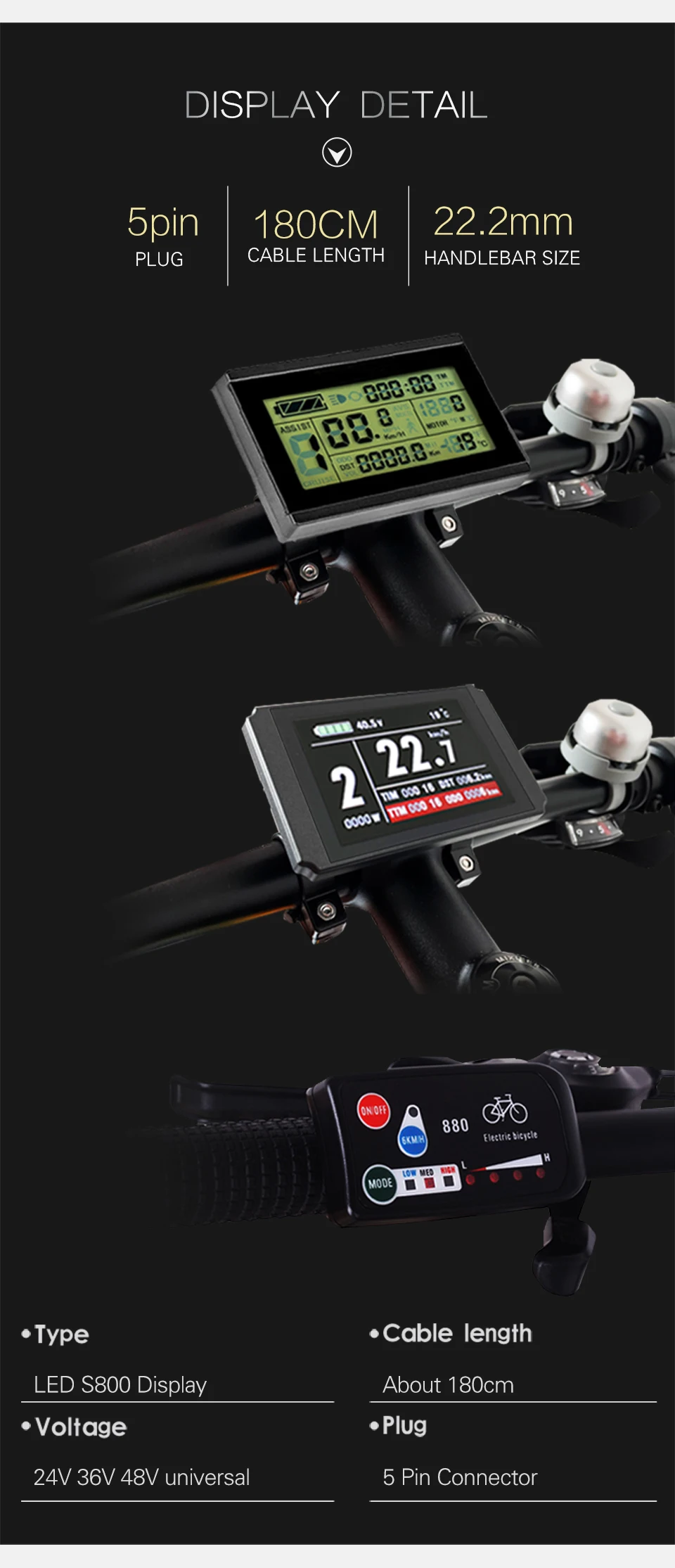

1 PCS * Display(LCD3,LCD5,LCD7,LCD8H,LED880,LED900S option)

1 PCS * Thumb Throttle ( can change to twist throttle for free if you buy from China)

1 PCS * PAS Sensor

1 Pair * Brake Levers

Gifts: 1*Controller Bag( not battery) + 5*Install cable ties + 1*stretch film+ 1*Installation Manual
TIPS:
Different kits have different specifications of accessories.Specification information is in the main picture.
