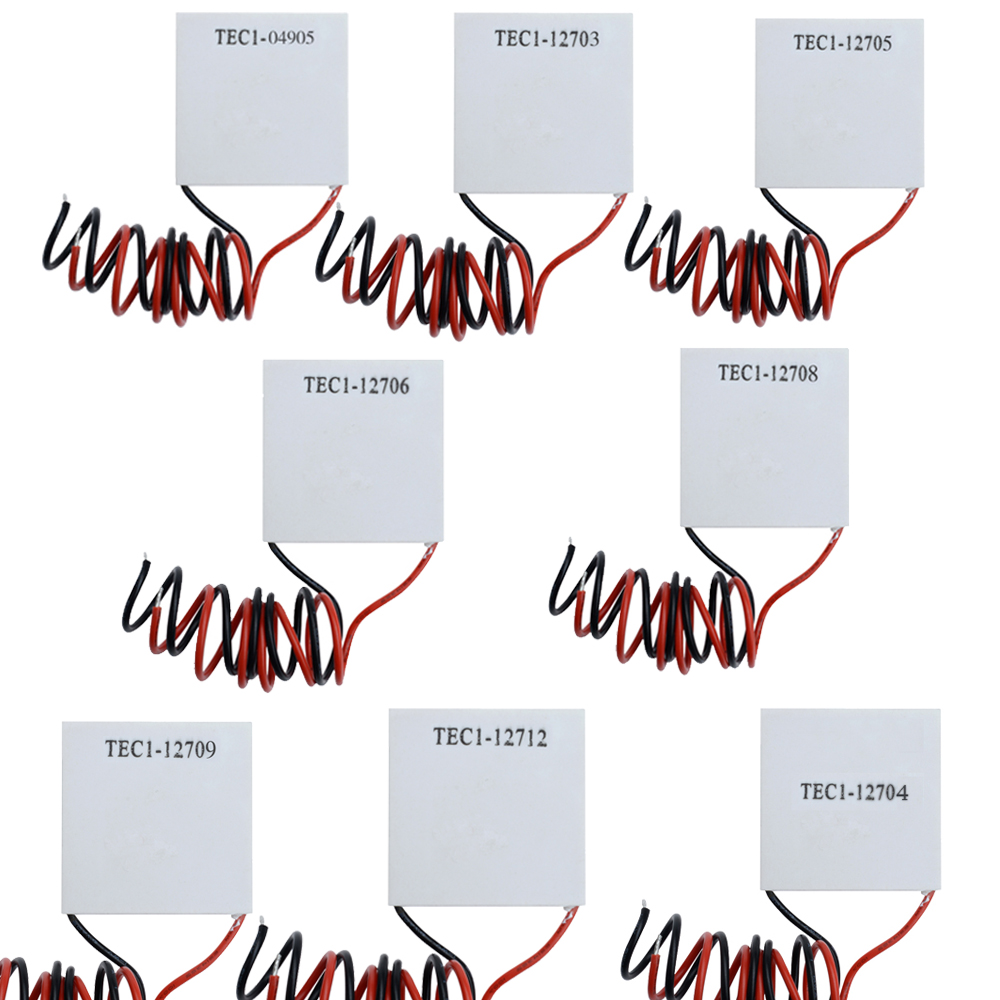

5V/12V TEC1 Heatsink Thermoelectric Cooler Peltier Cooling Plate 20/25/30/40MM

Details

TEC1-12703(40X40MM)

100% Brand new and high quality.
No refrigerants, environmental and safety benefits.
Enables reduced, low-noises operation of cooling fans, while providing greater cooling power.
Suitable for manufacture in small size
Lightweight and durable
Fast, dynamic response
Can provide cooling below ambient temperature
Model: TEC1-12703
Quantity: 1pcs
Voltage: 12V.
Couples: 127
Umax(V):15.4V.
Imax(A):3A.
ΔTmax(℃)≥66
QM(W):27.72W
Color: As the picture
Dimensions: Approx. 40 x 40 x 3.8mm (L*W*H)
Power Cord Length: Approx. 300mm




TEC1-12704 (30X30MM)

Ceramics thermoelectric Cooler semiconductor module TEC1-12704
Can be used in refrigerator,Portable cooling car box,
Liquid Cooling,Temperature stabilizer etc.
No need to move internal parts when in transit
Solid state, vibration free, noise-free
Should use with a heat sink
Simple to install and operate
Long life time
Slim and compact
Model number: TEC1-12704
Voltage: 12V
Couples: 127
Umax (V): 15.2
Imax (A): 4
ΔTmax(℃)≥66
QM(W):36.5 W
Material: Ceramics
Cable length: 20cm
Color: White
Dimension: Approx.30mm x 30mm x 3.2mm

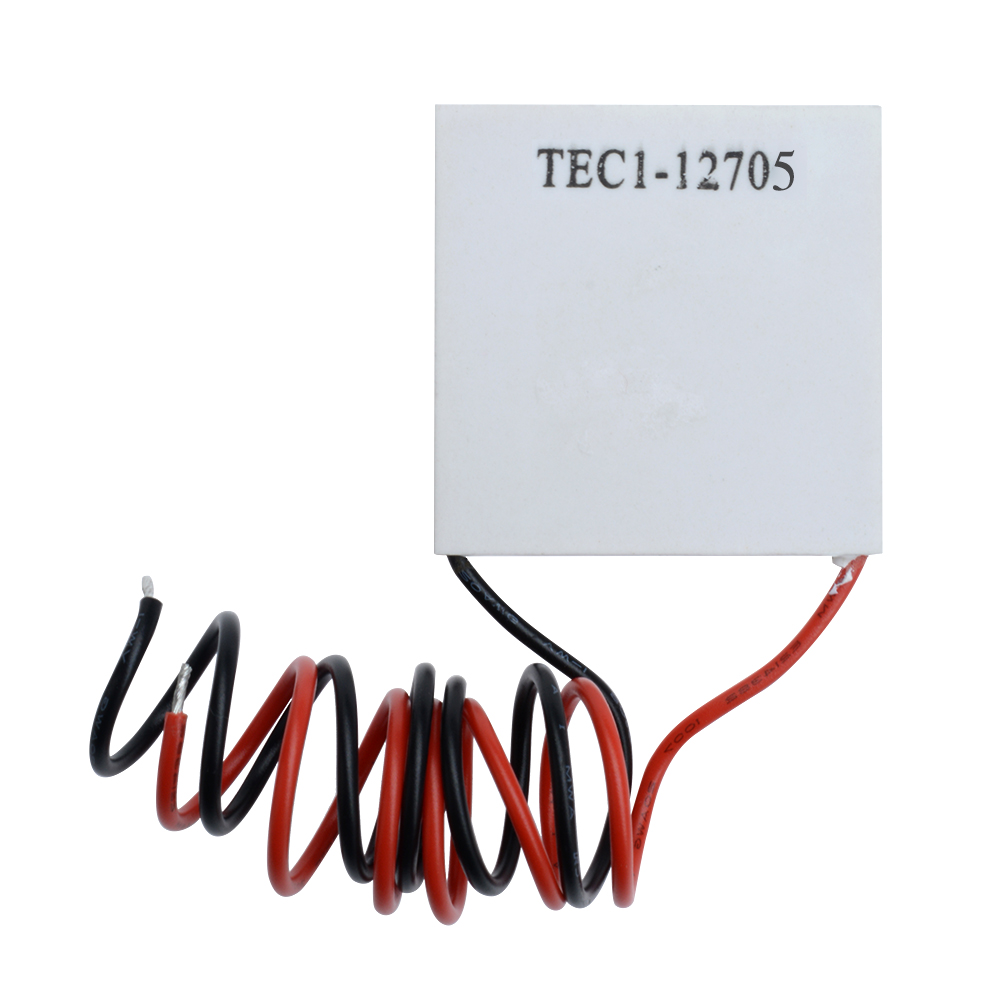

TEC1-12705(40X40MM)

Description:
40mm x40 mm TEC1-12705 TEC Thermo Electric colling Generators Thermoelectric Peltier Cooler
Chip Model: TEC1-12705
Dimensions: 40 * 40 * 3.8mm,
Component :Logarithm of 127
Wire Size:Lead Length 100 ± 5mm,RV standard wire,Single head 5mm Tin Plated
Internal resistance: 2.4 ~ 2.7Ω (ambient temperature 23 ± 1 ℃, 1kHZ Ac test)
Maximum temperature: △ Tmax (Qc = 0) :60 ℃
Operating current: Imax = 12 (rated voltage startup)
Rated voltage: DC12V (Vmax: 15.5V)
Cooling power: Qcmax 30W
Assembly Pressure: 85N/cm2

Working environment: Temperature range -55 ℃ ~ 83 ℃
(high ambient temperature will directly affect the cooling efficiency)
Storage conditions: -40 ~ 60 ℃
Encapsulation Process:Standard 704 Silastic Seal

Feature:
Solid state, vibration free, noise-free.
Simple to install and operate.
Should use with a heat sink.



TEC1-04905(25*25MM)
Description:

Thermoelectric Cooling Module
Eco-friendly, no refrigerating fluid is used
Compact size and light-weight
Noiseless, reliable and maintenance-friendly
Cooling or heating by changing current direction
Model: TEC1-04905
Rated Voltage: 5V DC
Max.
Current: 5A
Max.
Temperature Difference: 67 deg C
Max.
Voltage: 6.2V
Max.
Refrigerating Power: 19.4W
Couples: 49
Size (L x W): Approx.
1 x 1inch / 25 x 25 mm
Cable Length: Approx .
5.9 inch / 15 cm
Color: White
Wiring: Red line for anode, Black line for cathode.



TEC1-12706(40X40MM)
Model: TEC1-12706.
Size: 40mm x 40mm x 3.6mm.
Working current: 4.3-4.6 A (rated 12 v); Imax: 6A.
Rated voltage: DC12V (Vmax: 15 v starting current 5.8 A).
Operates Temperature: -30℃ to 70℃.
Refrigeration power: Qcmax 50-60 w.


TEC1-12708(40X40MM)
100% Brand new and high quality.
No refrigerants, environmental and safety benefits.
Enables reduced, low-noises operation of cooling fans, while providing greater cooling power.
Suitable for manufacture in small size
Lightweight and durable
Fast, dynamic response
Can provide cooling below ambient temperature
Model: TEC1-12708
Voltage: 12V.
Couples: 127
Umax(V):15.4V.
Imax(A):8A.
ΔTmax(℃)≥66
QM(W):73.92W
Color: As the picture
Dimensions: Approx. 40 x 40 x 3.6mm (L*W*H)
Power Cord Length: Approx. 350mm
Package Included:
1/2/5/10PCS TTEC1-12708 Heatsink Thermoelectric Cooler Cooling Peltier Plate Module

TEC1-12709(40X40MM)
Description
 Brand new and high quality
Easy to install and use
Reverse the polarity to get ice cold in minutes or heat to boiling
Used for many applications from CPU coolers to alternate power sources
Great for your own custom car drink warmer/cooler as well

Incorporate both semiconductor technologies and electronic assembly techniques
Semiconductor material is sandwiched between the ceramic plates
Have no moving parts

Type number: TEC1-12709
Couples: 127
Umax (V): 15.2V
I max (A): 9A
Tmax (degree Celsius): 67
Dimensions: 40mm x 40mm x 3.5mm
Power cable: 32cm
Max. power consumption: 136.8W


TEC1-12712 (40X40MM)
Model: TEC1-12712("TE" is the abbreviation of Thermo-Electric)
Max cooling power: 109W
Operates from 0-15.4V DC and 0-12A
Tmax: >=68 °C
Operates from -50 °C to +100 °C
Size: 40mm x 40mm x 3.3mm


TEC1-12710(40X40MM)

Features:
Brand new and high quality
Easy to install and use
Reverse the polarity to get ice cold in minutes or heat to boiling
Used for many applications from CPU coolers to alternate power sources
Great for your own custom car drink warmer/cooler as well

Incorporate both semiconductor technologies and electronic assembly techniques
Semiconductor material is sandwiched between the ceramic plates
Have no moving parts

Type number: TEC1-12710
Umax (V): 15.4V
I max (A): 10A
Tmax (degree Celsius): 67
Dimensions: 40mm x 40mm x 3.4mm
Max. power consumption: 154W



TEC1-12715(40X40MM)

Features
Brand new and high quality
Easy to install and use
Reverse the polarity to get ice cold in minutes or heat to boiling
Used for many applications from CPU coolers to alternate power sources
Great for your own custom car drink warmer/cooler as well
Incorporate both semiconductor technologies and electronic assembly techniques
Semiconductor material is sandwiched between the ceramic plates
Have no moving parts
Type number: TEC1-12715
Umax (V): 15.4V
I max (A): 15A
Tmax (degree Celsius): 67
Dimensions: 40mm x 40mm x 3.4mm
Max. power consumption: 231W
TEC1-04901 (20*20*4.9mm):

1. Using high-quality materials, the quality is guaranteed
2. High reliability
3. When direct current passes through a galvanic couple formed by two different semiconductor materials in series, heat can be absorbed and released at both ends of the galvanic couple, and the purpose of cooling can be achieved.
4. Can quickly cool down and experience freezing point
5. Wide range of applications


Product parameters:
Model: TEC1-04901
Voltage: DC5V
Current: 1A
Temperature difference: 50℃
Appearance size: 20*20*4.9mm



TEC1-04902 (20*20*4.2mm):

1. Using high-quality materials, the quality is guaranteed
2. High reliability
3. When direct current passes through a galvanic couple formed by two different semiconductor materials in series, heat can be absorbed and released at both ends of the galvanic couple, and the purpose of cooling can be achieved.
4. Can quickly cool down and experience freezing point
5. Wide range of applications


Product parameters:
Model: TEC1-04902
Voltage: DC5V
Current: 2A
Temperature difference: 55℃
Appearance size: 20*20*4.5mm







Package Includes:

1/2/5/10PCS Thermoelectric Cooler
