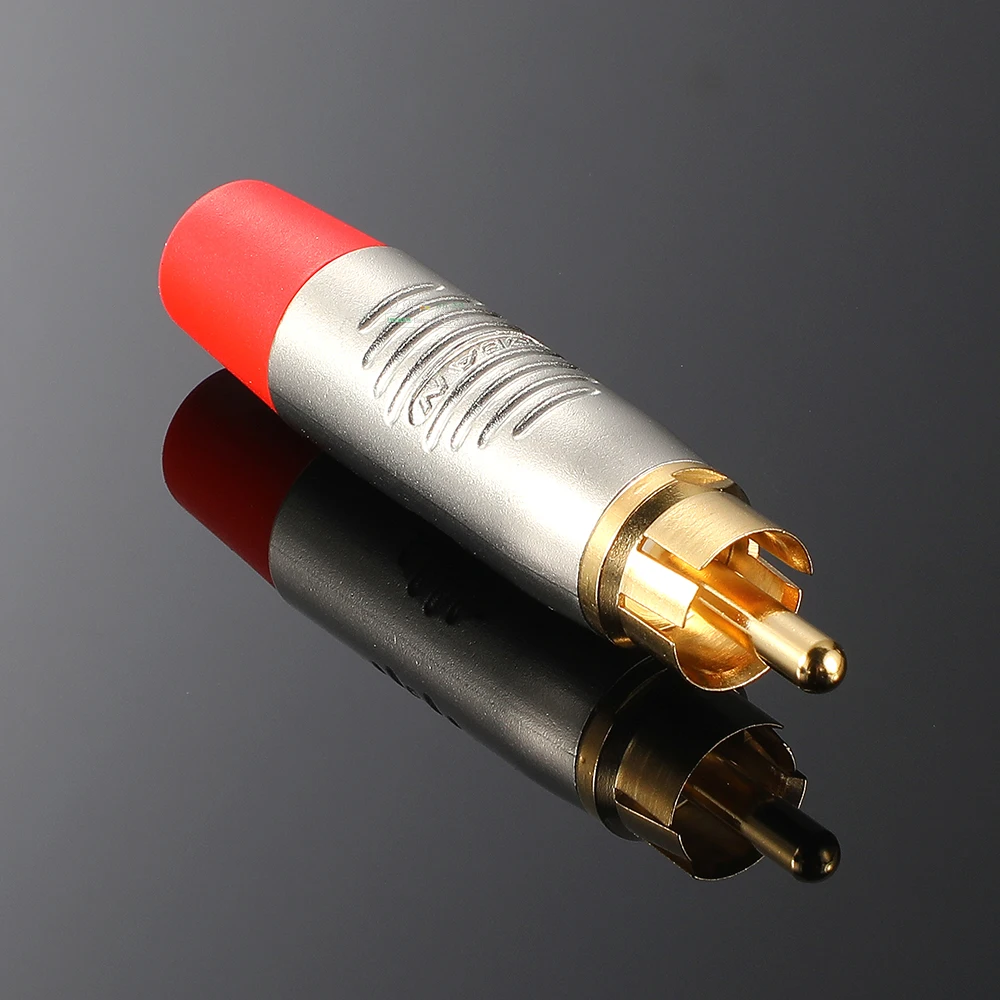

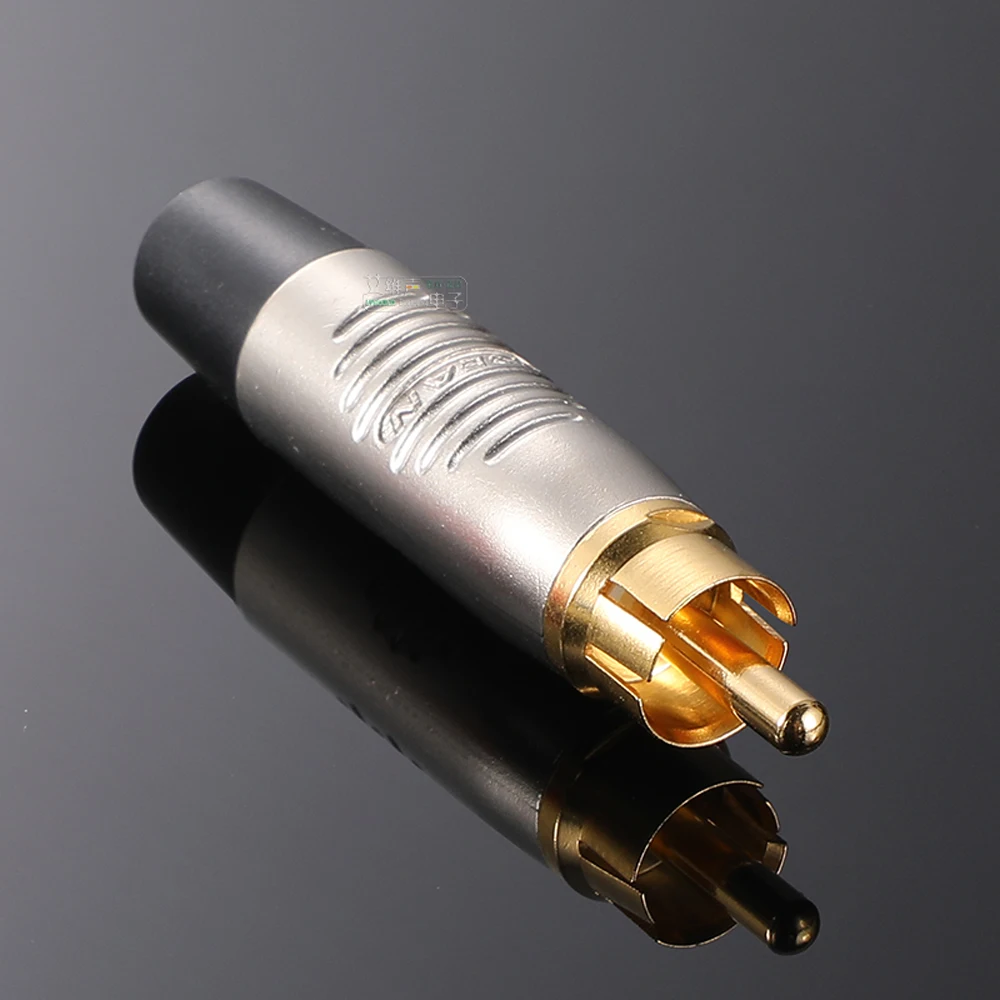

1lot only contains 1pcs plug(shipped according to the color you ordered), not a pair.
Technical Information
|
Product |
|
|
Model |
RF2C-AU |
|
Connection Type |
Phono ("RCA/Cinch") |
|
Electrical |
|
|
Contact Resistance |
≤10 mΩ |
|
Insulation Resistance |
>200 MΩ(Initial) |
|
Rated Voltage |
0.5 VAC |
|
Mechanical |
|
|
Insertion and Withdrawal Force |
5-40N |
|
Lifetime |
>5,000 Mating Cycles |
|
Cable O.D. |
4 - 6 mm |
|
Wiresize |
1.5 mm² / 16 AWG |
|
Material |
|
|
Bush ring |
ABS |
|
Chuck |
POM |
|
Ground Contact |
Bronze |
|
Boot |
PVC |
|
Housing |
Zinc |
|
Housing |
Brass |
|
Pin Body |
PA6+30%GF |
|
Housing |
Gold Plating |
|
Ground Contact |
Gold Plating |
|
Housing |
Nickel Plating |
