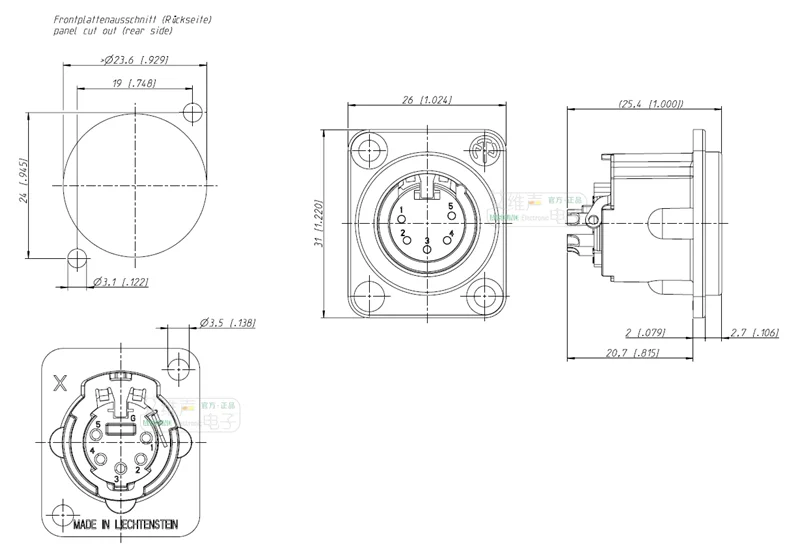

NC5MD-LX
5 pin female receptacle, solder cups, Nickel housing, silver contacts
The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.
Features & Benefits
-
All metal housing offers best overall RF protection and electromagnetic shielding
-
Duplex ground contact for excellent contact integrity between chassis and cable connector
-
Female contact incorporates a solder barrier to prevent solder running into the contact mating area;
-
Male connector's retention bar replaces plastic design with all metal version improving pull-out force
-
Larger solder contacts for easier termination
-
Optional connection to easily join pin1 to chassis ground
-
D-style housing provides installation compatibility with industry standard D mounting dimensions

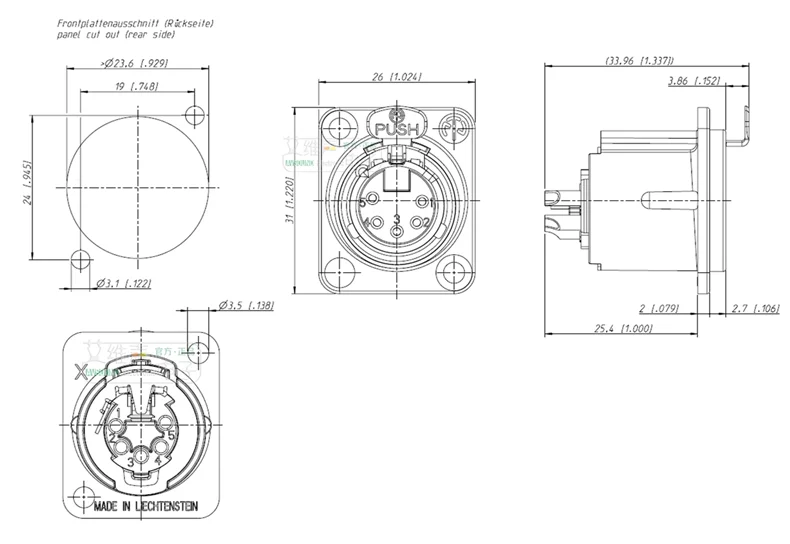

Technical Information
|
Product |
|
|
Title |
NC5FD-LX, NC5MD-LX |
|
Connection Type |
XLR |
|
Gender |
female, male |
|
Electrical |
|
|
Capacitance between contacts |
≤ 7 pF |
|
Contact resistance |
≤ 5 mΩ |
|
Dielectric strength |
1,5 kVdc |
|
Insulation resistance |
> 10 GΩ (initial) |
|
Rated current per contact |
7,5 A |
|
Rated voltage |
< 50 V |
|
Mechanical |
|
|
Insertion force |
≤ 20 N |
|
Withdrawal force |
≤ 20 N |
|
Lifetime |
> 1000 mating cycles |
|
Wiresize |
max. 1.0 mm² |
|
Wiresize |
max. 18 AWG |
|
Wiring |
Solder contacts |
|
Locking device |
Latch lock |
|
Chassis shape |
D |
|
Material |
|
|
Contact plating |
2 µm Ag over 2 µm Ni |
|
Contacts |
Brass (CuZn39Pb3) |
|
Insert |
PA66 |
|
Locking element |
Steel Ck67 |
|
Shell |
Zinc diecast (ZnAl4Cu1) |
|
Shell plating |
Nickel |
|
Environmental |
|
|
Flammability |
UL 94 V-0 |
|
Standard compliance |
IEC 61076-2-103 |
|
Protection class |
IP 40 |
|
Solderability |
Complies with IEC 68-2-20 |
|
Temperature range |
-30 °C to +80 °C |
