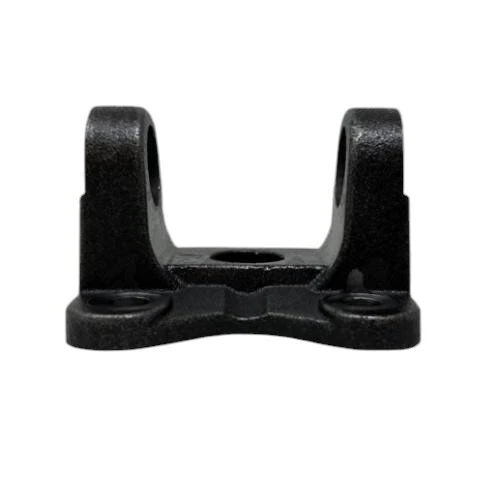

REAR DRIVESHAFT companion FLANGE / YOKE | 1330 SERIES
2005 - 2006 Jeep wrangler tj & lj unlimited
REAR DRIVESHAFT FLANGE / YOKE | 1330 SERIES | 2-2-1879
Part # FL-2-2-1879
Vehicle Fitment:
2005 - 2006 Jeep Wrangler TJ & LJ Unlimited
2006 - 2009 Mitsubishi Raider
2000 - 2003 Dodge Durango
2000 - 2010 Dodge Dakota
2011 - 2012 Ram Dakota
2000 - 2010 Dodge Ram 1500
2011 - 2012 Ram 1500
2000 - 2003 Dodge Ram 1500 Van
2000 - 2003 Dodge Ram 2500 Van
Vehicle Position:
Rear Driveshaft at differential
Description:
Replacement for OEM Mopar / Chrysler Part #'s 5015556AA, 05015556AA, 5143069AA, 05143069AA
Flange Bolt Pattern: 100mm or 3.938"
Flange Bolt Hole Size: .489"
Flange Bolt Holes: 4 evenly spaced in square bolt pattern
Center of U-Joint to Face: 49mm or 1.93"
Flange Pilot Diameter: 2.161" Female
U-Joint Cap Diameter: 26.9mm or 1.062"
Snap Ring Groove to Snap Ring Groove: 92mm or 3.625"
Outside Yoke Dimension: 98mm or 3.875"
U-Joint Style: Outside Snap Ring (OSR) U-Joint Series: 1330
