⭐⭐⭐⭐⭐ Conrods H Beam Connecting Rods For Renault Clio Williams RS F7R ARP 2000



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

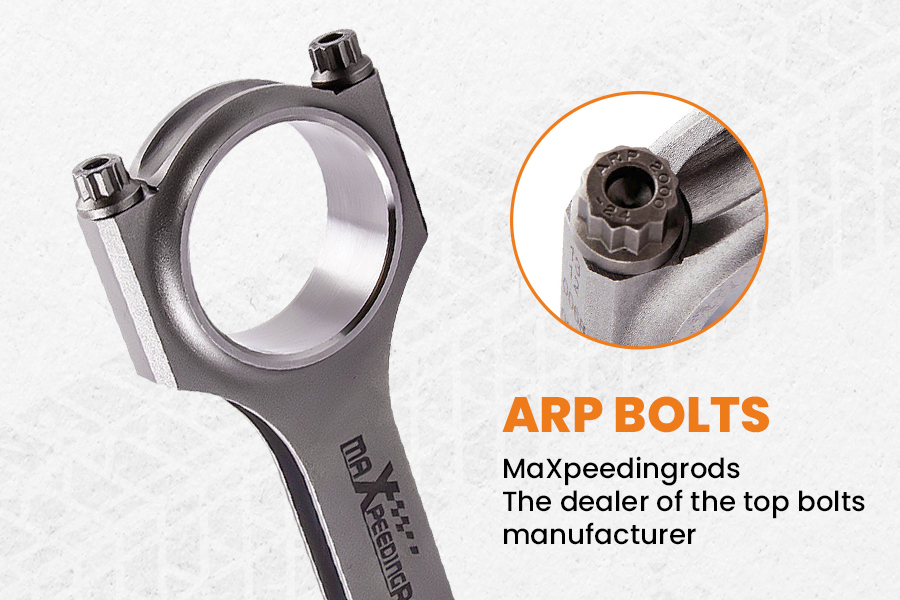

ARP Bolts



The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED

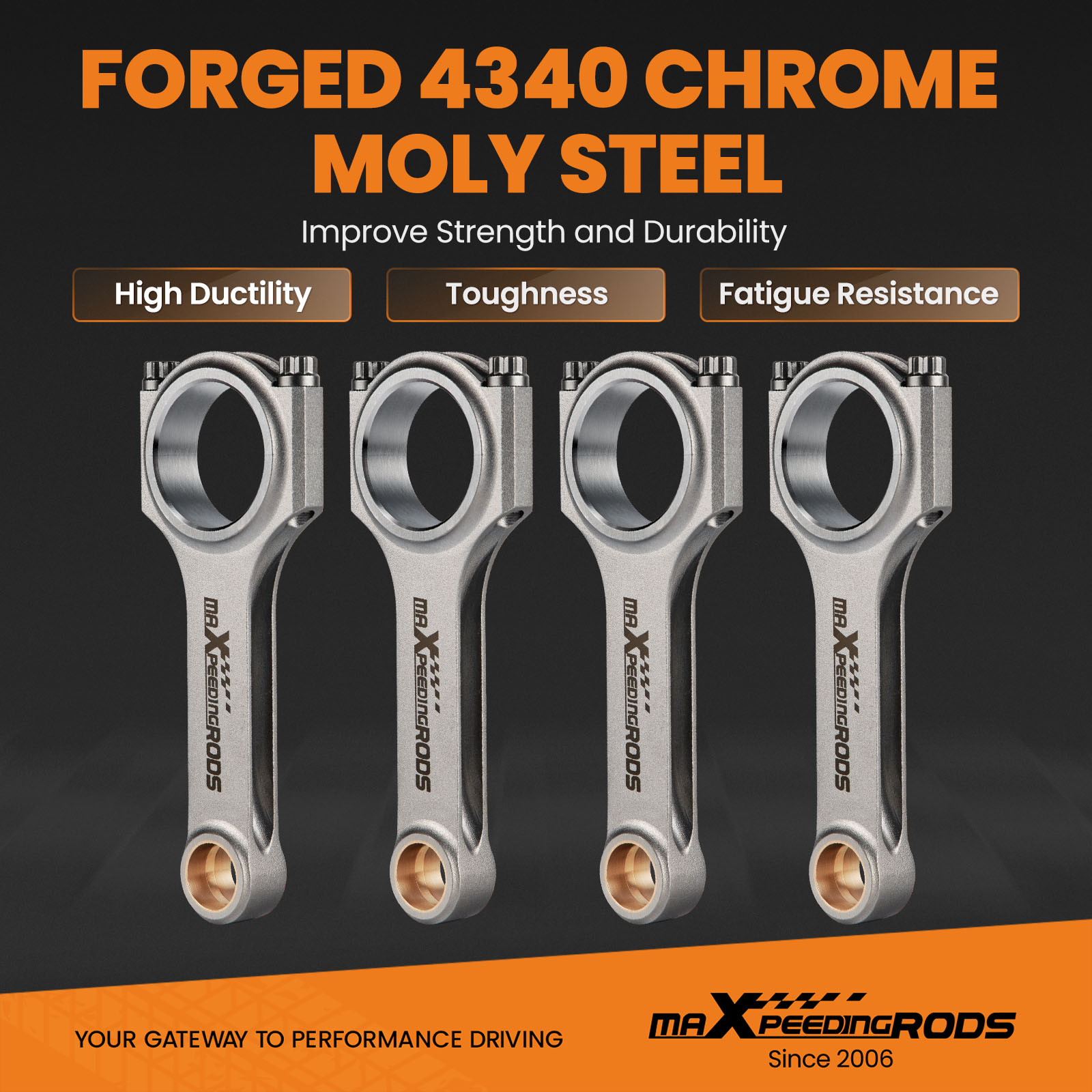

Forged 4340 Steel

Forged 4340 Steel

Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.

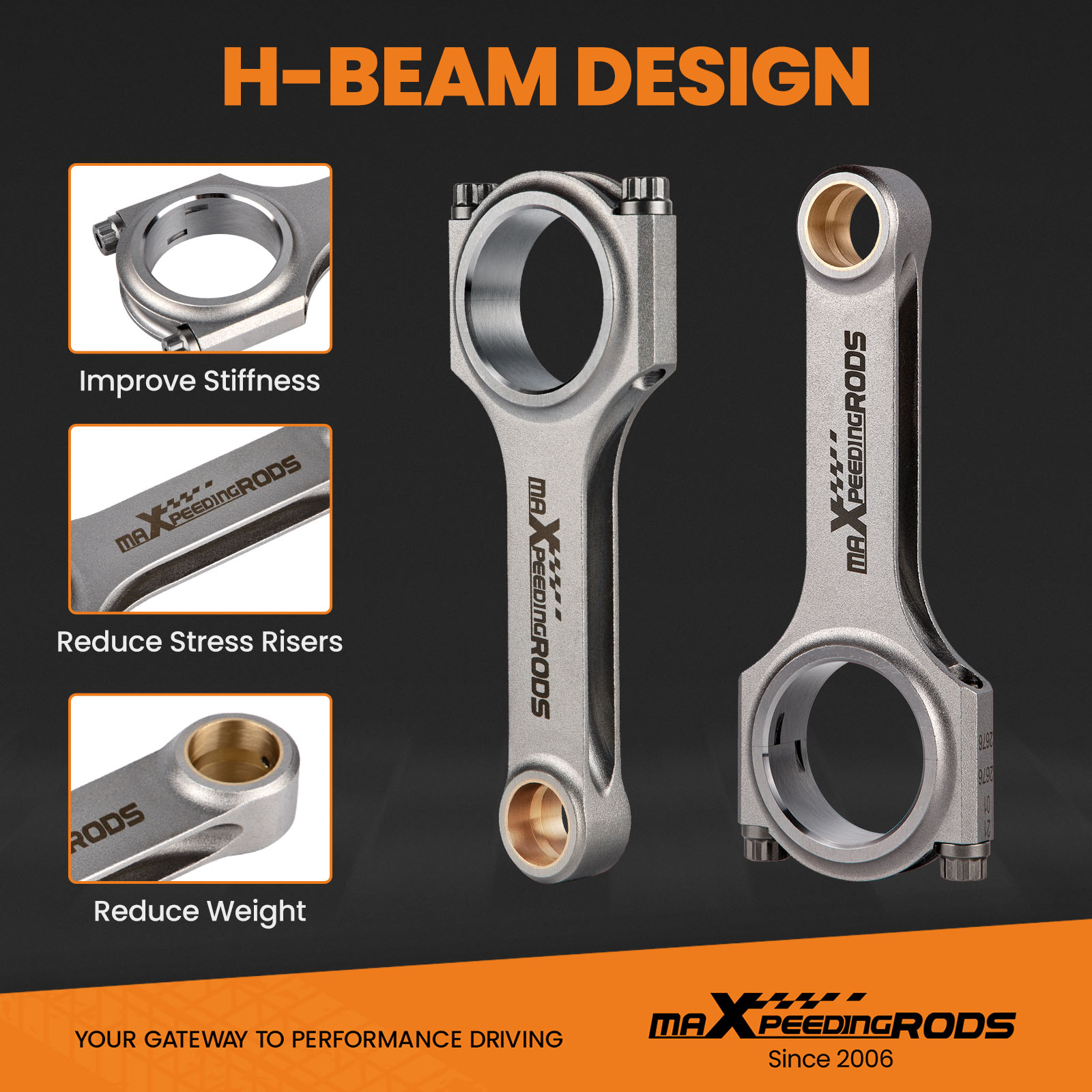

H-Beam Design

H-Beam Design

H-Beam helps improve stiffness, reduce stress risers and weight.

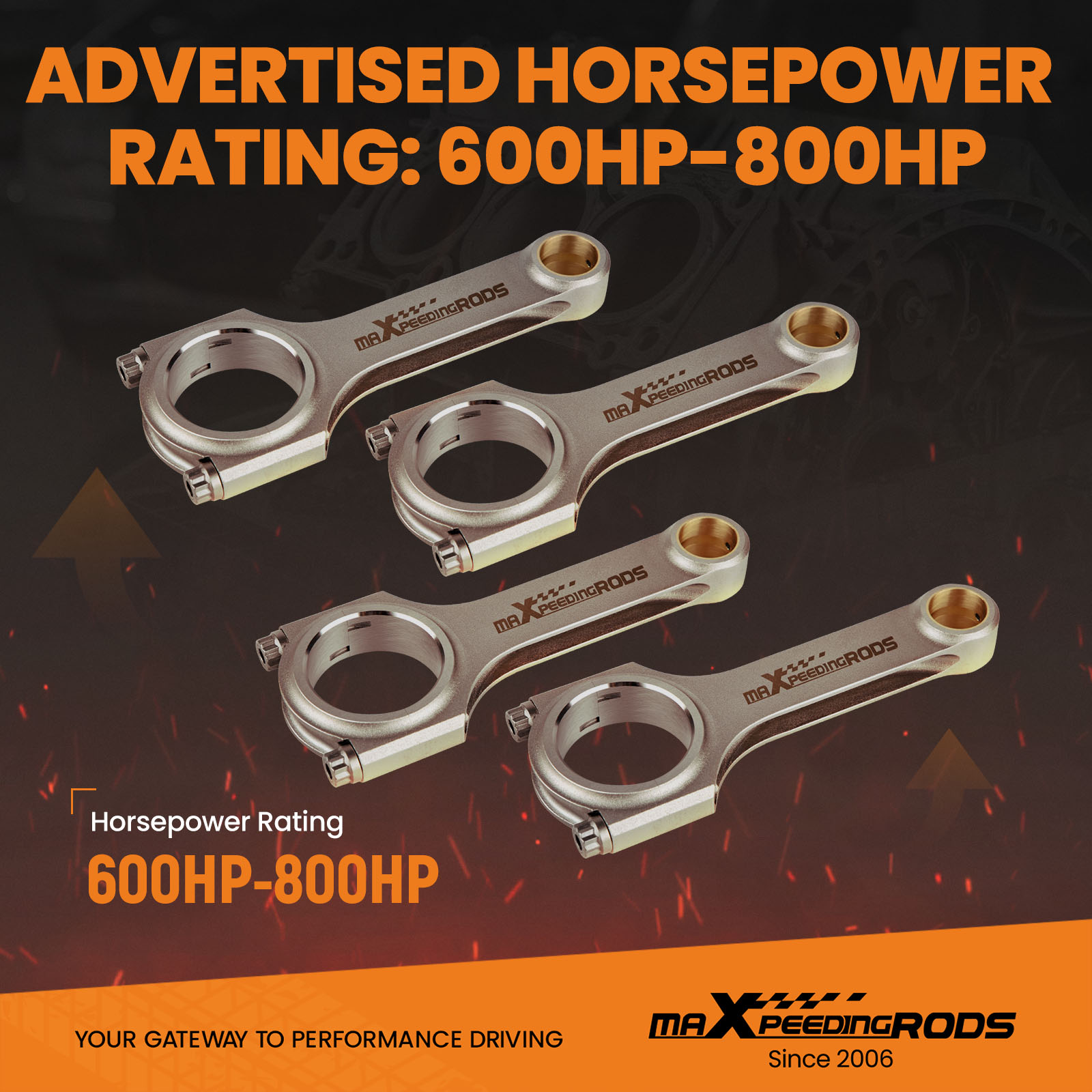

Horsepower Rating

Horsepower Rating

Advertised horsepower rating: 600HP-800HP.

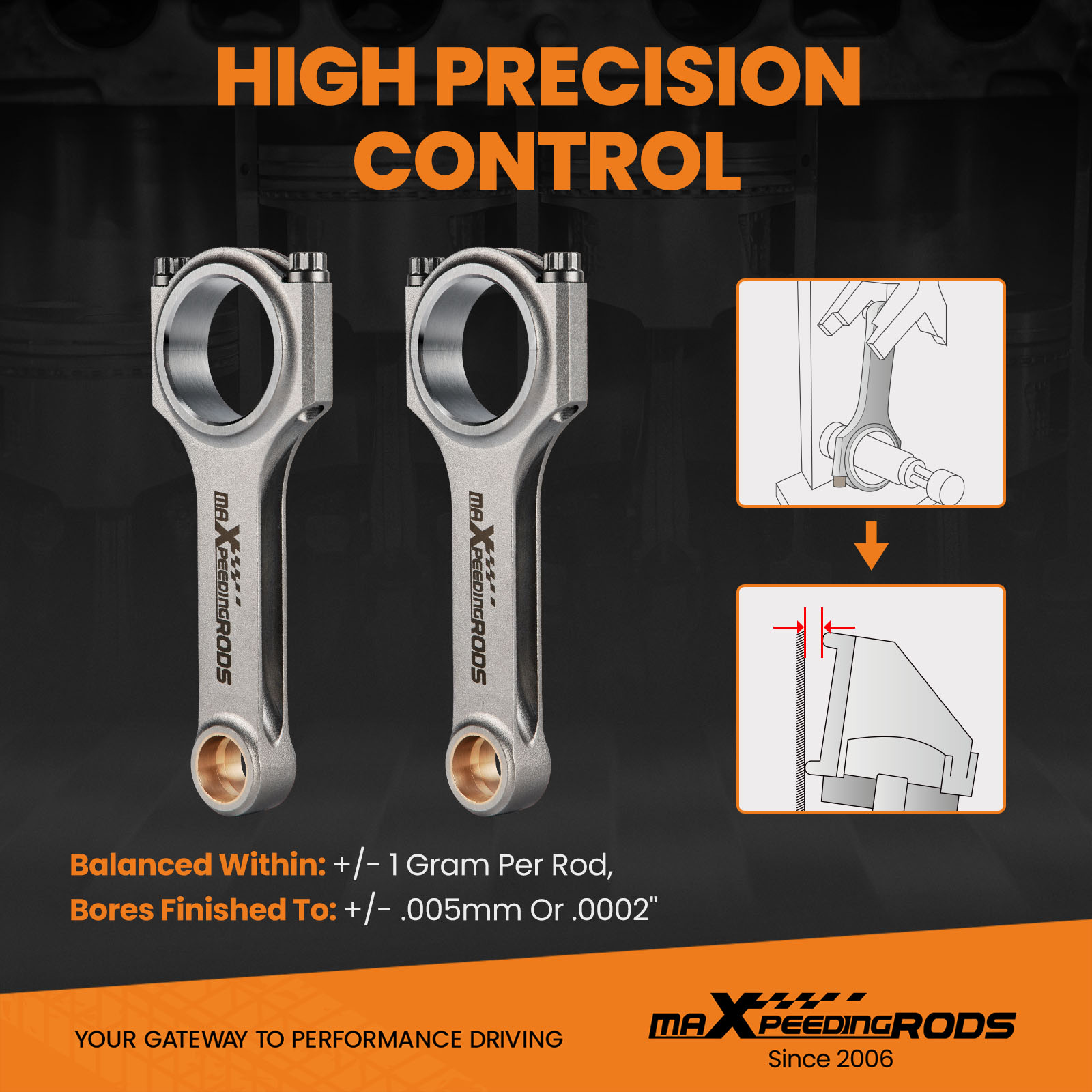

High Precision Control

High Precision Control

Balanced within:+/- 1 gram per rod,

Bores finished to:+/- .005mm or .0002".

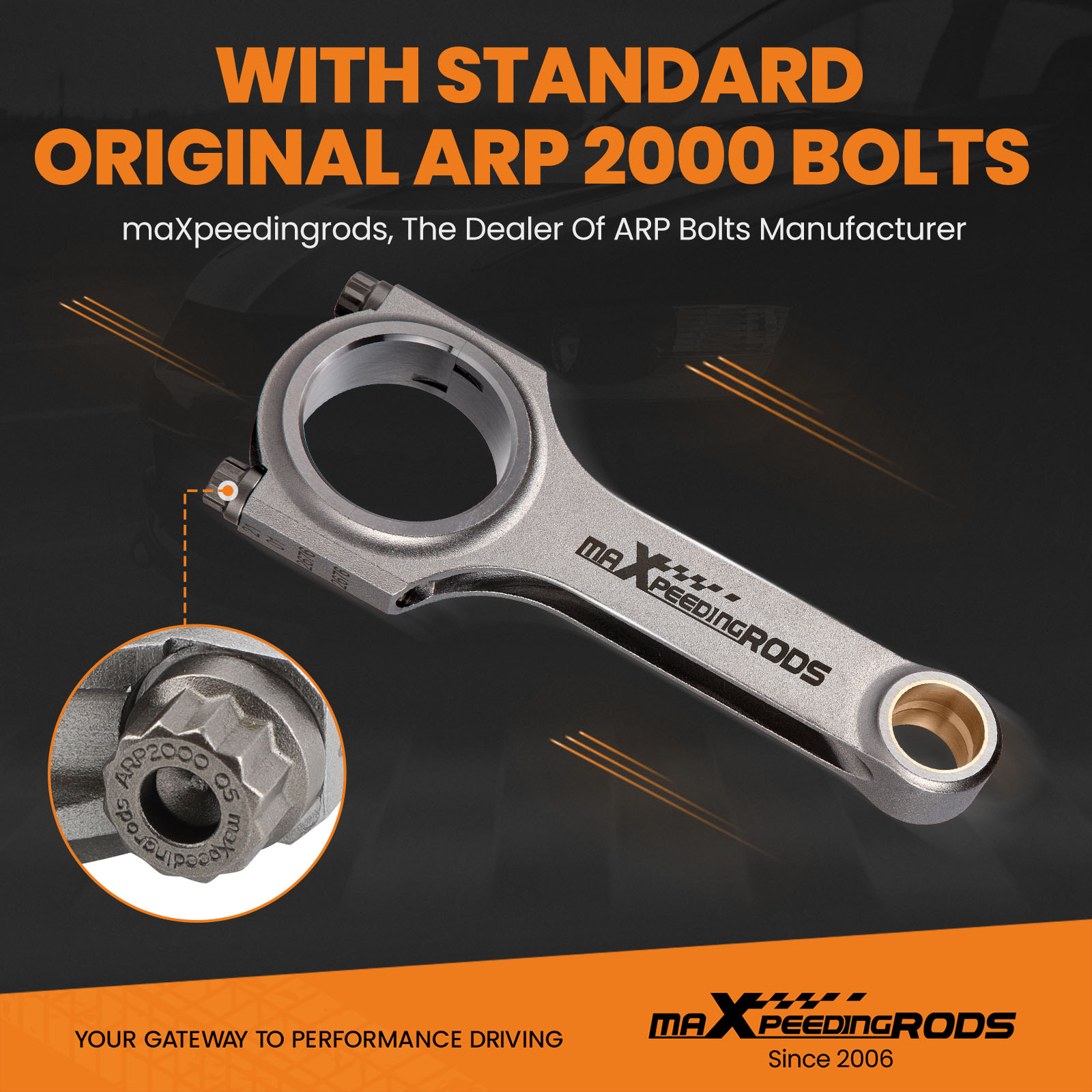

ARP 2000 Bolts

ARP 2000 Bolts

With Standard Original ARP 2000 Bolts.

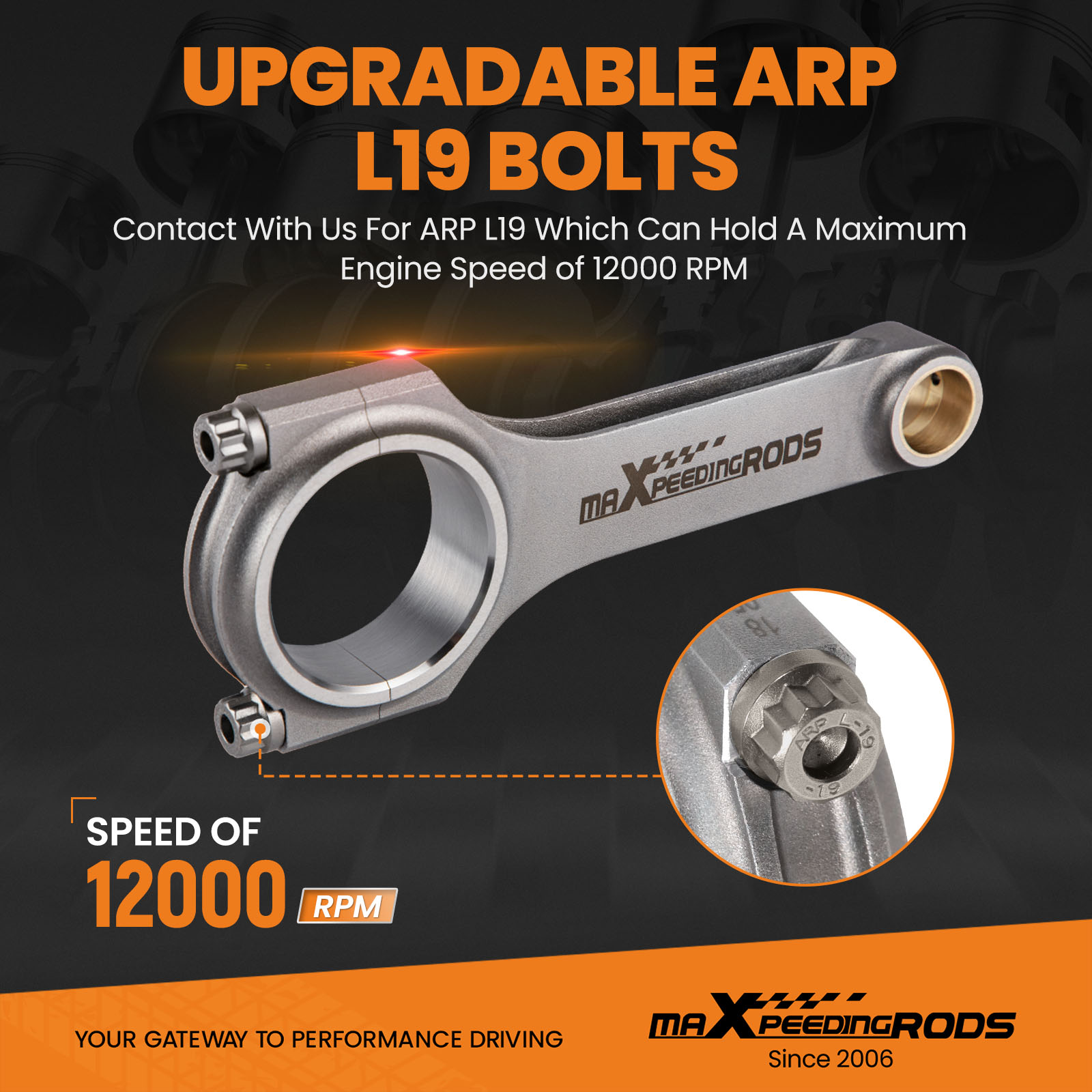

Upgradable ARP L19 Bolts

Upgradable ARP L19 Bolts

Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.









Application

For Renault F7R / F4R 2.0L 16V DOHC Engines

For Renault Clio Williams RS / Clio Sport 172–182 / Megane / Scenic / Laguna

Dimension


Connecting Rod Length Centre to Centre 144.00mm / 5.669in
Approximate Single Rod Weight 584g
Big End Bore Diameter 51.60mm / 2.031in
Small End Wrist Pin Bore Diameter 21.00mm / 0.827in
Big End Width 25.00mm / 0.984in
Small End Width 25.00mm / 0.984in

Specifications

- Beam Style: H-beam design for road and track use

- Material: High-grade 4340 Chromoly Steel

- Surface Finish: Shot-peened to relieve internal stress and improve fatigue resistance

- Wrist Pin Fitment: Floating

- Machined clearance compatible with stroker crank kits: Yes

- Rod Cap Fastening: Through-bolt construction for superior clamping strength

- Connecting Rod Bolt Brand: ARP

- Bolt Diameter: 3/8"

- Bolt Material: High-strength Alloy Steel

- Standard Fastener Yield Strength: 220,000 psi (ARP 2000 Series)

- Optional Upgraded Fasteners: ARP L19 (260,000 psi)

- Bolt Head Format: 12-point

- Machining: High Precision CNC Machined

- Rod Cap Positioning: Precision alignment dowels for accurate fitting

- Bore Machining Tolerance: ±0.005 mm

- Balancing Tolerance: ±1 gram per individual rod

- Fully Weight Matched Complete Set: Yes

- Condition: Brand New, Non-Remanufactured

- Quality Control Tests: Magnaflux crack detection, X-ray inspection, ultrasonic material testing

- Manufacturing Process: Fully heat treated for enhanced structural durability

Performance Ratings

- Rated Horsepower Per Rod: 200HP

- Safe Maximum Operating RPM: 9,000rpm

Packaging

- Quantity Supplied: Complete set of 4 connecting rods

- Outer Package Dimensions: 28CM × 20CM × 10CM
